Со светодиодными экранами, освещением, звуком и сценой для наружного события, мобильный тележка

Share on (1600385146387):


Price:26 000,00 $ - 26 800,00 $

Quantity:


Product Overview

Description

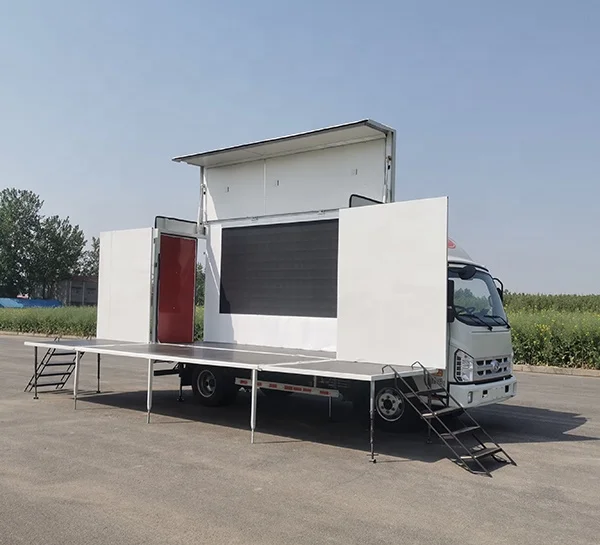

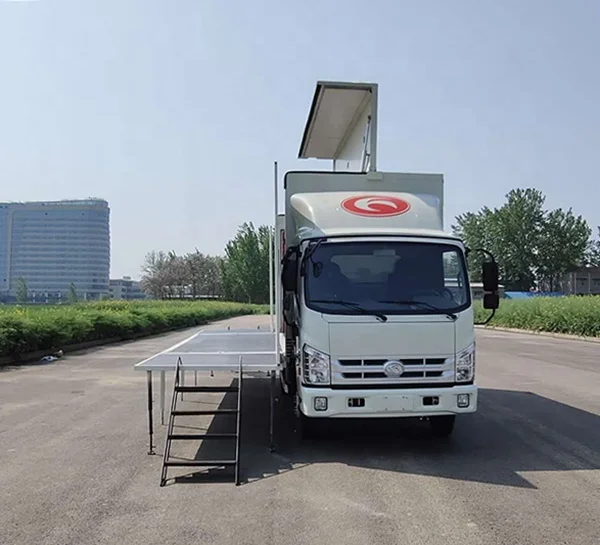

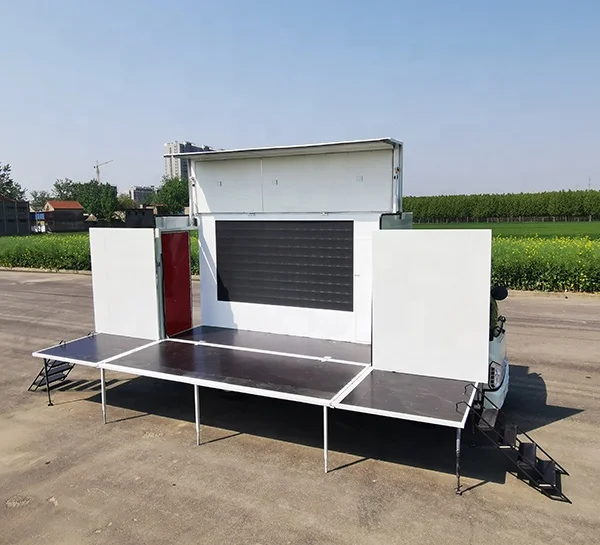

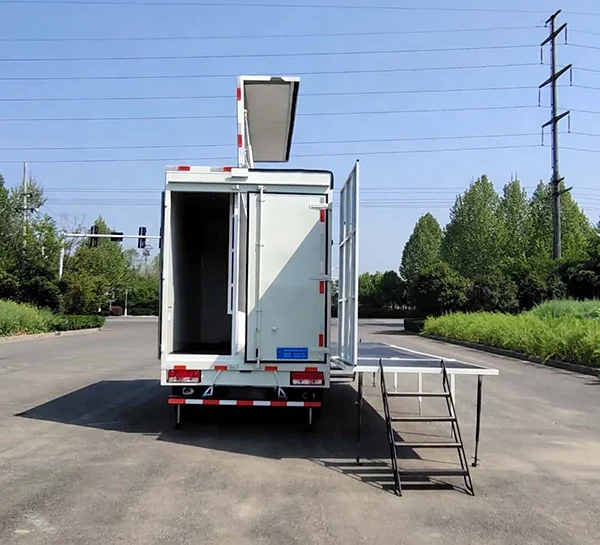

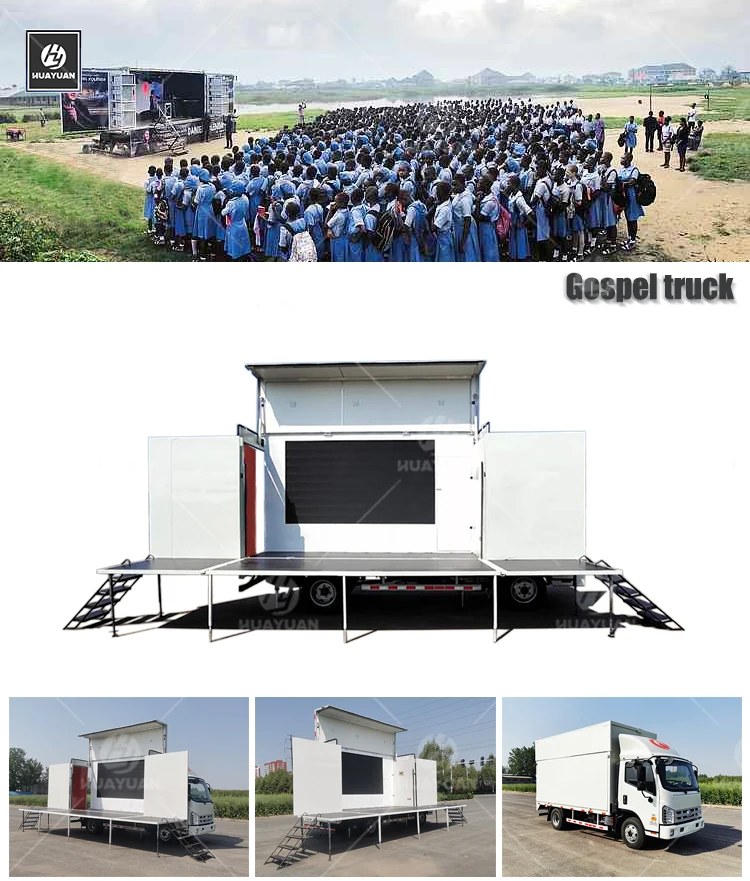

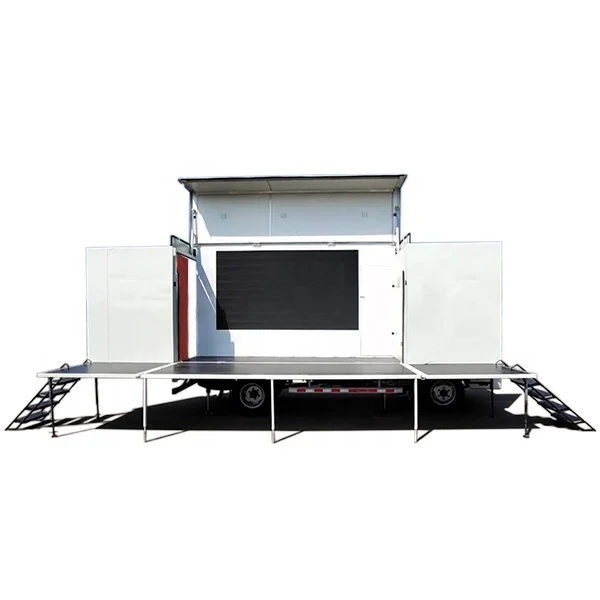

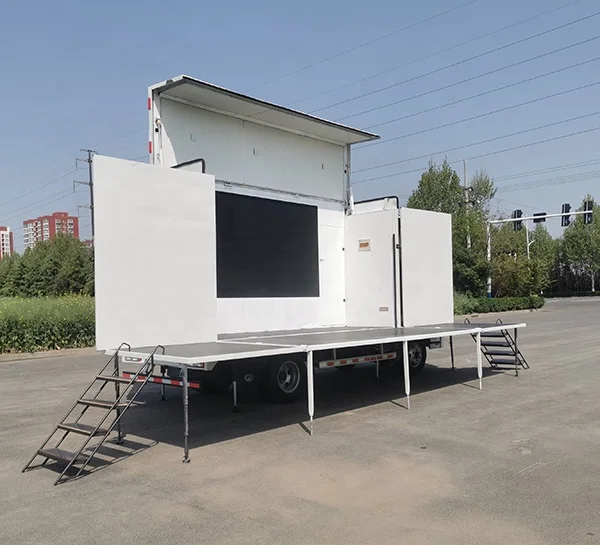

Mobile Gospel truck



Product display











































































































































 STRUCTURAL PARAMETERS OF WHOLE VEHICLE
 Product name

 Mobile Gospel


 truck


 Model       HY-T135-1 Brand     HUAYUAN

 Overall


 dimension(mm)


 5995×2150×2950 Total mass(kg)  16000

 Curb


 weight(tons)


 4250
Exterior plate material

 Honeycomb


 composite board


 stage area

 20 Square


 meters



 Floor materials



 Composite wood


 floor


Mesa height(mm)  1050 floor loading

 395Kg/Square


 meters



 framework


 material


 steel structure
CHASSIS PARAMETERS
 Brand   Fukuda Chassis models BJ5049XXC-AB Fuel     diesel
 Engine brand    YUCHAI   Engine type 4J28TC Power (kw)    81

 Displacement


 (ml)


 2771 Tire size 6.50-16LT

 Emission


 standards


 Ⅱ,Ⅲ,
 LED SCREEN PARAMETERS
 Specifications P4 P5 P6 P8 P10
 Size (mm)    3520×1760 3520×1760 3456×1728 3520×1760 3520×1760
 Area (sqm)       6.2 6.2 5.98 6.2 6.2

 Module


 specification (mm)


 320*160 320*160 192*192 320*160 320*160

 Screen


 brightness(cd/m2)


 ≥6000 ≥6000 ≥5000 ≥5000 ≥5000

 Working


 voltage(V)


 5 5 5 5 5
 Refresh rate(Hz)  ≥1920  ≥1920  ≥1920  ≥1920  ≥1920
 Service life(hours)  ≥50000  ≥50000  ≥50000   ≥50000  ≥50000







Product details







HUAYUAN has met many friends from different countries through mobile stage trucks. Most of the friends are from churches and Christian believers. In order to let more people listen to the spirit and voice of Jesus, they find us to build mobile Gospel trucks for their preaching.





Hy-135-1 Gospel truck is very easy to operate. With the hydraulic system, it takes only 10 minutes to set up the stage. The 15-20 square stage is perfect for a small outdoor Gospel event where you can praise God's greatness and salvation.





The structure and frame of Gospel truck are made of high quality steel of international standard, and the structure is very firm. You can set up church and Gospel messages on the top and sides of the stage to emphasize the sermon, so that more people can see and hear, and thus get the salvation of the soul.

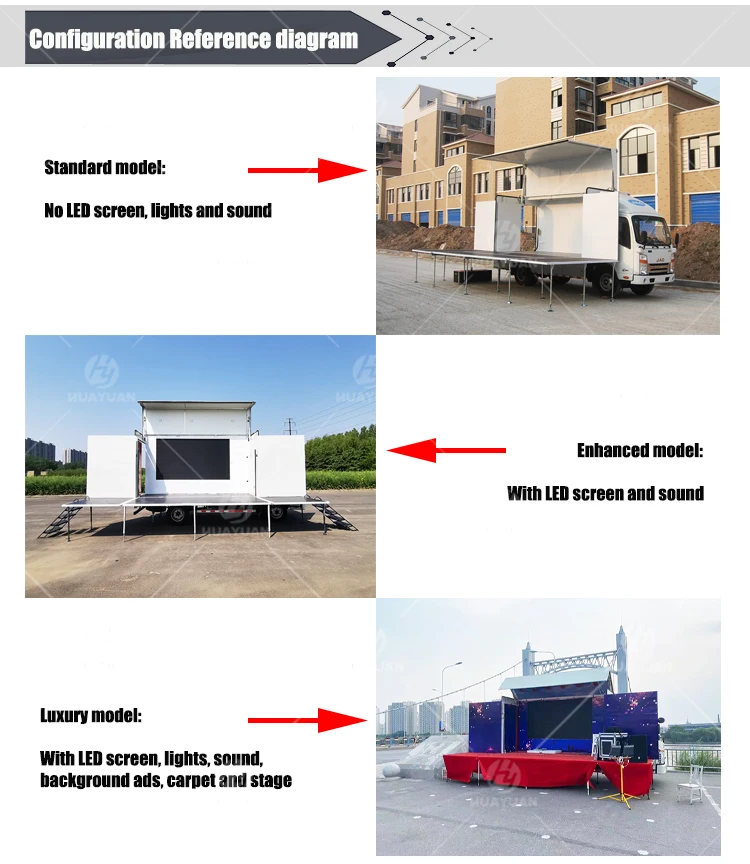

The gospel truck can also be equipped with LED screen, light and sound to make the on-site activities of preaching more active and raise your gospel preaching to a new height. It only needs a generator to provide more than 24 hours of continuous power supply for your outdoor Gospel activities, wherever you want to go.


Gospel-truck-3








Product Case & Appli

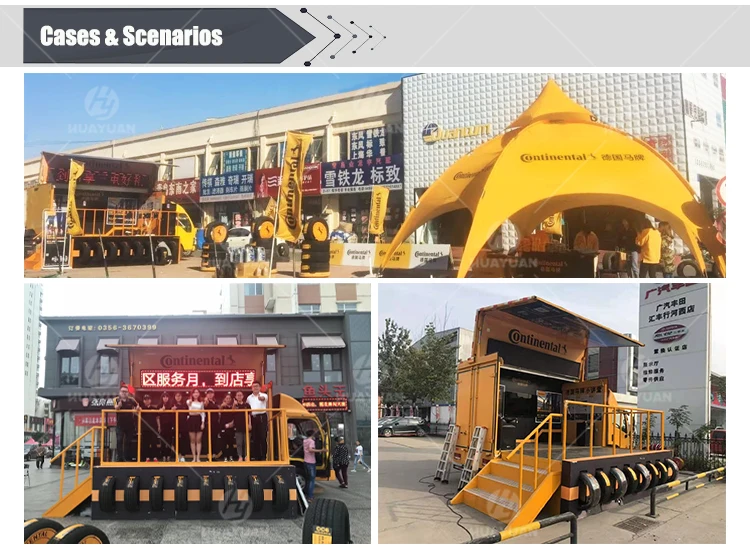

Mini mobile stage truck is customized for Continental brand promotion. The color, advertisement and decoration of the truck are designed by professional advertising companies for the brand concept and current promotion activities. HUAYUAN mobile stage truck contributes to the success of this nationwide promotion tour.

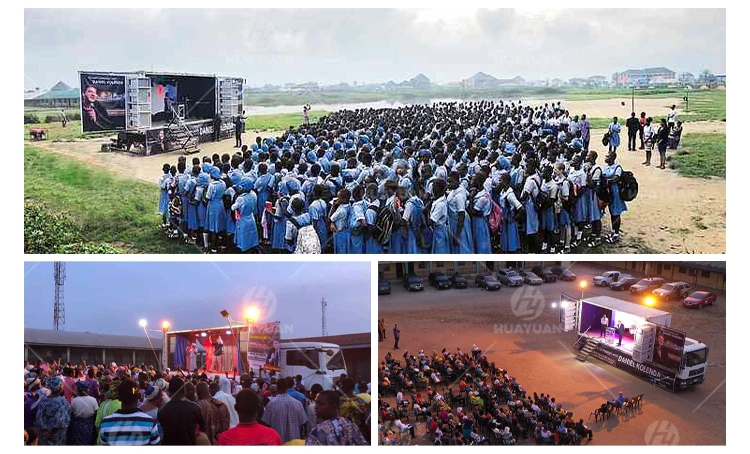

CFAN Gospel Trucks are very influential in Africa and they have a very strong team that uses Gospel trucks to evangelize in Africa. We HUAYUAN mobile Stage very admire their spirit, to their example and strive for this.





Our Services


Our services


1. Guarantee the whole car for one year.
2. The professional technical team will provide you and your end users with the services of various product problems.
3. Strong r&d team to meet customer needs.: style, color, steering wheel position, etc.
4. Show your order flow from time to time via photos, video, what-app, or email.
5. Tailor solutions and marketing plans to your local market to expand it.8.

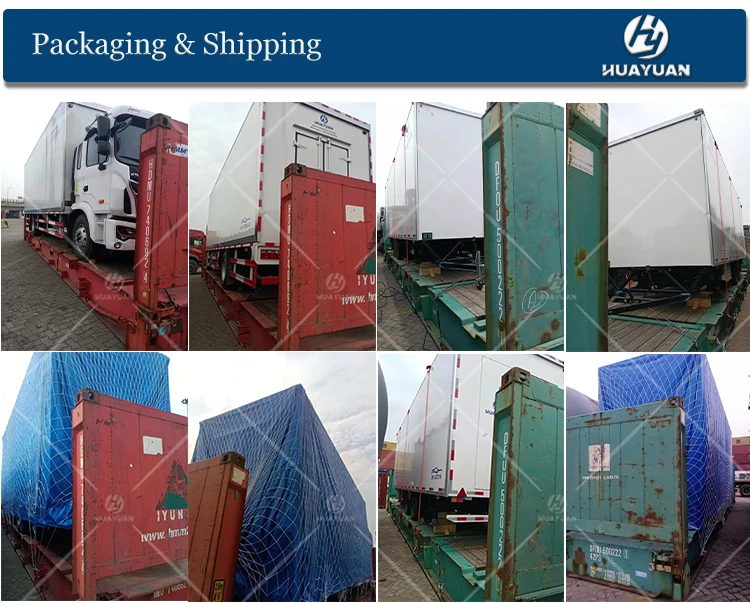

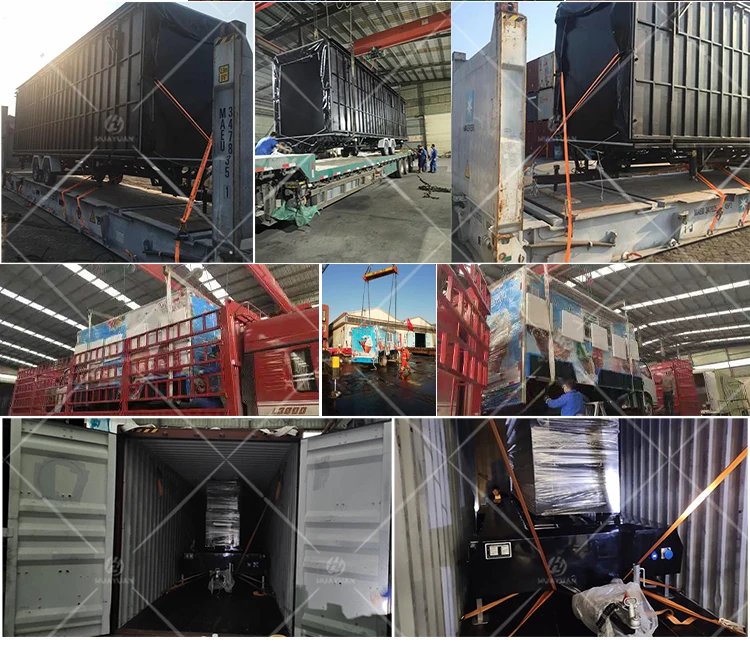

Packaging & Shipping







1. Shipping term:According to different types of products, we recommend bulk cargo,              container, frame, roll-on and so on.

2. Delivery time:       30-45 Working days.

3. Terms of delivey:  EXW,FOB,CFR,CIF etc.




FAQ


1. Methods of Payment:
T/T (Telegraphic Transfer) or Western Union or L/C at sight
2.MOQ:
No requirement for testing and trial order
3. Handling time for an order:
Within 10 days supplied from stock
4. Shipping way:
Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air
Bulk order: we suggest by air or by sea.
5. Quality Control:
We have our own experienced QC.
There will be strict inspection and testing for every order before shipping out.
6. After Services:
a. Our sales team will response for your question within 24 hours (Holidays Excluded)
b. Technical Support will be available in any time
c. Free replacement will provide once the failure confirmed caused by our product quality.





Contact us


 Dear customer,

Thank you for viewing all my products.

I am Alice, Sales Engineer of Henan CIMC Huayuan Vehicle Co., Ltd.
The picture below is my contact information.
With more than 4 years of work experience in the mobile stage vehicle industry, I will help you solve many professional problems immediately and provide you with the most suitable product suggestions! When you communicate, you will find that I am very sincere and enthusiastic, and I will reply you as soon as possible.

Please don't hesitate to contact me. I will always stand by your side to help and think, which will make you feel free. We sincerely welcome you to our factory!

I will be your best partner!
