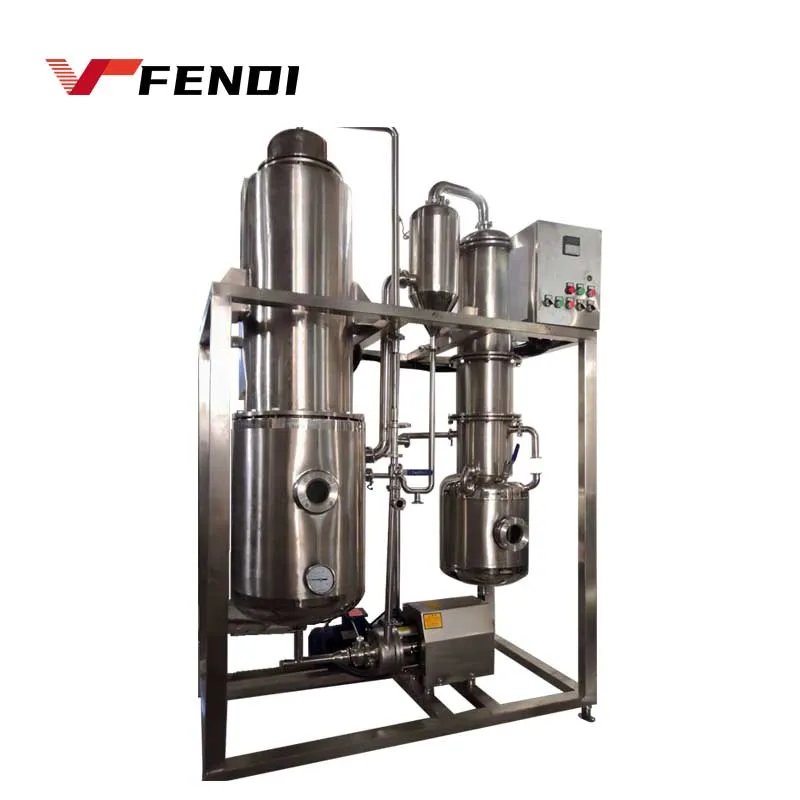

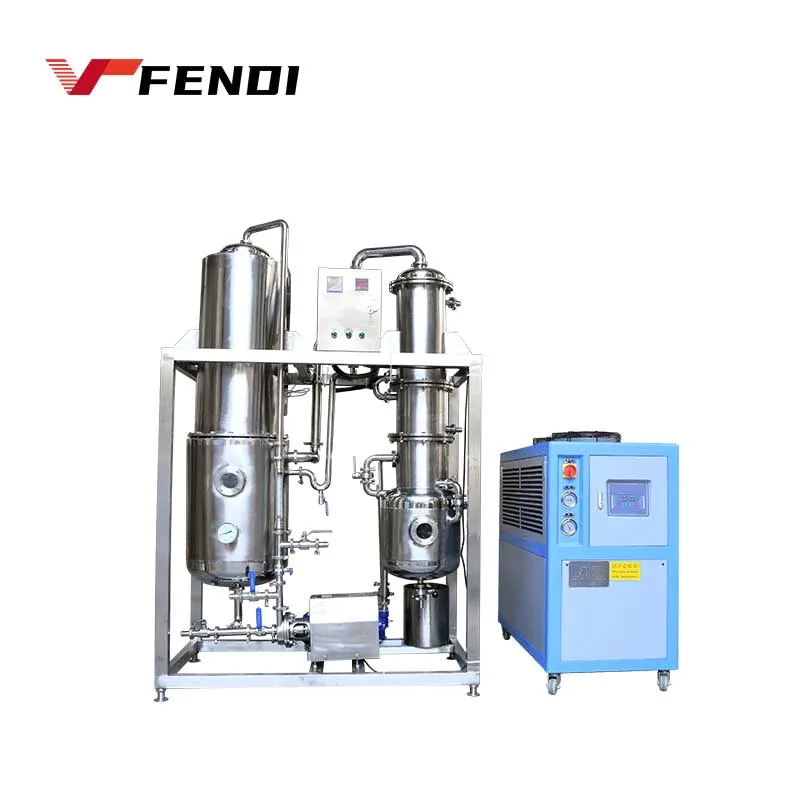

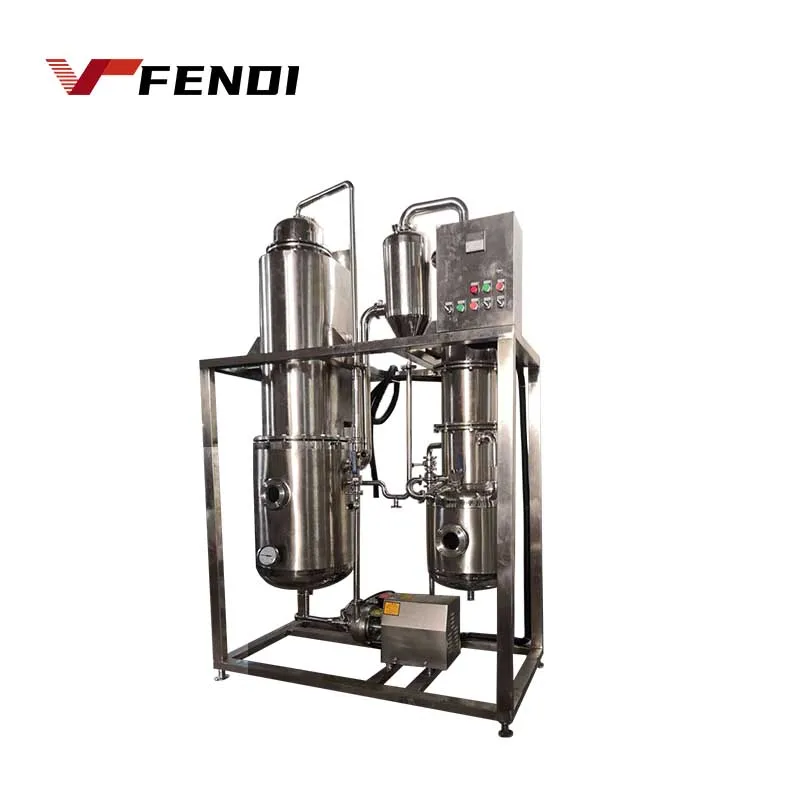

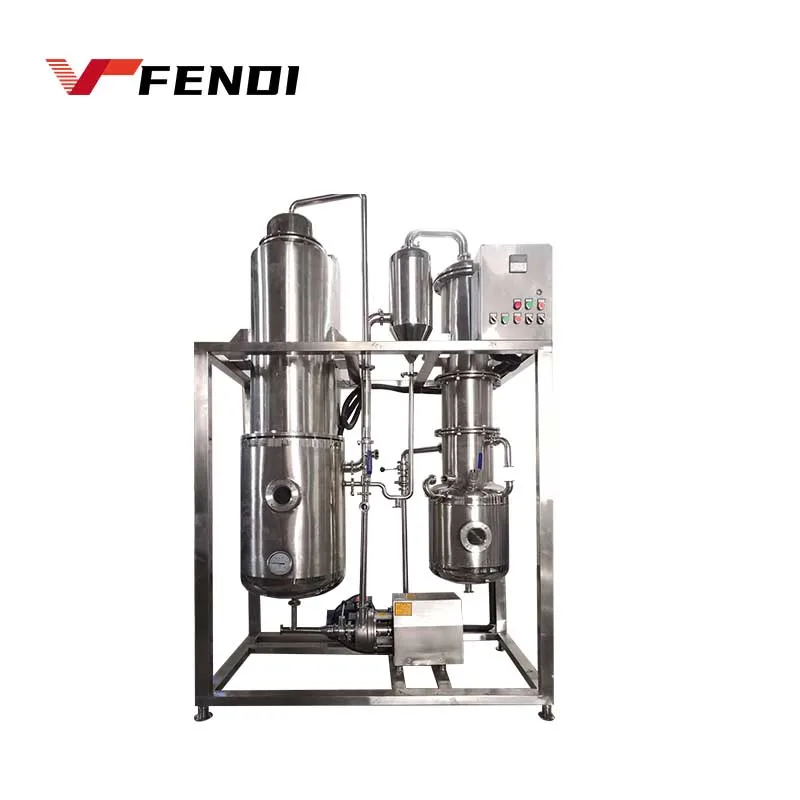

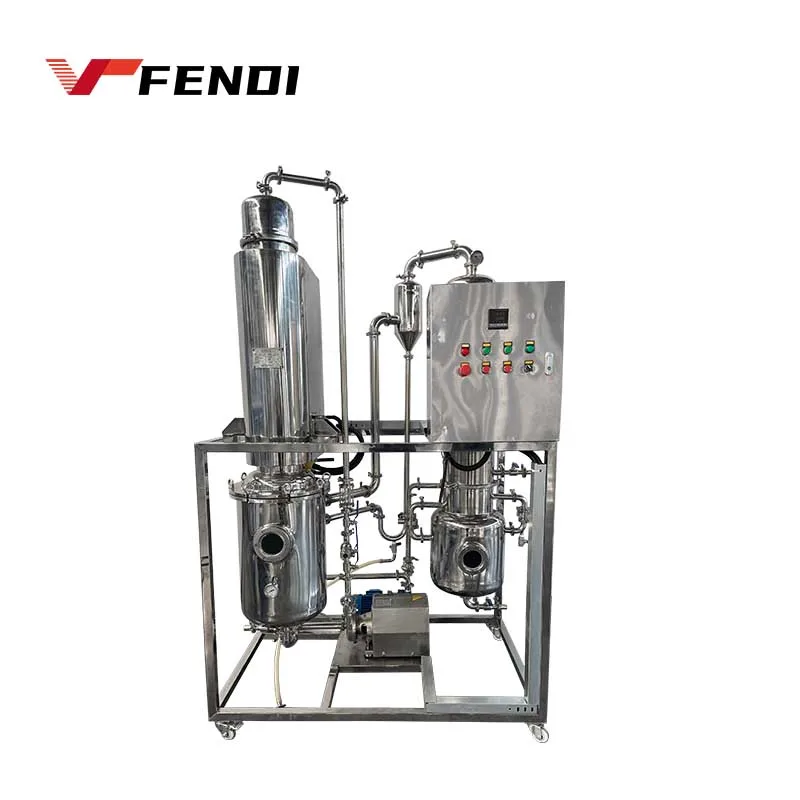

50l/h 5000l high efficient multiple multi effect lab scale climbing and vacuum oil falling film evaporator concentrator

Product Overview

Description

multi effect alcohol stage thin hemp oil ethanol rotary distillation falling film vacuum evaporator equipment for sale

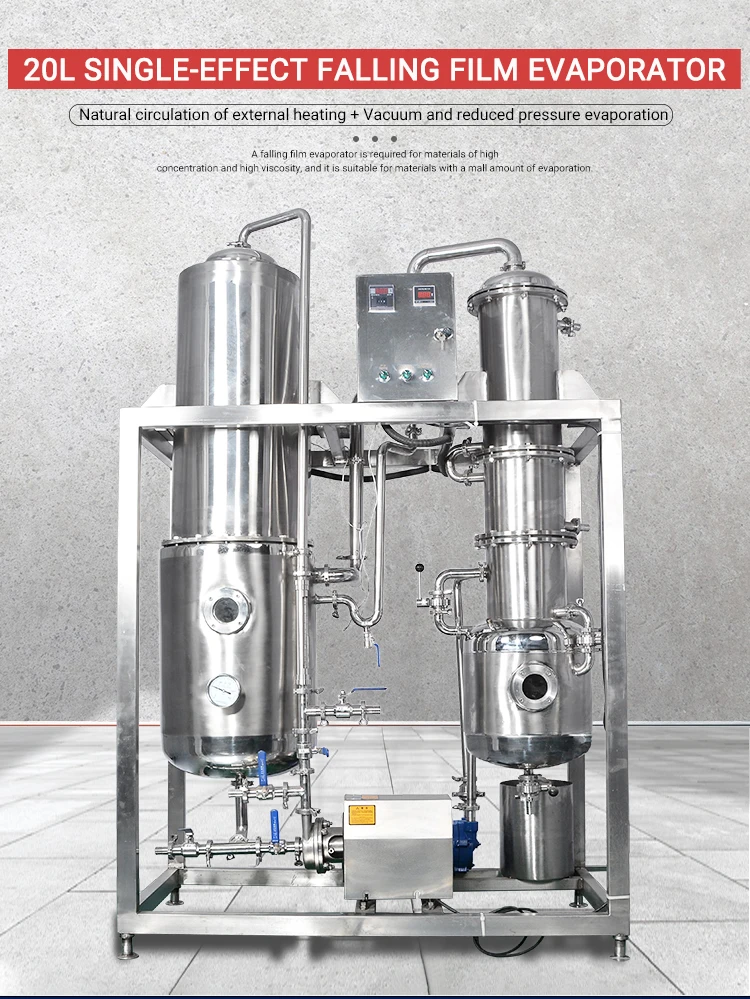

A single-effect falling film evaporator can be used to evaporate extract liquid under reduced pressure or vacuum condition so that ethanol and liquid material can be separated, condensed and recycled. The single-effect falling film evaporator used for evaporating ethanol solution is different from the one used for evaporating general aqueous solution. The ethanol has a relatively low boiling point, which is volatile. It’s easy to evaporate ethanol solution under reduced pressure or vacuum condition. So it’s relatively difficult to condense and recycle ethanol steam with a smaller evaporation area. Thus the heat exchange area of the condenser is larger. To obtain a better cooling effect, the two-stage or several-stage method is frequently used for cooling and recycling, which also varies from the evaporation of general aqueous solution.

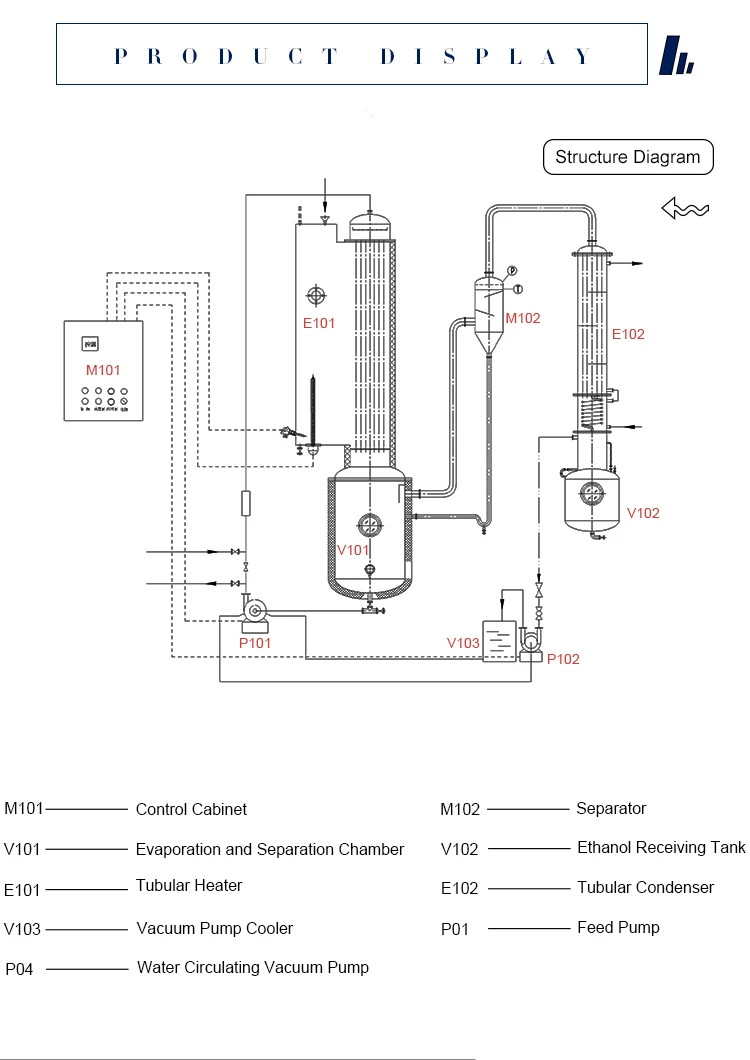

M101 —— Control Cabinet                                             M102 —— Separator

V101 —— Evaporation and Separation Chamber           V102 —— Ethanol Receiving Tank

E101 —— Tubular Heater                                                E102 —— Tubular Condenser

V103 —— Vacuum Pump Cooler                                     P01 —— Feed Pump

P04 —— Water Circulating Vacuum Pump

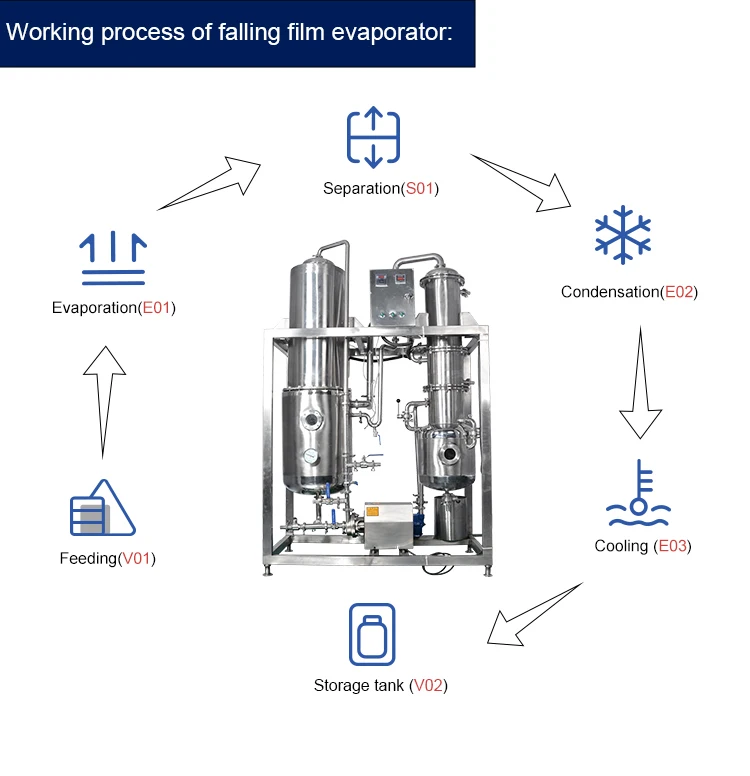

Working Process of Falling Film Evaporator:

Evaporation (E101) —— Separation (M102) —— Condensation (E102) —— Storage Tank (V102)

Product Model	FFE-20
Evaporation Rate (L/H)	20
Heating Area (spuare meter)	1
Condensing Area (square meter)	2+0.5
Vacuum Degree (Mpa)	-0.095
Heating Power (KW)	15
Feed Pump (KW)	0.75
Water Circulating Vacuum Pump (KW)	0.75
Power Supply	220V/60Hz Three Phase, other can be customized.

The liquid material is distributed evenly into each falling film tube by distributors and flows downward along the tube wall in the form of liquid film. The liquid material is evaporated during the process of flowing downward under actions of gravity and secondary steam flow. The liquid material and secondary steam are separated basically after reaching the lower part of falling film tubes and separated completely after reaching the separation chamber.

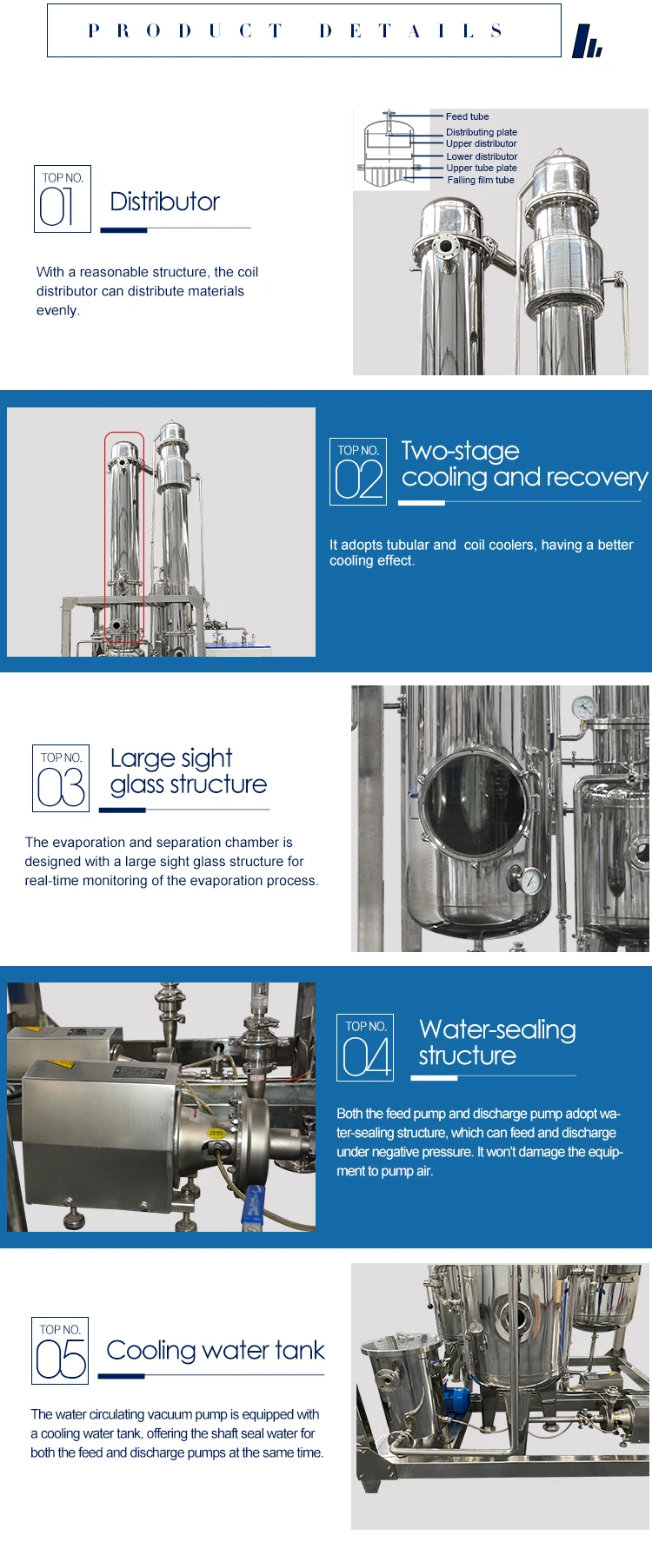

1.Distributor:With a reasonable structure, the coill distributor can distribute materials evenly.

2.Two-stagecooling and recovery:It adopts tubular and coil coolers, having a bette cooling effect.

3.Large sight glass structure:The evaporation and separation chamber is designed with a large sight glass structure for eal-time monitoring of the evaporation process.

4.Water-sealing structure:Both the feed pump and discharge pump adopt water-sealing structure, which can feed and discharge under negative pressure. It won't damage the equipment to pump air

5.Cooling water tank:The water circulating vacuum pump is equipped with a cooling water tank, offering the shaft seal water for both the feed and discharge pumps at the same time.

 A single-effect falling film evaporator is widely used in food, dairy, chemical, pharmaceutical, biological engineering, environmental engineering and deep processing of corn. For example, it is applicable for the evaporation and concentration of aqueous solution, organic solvent solution, fruit and vegetable juice, milk, egg product, vitamin C, collagen, infusion of tea, sodium glutamate and other liquid materials. It is especially suitable for the evaporation and concentration of heat-sensitive materials, because the beneficial elements can be protected to the greatest extent during the heating and evaporation of materials.
