Wastewater evaporators price
US $7800
Цена по прейскуранту завода WTRE 50 двойной конденсатор 20л 50л литров вакуумный роторный испаритель для промышленного извлечения
- Category: Evaporator >>>
- Supplier: Hangzhou West Tune Trading Co. Ltd.
Share on (62106583261):
Product Overview
Description
Product Description

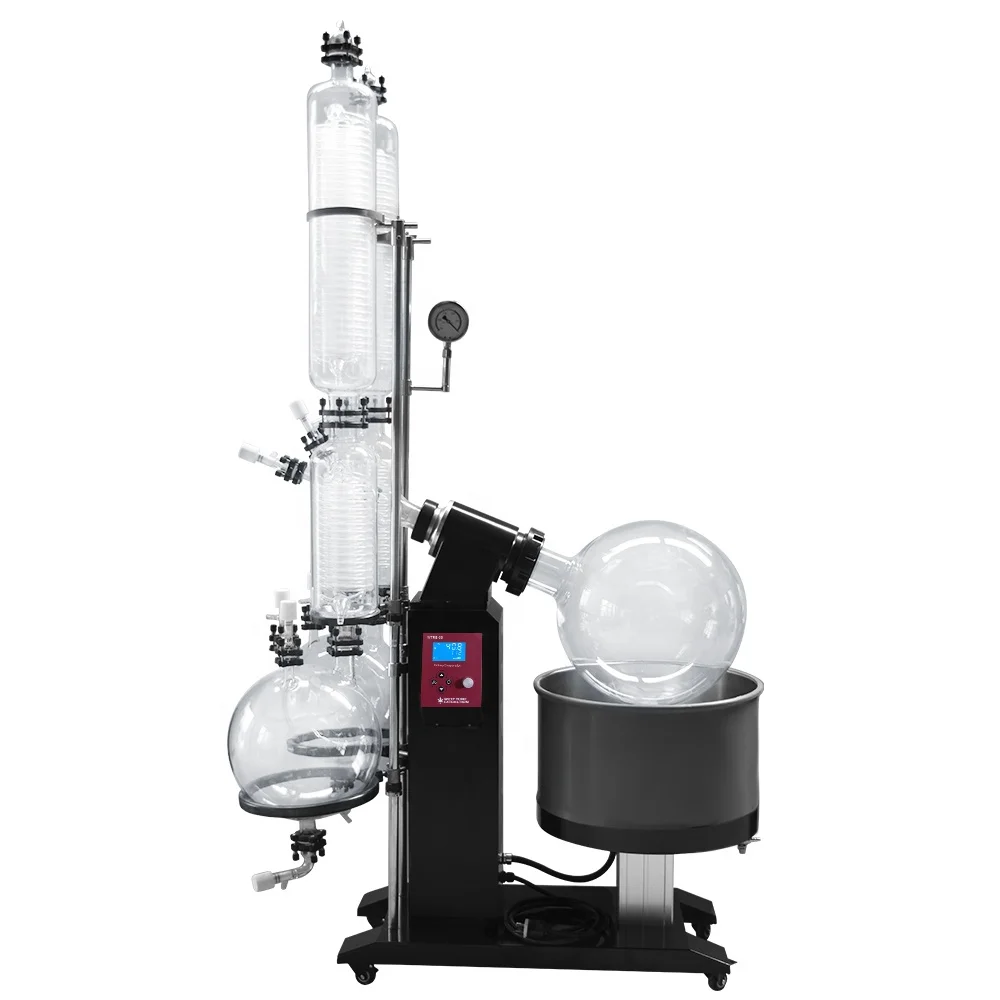

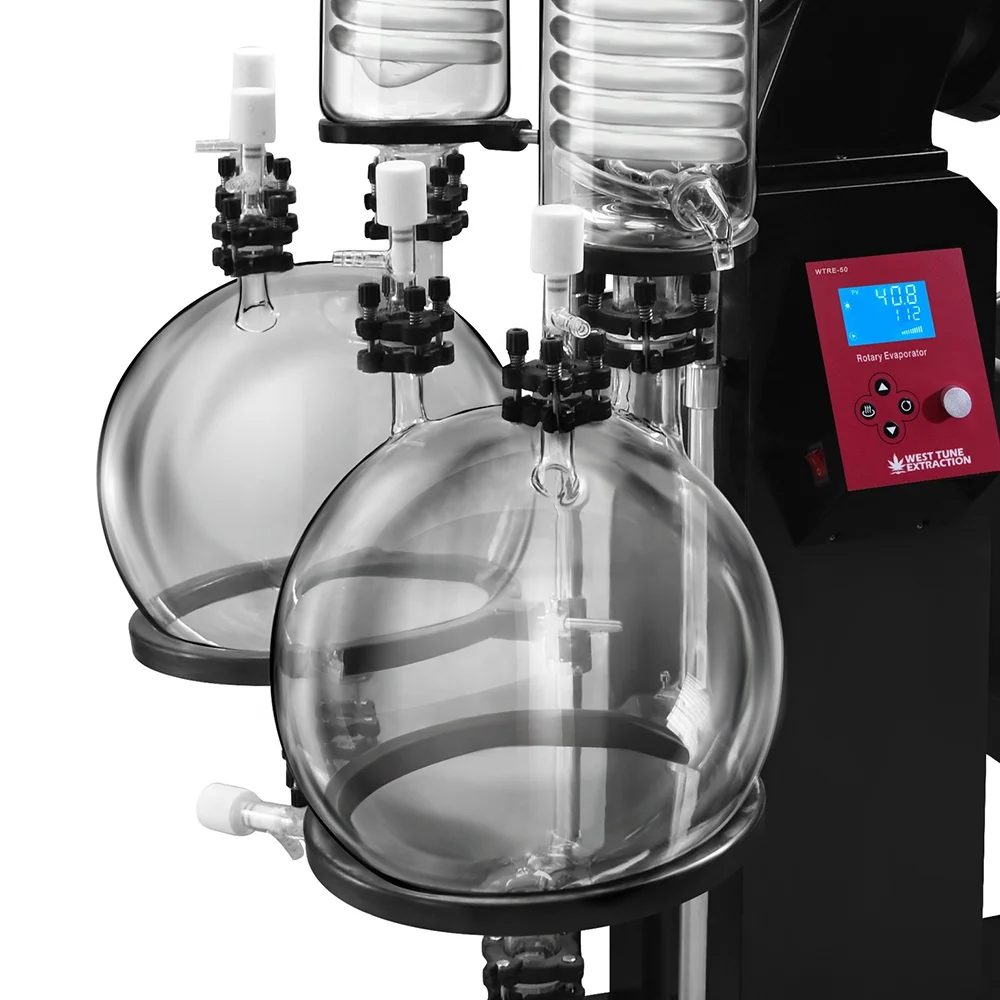

West Tune 13-Gallon/50L WTRE-50dual Rotary Evaporator with Dual Condensers
The new West Tune 50L dual main and dual auxiliary condensers rotary evaporators is designed for double recovery rate in same unit.
A Rotary Evaporator is a device used in extraction laboratories for efficient and gentle distillation of solvents from samples by evaporation. Rotary evaporation is most often and conveniently applied to separate "low boiling" solvents such a butane or ethyl alcohol from compounds which are solid at room temperature and pressure.
WTRE-50dual evap is larger model give users the ability to recover larger amounts of solvent.

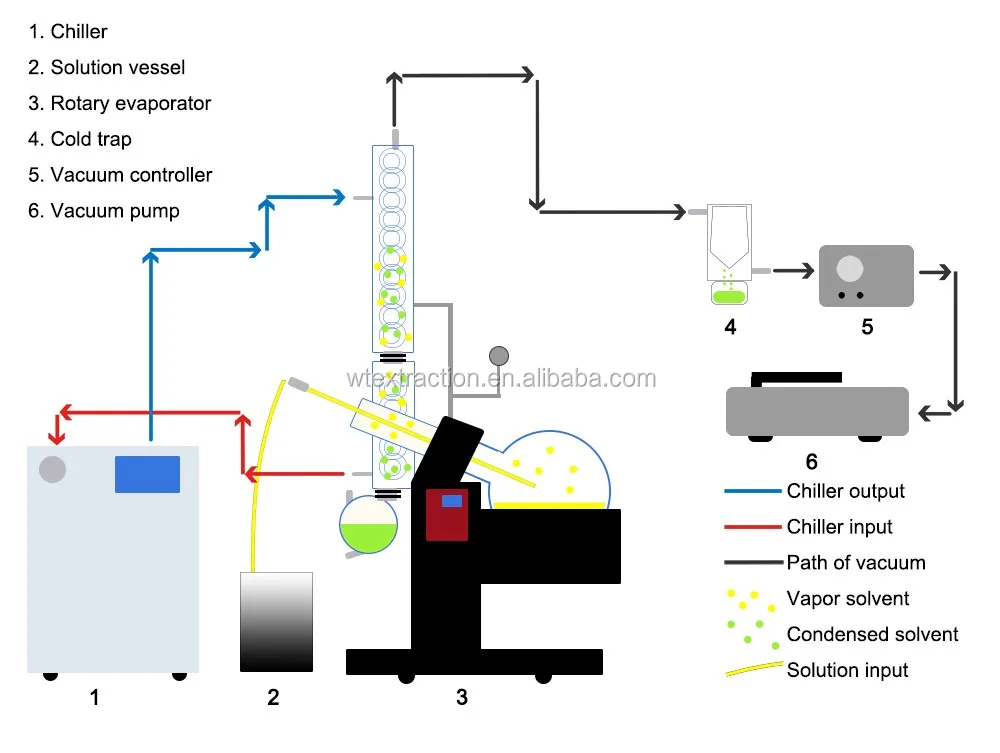

Follow chart of West Tune evap.
A Rotary Evaporator is a device used in extraction laboratories for efficient and gentle distillation of solvents from samples by evaporation. Rotary evaporation is most often and conveniently applied to separate "low boiling" solvents such a butane or ethyl alcohol from compounds which are solid at room temperature and pressure.
WTRE-50dual evap is larger model give users the ability to recover larger amounts of solvent.
Follow chart of West Tune evap.

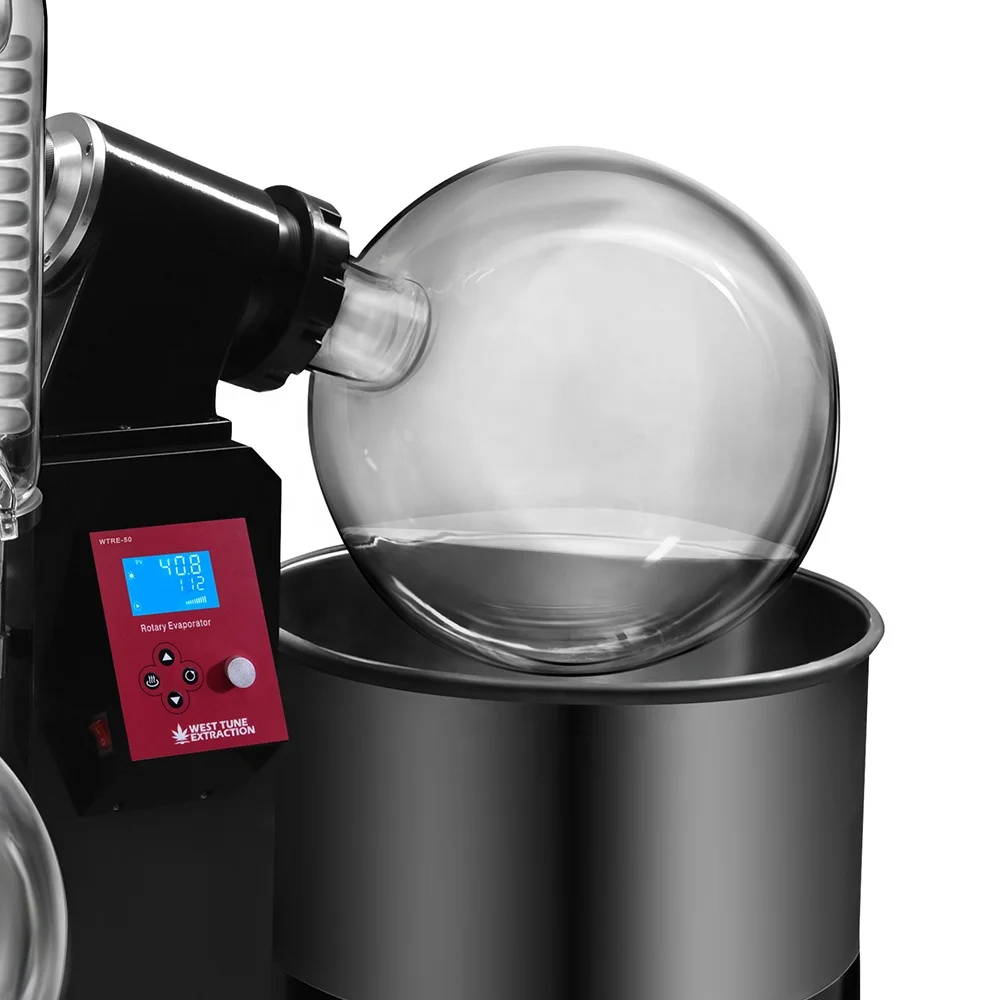

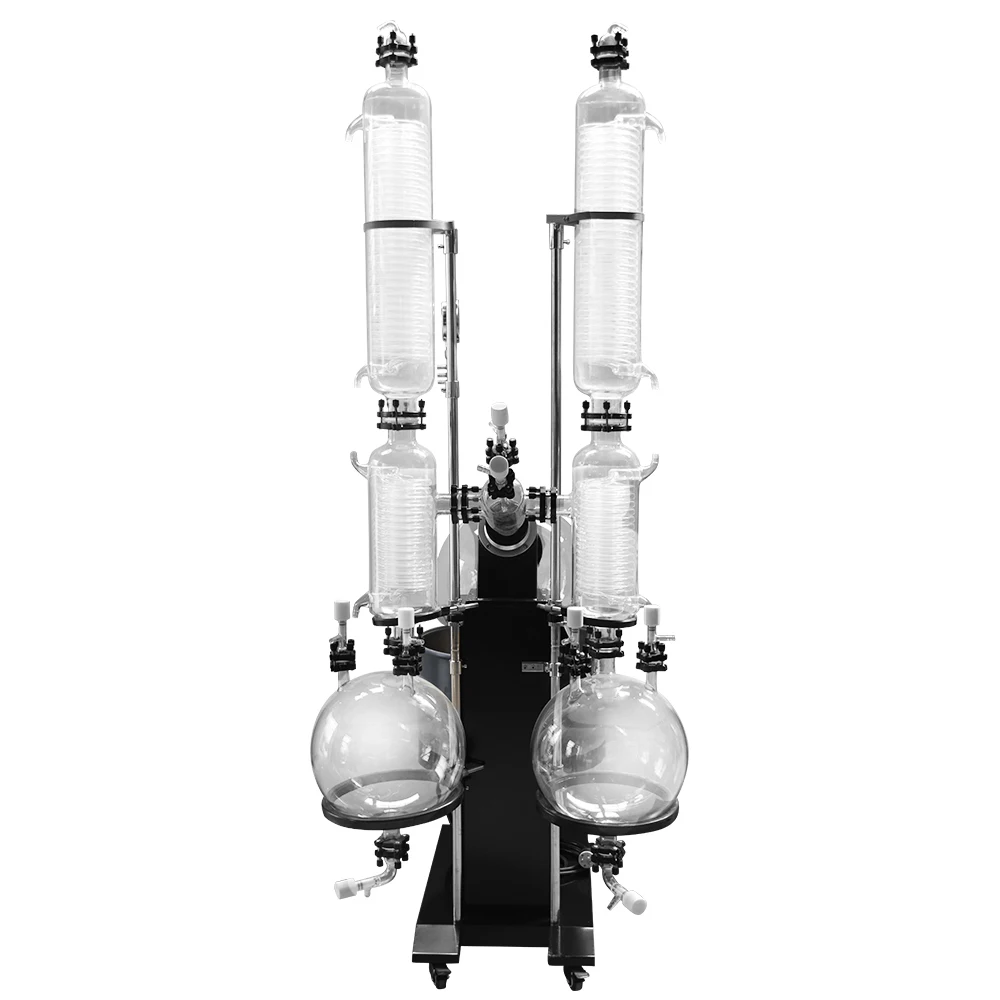

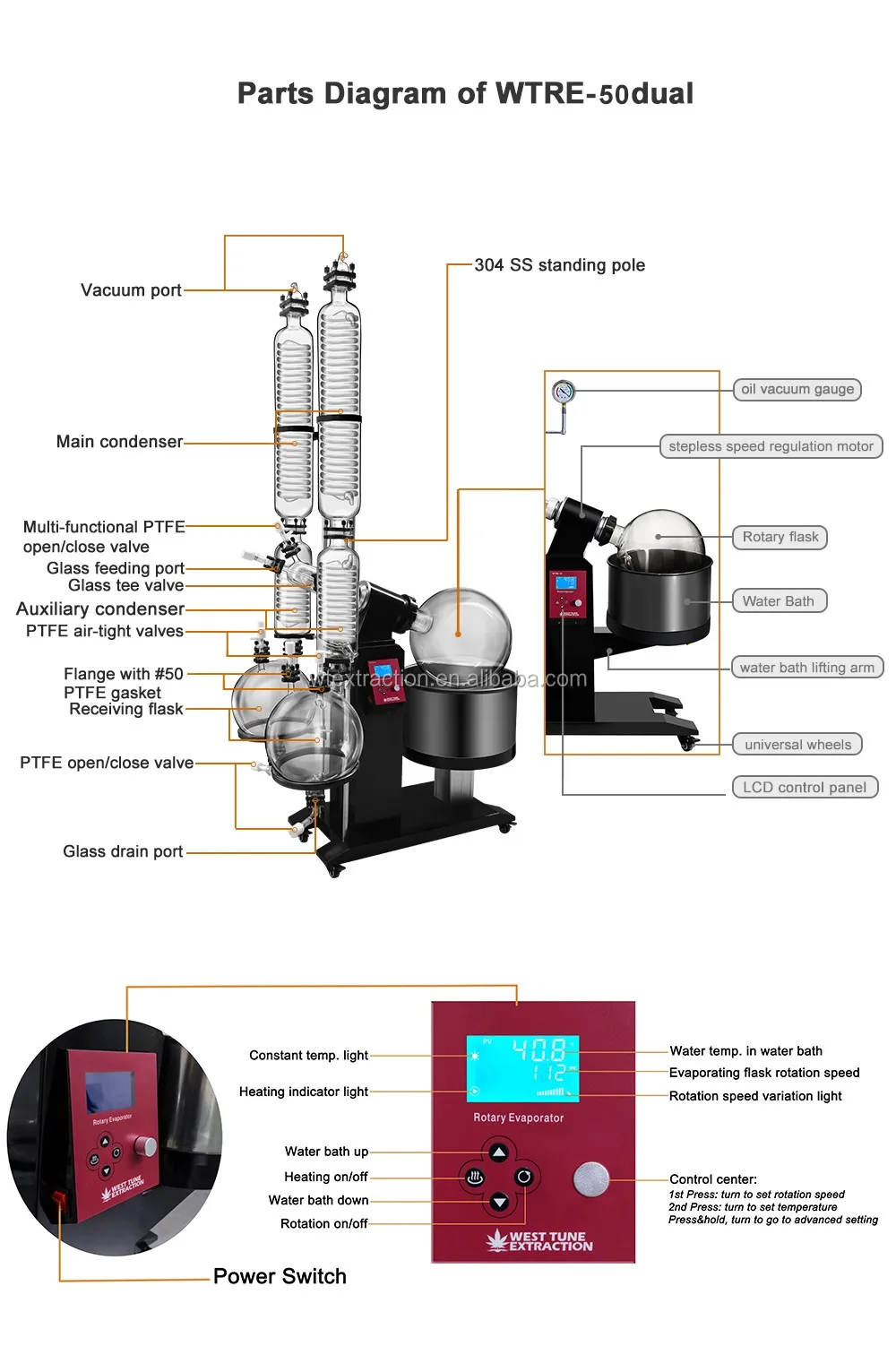

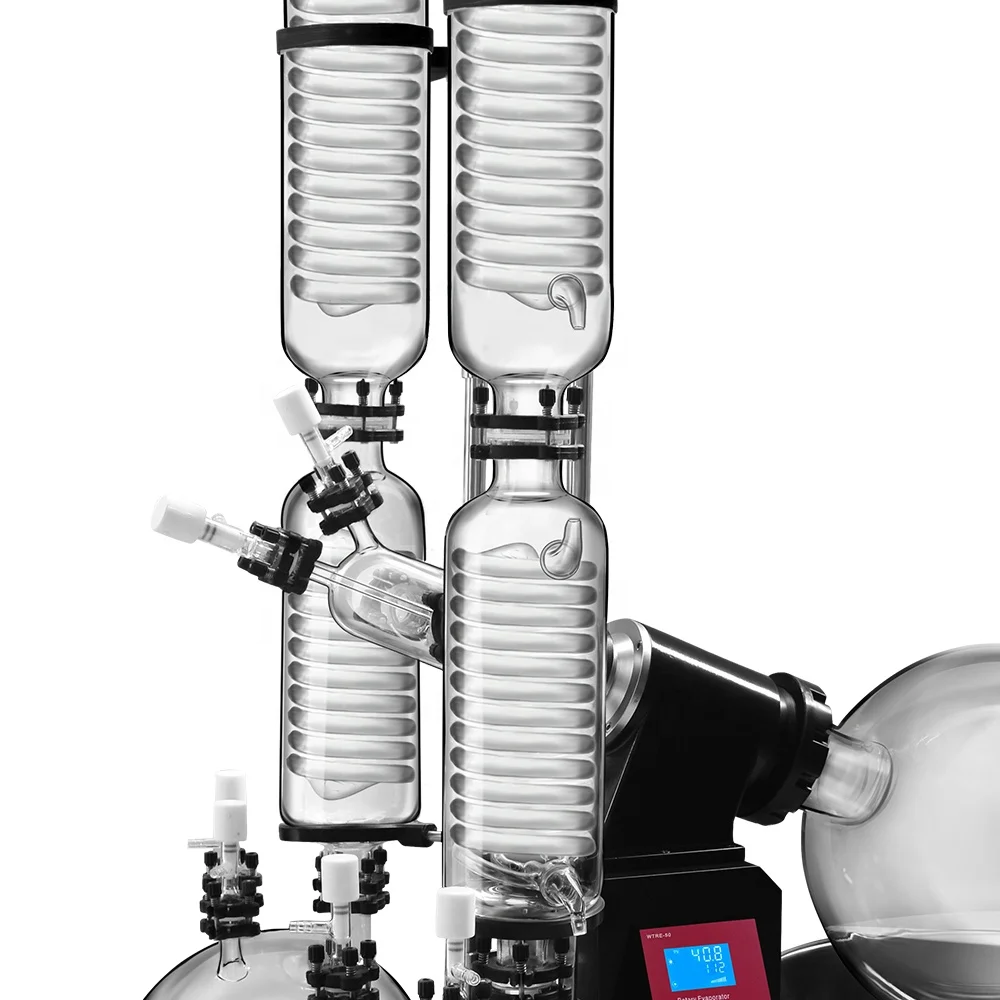

Detailed Images

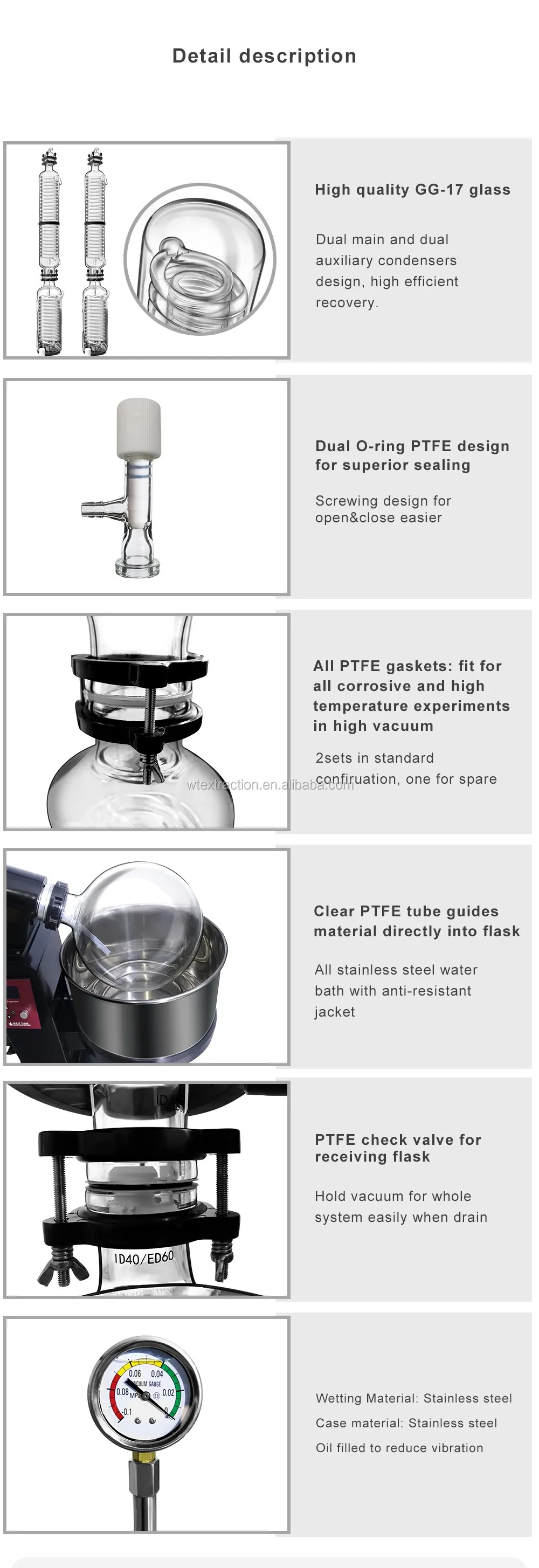

Features:
1. All PTFE valves for improved sealing and chemical resistance.
2. Anti-dry heating function.
3. Large LCD display.
4. PID temperature and rotation speed controls.
5. Direct injection capability for continous feeding of your material.
6. Compact wheels design for improved workspace allocation.
7. Receiving flask drain port for easy draining.
8. Mobility with locking casters.
9. Motorized water bath lifting for precise control.
10. Specialized motor for no classless adjustable speed.
Technical parameters
Model | WTRE-50dual Rotary Evaporator |
Operating Ambient Temperature | 5~35C / 41~95F |
Glass Material | GG-17 High Borosilicate |
Power (V/Hz) | 220V 60Hz Single Phase |
Speed Regulation | Digital Step-less Regulation |
Rotation Speed | 10~110RPM |
Set Temperature | 0-99C / 0-210F |
Temperature Control | Digital Temperature Control |
Maximum Vacuum Pressure | < 3 torrs |
Evaporating Flask Capacity | 50L / 13 gallon |
Receiving Flask Capacity | 20L / 5.3-Gallon *2 |
Condenser Style | Main + Auxiliary Vertical Double Helix *2 |
Evaporation Capacity | Alcohol ≥ 19 L/H |
Recovery rate | Alcohol ≥ 18L/H |
Heater Max Current Draw (Amps) | 29 |
Water Bath Material | 304 Stainless Steel |
Water Bath Size | 21.65 x 12.30'' |
Lifting Function | Electric |
Lifting Stroke | 230mm / 9.0'' |
Total Power Consumption (kW) | 6.3 kW |
Dimensions | (L) 52'' x (W) 30'' x (H) 92'' |

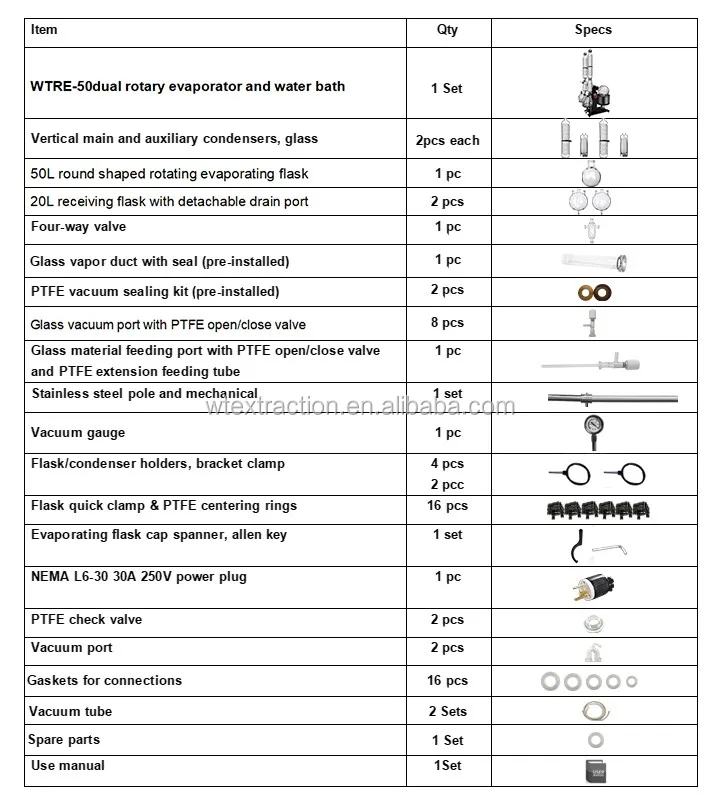

Packing list
