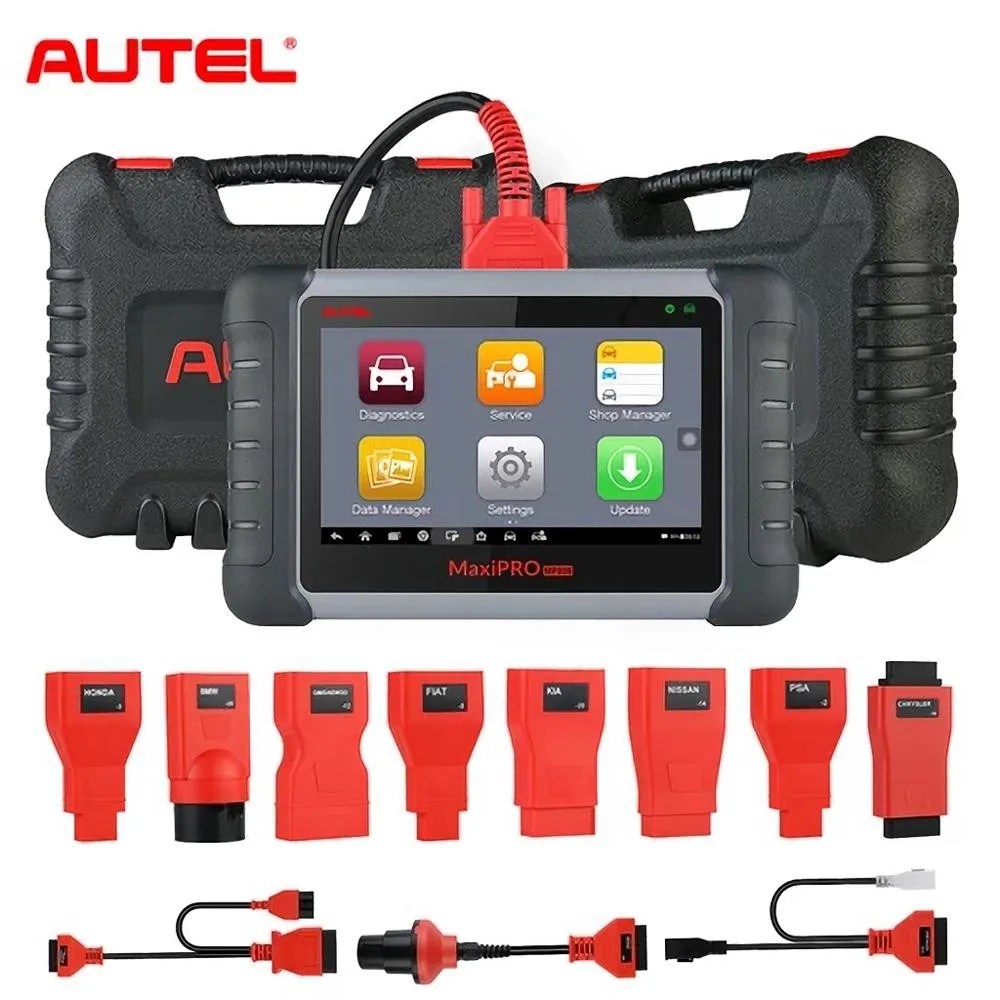

Autel MaxiPro MP808K All Systems Diagnosis Bi Directional Key Coding MP808K Car Scanner Automotive Universal Diagnostic Tool

The MP808 supports four methods for vehicle identification: Auto VIN Scan, Manual VIN Input, Automatic Selection, and Manual Selection, through which you're able to access all the diagnosable ECUs on the vehicle and run diagnostics on the selected system. With the bi-directional control, it's easy and quick for you to identify the problems as the diagnostic tool is able to transmit control commands to operate the vehicle systems and tell you the running conditions.

1). To diagnose Brake System if you feel the brake pedal is mushy and notice unusual odor or noise, etc. A properly operating brake system is critical to ensure safe vehicle control and operation;

2). To diagnose Emission System if the system is affected by vehicle age or poor quality fuel. A good emission system reduces harmful gases to a large degree and protects you from being fined;

3). To diagnose Fuel system if vehicle won’t start or “Check Engine” light is illuminated. Check car’s fuel system regularly ensures the best performance of your car with the lowest emissions;

4). To diagnose Transmission if your car is slipping or difficult to shift. The system plays an important part in the overall performance of your car;

5). To diagnose Wiper System if you observe chattering or streaking wiper. If the car is not regularly checked, the accident might happen because you can’t see clearly;

6). To diagnose Light System if you see rapid signal blinking or dimming lights.

And many more....

Manually locate a required control system for testing through a series of choices. Follow the menu driven procedures and make proper selections; the application guides the user to the proper diagnostic function menu based on selections. The Function Menu options vary slightly for different vehicles. The function menu may include:

1). ECU Information – provides the retrieved ECU information in detail. An information screen opens upon selection.

2). Trouble Codes – includes Read codes and Erase codes functions. Displays detailed information of DTC records retrieved from the test vehicle’s ECU and erases DTC records and other data from the test vehicle's ECU.

3). Freeze Frame – displays the freeze frame data of the DTCs.

4). Live Data – retrieves and displays live data and parameters from the test vehicle's ECU.

5). Active Test – provides specific subsystem and component tests. This selection may appear as Actuators, Actuator Test, or Function Tests, etc., and the tests options vary depending on the manufacturer and model.

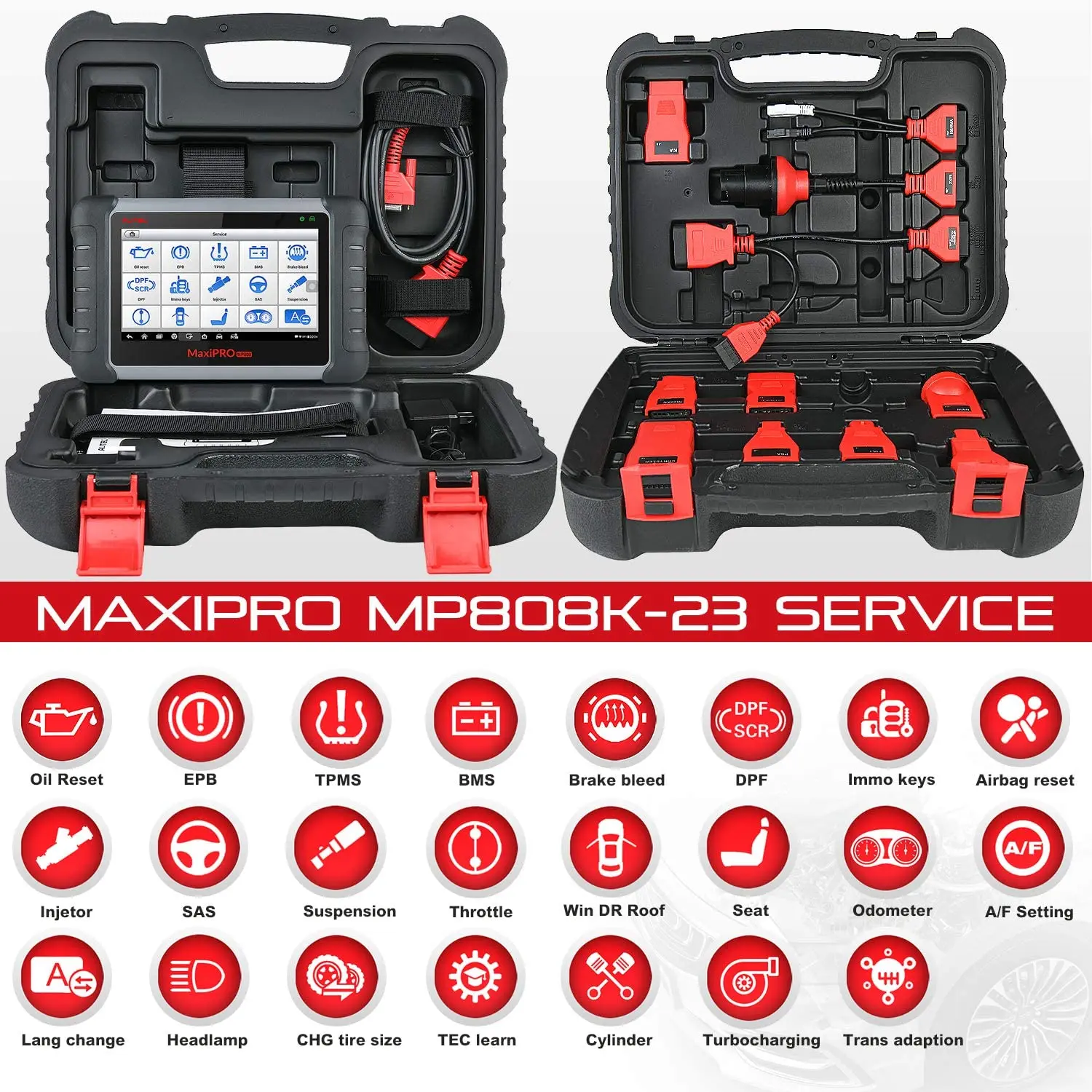

Autel MP808K diagnostic scanner is a professional tool aiming at providing mechanics and DIY enthusiasts with access to the systems to perform various maintenance and services.

1). Oil Service Reset – Performs reset for the Engine Oil Life system, which calculates an optimal oil life change interval depending on the vehicle driving conditions and climate, and turns off the warning light;

2). TPMS Service – Quickly looks up the tire sensor IDs from the vehicle's ECU, as well as to perform TPMS programming and reset procedures after tire sensors are replaced;

3). EPB Service – Initializes the throttle actuators to the default state for regulating throttle (or idle engine) operations accurately;

4). ABS/SRS Services – Performs various bi-directional tests to check the operating conditions of both the Anti-lock Braking System and the Supplemental Restraint System;

5). SAS Service – Performs steering angle adjustment, clears steering sensor fault memory and turns off steering wheel warning light;

6). DPF Regeneration Service – Clears particulate matter from the DPF filter to stabilize the filter performance.

7). BMS Service - Perform a reset on the vehicle battery for clearing the fault information and re-match the battery;

8). Brake Bleed - When your brake pedal becomes soft and inconvenient to control, this diagnostic tool can perform bi-directional tests to check the Anti-lock Braking System;

9). IMMO Service - Clear the lost car key's information and program the new key into the ECU database to protect user's car from being stolen;

10). Injector Coding - Make the cylinder better identify injector after ECU or injector is replaced;

11). SAS Service - to perform calibration for the Steering Angle Sensor and clear steering sensor fault memory;

12). Throttle Adaptation - initialize the throttle actuators to the default state for regulating throttle (or idle engine) operations accurately

And much more…
