Efficient Instant noodle production line for fried instant noodle non fried instant noodle making machine
- Category: Grain Product Making Machines >>>
- Supplier: Henan MHZX Machinery Co. Ltd
Share on (1600351207486):
Product Overview
Description
Product Paramenters
production line | Matching machine | model | voltage | power | Production capacity | Dimensions | weight |
Fried instant noodle production line | Hoist | MH-F | 230V/50hz | / | 11000pcs/8h | 26m | / |
Kneading machine 1pcs | MH-I | / | 3kw | 15-20kg/3-10min | 0.8*0.5*0.6m | 50kg | |
Forming machine 1pcs | MH-250 | / | 4kw | / | 2.8*0.6*1.1 | 300kg | |
Steamer 1pcs | MH-I2 | / | 1.5kw | 80-100kg/h | 12*0.6*1.0m | 500kg | |
Control cabinet 2pcs | MH-225 | / | / | 100kg/h | 1.1*0.4*1.4m | 50kg | |
Organizing table 1pcs | MH-I3 | / | / | 100kg/h | 0.6*0.6*0.8m | 30kg | |
Fryer 1pcs | MH-I4 | / | 0.75/80kw | 80-100kg/h | 4.4*0.5*1.0m | 500kg | |
Cooling machine 1pcs | MH-I5 | / | 0.55kw | 80-100kg/h | 4*0.4*0.8m | 100kg | |
Packing machine 1pcs | MH-35 | / | 3.7kw | 0-150 packs/min | 4.4*0.965*1.5m | 400kg | |
Hoist | MH-NF | 380V/50hz | / | 12000pcs/8h | 30m | / | |
Kneading machine 1pcs | MH-I2 | / | 3kw | 15-20kg/3-10min | 0.8*0.5*0.6m | 50kg | |
Forming machine 1pcs | MH-240 | / | 3kw | / | 2.8*0.6*1.1m | 300kg | |
Steamer 1pcs | MH-I3 | / | 1.5kw | 80-100kg/h | 12*0.6*1.0m | 500kg | |
Control cabinet 2pcs | MH-225 | / | / | 100kg/h | 1.1*0.4*1.4m | 50kg | |
Organizing table 1pcs | MH-I4 | / | / | 100kg/h | 0.6*0.6*0.8m | 30kg | |
Non-fried drying box 1pcs | MH-15 | 1.5kw | 100kg/h | 9.1*1.5*2.8m | 2600kg | ||
Cooling machine 1pcs | MH-I6 | 0.55kw | 80-100kg/h | 5*0.4*0.8m | 100kg | ||
Packing machine 1pcs | MH-32 | / | 3.7kw | 0-150 packs/min (determined according to packaging film material, thickness and packaging specifications) | 4.4*0.965*1.5m | 400kg |
Products Description

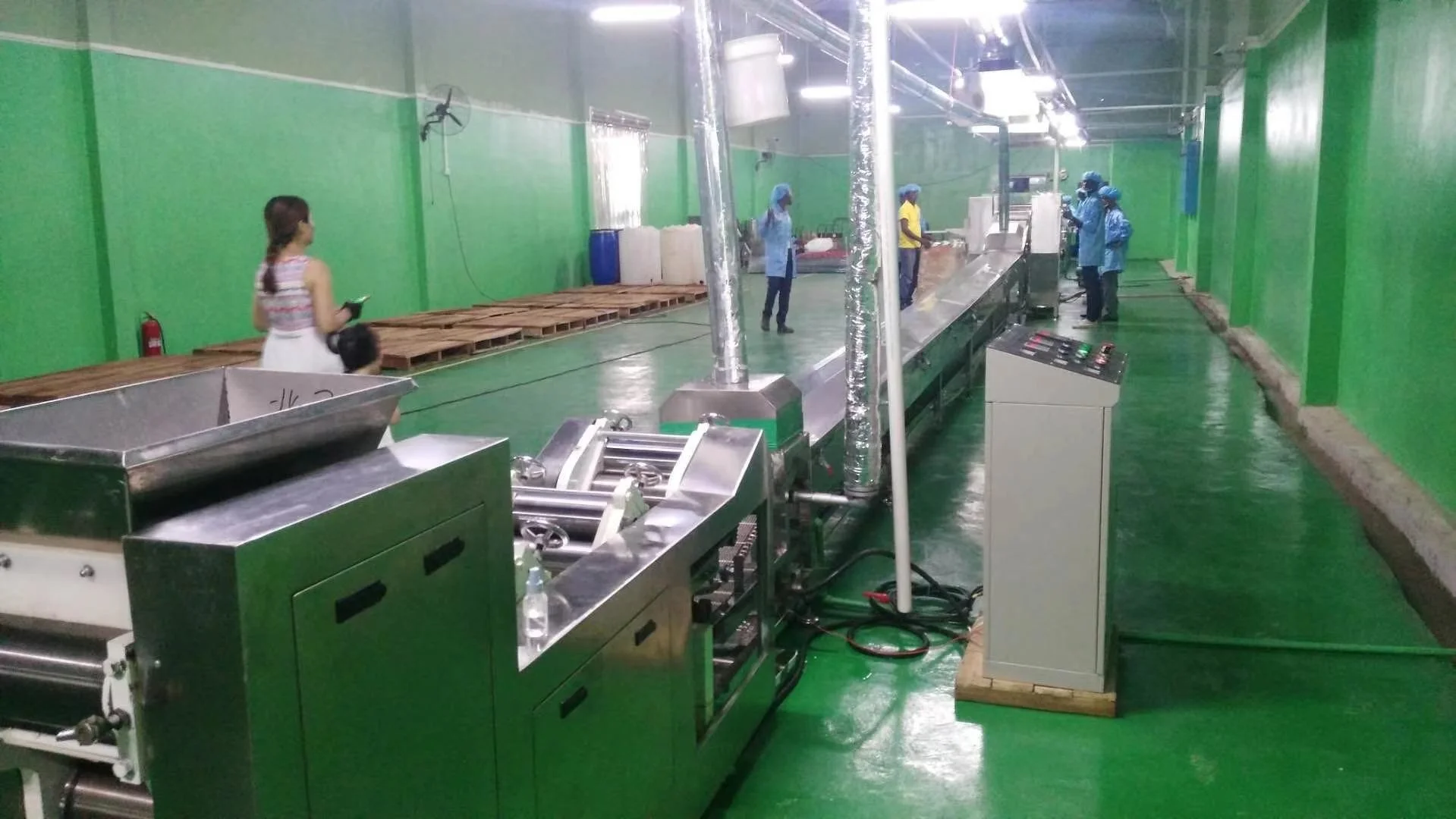

MH-ML automatic small-scale instant noodle production line is a new generation of products with miniaturized production characteristics developed and produced by our company on the basis of investigating similar products at home and abroad and combining with the needs of the mass consumer market. It has a complete process, compact structure and novel design. , The performance is stable and reliable, the production from flour to the finished product can be completed at one time, with high automation, simple operation, moderate output, energy saving, small floor space, and the investment is only one-tenth of the large-scale equipment. It has the characteristics of low investment and quick results. Specially suitable for small and medium enterprises. The corrugated instant noodles produced by this production line have a short rehydration time, good elasticity, smoothness and transparency, and are comparable to the latest large-scale equipment in the market.

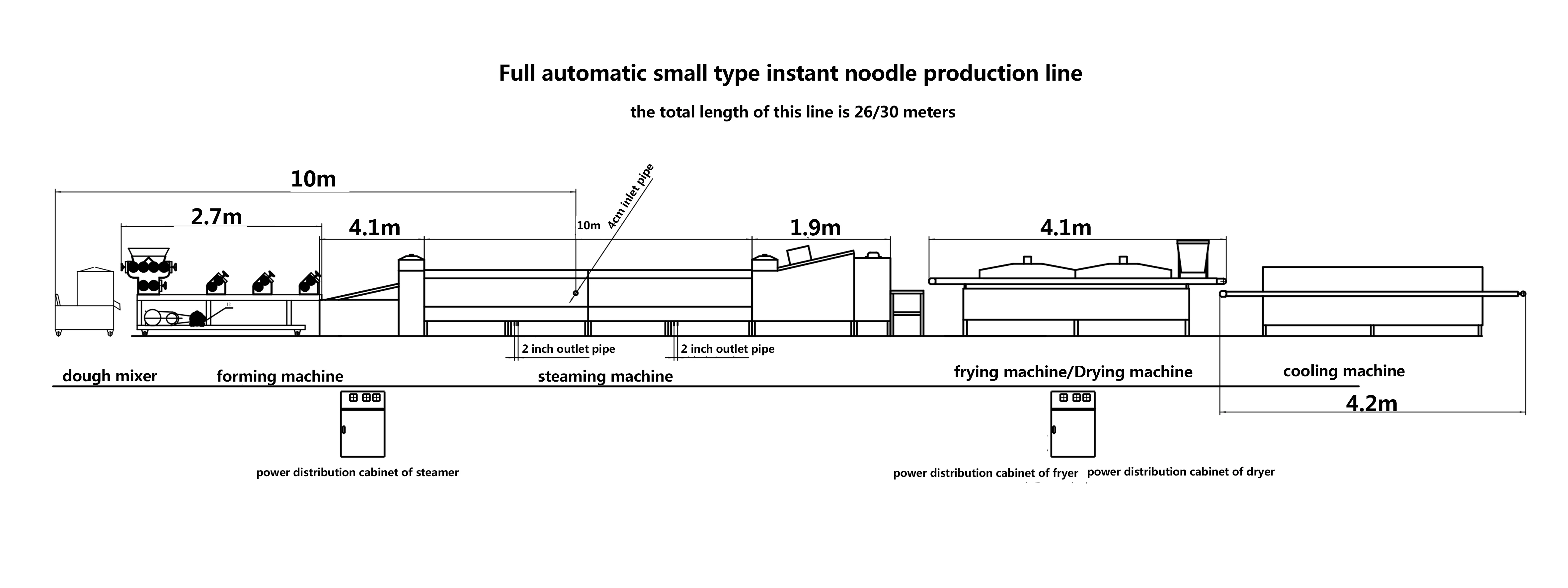

Process flow
Fried instant noodle production line：Ingredient making-flour mixing-forming-steaming-frying-cooling
Non-fried instant noodle production line：Ingredient making-flour mixing-forming-steaming-drying-cooling
Non-fried instant noodle production line：Ingredient making-flour mixing-forming-steaming-drying-cooling

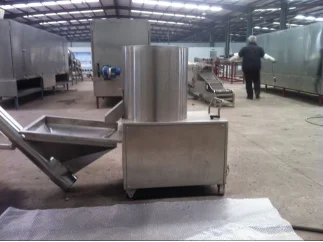

Kneading machine 1pcs
Model: DL-I
Power: 3kw
Dimensions: 0.8x0.5x0.6m
Output 15-20kg/time
Weight: 50kg
Mixing time: 3-10min
Material: (hopper) stainless steel (frame) carbon steel
Motor: The domestic dough mixer is a machine that mixes flour and water or other ingredients into dough. It is widely used to make various pastries, biscuits, bread, steamed bread and other doughs.
Power: 3kw
Dimensions: 0.8x0.5x0.6m
Output 15-20kg/time
Weight: 50kg
Mixing time: 3-10min
Material: (hopper) stainless steel (frame) carbon steel
Motor: The domestic dough mixer is a machine that mixes flour and water or other ingredients into dough. It is widely used to make various pastries, biscuits, bread, steamed bread and other doughs.

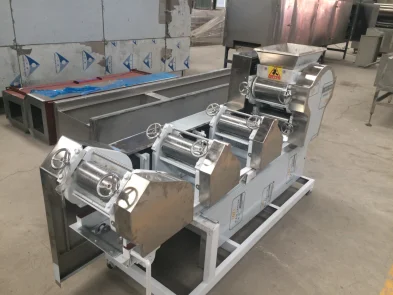

Forming machine 1pcs
Model: DL-240 type
Power: /34kw
Dimensions: 2.3x0.6x1.1m
Weight: 300kg
Material:
(Shell, food contact part) stainless steel
(Transmission part) carbon steel
Power: /34kw
Dimensions: 2.3x0.6x1.1m
Weight: 300kg
Material:
(Shell, food contact part) stainless steel
(Transmission part) carbon steel
Put the mixed dough into the machine for noodle forming

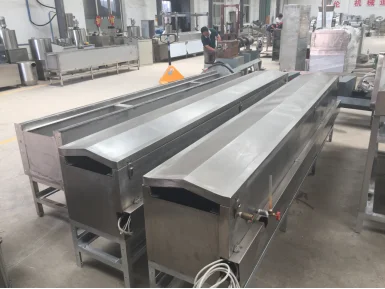

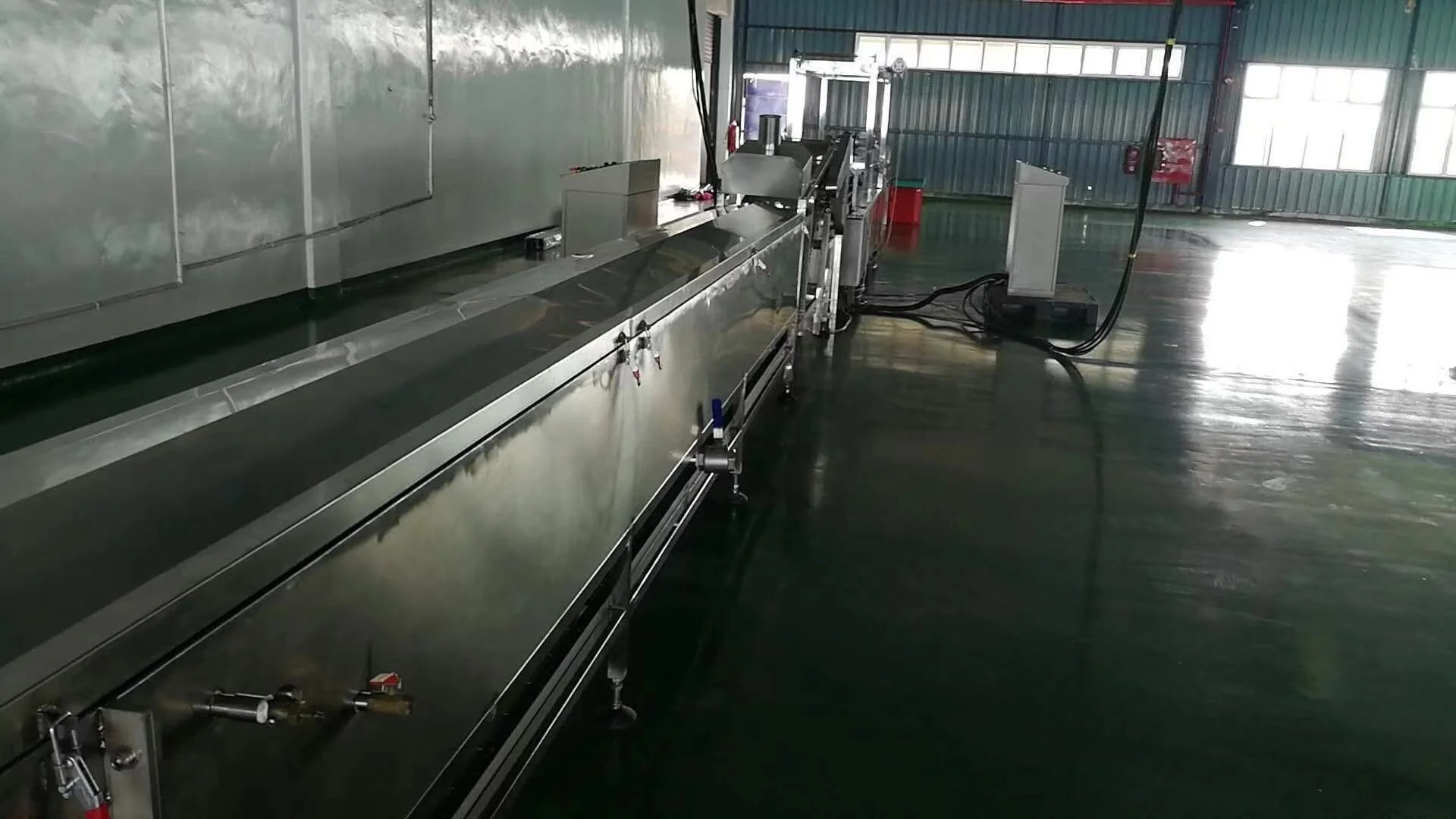

Steaming box 1pcs
With front and back links
Model: DL-I type
Transmission power: 1.5kw
Dimensions: 12x0.6x1.0m
Weight: 500kg
Processing capacity: 80-100kg/h
Material:
(Shell) stainless steel
Stainless steel mesh belt
Heater
Multi-zone intelligent temperature control
Use electric heating, control by temperature zones, the temperature of each temperature zone can be set, the temperature in the temperature zone is uniform, the use of high-quality insulation materials, good insulation performance, high thermal efficiency, temperature control system, automatic temperature control and constant temperature, flexible operation, high safety performance
Transmission power: 1.5kw
Dimensions: 12x0.6x1.0m
Weight: 500kg
Processing capacity: 80-100kg/h
Material:
(Shell) stainless steel
Stainless steel mesh belt
Heater
Multi-zone intelligent temperature control
Use electric heating, control by temperature zones, the temperature of each temperature zone can be set, the temperature in the temperature zone is uniform, the use of high-quality insulation materials, good insulation performance, high thermal efficiency, temperature control system, automatic temperature control and constant temperature, flexible operation, high safety performance
Control cabinet 1pcs
model:
Dimensions: 1100*400*1400mm
Weight: 50kg
Dimensions: 1100*400*1400mm
Weight: 50kg
Intelligent temperature control meter
The electric control cabinet is used to control temperature and speed.
The electric control cabinet is used to control temperature and speed.

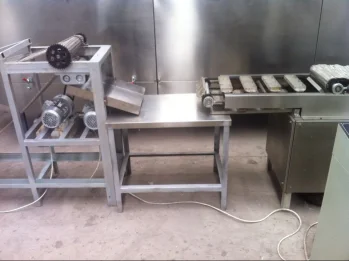

Organizing table 1pcs
Model: DL-I type
Dimensions: 0.6x0.6x0.8m
Weight: 30kg
Material:
(Shell) stainless steel
Used for noodle finishing
Dimensions: 0.6x0.6x0.8m
Weight: 30kg
Material:
(Shell) stainless steel
Used for noodle finishing

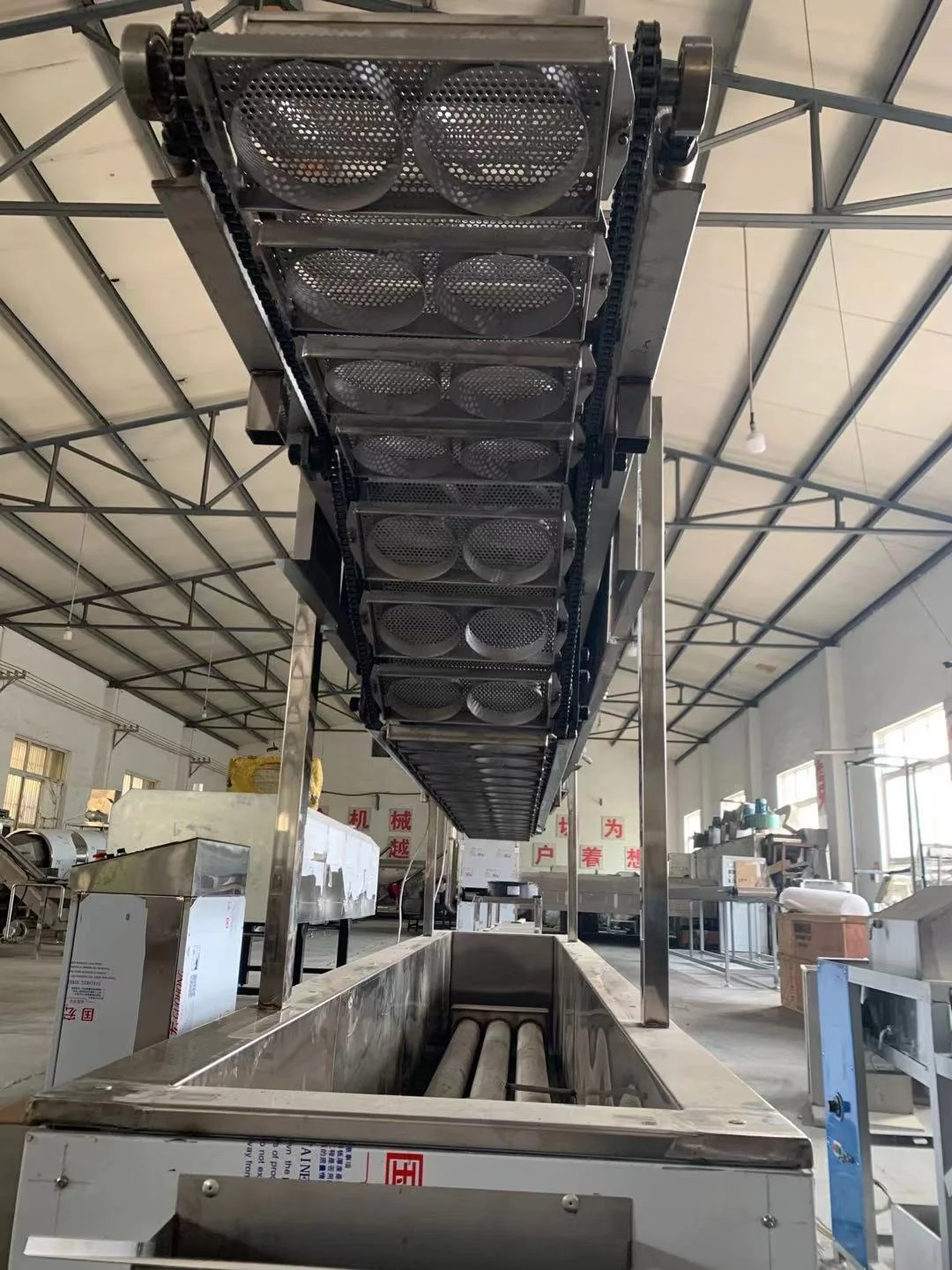

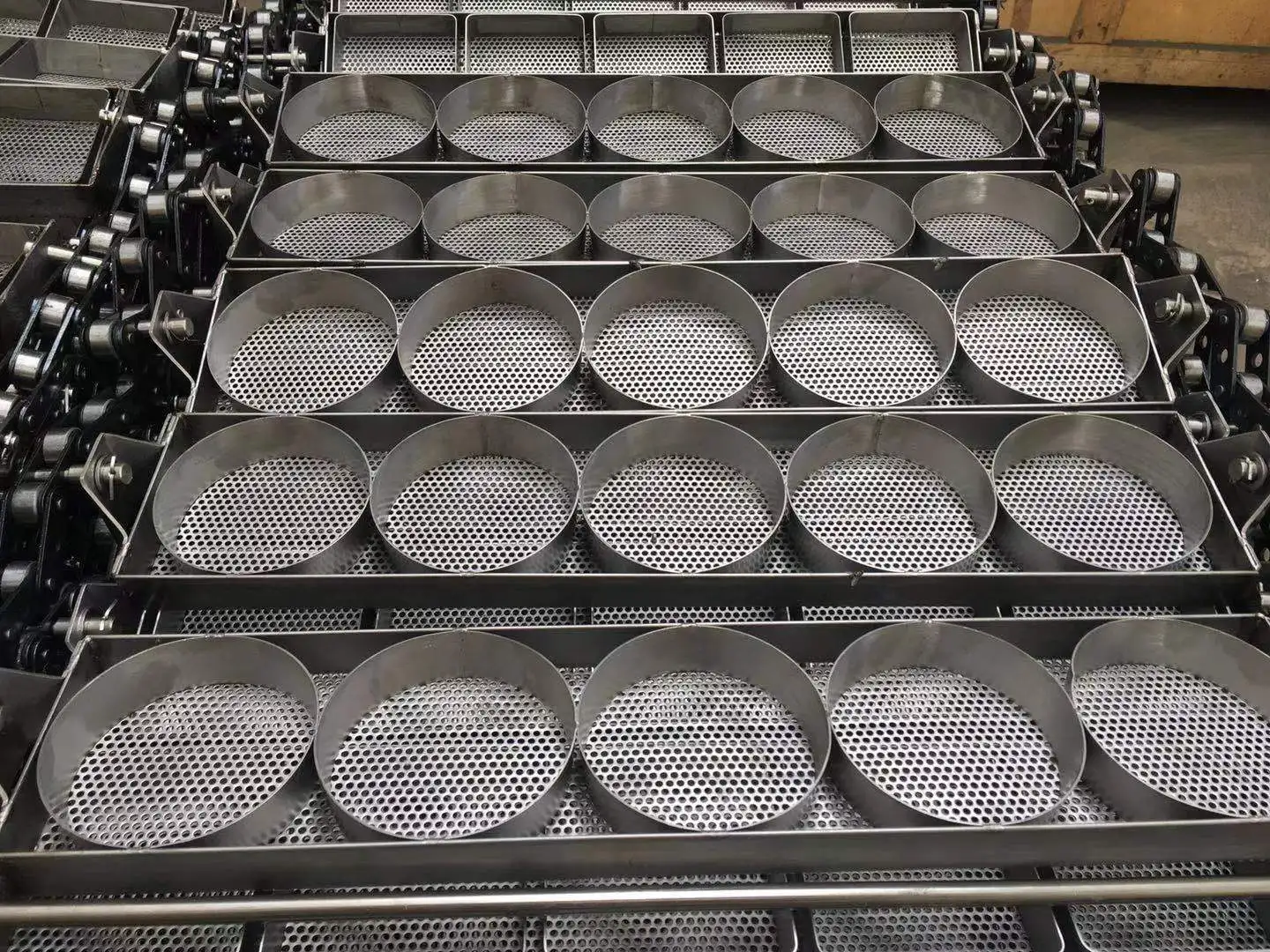

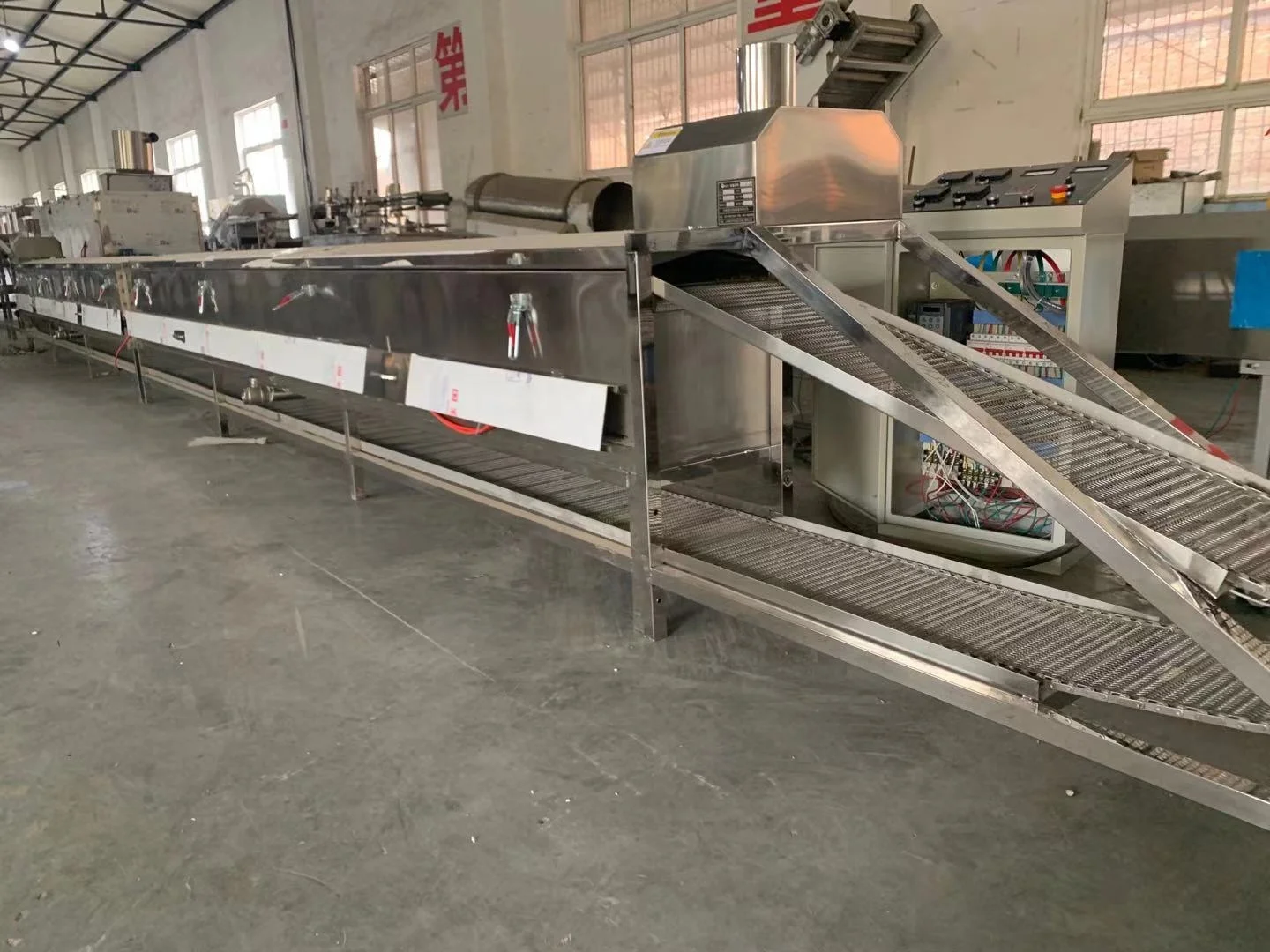

Fryer 1pcs
Model: DL-I type
Transmission power: 0.75kw
Dimensions: 5.1x0.5x1.0m
Weight: 500kg
Processing capacity: 80-100kg/h
Material:
(Shell) stainless steel
Stainless steel mesh belt
Heater
Multi-zone intelligent temperature control
Use electric heating, temperature control zone, the temperature of each zone can be set, the temperature in the zone is uniform, the use of high-quality insulation materials, good insulation performance, high thermal efficiency, temperature control system, automatic temperature control and constant temperature, used for the oil of the noodle block fry
Transmission power: 0.75kw
Dimensions: 5.1x0.5x1.0m
Weight: 500kg
Processing capacity: 80-100kg/h
Material:
(Shell) stainless steel
Stainless steel mesh belt
Heater
Multi-zone intelligent temperature control
Use electric heating, temperature control zone, the temperature of each zone can be set, the temperature in the zone is uniform, the use of high-quality insulation materials, good insulation performance, high thermal efficiency, temperature control system, automatic temperature control and constant temperature, used for the oil of the noodle block fry

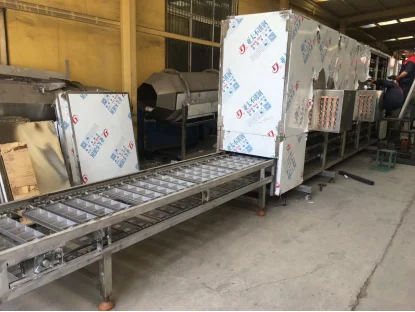

Non-fried drying oven
Model: DL-II type
Transmission power: 1.5kw
Dimensions: 9.1x1.5x2.8m
Weight: 2600kg
Processing capacity: 100kg/h
Transmission power: 1.5kw
Dimensions: 9.1x1.5x2.8m
Weight: 2600kg
Processing capacity: 100kg/h

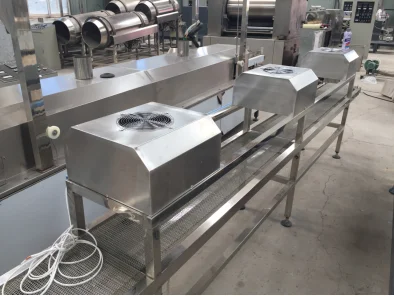

Cooling machine 1pcs
Model: DL-I type
Power: 0.55kw
Dimensions: 5x0.4x0.8m
Weight: 100kg
Processing capacity: 80-100kg/h
Material:
(Shell) stainless steel
Stainless steel mesh belt
Used for cooling the next block after frying
Power: 0.55kw
Dimensions: 5x0.4x0.8m
Weight: 100kg
Processing capacity: 80-100kg/h
Material:
(Shell) stainless steel
Stainless steel mesh belt
Used for cooling the next block after frying

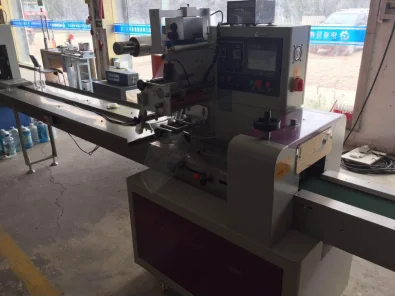

Packing machine 1pcs
Model: DL-32 type
Power: 3.7kw
Dimensions: 4.4x0.965x1.5m
Weight: 400kg
Processing capacity: 20-150 bags/min (determined according to packaging film material, thickness and packaging specifications)
Packaging materials: paper/PE, OPP/PE, OPP/AL/PE and other packaging materials suitable for heat sealing
Power: 3.7kw
Dimensions: 4.4x0.965x1.5m
Weight: 400kg
Processing capacity: 20-150 bags/min (determined according to packaging film material, thickness and packaging specifications)
Packaging materials: paper/PE, OPP/PE, OPP/AL/PE and other packaging materials suitable for heat sealing

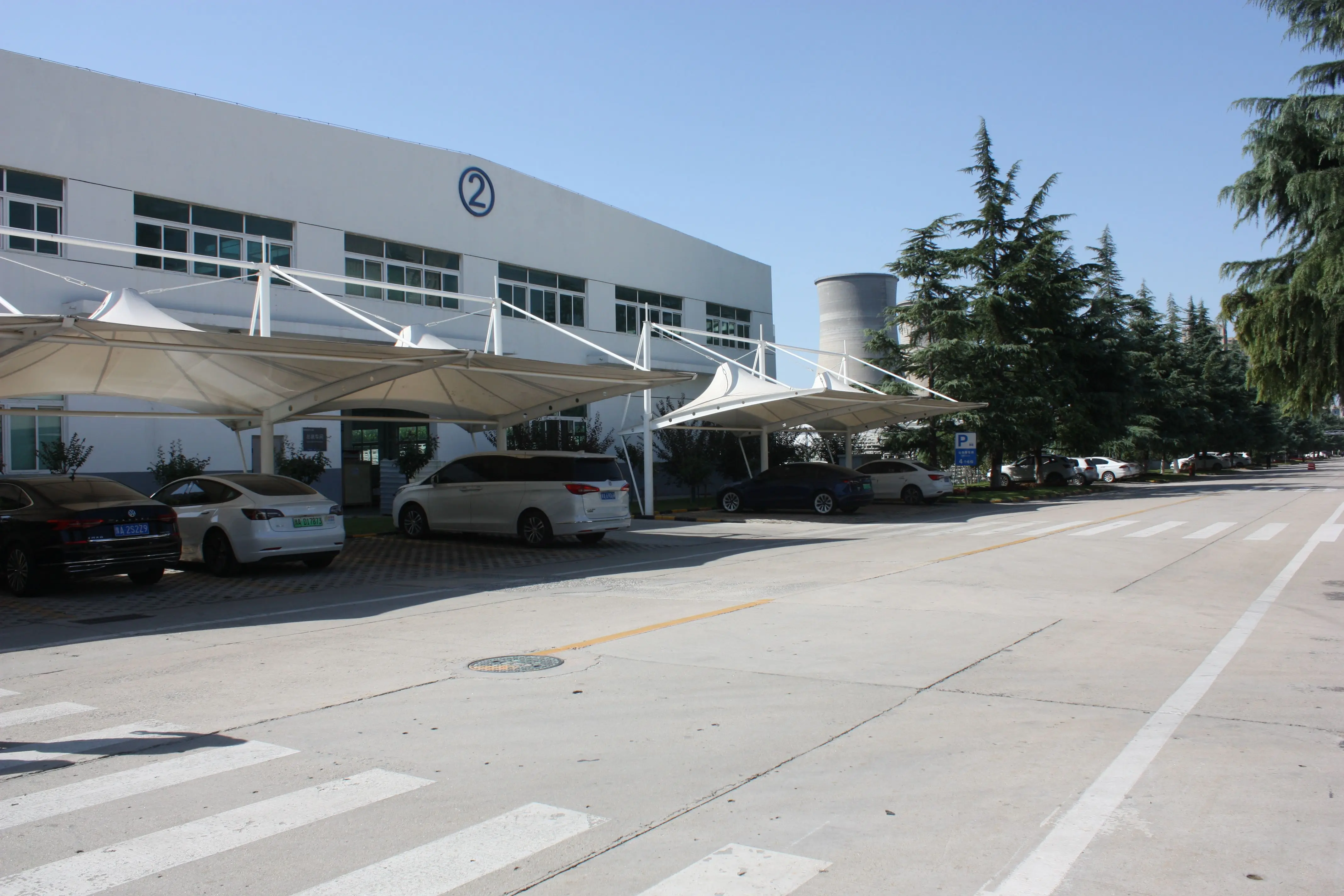

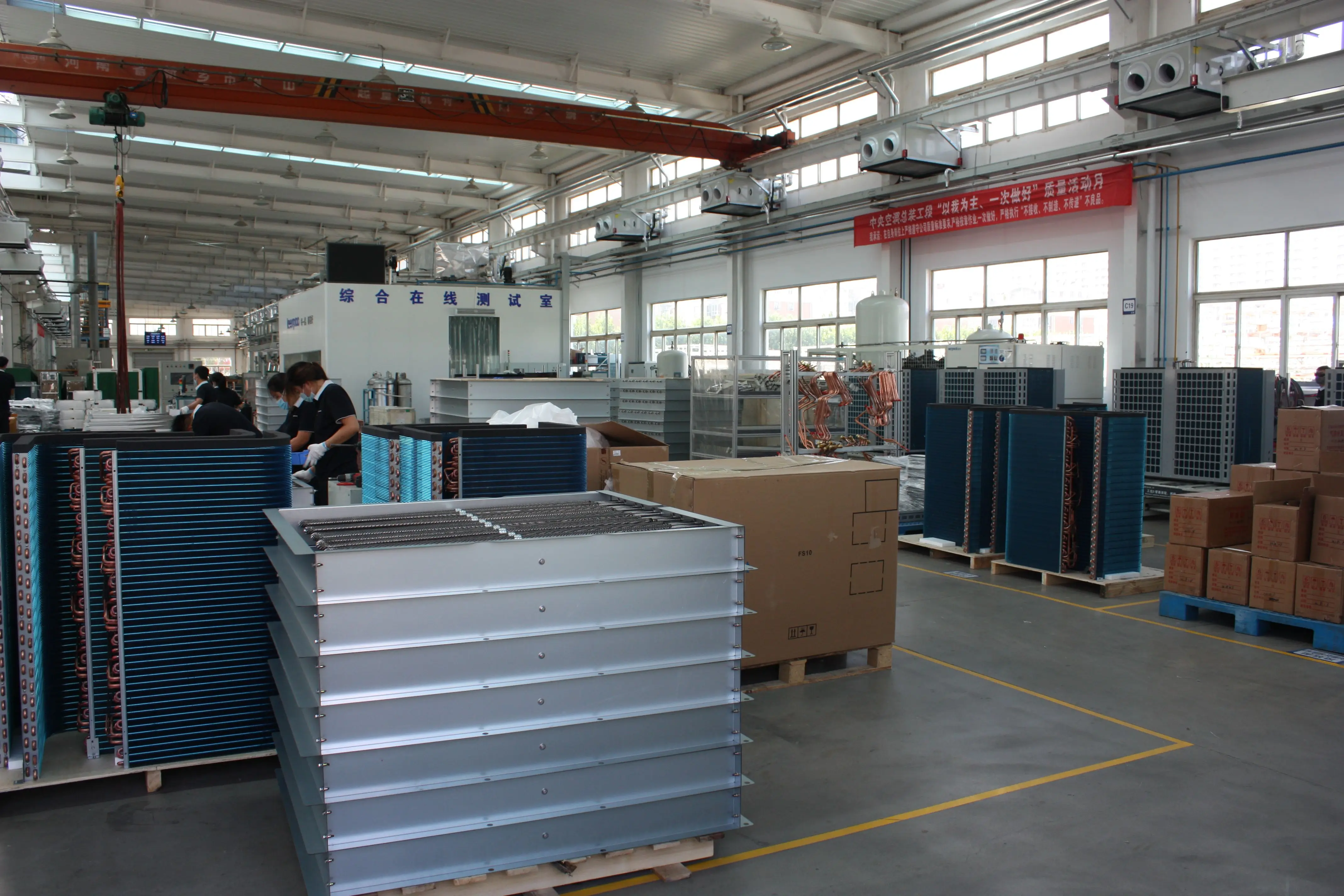

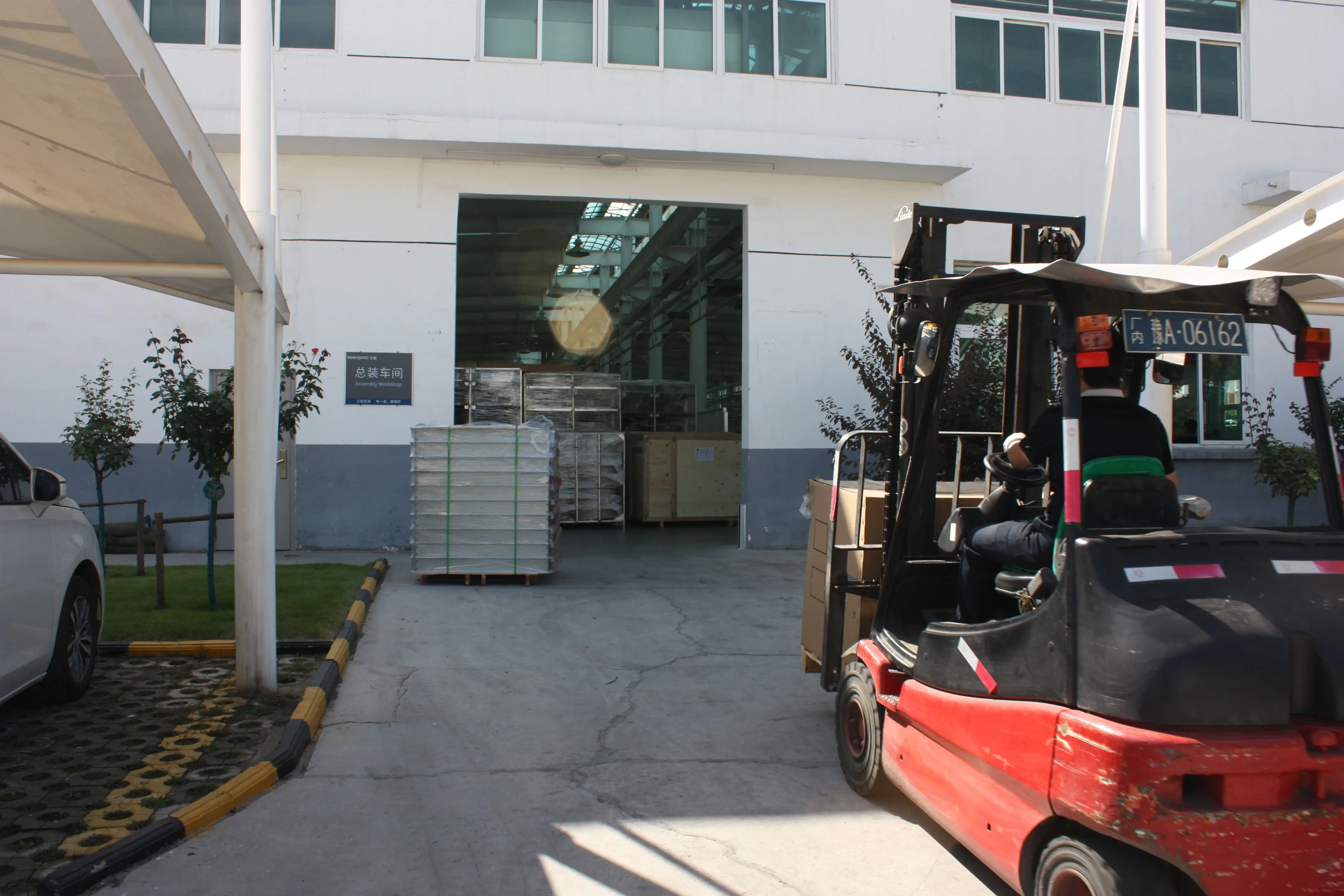

Factory Profile
Henan MHZX Machinery Co.,Ltd, professional engaged in the research, development, manufacture,sale and service of nut processing machinery,vegetable and fruit processing machinery,grain food machinery,snack machinery, packing machinery, our products have excellent characteristics ,such as centralized functions, simple operation and full automatic with high quality. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. We also welcome OEM and ODM orders.We reward our clients with excelsior attitude towards products and 24-hour online service. Customer satisfaction is our pursuit.We earnestly welcome new and old friends to visit our factory , carrying out business negotiations, extending our mutual professional work, and striding towards our common prosperity and promising prospects.
Why Choose Us
Packaging Logistics
FAQ
1.Q:What is your warranty of machine ?
A: 1 years warranty , lifetime maintenance.
2.Q:how to install the machine?
A:we will supply install manual to you.Also,We can assign our engineers to go to your country.
3.Q:About the machine voltage or power of machine ?
A:The voltage can be customized according to your country standard.
4.Q: Do you provide training on machine operation and maintenance?
A: Yes. Our professional and experienced staff can provide you professional training on the machine operation and maintenance.
A: 1 years warranty , lifetime maintenance.
2.Q:how to install the machine?
A:we will supply install manual to you.Also,We can assign our engineers to go to your country.
3.Q:About the machine voltage or power of machine ?
A:The voltage can be customized according to your country standard.
4.Q: Do you provide training on machine operation and maintenance?
A: Yes. Our professional and experienced staff can provide you professional training on the machine operation and maintenance.
5.Q:Can the logo or company name to be printed on the products or package ?
A: Sure. Customer's logo or company name can be printed on products by stamping, printing, embossing, coating or sticker.
6.Q:What is your delivery date?
A:Generally within 7 working days. If there is a need for special customization, it may take 20 working day.
A: Sure. Customer's logo or company name can be printed on products by stamping, printing, embossing, coating or sticker.
6.Q:What is your delivery date?
A:Generally within 7 working days. If there is a need for special customization, it may take 20 working day.
7.Q: How to pay?
A: You can pay by credit card or T/T via Alibaba Trade Assurance system.
You can also pay by T/T or L/C to our company account.
A: You can pay by credit card or T/T via Alibaba Trade Assurance system.
You can also pay by T/T or L/C to our company account.
