USR G806 G глобальная версия Промышленный маршрутизатор 4G M2M маршрутизаторы 4g беспроводной маршрутизатор со слотом для Sim карты 4g Wi Fi маршрутизатор Lte
- Category: Routers >>>
- Supplier: Jinan USR IOT Technology Limited
Share on (1600352118938):
Product Overview
Description
\t\t\t\t\t\t\t\t\tWelcome to Minisite \t\t\t\t\t\t\t
Product Description

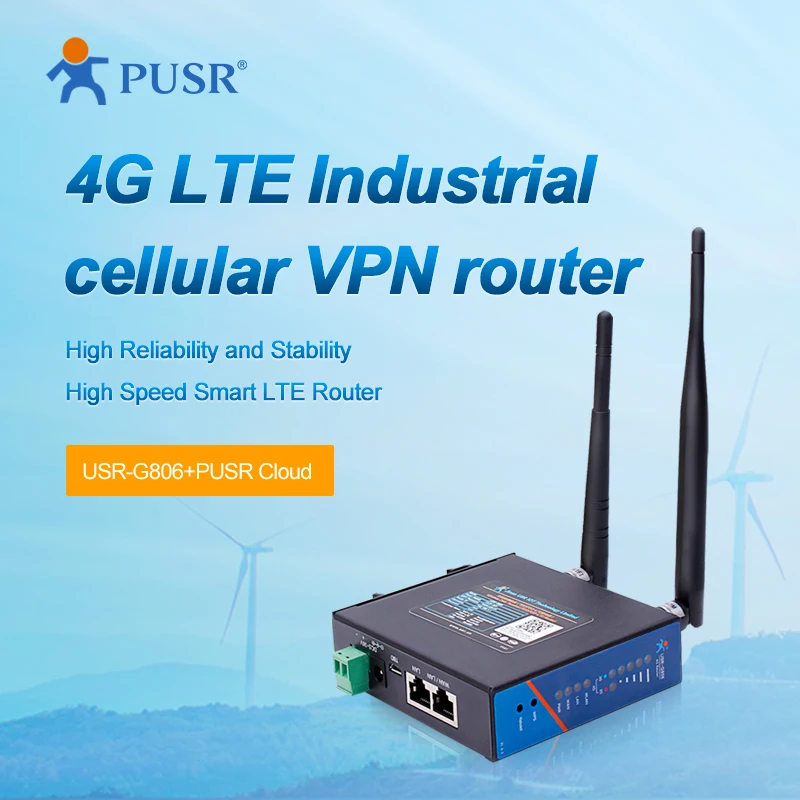

USR-G806-E/AU is a 3G/4G LTE Wireless Router which provides a solution for user's device to access 3G/4G network. Supports WIFI 802.11b/g/n.

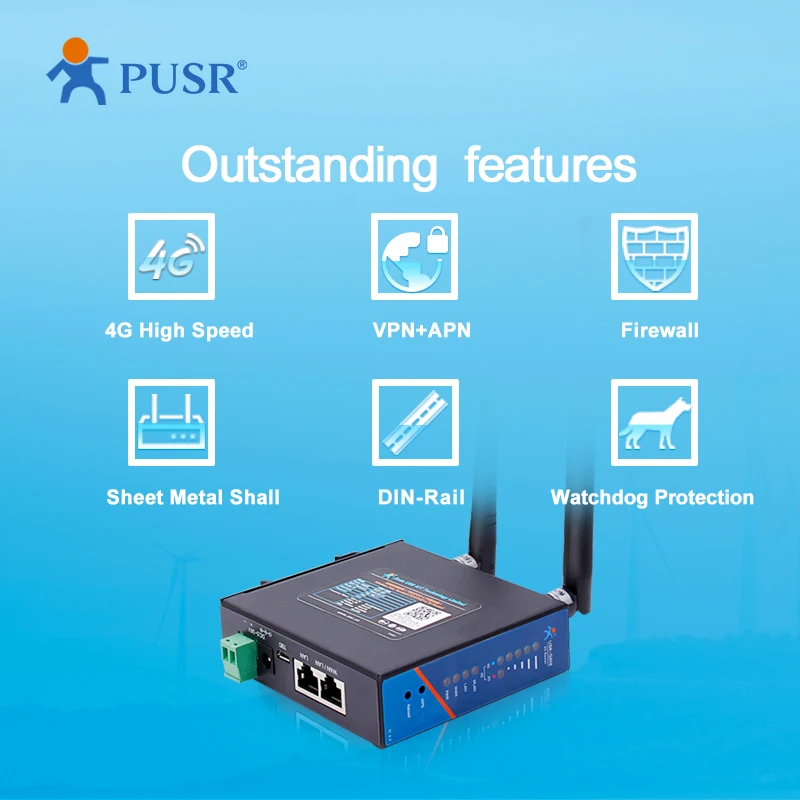

● Providing reliable, seamless connectivity for M2M & IoT applications
● Support PPTP L2TP IPSEC OPENVPN GRE
● Support 2 10/100Base-T(X) self-adaptive Ethernet interface

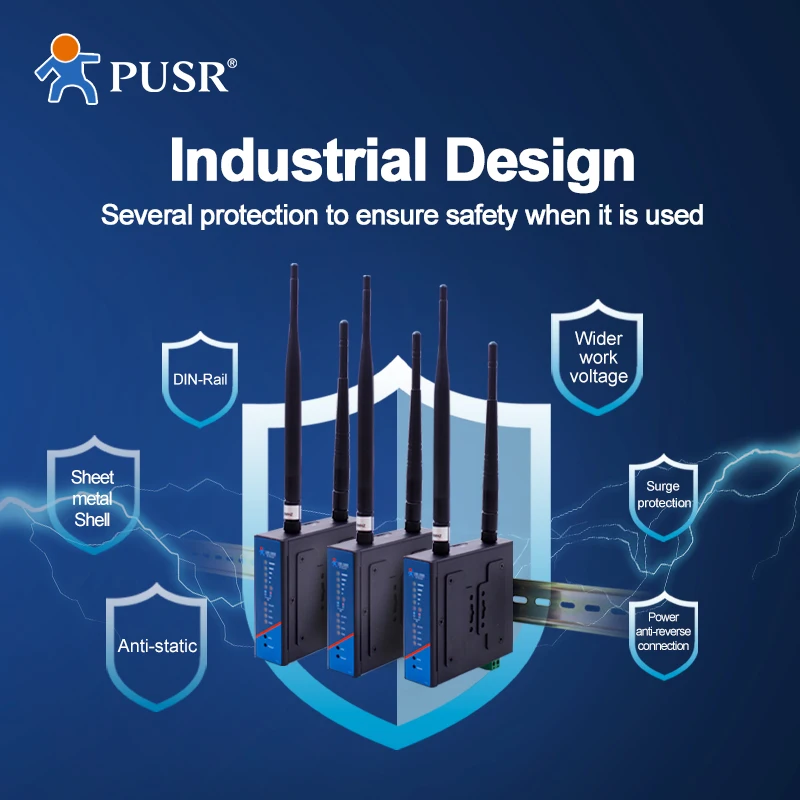

● Hardware watchdog, rugged metal casing and Din-Rail mounting
● Support 802.11 b/g/n WLAN
● Industrial router with sim card
Character
Ethernet Port | ||
WAN port | WAN *1 | |
LAN port | LAN * 1 | |
Both LAN port and WAN port with a rate of 10/100Mbps,Auto MDI/MDIX | ||
WIFI | ||
WIFI Network | Support 802.11b/g/n | |
Antenna | WIFI antenna *1 | |
Specification | ||
Interface | Mini PCI-E 52PIN | |
TD-LTE | 3GPP R9: download rate of 150 Mbps; Upload rate of 50 Mbps | |
FDD-LTE | 3GPP R9: download rate of 150 Mbps; Upload rate of 50 Mbps | |
WCDMA | HSPA+: download rate of 21 Mbps; upload rate of 5.76 Mbps | |
TD-SCDMA | 3GPP R9: download rate of 2.8 Mbps; upload rate of 2.2 Mbps | |
GSM/GPRS/EDGE | Download rate of 384 kbps; upload rate of 128 kbps | |
Frequency Band | ||
TDD-LTE | Europe:Band 38/39/40/41, Australia: Band 40 | |
FDD-LTE | Europe: Band 1/3/5/7/8/20, Australia:1/3/4/5/7/8/28 | |
WCDMA | Europe: Band 1/5/8, Australia:1/2/5/8 | |
TD-SCDMA | / | |
GSM/GPRS/EDGE | Asia:Band 3/8, Europe: Band 1/8, Australia:Band 2/3/5/8 | |
SIM card&Antenna | ||
SIM/USIM Card | Standard 6 pin SIM card, 3V/1.8V SIM card | |
Antenna | 3/4G full-frequency antenna * 1 | |
Temperature | ||
Working Temp | -20°C~ +70°C | |
Storage Temp | -40°C~ +75°C | |
Humidity | ||
Working Humidity | 10%~90% | |
Storage Humidity | 5%~90% | |
Power Supply | ||
Working Voltage | DC 5~36V | |
Working Current | Average: 120mA; Max: 246mA (DC12V) | |
