YT 4800 best price helical gear 4 colors flexographic printer machine print plastic roll

Product Overview

Description

YT-4800 best price helical gear 4 colors flexographic printer machine print plastic roll

1.Feature:

1.1 Easy operation, flexible starting, accurate color register .

1.2 The meter counter can set printing quantity according to the requirements, stop the machine automatically at the quantity or when

 the material is cut off.

1.3 Pneumatic printing cylinder lift and lower, it will stir the printing ink automatically after lifting.

1.4 The printing ink is spread by the anilox cylinder with even ink color.

1.5 Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.360continuous and adjustable longitudinal register device.

1.6 The frequency control of motor speed adapts to different printing speeds.

1.7 Suitable for printing the packing material as PE and PP plastic bags, glass papers rolling papers, etc.

2. Main Technical Specification

Model	YT-4800
Print color	4 colors
Feed width	100-800mm
Printing width	150-760mm
Print length	191-1000mm
Unwind diameter	φ450mm
Printing Speed	5-50m/min
Thickness	2.3mm
Total Power	16.2kw
Overall dimension	4.2×1.8×2.4m
Weight	3500kg

3. Detail picture

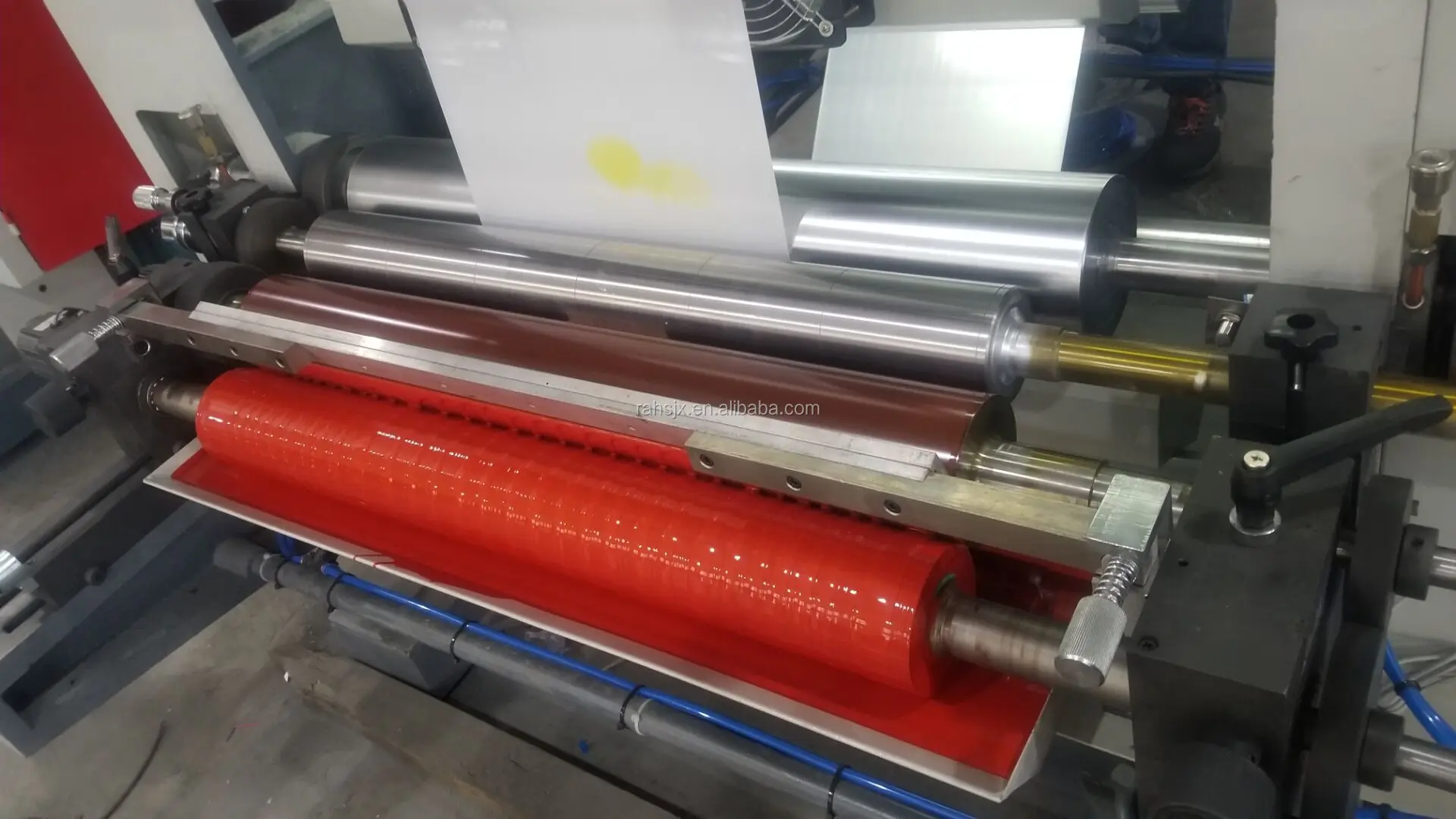

A. print unit



2) double station rewinder part

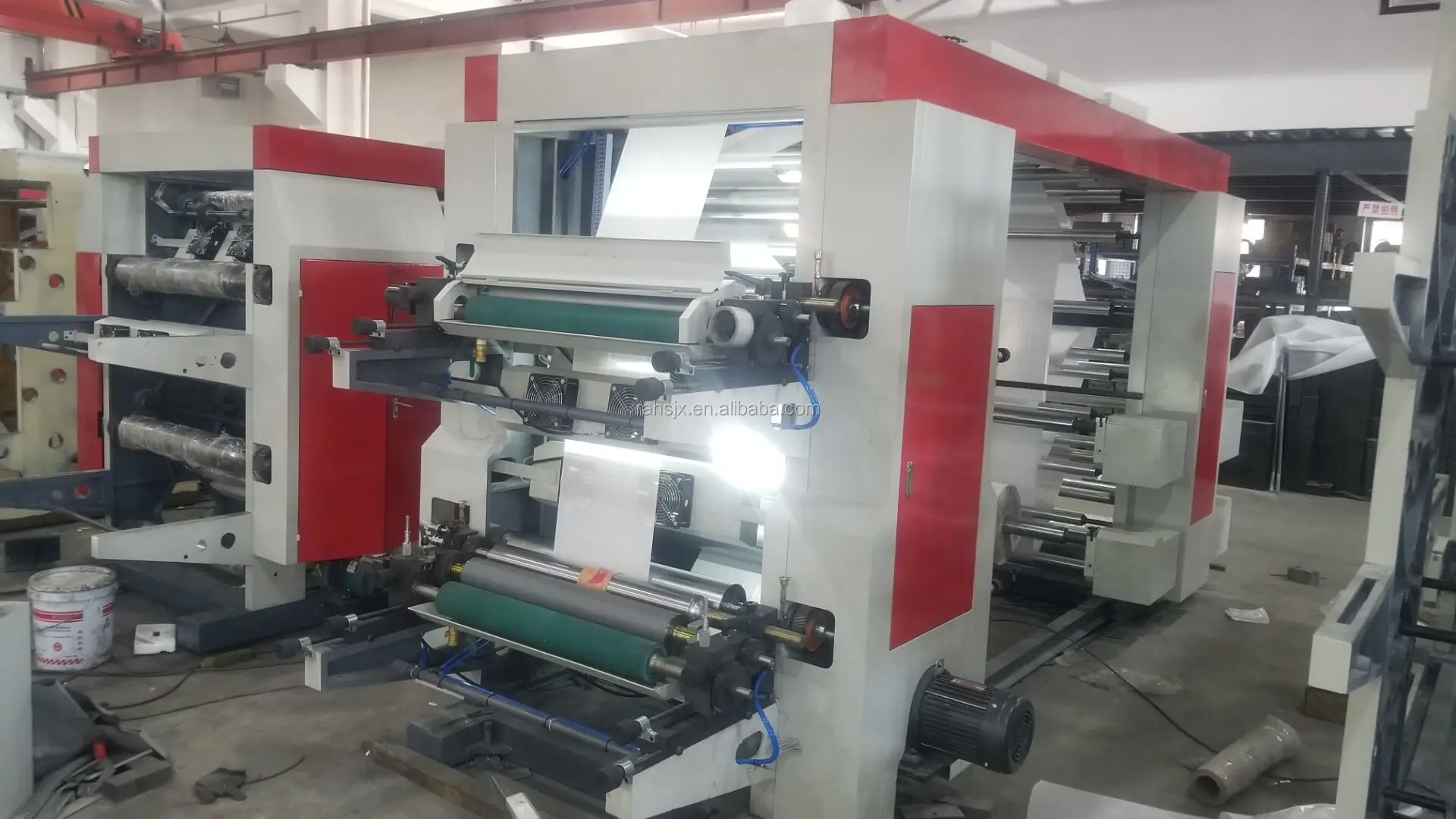

3) printing side picture

4) EPC and auto tension controller panel

5) helical gear transmit system

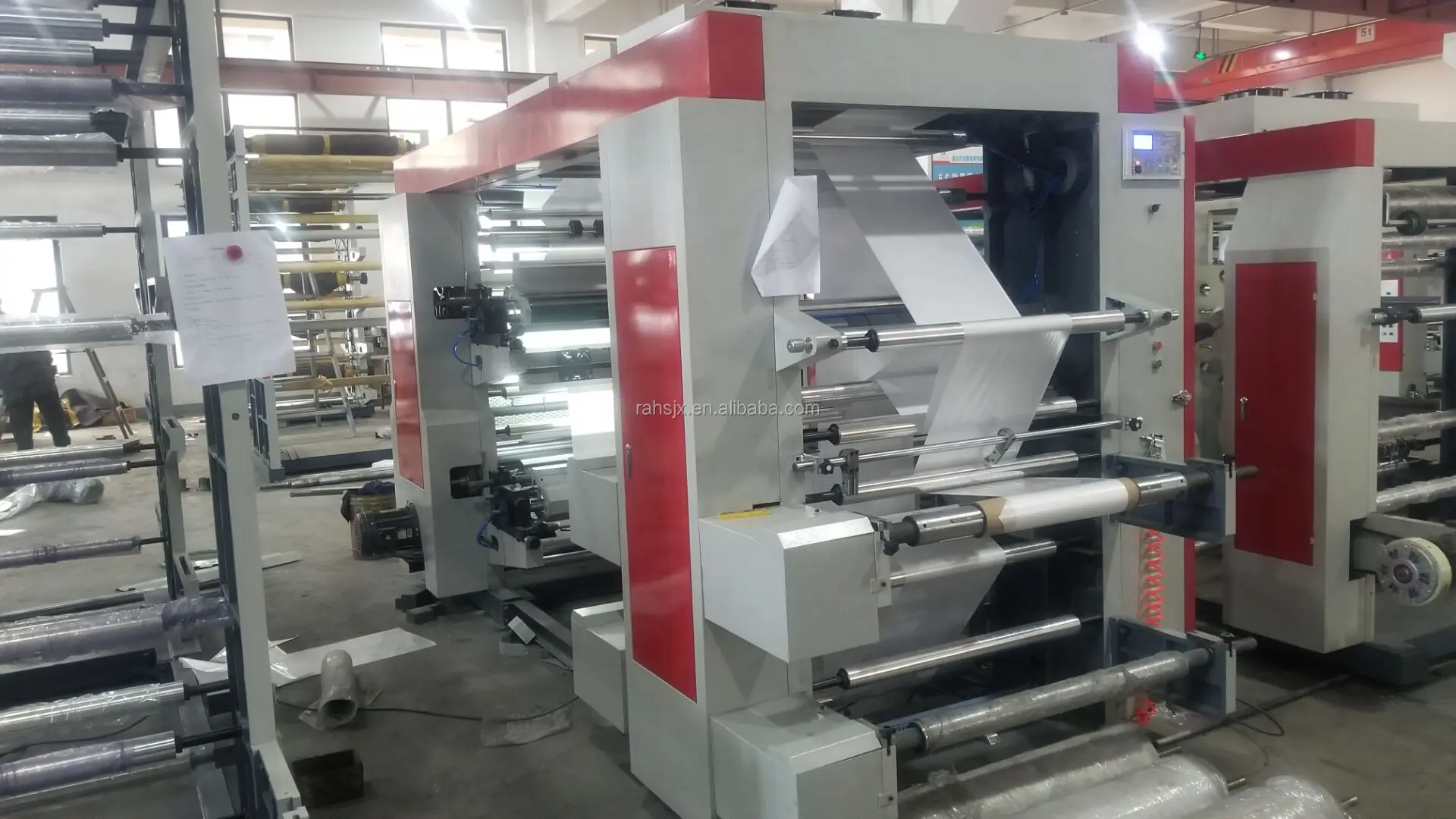

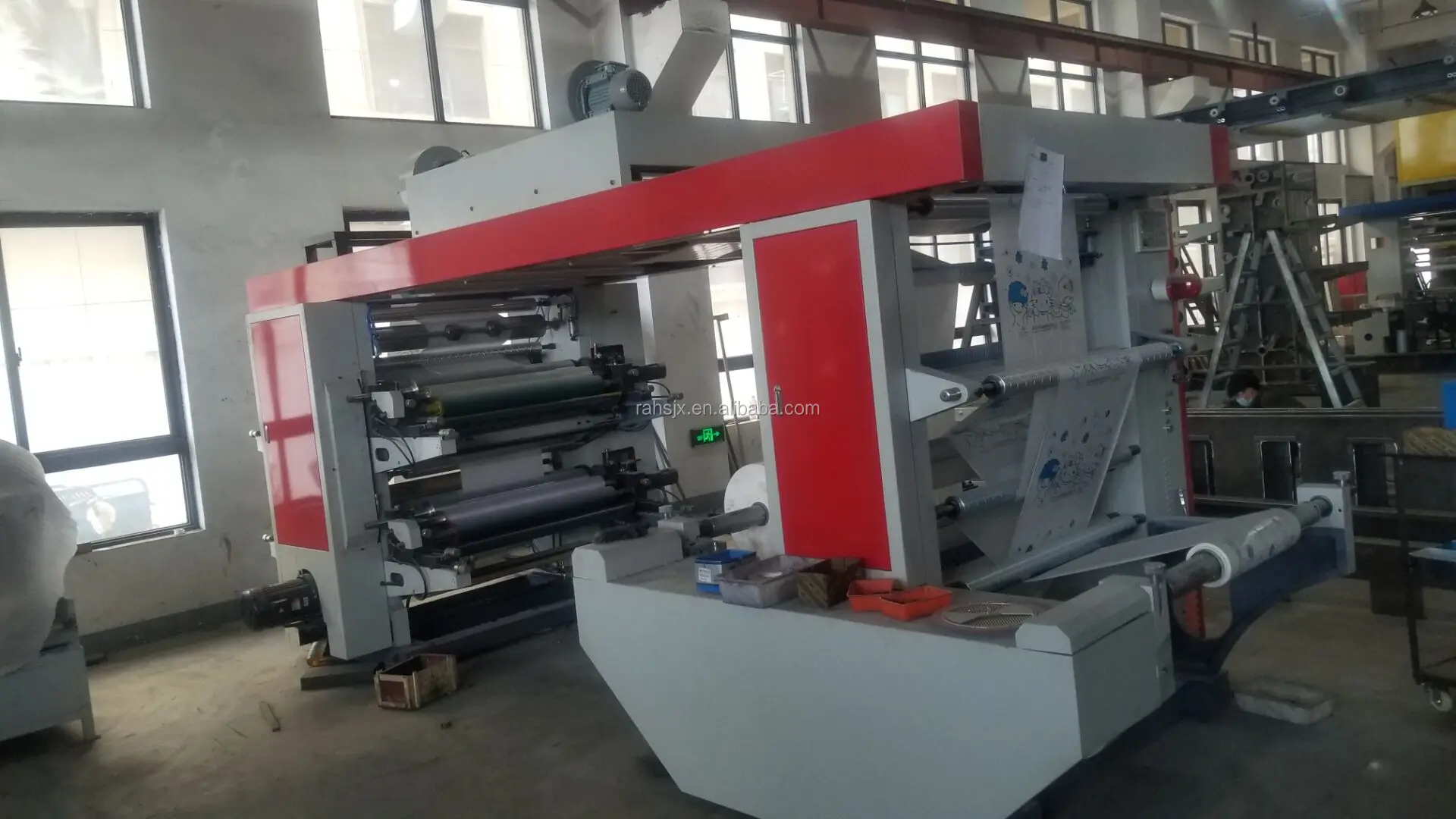

6) whole machine picture show
