Heavy Duty Metal Alloy Wheel CNC Automatic Lathe Machine
- Category: Machine Tool Equipment >>>
- Supplier: Almaco Machine Tool Co. Ltd.
Share on (1600359779262):
Product Overview
Description
Recommend Products
Product Description
The machine adopts ISO International Code,
Keyboard Manual Date input, and it is also
provided with program of power cut-off
protection and the functions of automatic
diagnosis and with RS232 interface.
Longitudinal and cross feeds are effected by
ball leadscrews driven by servo motors.

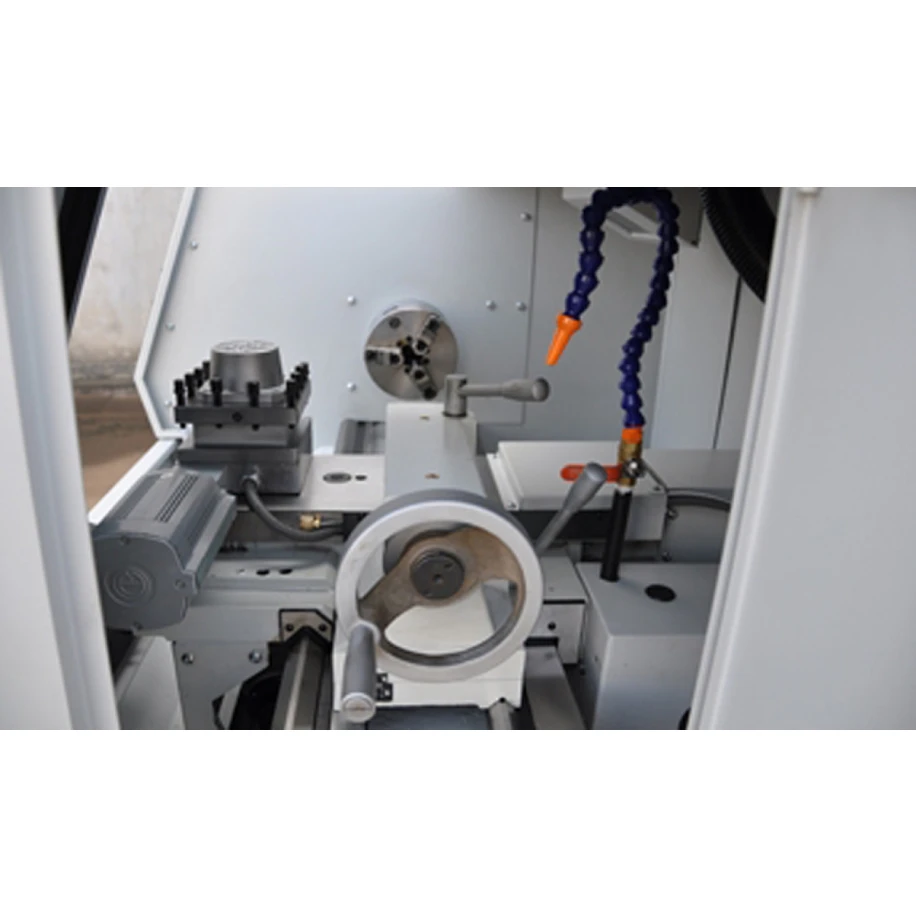

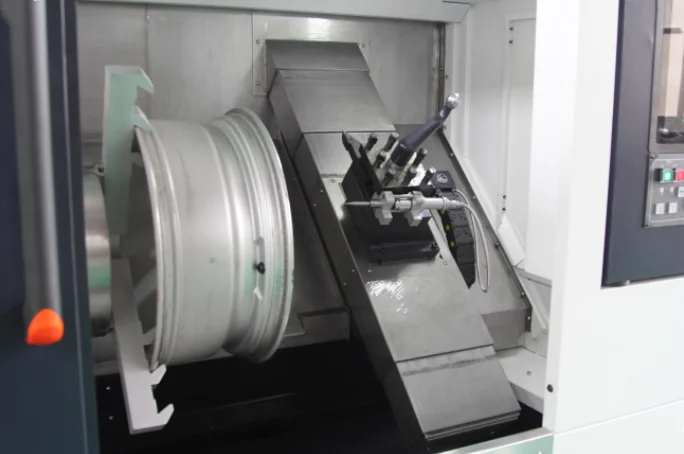

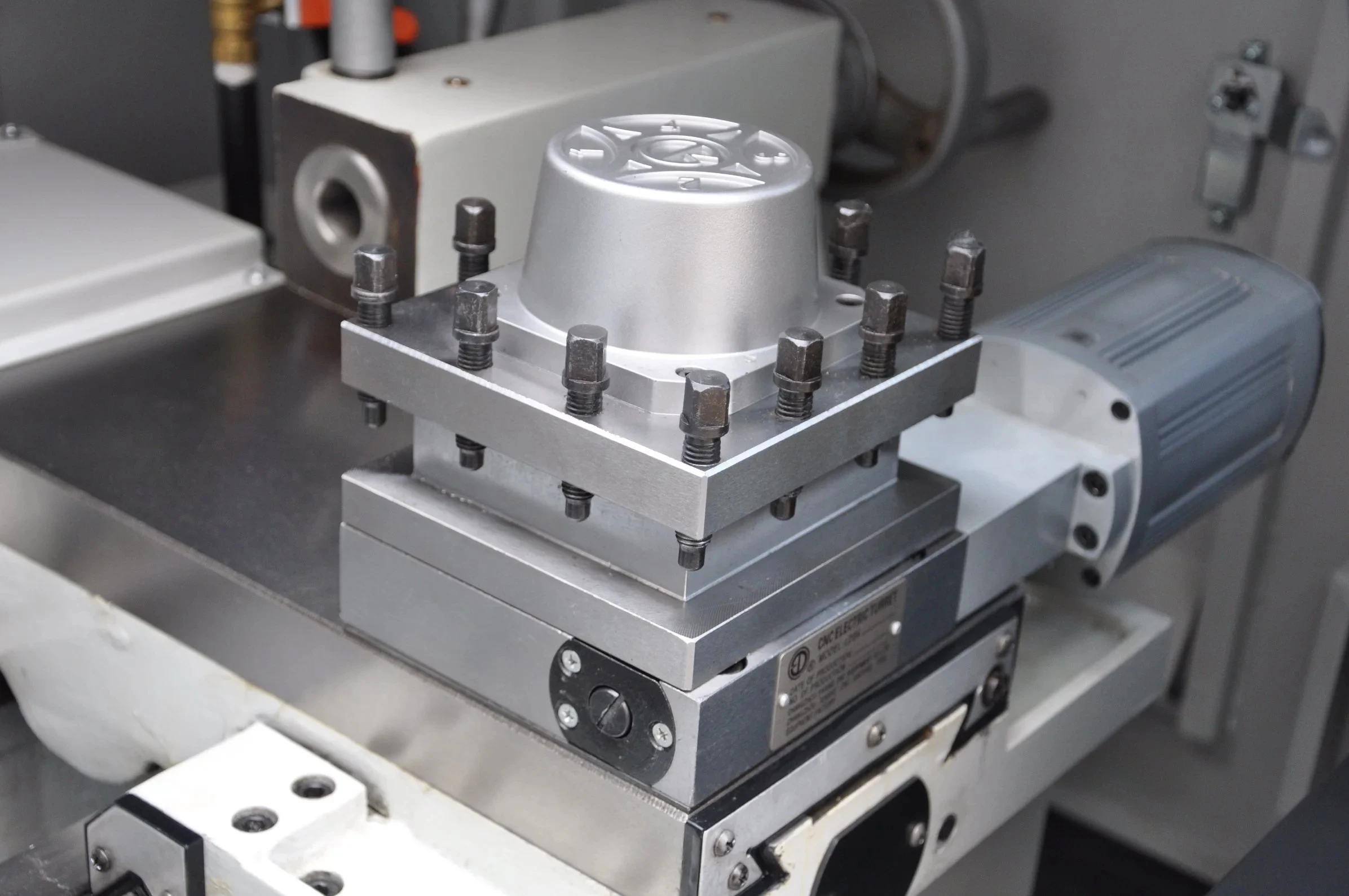

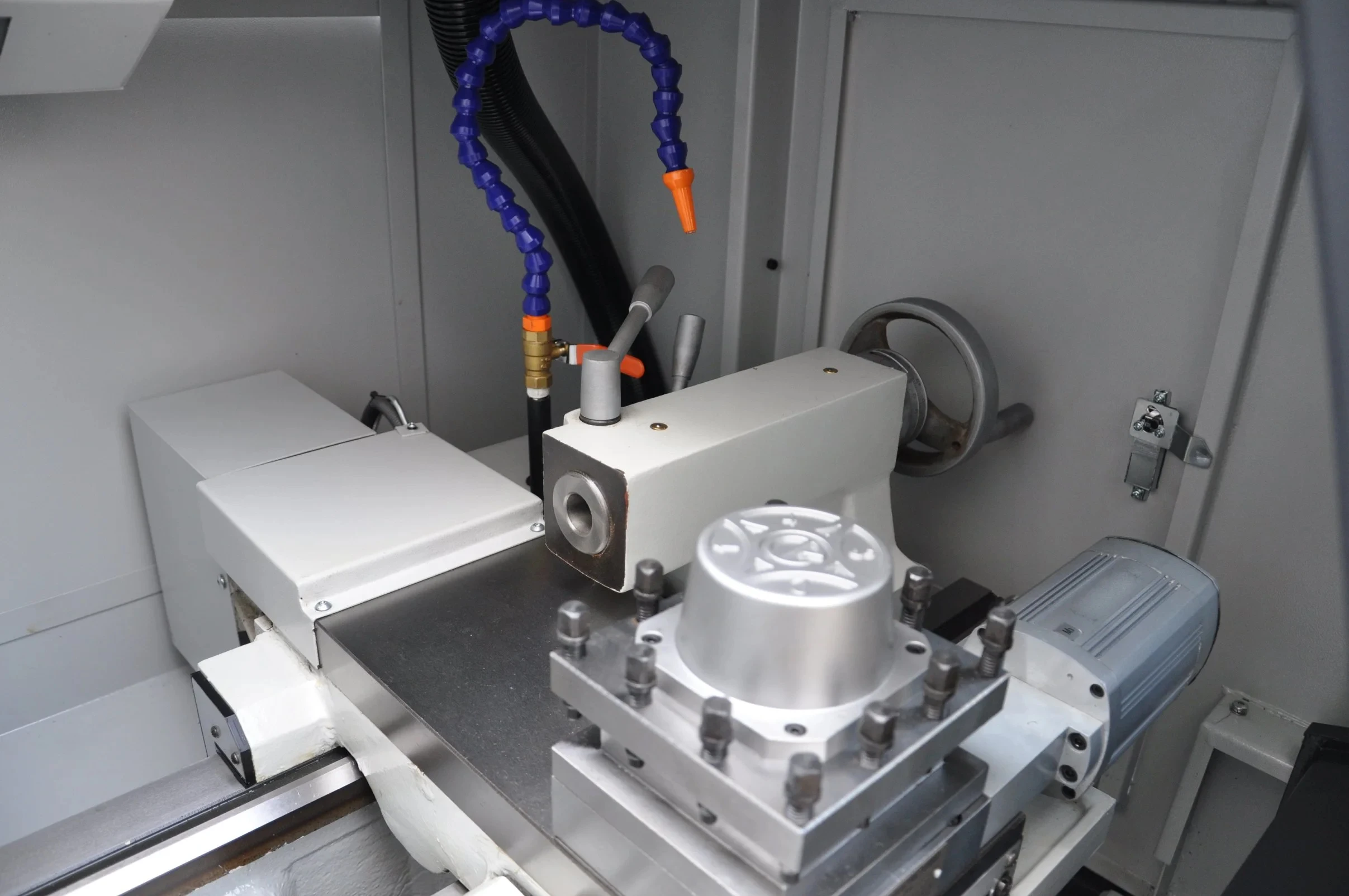

Either vertical or horizontal 4 station or 6
station tool post or gang tools can be
selected. The post is located on precision
contrate gears with a high repeated
positioning accuracy.
Hydraulic chuck, manual chuck, manual
tailstock and hydraulic tailstock are available
for your choice. Infinitely variable speed
change for spindle.
Specification

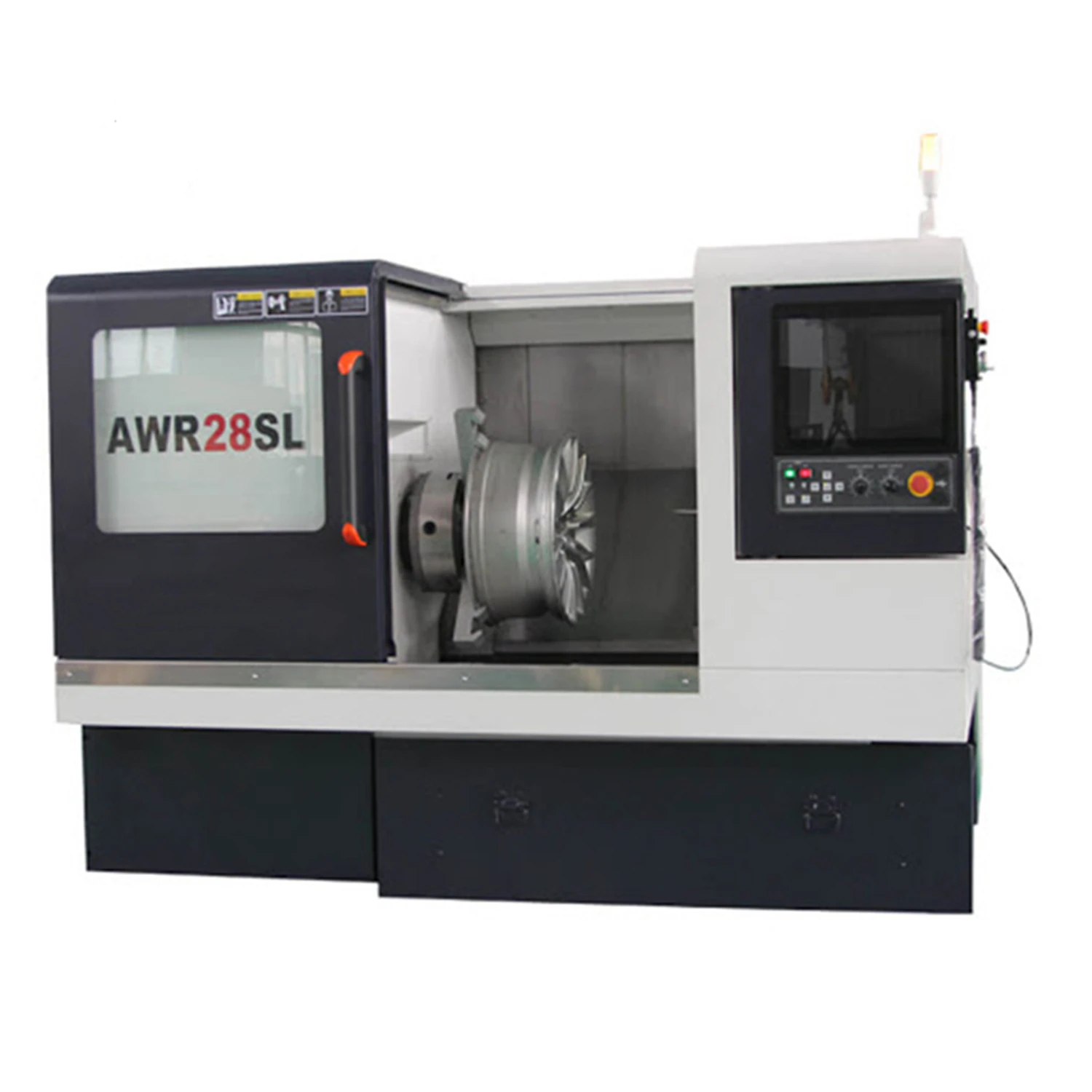

Model | AWR28SL |
X axis travel | 520 mm |
Z axis travel | 530mm |

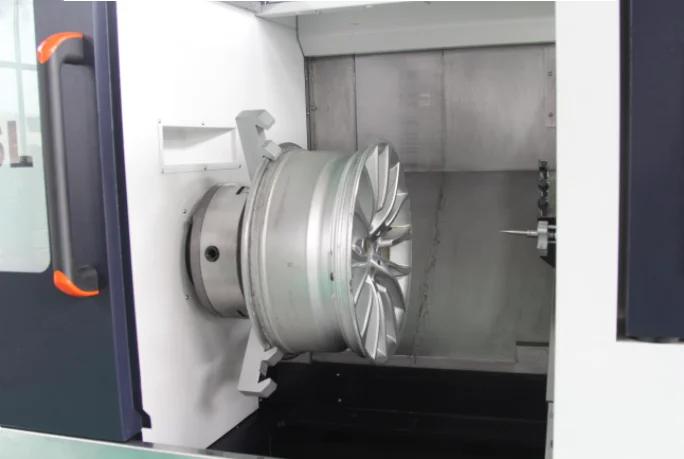

Jaw chuck | 12.5’’ with 3 step soft jaw |
Alloy wheel gripping O.D. Range | 11’’~28’’ |
Spindle motor | 5.5 kw |
Spindle speed | 40~1200 r/min |
X axis rapid traverse | 10m/min |
Z axis rapid traverse | 12m/min |
Cutting feed rate range | 0.05~200mm/min |
Position accuracy | X–0.01mm; Z–0.01mm |
Re-position accuracy | X–0.007mm; Z–0.008mm |
Machine Size (LxWxH ) | 2220 x 1556 x 1523mm |
Packing size: (LxWxH ) | 2440x 1400 x 1900 mm |
N.W. / G.W. | 2400kg / 2500kg |

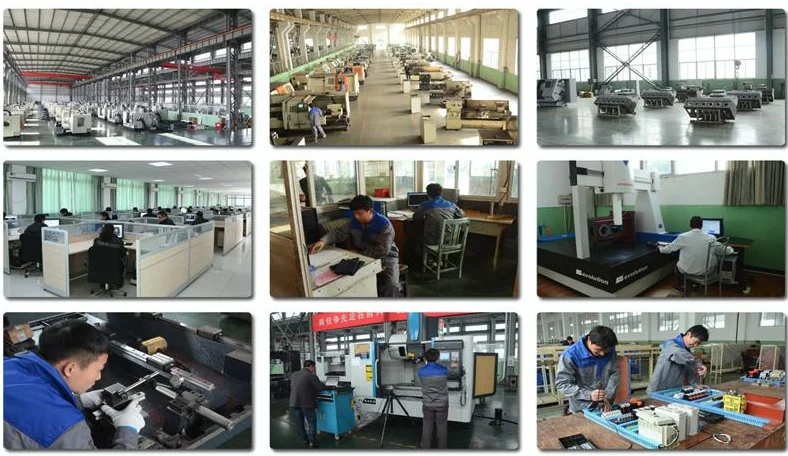

Company Profile
