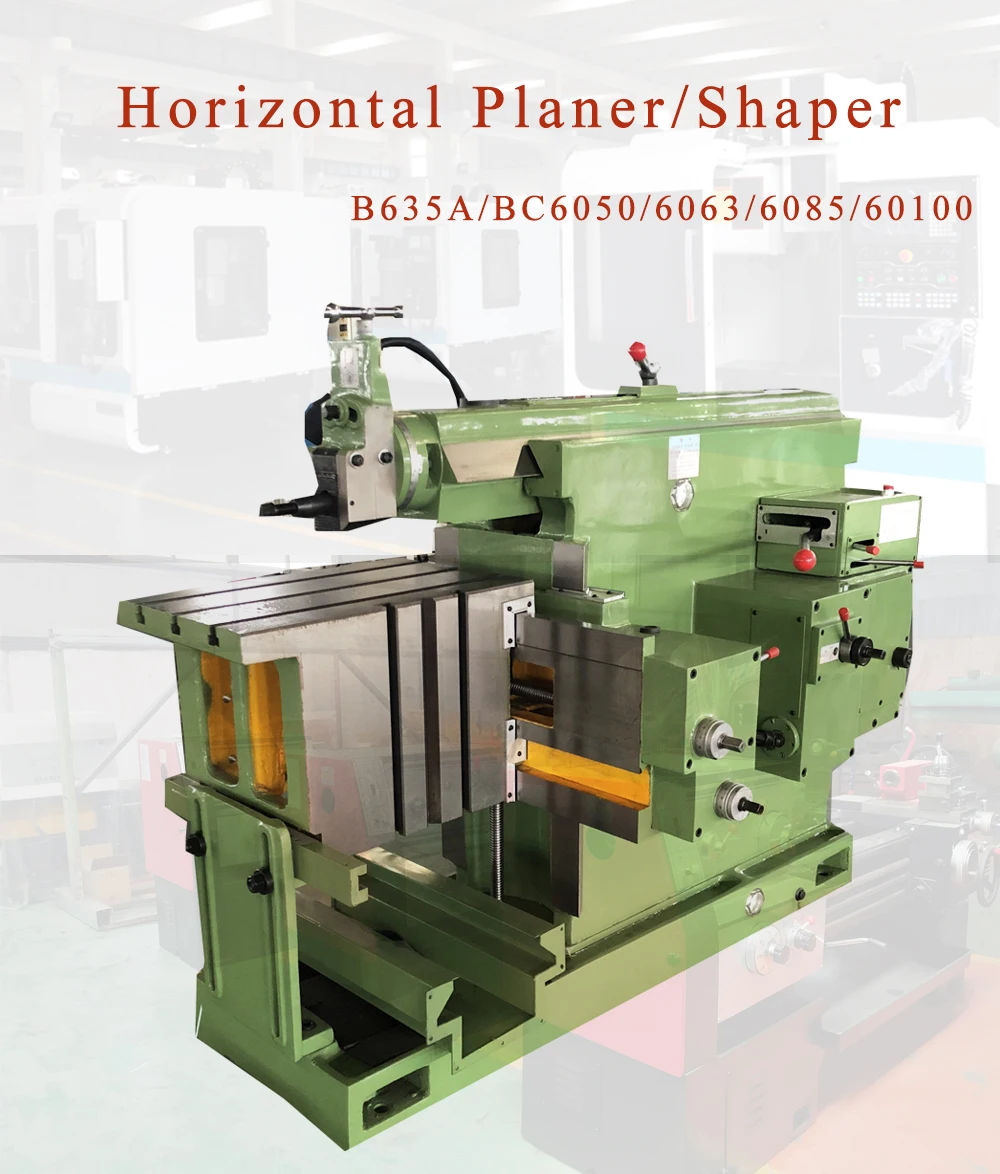

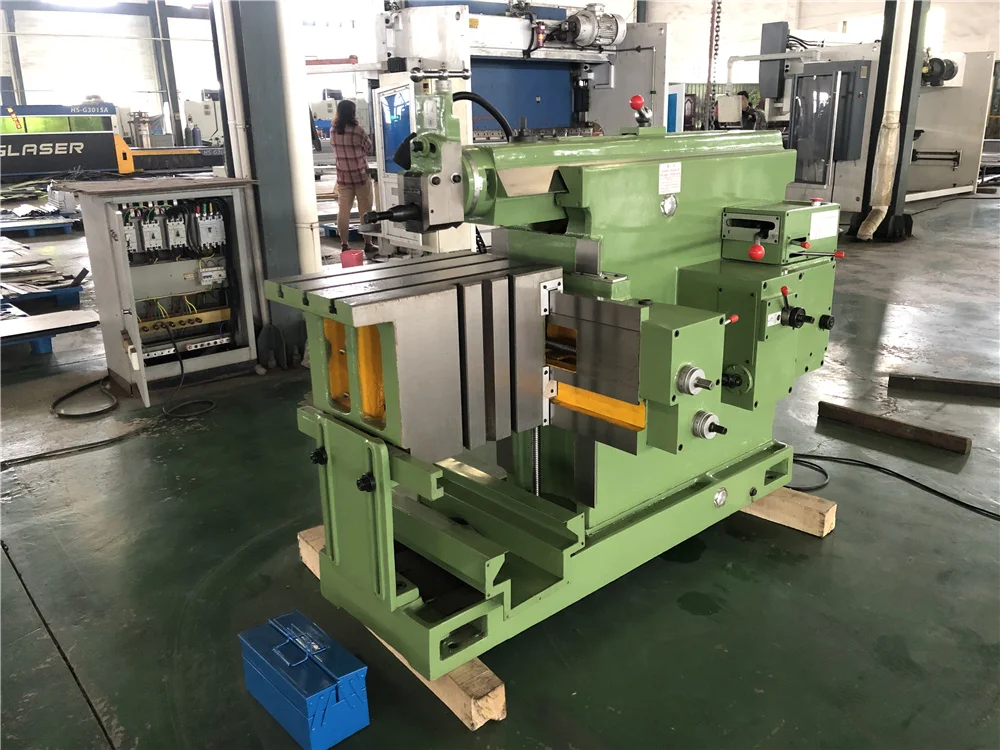

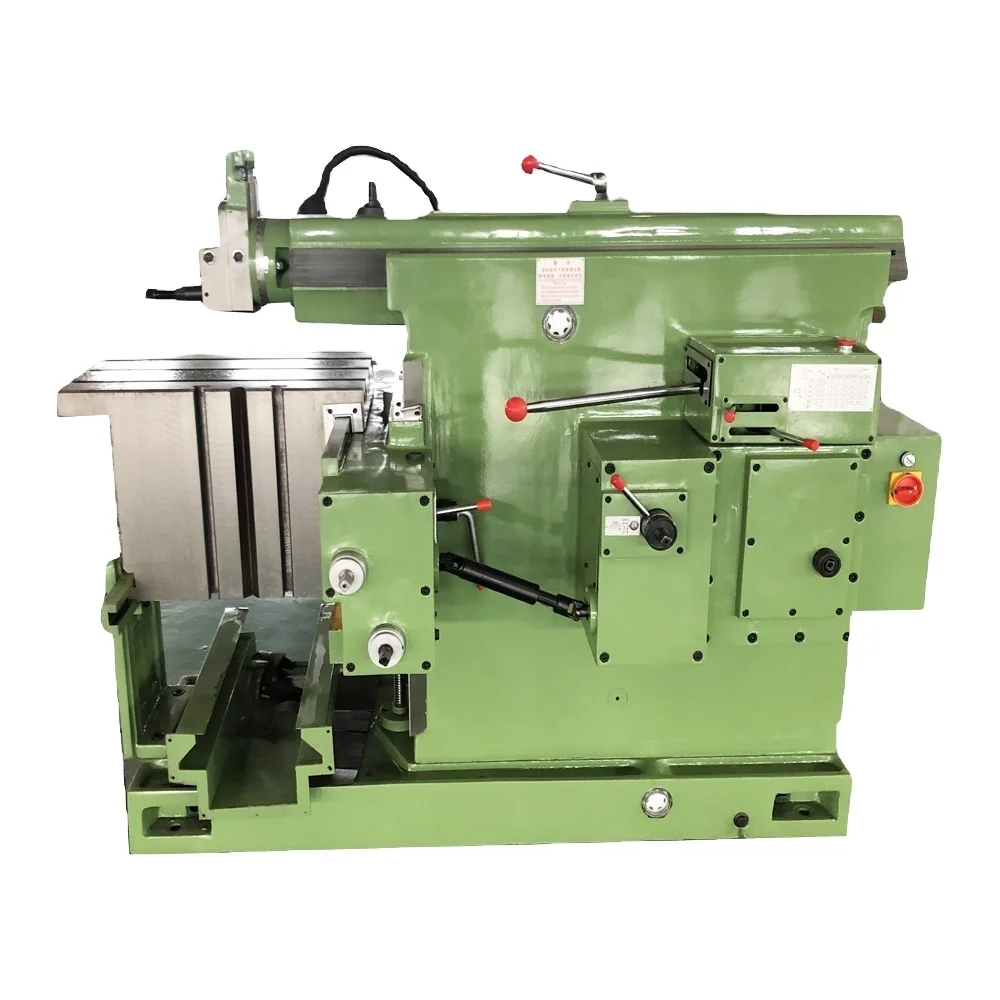

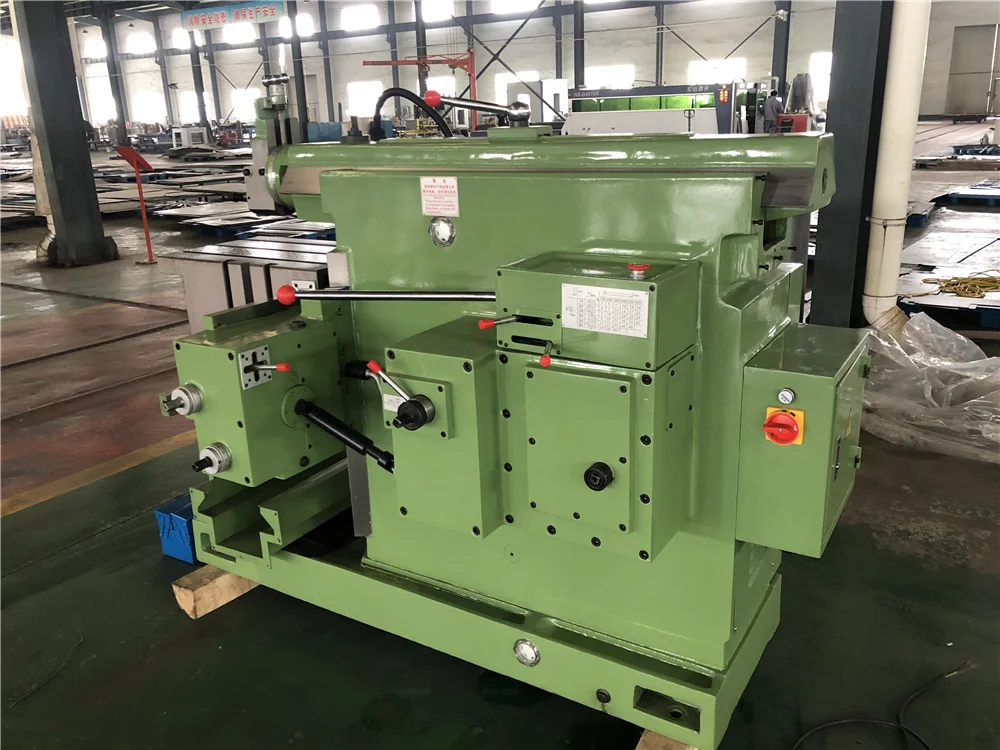

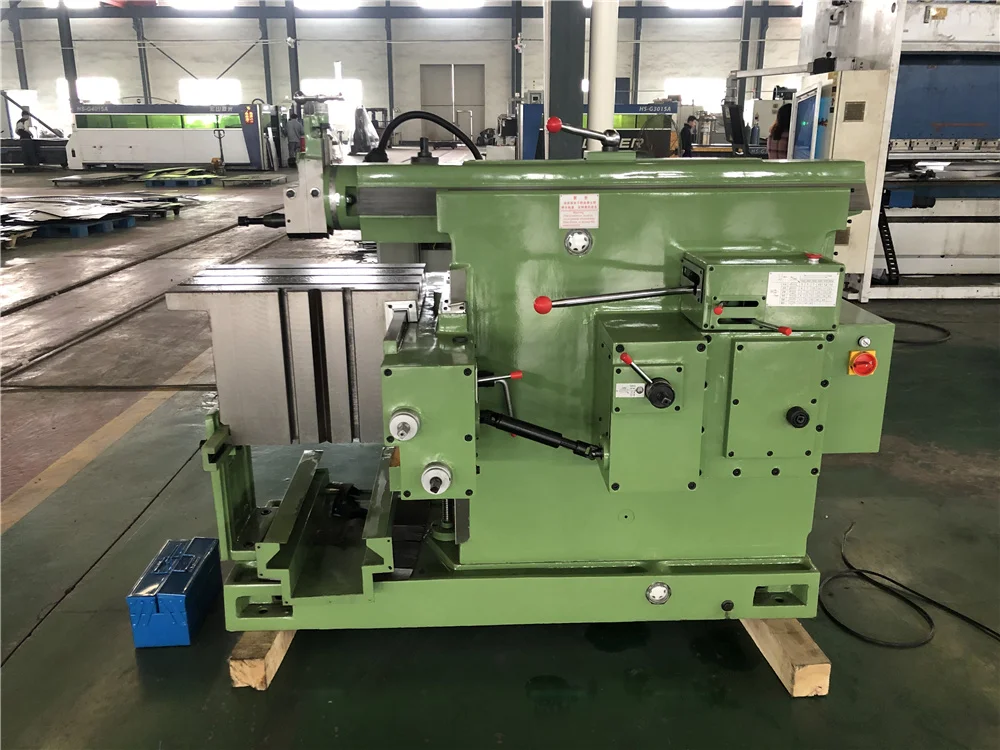

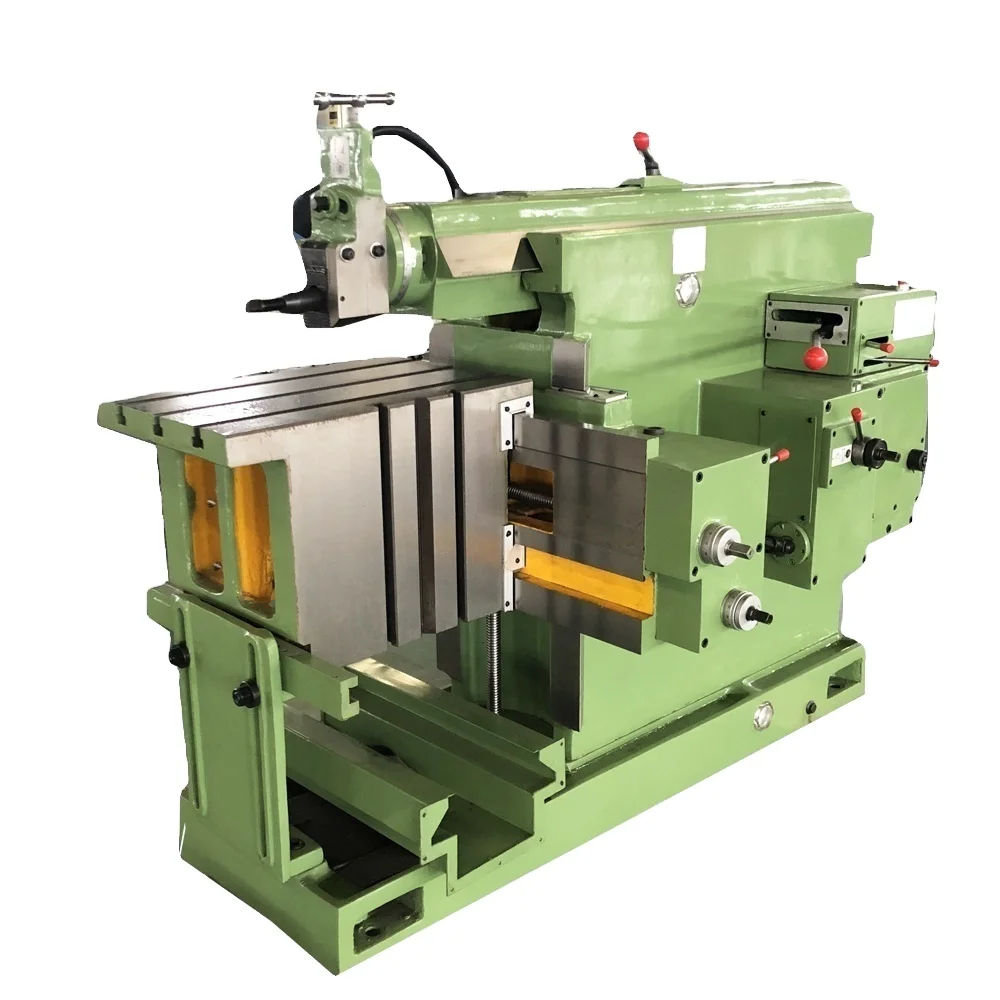

BC6050 BC6066 Metal Shaping Machine
- Category: Planer & Slotting Machines >>>
- Supplier: Henan Wadley CNC Machinery Co. Ltd.
Share on (1600360248792):
Product Overview
Description
BC6050 BC6066 Metal Shaping Machine
Product Description
Shaper/Planer Machine Features:
1. The tool post can rotate with more angle in the vertical plane,
2. Manual feeding is available For tool post.
3. For slotting shaping more economic machining equipment.
4. worktable feeding on cross and vertical specially for swallow tail machining and channel machining.
5. suitable for single piece or small match production.
Standard Accessories
1.Protecting pan
2.Rubber pad for protecting pan
3.Triangle belt
4. Allen wrench
5.Allen wrench
6. Crank handle
7.Spanner
8.Spanner
9.Oil gun
10. Foundation bolts
Optional Accessories:
1.Machine Vice
Product main technical Specifications:
Specifications | BC6050 | BC6065 | BC6063 | |
Maximum planing length (mm) | 500 | 650 | 630 | |
Maximum distance from the bottom of the ram to the work surface (mm) | 525 | 385 | 385 | |
Maximum horizontal movement distance of worktable (mm) | 370 | 650 | 630 | |
Maximum vertical movement distance of worktable (mm) | 270 | 360 | 360 | |
Size of working surface on worktable (length×width) (mm) | 440×360 | 650×400 | 630×400 | |
Tool post stroke (mm) | 120 | 120 | 120 | |
Ram reciprocating times per minute | 14-80 | 14,20,28,40,56,80 | 14,20,28,40,56,80 | |
Swivel angle of tool post (°) | ±60° | ±60° | ±60° | |
Maximum size of planer handle (width×thickness) (mm) | 20×30 | 20×30 | 20×30 | |
Motorized feed range of the worktable | Horizontal feed (12 levels) (mm) | 0.2-0.25 0.08-1 | 0.2~2.5 | 0.4~5.0 |
Vertical feed (12 levels) (mm) | 0.95 0.38 | 0.08~1.00 | 0.08~1.00 | |
Central T-slot size of worktable (mm) | 18 | 18 | 18 | |
Main motor power (kw) | 3 | 3 | 3 | |
Overall dimensions (length × width × height) (mm) | 1900×1200×1450 | 2000×1300×1550 | 2000×1300×1550 | |
Net weight/Gross weight (kg) | 1650/1750 | 1750/1870 | 1750/1870 | |

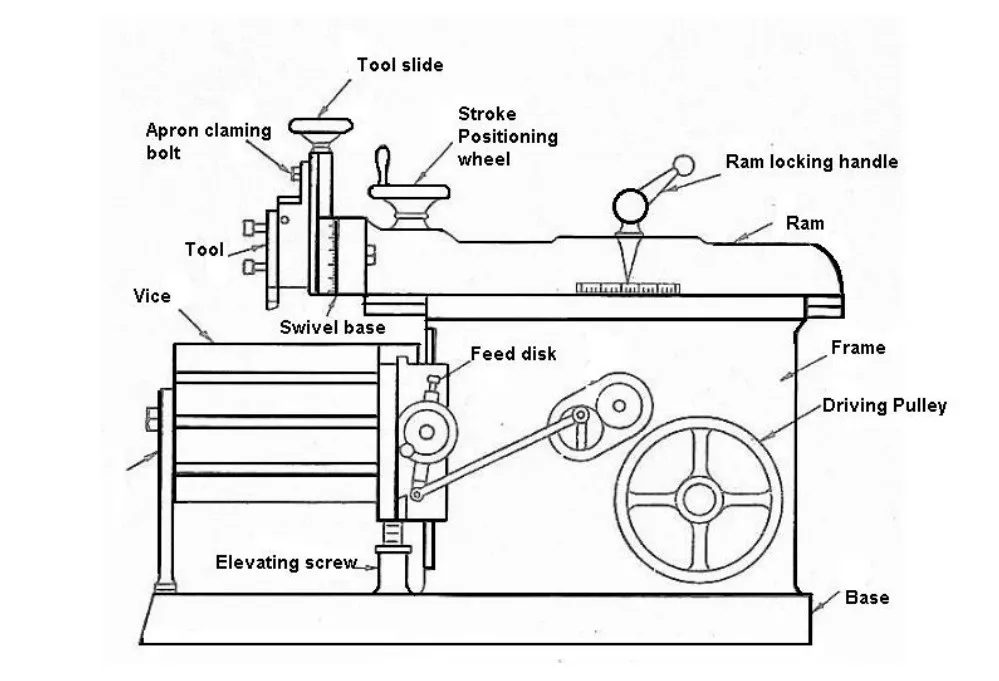

Structure
Company Information
Henan Wadley CNC Machinery Co., Ltd. Located in Zhengzhou.the central place of China. With long time exporting machines experience, we can not only supplying our customers stable quality products ,but also more excellent service.we supply all kinds of Machine tool to international market, like Lathe machine, CNC Lathe Machine, Milling Machine, CNC Milling Machine, CNC Machining Center, Grinding Machine, Hydraulic Press, Bending Machine, Drilling Machine, Press brake, Shearing Machine, and Machine tool accessories. We have our own engineer who has more than years of working experience and is professionally trained. Our trained engineers can help customers on behalf of company not only inspect goods before shipping but also track all links of production process.
Packaging & Shipping
Our Services
Q1.How to send my enquiry?
You can contact us by email, phone call, message (Whats APP, We Chat, Skype).
Q2.How long can I get feedback after enquiry?
We will reply you within 3 hours in working day.
Q3.Delivery time
Machines order takes 30 days after deposit payment received. Please inquiry sales.
Q4.What is the package? Is it suitable for shipment?
Machine is by waterproof cloth to covered. And be packed by standard exported wooden case with steel foot. It is very much strong for oversea transportation.
Q5.Payment term
30% T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss the details. Welcome to inquiry sales.
Q6.How long is the warranty for machines?
Machines warranty is 12 months after receive goods. in Warranty time,we can provide new free parts for changing.
Q7.Can you engineer come to our place to help with machine installation & commission?
Yes, our engineers are available to travel to your place. Round flight tickets & accommodation will be at your cost.
