EDOO компактный встроенный сканер штрих кода с фиксированным креплением, 2d модуль считывания Qr кода
- Category: Scanners >>>
- Supplier: Shenzhen Edoo IOT Technology Co. Ltd.
Share on (1600366404306):
Product Overview
Description

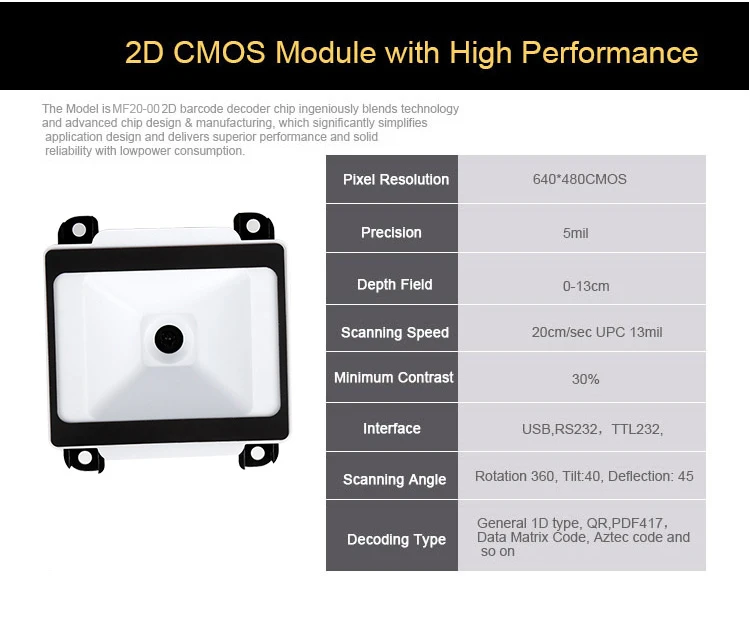

Excellent 1D/2D Barcode Reading Capability
Adopt the self-developed core decoding technology, can fastly read large amount of various filmed on-screen 1D/2D barcode.
Adopt the self-developed core decoding technology, can fastly read large amount of various filmed on-screen 1D/2D barcode.
Performance | Image Sensor | 640×480 CMOS | |
Illumination | 0~100000 Lux | ||
Light | Lighting White LED，Indicator Green LED | ||
Symbologies | 2D | PDF417，Data Matrix，QR Code | |
1D | Code 128/EAN128，Code 39/Code 93，Code 11，UPC/EAN，Interleaved 2 of 5，Matrix 2 of 5，Industrial 2 of 5 | ||
Precision | ≥5mil | ||
Typical Depth of View | EAN-13 | 10mm-80mm (13mil) | |
Code 39 | 20mm-35mm (5mil) | ||
PDF 417 | 25mm-40mm (6.67mil) | ||
Data Matrix | 20mm-30mm (10mil) | ||
QR | 15mm-55mm (15mil) | ||
Sensitivity | Pitch | ±45°@ 0°Roll and 0° Skew | |
Roll | 360°@ 0°Pitch and 0° Skew | ||
Skew | ±45°@ 0°Roll and 0° Pitch | ||
Lowest Contrast | 25% | ||
Data Interface | TTL232/RS-232, USB(optional) | ||
Field Angle | 69°（Horizontal），56°（Vertical） | ||
Physical | Size(L×W×H） | 61.0mm x 64.7mm x 25.3mm | |
Weight | 35g | ||
Indicator | Beeper, LED light | ||
Power Supply Adaptor | Output：DC 5V, 1.5A, Input：AC 100~240V, 50~60Hz | ||
Operation Current | <200mA | ||
Environmental | Operation Temperature | -20℃~60℃ | |
Storage Temperature | -40℃~70℃ | ||
Relative Humidity | 5%~95%（Non-condensing） | ||
Static Protection | ±4KV（Contact Discharge）；±8 KV（Air Discharge） |
Multiple Interface
It’s available to provide with USB or TTL-232 interface, to meet different needs
