YJX220B Tablet and Capsule Inspecting Machine
- Category: Other Pharmaceutical Machinery >>>
- Supplier: Sino Pharmaceutical Equipment Development (Liaoyang) Co. Ltd.
Share on (1600374057586):
Product Overview
Description
Product introduction

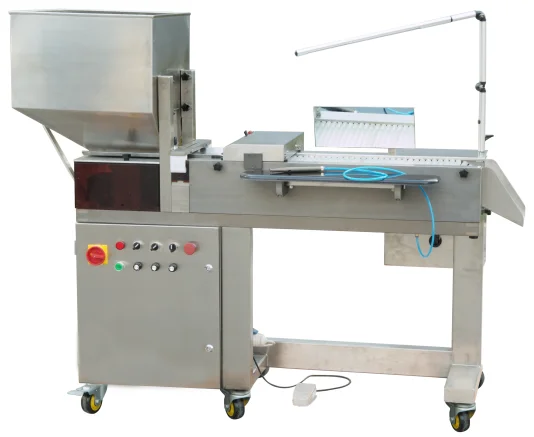

YJX-220B is used for consistent inspection of capsules and plain or coated tablets.
The product flows from the feed hopper into a vibratory chute where a perforated screen eliminates coarse dust andchips which are then collected in a container. The product enters the inspection stage in a single layer. The capsulesand tablets are placed on rotating rollers and are continuously turned in front of the operator which ensures a reliableall-sided inspection. An adjustable
mirror enables the operator to examine the far side of the product. Optionally therotation speed of the inspection rollers is
adjustable with a separate drive unit, independent of the inspection speed.
The product flows from the feed hopper into a vibratory chute where a perforated screen eliminates coarse dust andchips which are then collected in a container. The product enters the inspection stage in a single layer. The capsulesand tablets are placed on rotating rollers and are continuously turned in front of the operator which ensures a reliableall-sided inspection. An adjustable
mirror enables the operator to examine the far side of the product. Optionally therotation speed of the inspection rollers is
adjustable with a separate drive unit, independent of the inspection speed.
Technical Parameters
Application: | Inspection of capsules, plain or coated tablets and other round or cylindrical objects by one operator. |
Inspectin capacity: | up to 120,000 capsules/h or 50 kg tablets/h, depending on product |
Min. Tablet thickness: | 3mm |
Hopper volume: | 30L，or 60L |
Working height: | 830 mm |
Power supply: | 220V/50Hz/Single phase；or 110V/60Hz/single phase |
Power consumption: | 0.5 kw |
Compressed air pressure: | 6 bar |
Compressed air connection: | ø8 mm |

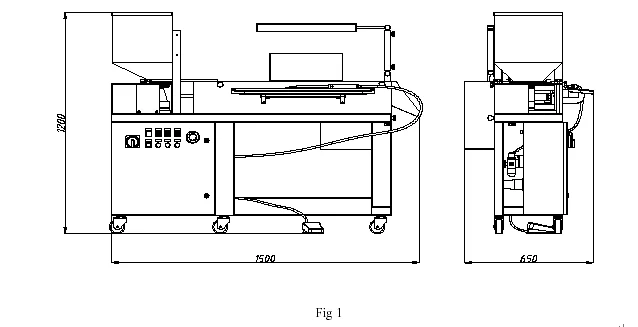

Overall dimensions: | 1400 x 650 x 1250 mm |
Machine weight: | 125 kg |

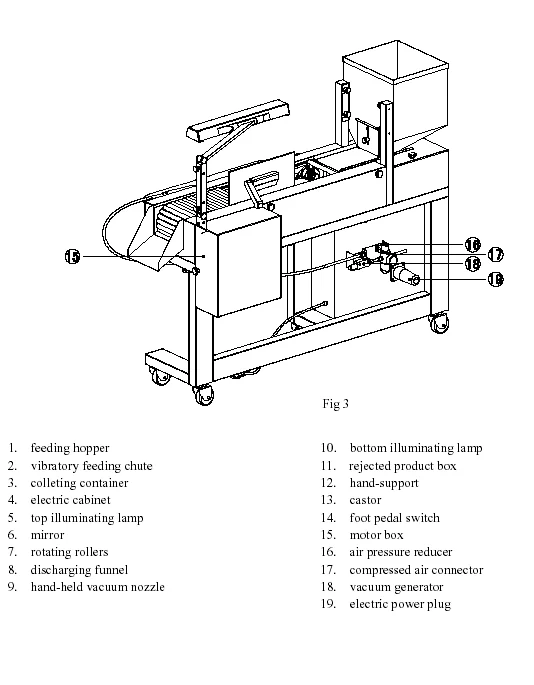

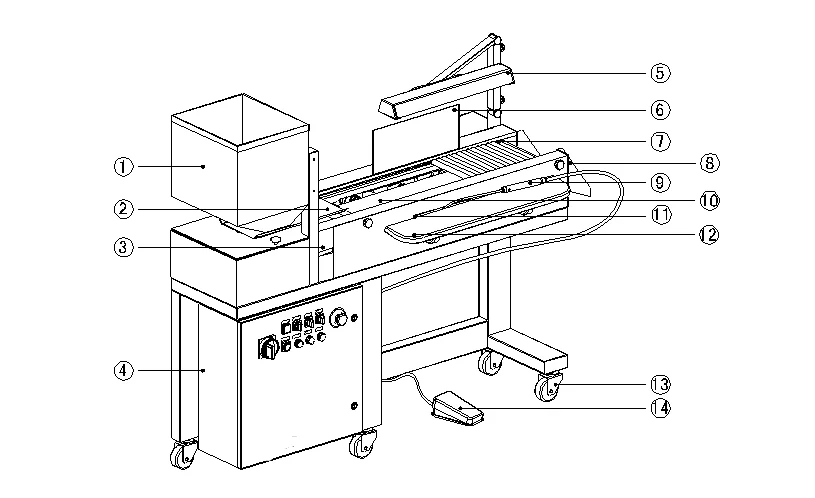

The product flows from the feed hopper into a vibratory
chute where a perforated screen eliminates coarse dust and
chips which are then collected in a container.

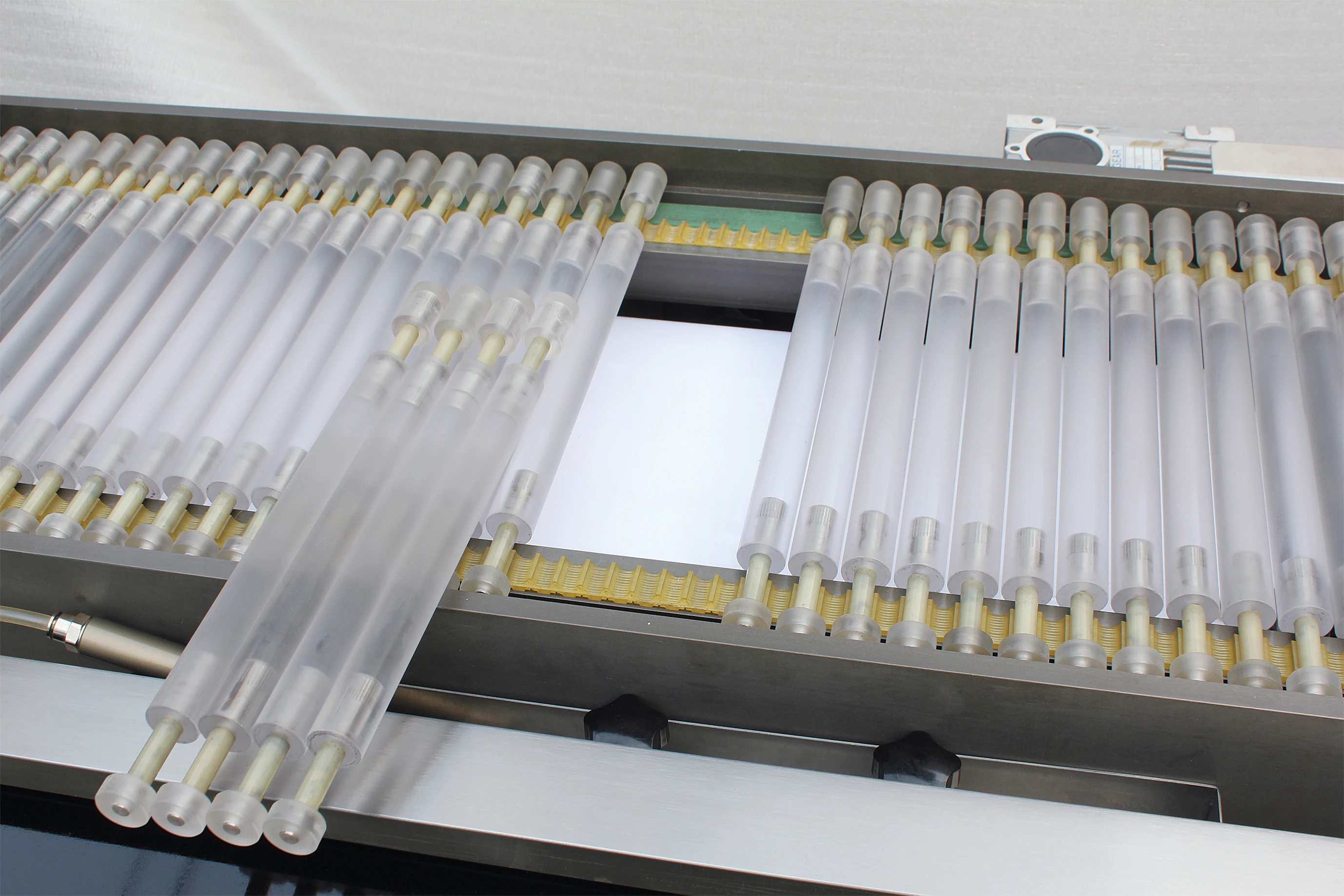

The product enters the inspection stage in a single layer. The capsules and tablets are placed on rotating rollers. The

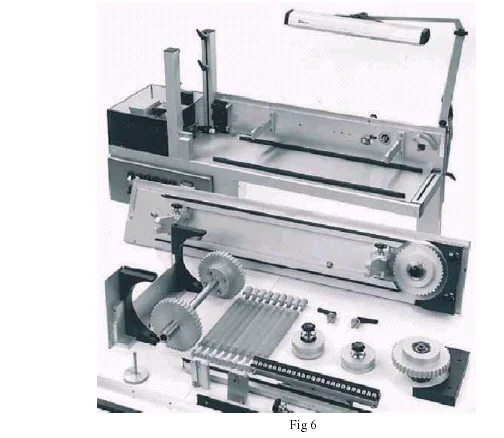

machine is equipped with two independent driving units,
they are conveying unit and rotating unit. The rollers are
moved forward by conveying unit so that the rollers convey capsules and tablets from the feed hopper to the discharge place.

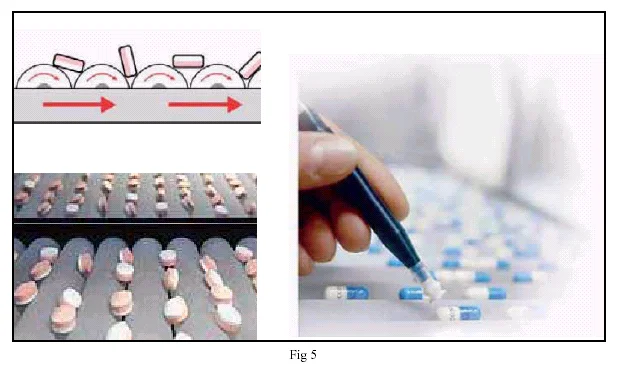

Meantime, the rollers are rotated with itself by rotating unit so that the rollers make capsules and tablets rolling on the
rollers simultaneously, thus the capsules and tablets are continuously turned in front of the operator which ensures a reliable

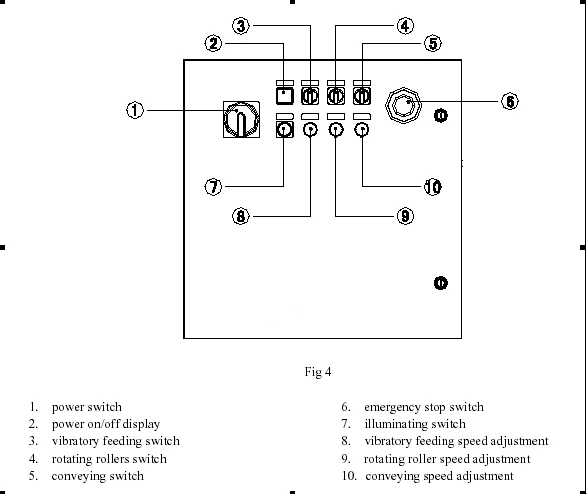

all-sided inspection. Both the conveying speed and the rotating speed are variably regulated and they are separately controlled.

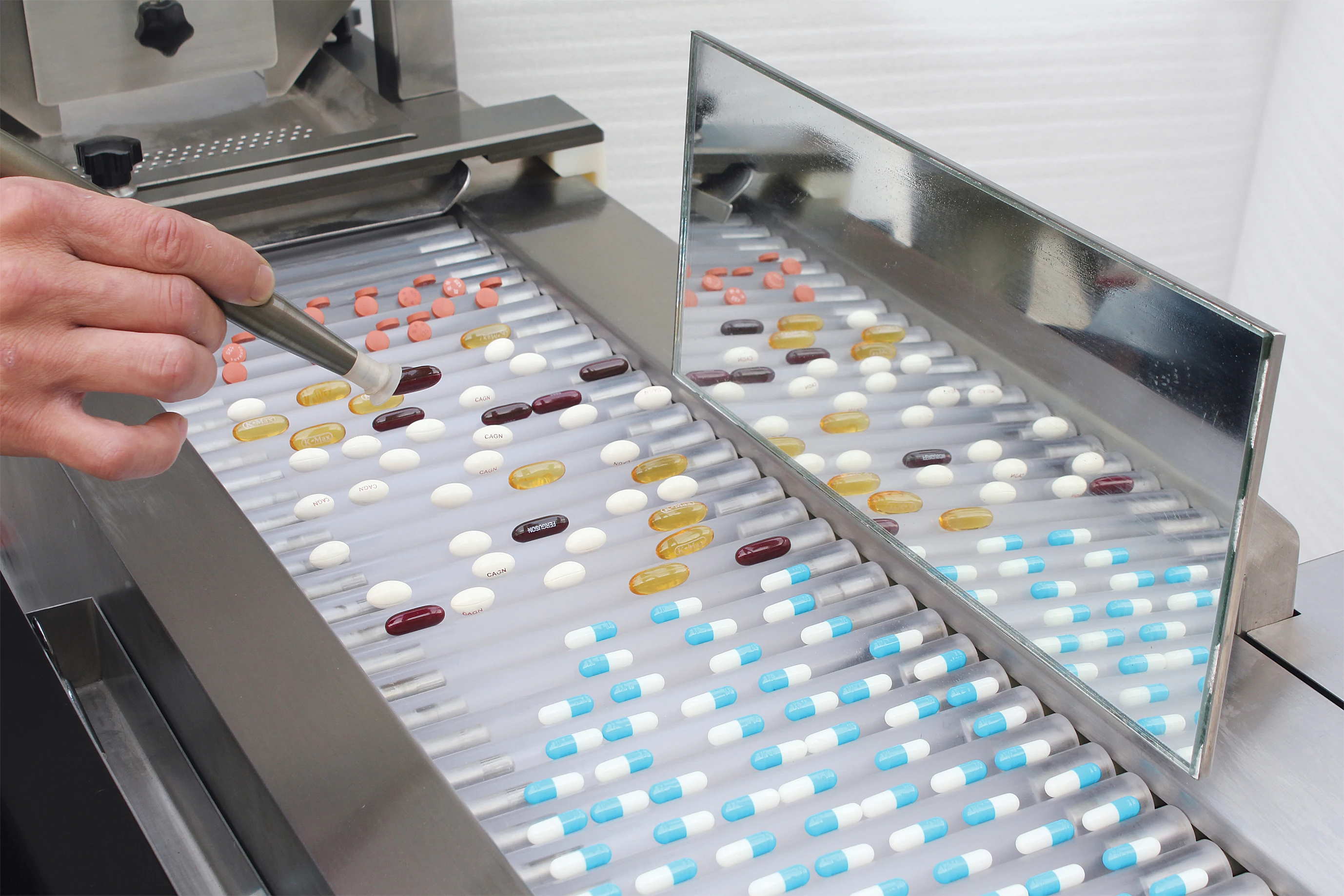

An adjustable mirror enables the operator to examine the far side of the product. Inspection rollers are made of GMP
approved transparent high density polymers. Lighting fixture installed underneath the roller conveyor belt, for illuminating the
product from below.

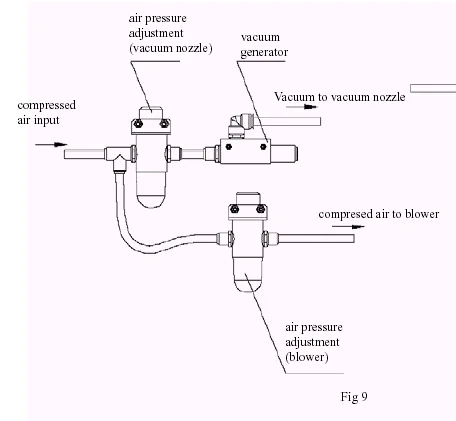

Defective capsules or tablets can be eliminated by the
operator with a flexible handhold vacuum nozzle.
If defective products appears in mass within short time, the
operator can step on foot pedal switch to stop conveying at
any time. While foot pedal switch is pressed, the product
keep rotating on the rotating roller at a separately adjustable speed.
Qualified product are unloaded from the discharge chute.
chute where a perforated screen eliminates coarse dust and
chips which are then collected in a container.
The product enters the inspection stage in a single layer. The capsules and tablets are placed on rotating rollers. The
machine is equipped with two independent driving units,
they are conveying unit and rotating unit. The rollers are
moved forward by conveying unit so that the rollers convey capsules and tablets from the feed hopper to the discharge place.
Meantime, the rollers are rotated with itself by rotating unit so that the rollers make capsules and tablets rolling on the
rollers simultaneously, thus the capsules and tablets are continuously turned in front of the operator which ensures a reliable
all-sided inspection. Both the conveying speed and the rotating speed are variably regulated and they are separately controlled.
An adjustable mirror enables the operator to examine the far side of the product. Inspection rollers are made of GMP
approved transparent high density polymers. Lighting fixture installed underneath the roller conveyor belt, for illuminating the
product from below.
Defective capsules or tablets can be eliminated by the
operator with a flexible handhold vacuum nozzle.
If defective products appears in mass within short time, the
operator can step on foot pedal switch to stop conveying at
any time. While foot pedal switch is pressed, the product
keep rotating on the rotating roller at a separately adjustable speed.
Qualified product are unloaded from the discharge chute.
Detailed Images
Packaging & Shipping
Our Company
Sino Pharmaceutical Equipment Development (Liaoyang) Co., Ltd. (SINOPED) is a professional manufacturer and supplier of pharmaceutical machinery in China. It integrates development, manufacture, sales, after-sale services as a whole, being a professional supplier for dryer granulator, mixer, coater. Solid preparation machine, such as filling machine , capsule machine, tablet machine, packing machine and clean room turnkey project for pharmacy factories. All of machinery fully come up to G M P requirement.
Testified by the experience of long-term users, our products have very high stability and reliability, which have been sold to more than 20 regions, cities, and provinces around China and some foreign countries like Asian, European, American. Sinoped have established long-term business relations with many customers and some of them already cooperate as our agent in their countries.
For many years, we`re stick to the principle of "Customers First" taken the initiative to manage customers` demands, to develop and research high-quality pharmaceutical equipment, set up a perfect after-sale service system, and brought up the concept of" Star service" The pharmaceutical equipment is worth of your trust, Let`s join hands to co-develop a brilliant future in the 21st century full of opportunities! Brand from concentration——Our pursuit is to product the best cost-effective machines in China. In this 21-century full of opportunities and challenges, SINOPED will provide new equipment and more pragmatic spirit of innovation, cooperate with you and create brilliance!
Testified by the experience of long-term users, our products have very high stability and reliability, which have been sold to more than 20 regions, cities, and provinces around China and some foreign countries like Asian, European, American. Sinoped have established long-term business relations with many customers and some of them already cooperate as our agent in their countries.
For many years, we`re stick to the principle of "Customers First" taken the initiative to manage customers` demands, to develop and research high-quality pharmaceutical equipment, set up a perfect after-sale service system, and brought up the concept of" Star service" The pharmaceutical equipment is worth of your trust, Let`s join hands to co-develop a brilliant future in the 21st century full of opportunities! Brand from concentration——Our pursuit is to product the best cost-effective machines in China. In this 21-century full of opportunities and challenges, SINOPED will provide new equipment and more pragmatic spirit of innovation, cooperate with you and create brilliance!
One-year warranty period for whole machine except of tubes and human factors etc, and 12-month of after-sale service from the date when you receive machine or 12 months when installation finished; Consultant services for whole machine life, and 24 hours technical support by email;
UPS, English software, user manual and the installation & debugging by our experienced technicians.
