300 Mpa Laboratory Compact Cold Isostatic Press Machine
- Category: Hydraulic Press >>>
- Supplier: Xiamen Tob New Energy Technology Co. Ltd.
Share on (1600378528080):
Product Overview
Description

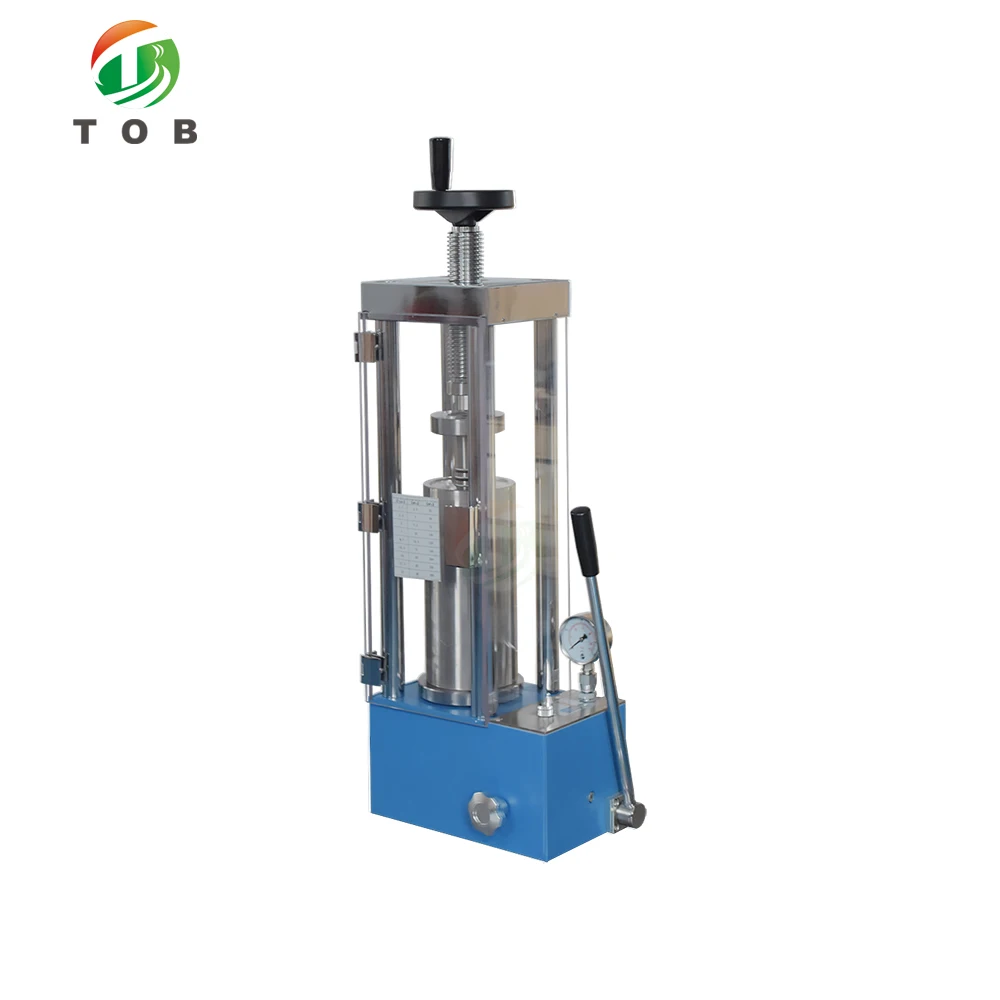

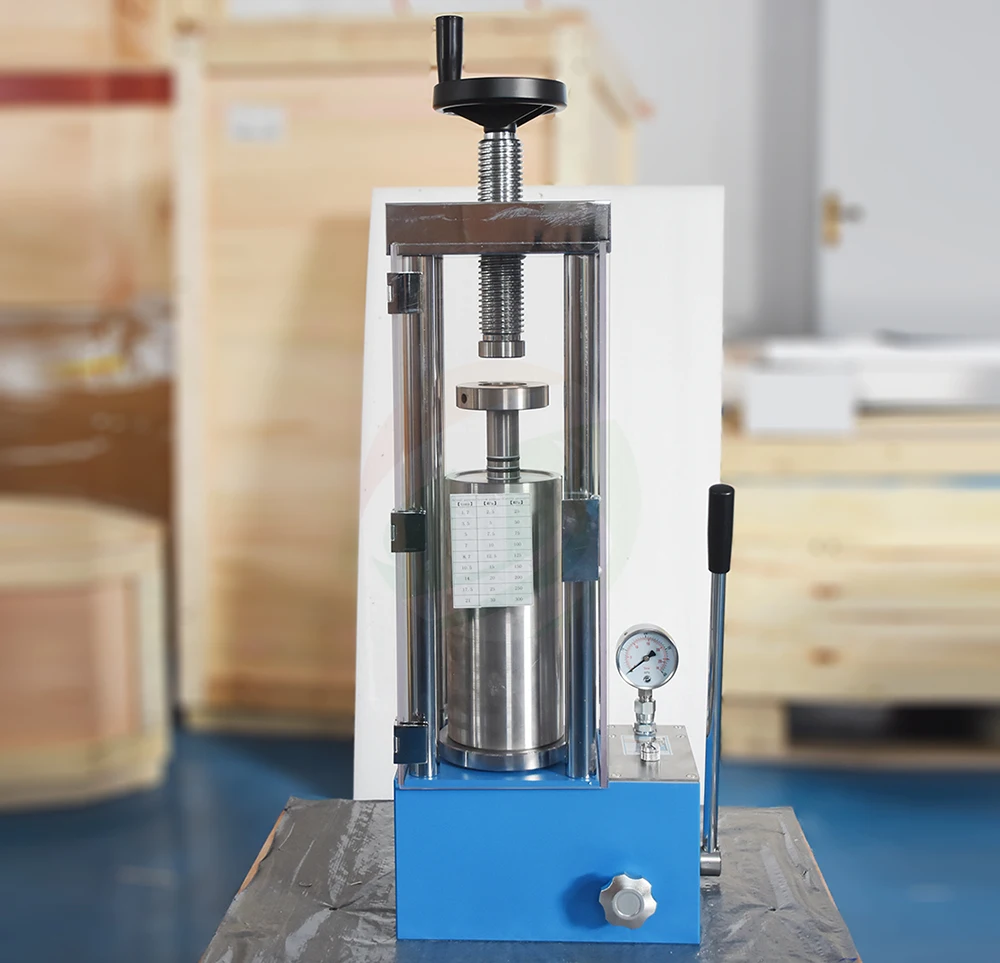

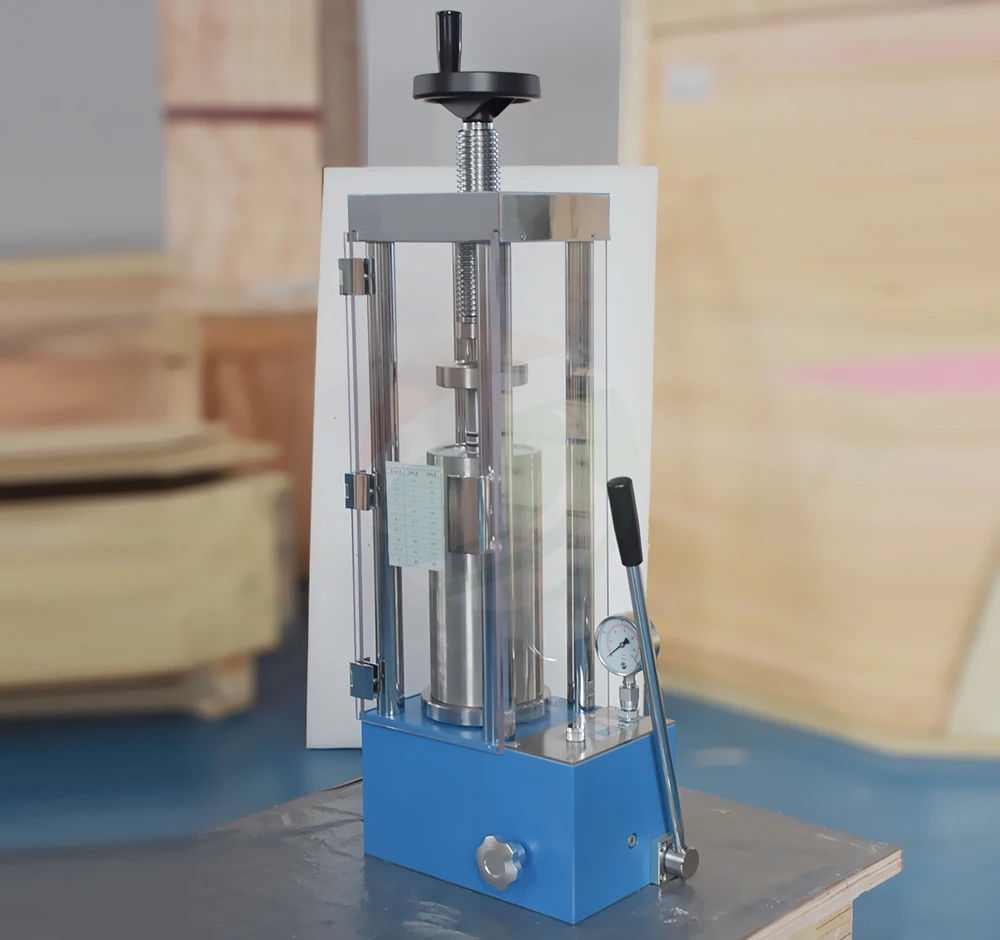

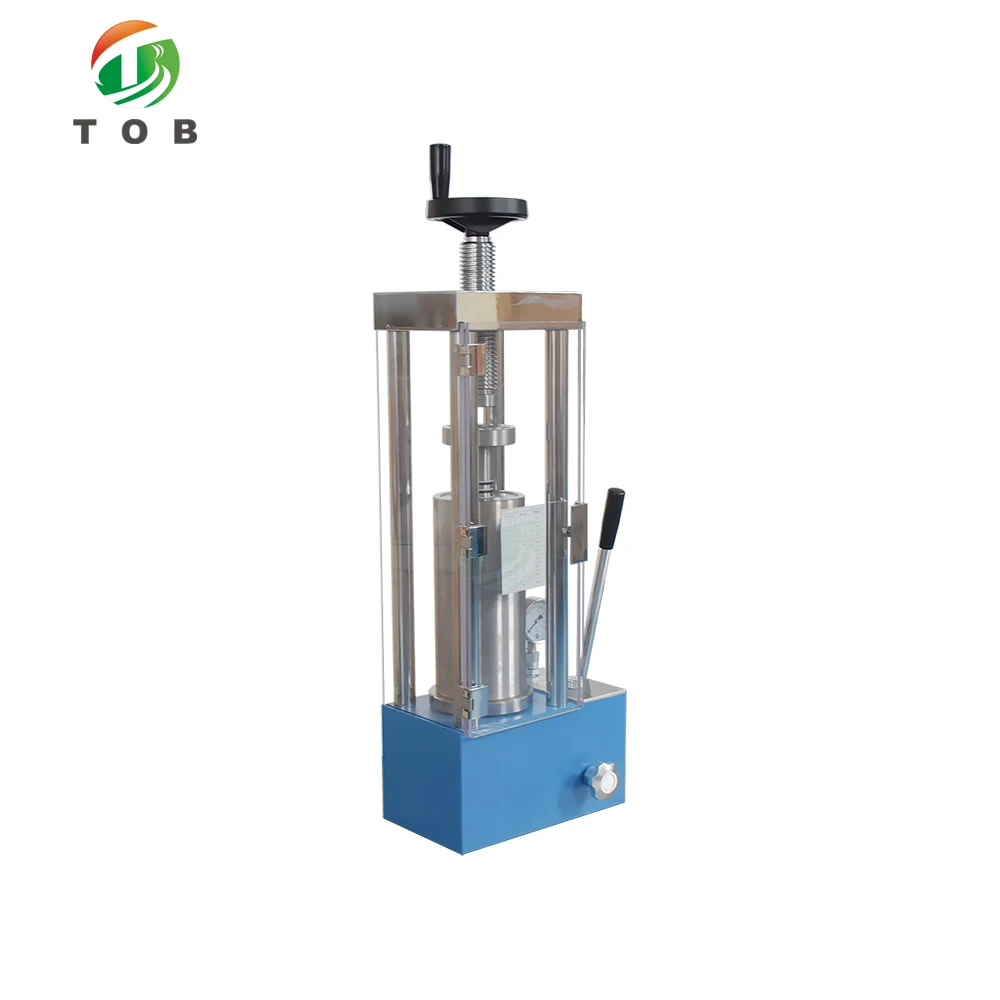

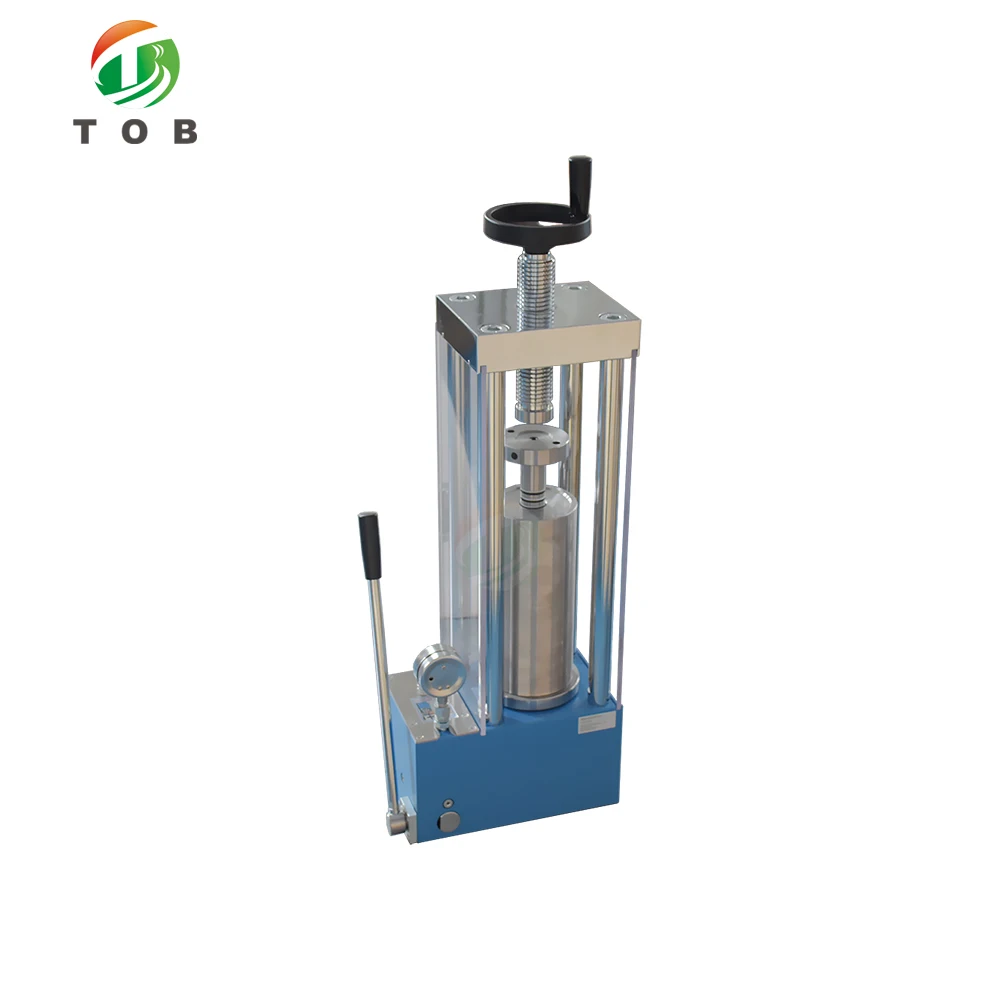

300 Mpa Laboratory Compact Cold Isostatic Press Machine
Application:
The cold isostatic pressing (CIP) machine used for laboratory powder pressing. It is with a 30mm ID hydraulic chamber made by ultra strength stainless steel, which can provide isostatic pressure up to 300 Mpa. It is an excellent tool to prepare high-density compound pellet and small diameter rod.

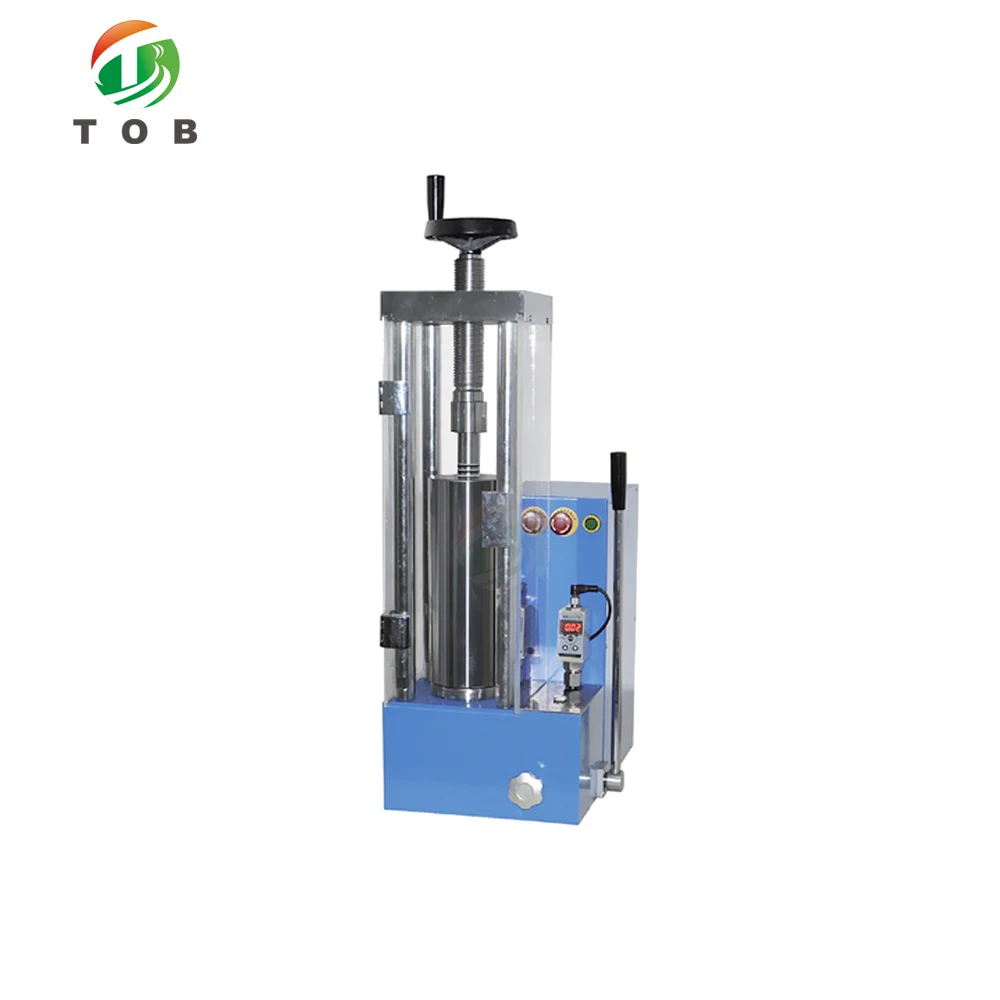

TOB-NL-20DJ is the manual and electric control together model, customer can choose the machine according to budget.
300 Mpa Laboratory Compact Cold Isostatic Press Machine | ||
Model | TOB-NL-20D Manual model | TOB-NL-20DJ Electric model |
Pressure range | 0~20T(0-21MPa) | |
Piston Diameter | Chrome plated cylinder Φ110mm | |
Structure | Integral structure, without sealing connection, reduce oil leakage point | |
Operating mode | Manual | Electric /Manual |

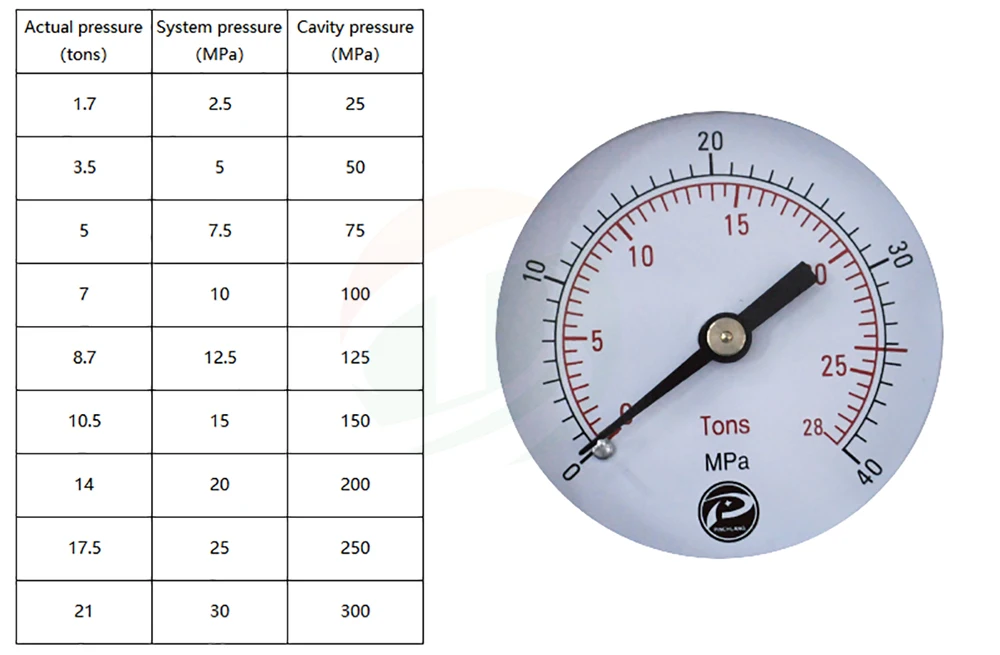

Pressure gauge | Double scale display pointer meter | |
Piston stroke | 40mm | |
Protection cover | Organic glass | |
Environment temperature | 10~40 degree | |
CIP Pressure range | 0~300MPa | |
CIP Tank dimension | Φ30×120mm | |
Dimension | 305*195*600mm | 305×430×600mm |
Gross Weight | About 100Kg | About 120kg |
Power supply | \\ | AC220V/50HZ |
