Product Overview

Description



Product Description

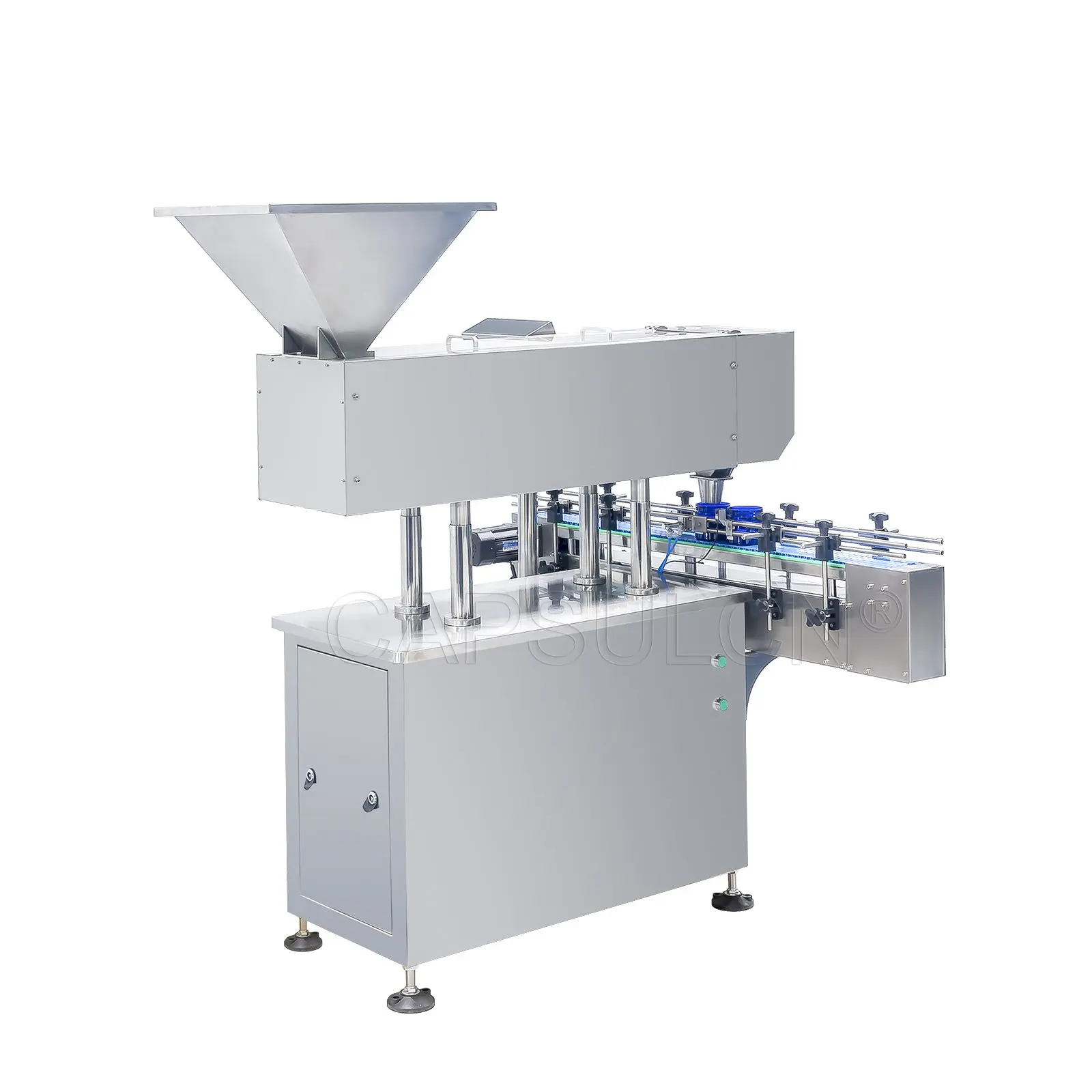

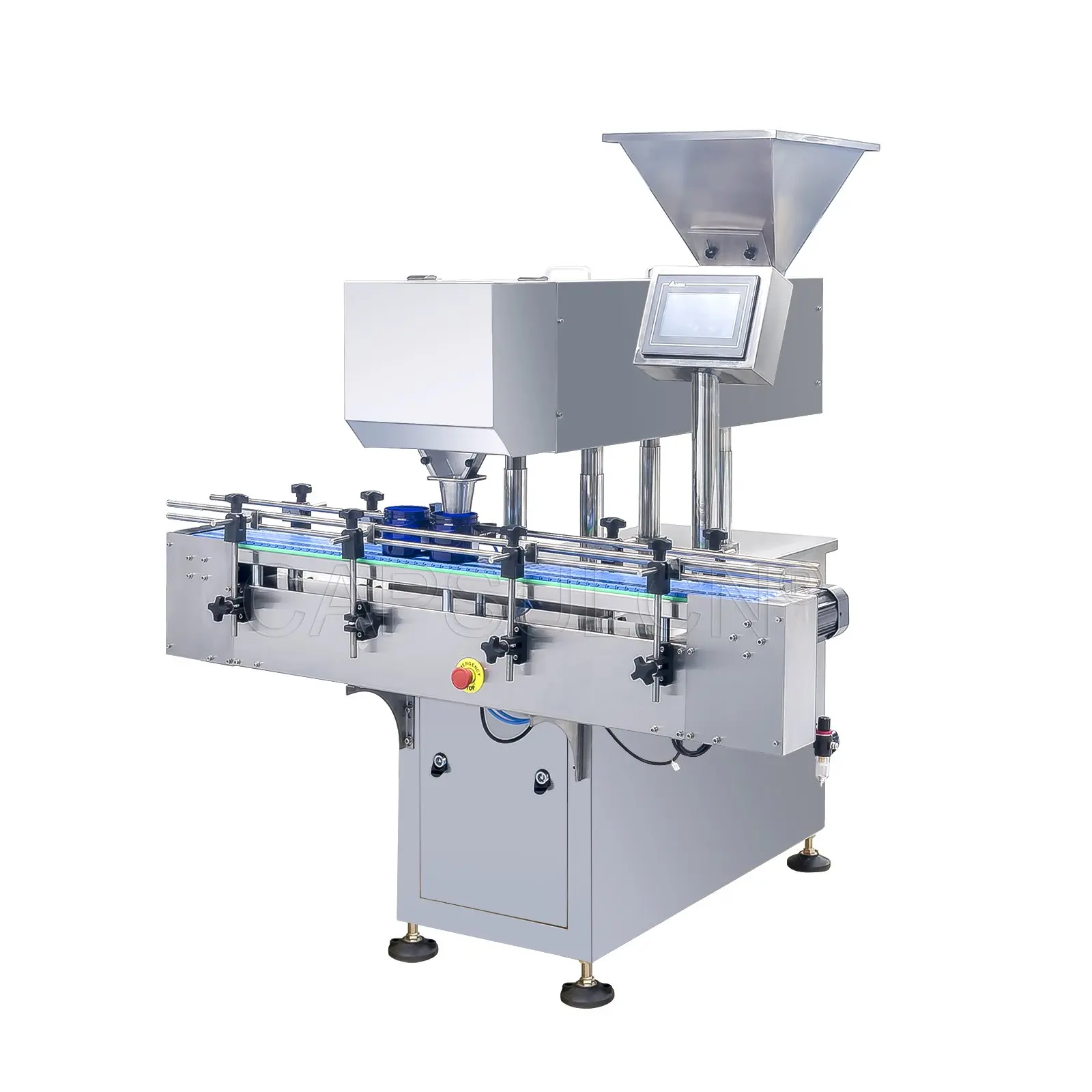

PBDS-8 Automatic Capsule & Tablet counting machine

Electronic Counting Machine is mainly suitable for medicine, industry, chemical industry, food and other industries. It can be widely used for counting and bottling solid preparations, such as pills, sugar-coated tablets, plain tablets, soft and hard capsules and other shapes of medicine granules. This machine can be used independently, and can also form a linked production line with other supporting equipment such as bottle unscrambler, paper stopper, capping machine, sealing and labeling machine.




Main features:
1.Three-stage vibrators：With 8-channel vibration, materials are distributed more evenly.
2.Reliable operation：It runs stably and smoothly with low noise.
3.High dust resistance：It adopts unique anti-dust photoelectric sensor.
4.Accurate counting：Due to photoelectric sensor detection and imported large PLC counting, bottle-filling error meets the international standard.
5.Optional function：If special components are added, it can possess functions such as rejecting unqualified capsules or tablets and photoelectric detection alarming for lack of bottles or bottles being blocked.
6.Simple operation：With intelligent design, various operating parameters can be set in advance, including at most 15 sets in memory.
7.Easy maintenance：The operator only requires simple training as the disassemble, cleaning and replacement of parts are easy to carry out without the need of tools.
8.Sealed and dustproof：It is equipped with a dust box to reduce dust pollution.
9.The platform height can be adjusted according to the bottle height.
10.The machine is equipped with a power supply voltage stabilizing system, so it can still work normally in areas with unstable power supply.


Details Images




Capsule or tablet feeding unit
It consists of the hopper, the three-stage vibrator, the vibrating plate and the anti-dust cover.

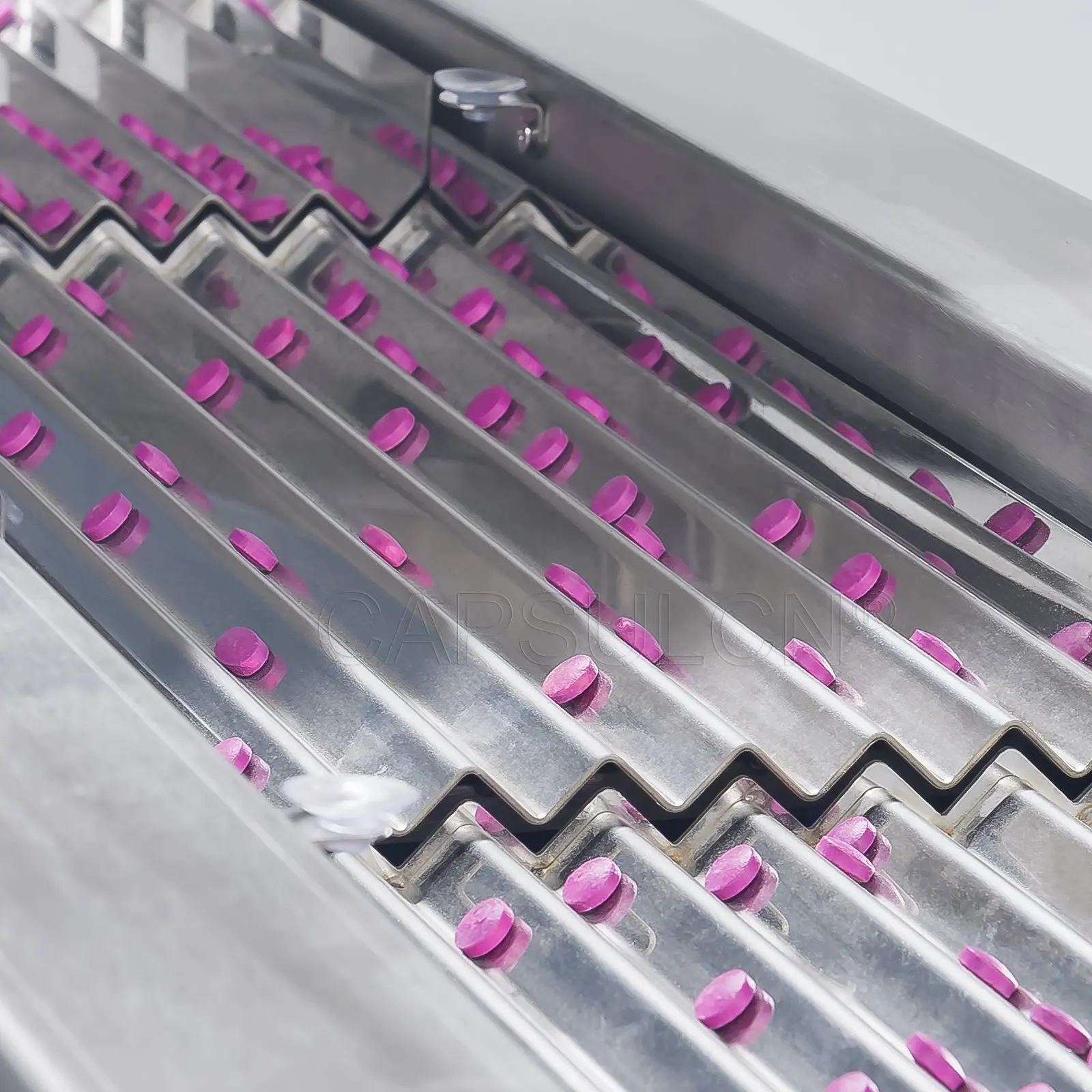

Three-stage vibrators
With 8-channel vibration, materials are distributed more evenly.

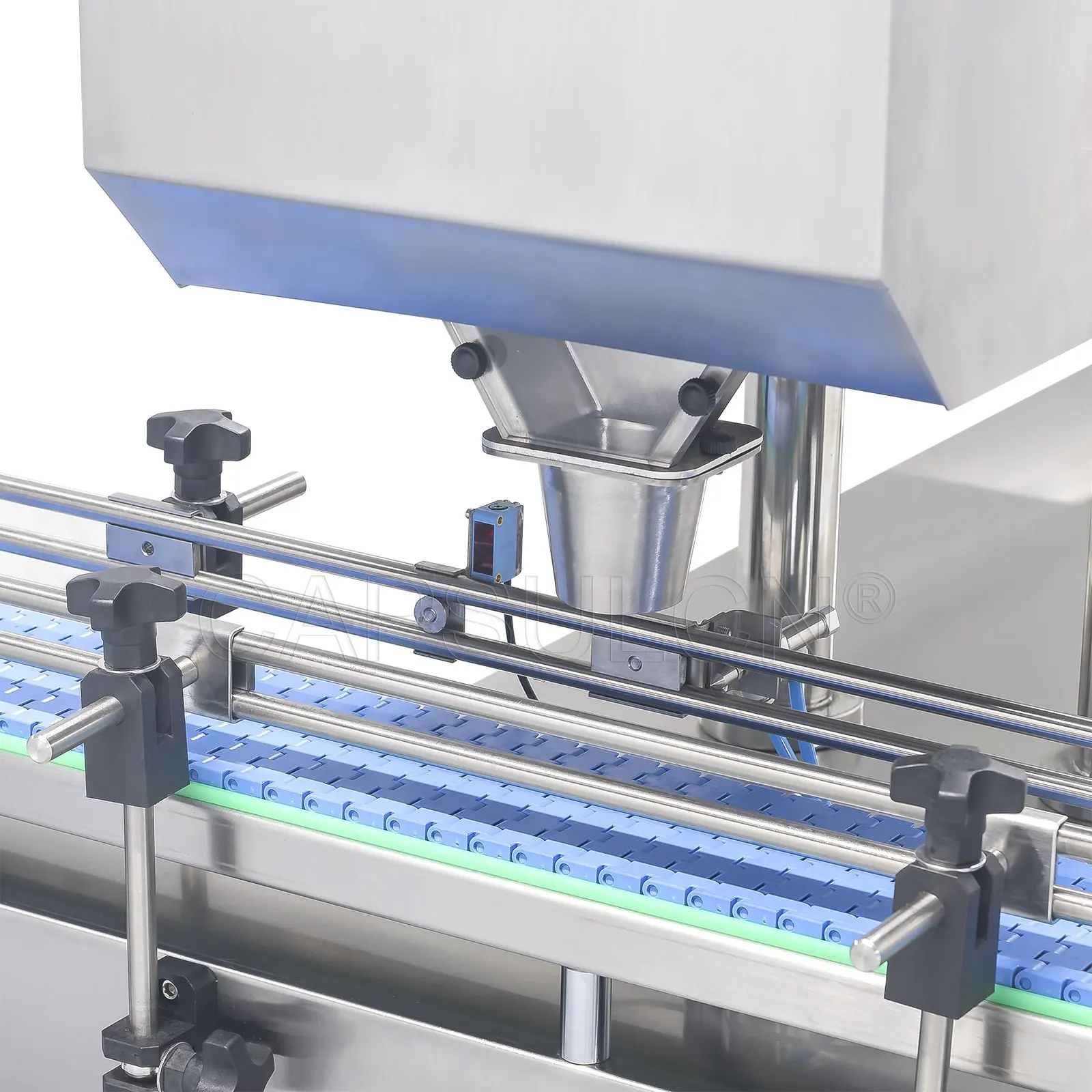

Counting & filling unit
It consists of filling pipes, counting sensor, hopper, etc.
Bottle-conveying unit
composed of the drive system, the conveyer belt, the bottle-pause cylinder, bottle-intercepting cylinder, bottle-illuminating sensor, etc.


Electrical control system
(Control panel)
This part includes HMI, PLC and the power amplifier.
Machine frame
It consists of the electrical cabinet and supporting legs.


Product Paramenters


Model
JF-8
Rate of production
10~30 bottles/min
Single bottling capacity
2-9999 pcs/bottle
Common type
Pills, tablets, soft and hard capsules and other solid tablets
Pharmaceutical specifications
φ3~φ20mm solid granules, 0~5# hard capsules, soft capsules, other solid granules
Bottle diameter
φ20~φ100mm
Bottle height
40~240mm
Power supply
AC220V50/60Hz
Air pressure and consumption
0.6~0.8 MPa, 3.5 L/min
Power
0.8 kW
Overall dimension (L*W*H)
1350mm*1400mm*1650mm (Level 2)
1650mm*1400mm*1650mm (Level 3)
Machine weight
About 250kg/300kg

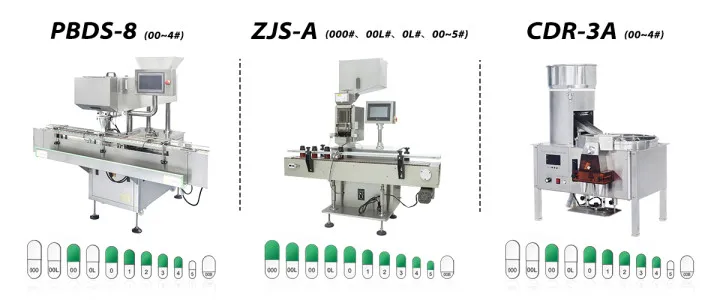

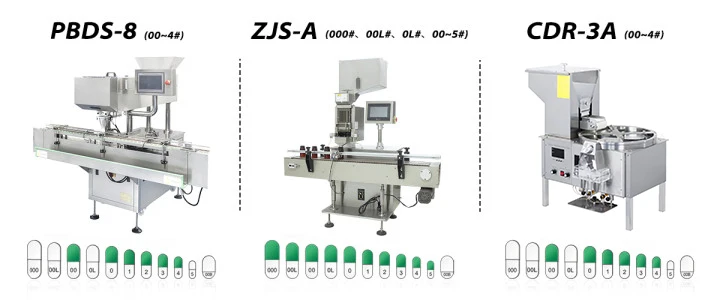

Related Products




Let the machine work for you!
Dear customer,
Maybe you have only bought one of our machines, but you shall know about our company’s complete production line,which will definitely satisfy you.




Eleven machines cooperate perfectly
* You can choose the complete line or just several machines of it, which is based on your own needs.
* As each machine cooperates perfectly in order, it greatly improves not only the efficiency but also the quality and grade of product packaging.

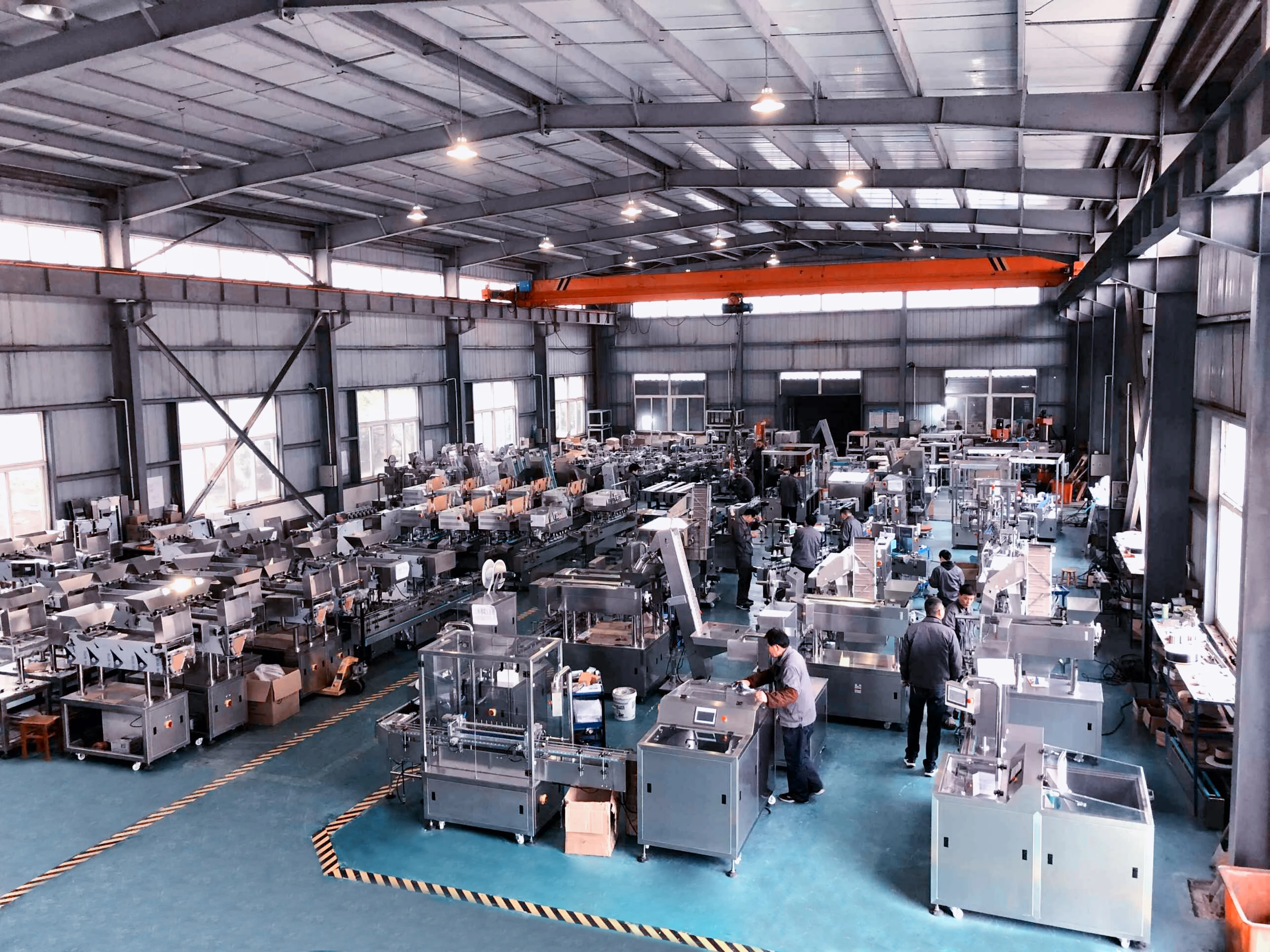

Company Profile
