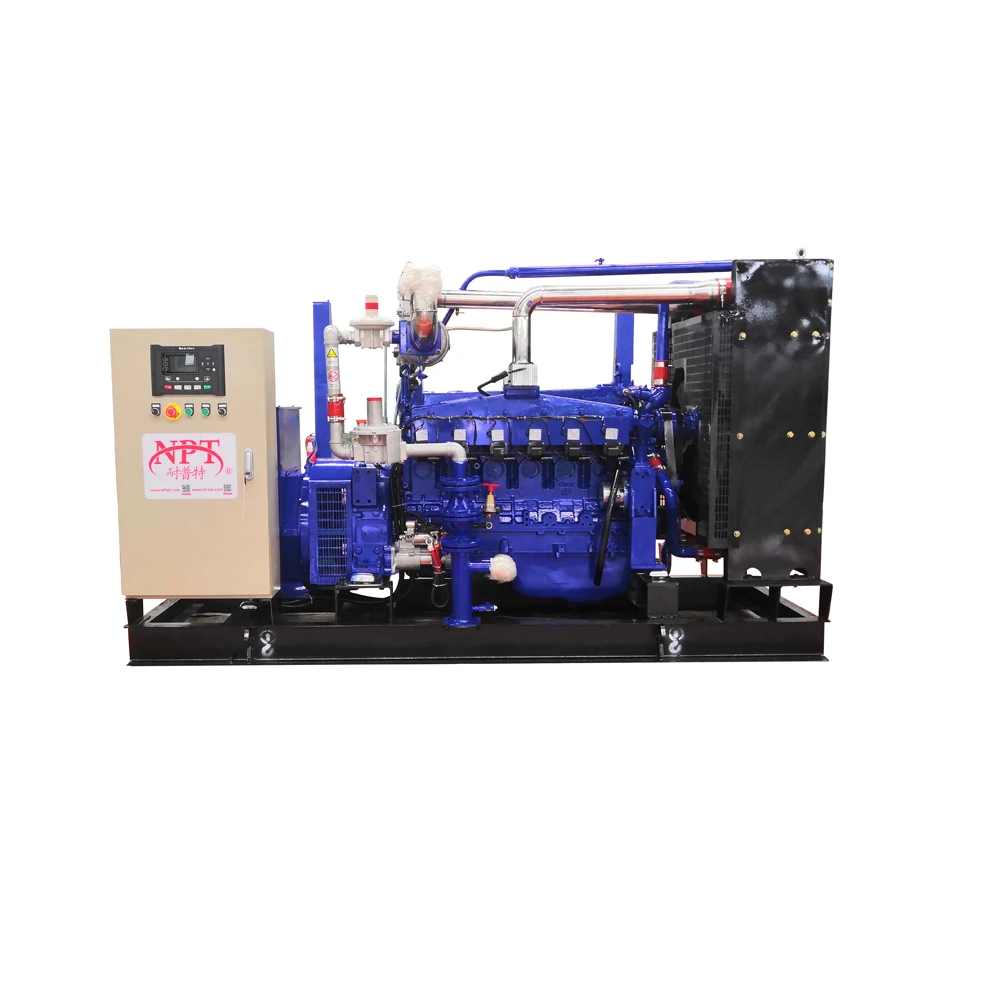

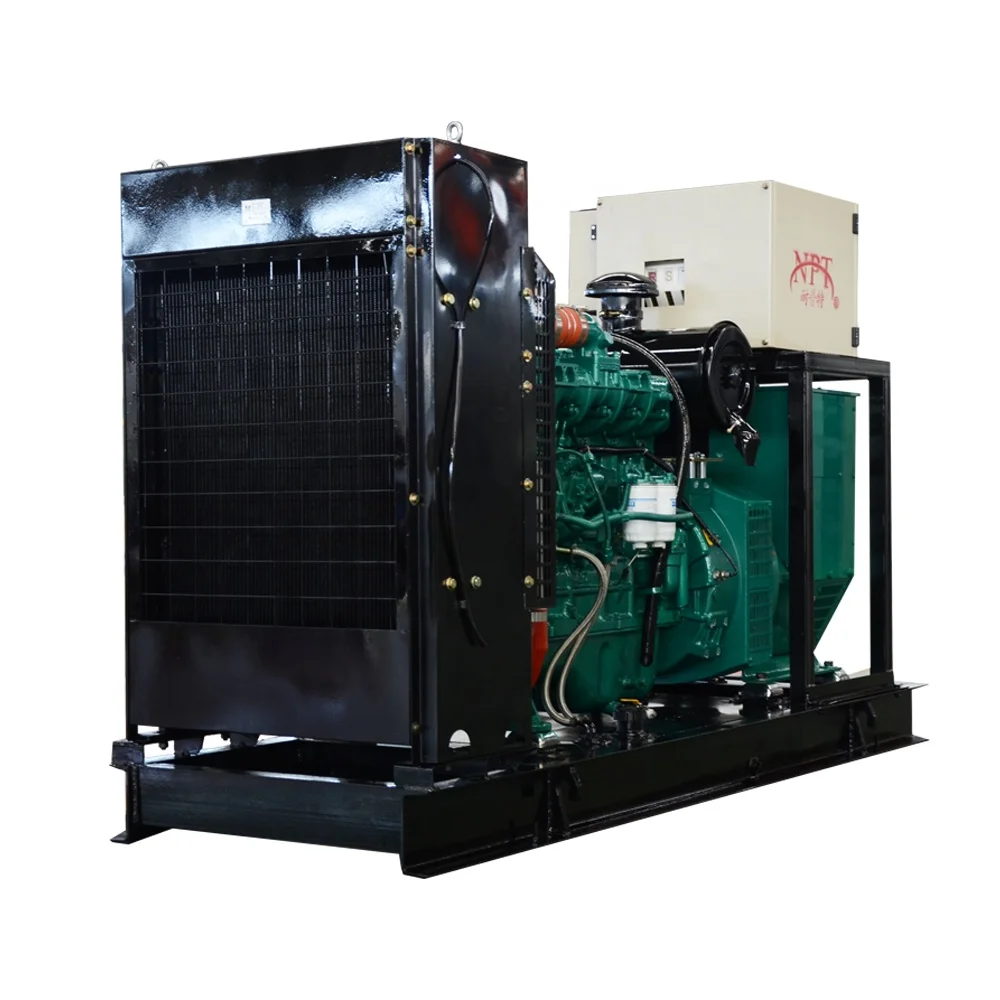

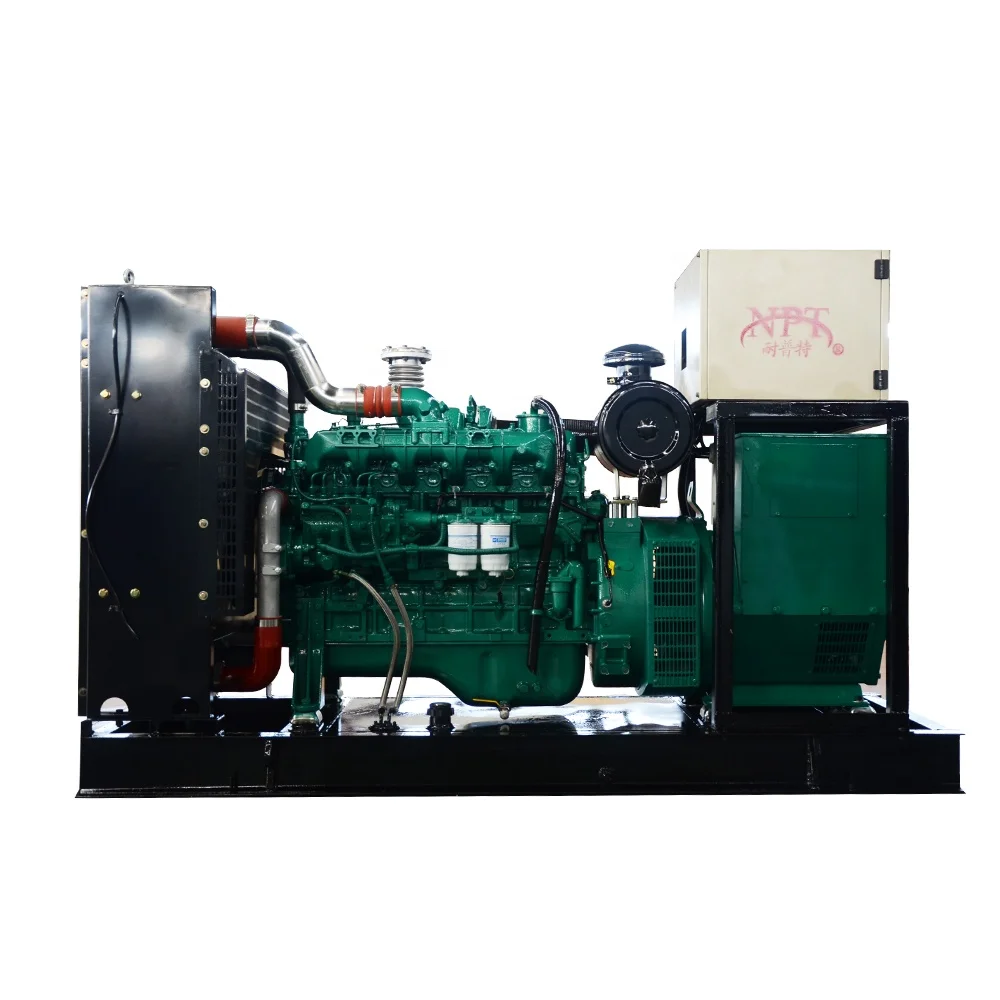

100kw 125 kva power plant 3 phase water cooled biogas generator set
- Category: Gas Turbine Generators >>>
- Supplier: Weifang Naipute Gas Genset Co. Ltd.
Share on (1600380927215):
Product Overview
Description
Products Description
product name | 100 kW biogas generator | ||||||
Fuel Type | biogas | ||||||
Generator set Model | 100GFT | ||||||
Exciting Method | integrated | ||||||
Rated Power ( kW/kVA ) | 100/125 | ||||||
Rated Current ( A ) | 180 | ||||||
Rated Voltage ( V ) | 230/400 | ||||||
Rated Frequency ( Hz ) | 50/60 | ||||||
Rated Power Factor | 0.8 LAG | ||||||
No Load Voltage Range | 95% ~ 105% | ||||||
Stable Voltage Regulation Rate | ≤±1% | ||||||
Instantaneous Voltage Regulation Rate | ≤-15% ~ +20% | ||||||
Voltage Recover Time | ≤3 S | ||||||
Voltage Fluctuation Rate | ≤±0.5% | ||||||
Instantaneous Frequency Regulation Rate | ≤±10% | ||||||
Frequency Stabilization Time | ≤5 S | ||||||
Line-voltage Waveform Sinusoidal Distortion Rate | ≤2.5% | ||||||
Overall Dimension ( L*W*H ) ( mm ) | 2650*950*1650 | ||||||
Net Weight ( kg ) | 1680 | ||||||
Noise dB ( A ) | ＜93 | ||||||
Overhaul Cycle ( h ) | 25000 | ||||||
Engine | ||||||||
Model | NY78D12TL ( AVL Technology ) | |||||||
Type | Inline, 4 strokes, electric control ignition, turbocharged and inter-cooled, pre-mixed lean burn | |||||||
Cylinder Number | 6 | |||||||
Bore*Stroke ( mm ) | 112*132 | |||||||
Total Displacement ( L ) | 7.803 | |||||||
Rated Power ( kW ) | 120 | |||||||
Rated Speed ( r/min ) | 1500/1800 | |||||||
Fuel Type | Biogas | |||||||
Control panel | ||||||||
Model | 100KZY, NPT brand | |||||||
Display type | Multi-function LCD display | |||||||
Control Module | HGM9320 or HGM9510, Smartgen brand | |||||||
Operation Language | English | |||||||
Alternator | ||||||||
Model | XN274DS | |||||||
Brand | XN ( Xingnuo ) | |||||||
Shaft | Single bearing | |||||||
Rated Power ( kW/kVA ) | 100/125 | |||||||
Enclosure Protection | IP23 | |||||||
Efficiency ( % ) | 90.3 | |||||||
Recommend Products
App monitoring example
Intelligent monitoring function of multi machine parallel connection / grid connection
The intelligent controller is used in the generator set, which can realize real-time automatic parallel / grid connection function, and can monitor and operate the generator set locally and remotely. Users can also monitor and operate the generator set through the cloud.
This function greatly facilitates the operation of customers, and provides customers with portable.
The intelligent controller is used in the generator set, which can realize real-time automatic parallel / grid connection function, and can monitor and operate the generator set locally and remotely. Users can also monitor and operate the generator set through the cloud.
This function greatly facilitates the operation of customers, and provides customers with portable.
Customer Projects
Turkey 400kW Biomass
Chile 350kW Natural Gas Generator
Vietnam 500kW Biogas Generator
Product packaging
Certifications
Company Profile
Company Profile
Weifang Naipute Gas Genset Co., Ltd. was established in 2008. Office is located in Headquarter Base in Weifang city, Shandong province and there is convenient traffic and pleasant environment around. Factory is located in Advanced Manufacturing Industry Park with government’s support and good industry atmosphere. Since NPT brand has been set up, main products are 10kW-1000kW gas generator sets, including natural gas generator set, biogas generator set, oil field gas generator set, coal-bed gas generator set, lpg gas generator set, biomass gas generator set etc. and NPT aims at utilizing clean energy, protecting environment and reducing operating costs. NPT company’s R&D group and management group have rich experience on R&D, production and managements. Over the years, NPT has built a professional team with excellent technology and great character.
FAQ
1. What is the warranty ?
The standard warranty is 12months or 1500 running hours whichever occurred first.
Any damaged parts during warranty period can be shipped free by express to you.
And we will offer life time technological support and trouble shooting service.
2. Which fields or what's the application of your generator?
According to different power, the natural gas generator, biogas generator,biomass generator and LPG generator can be used in residential, industrial, animal husbandry,marine, generating, power plant, etc. If any special application project, welcome to contact us firstly.
3. What's the power range you can make for generator?
10-1000 kW is normal choice for customers. For other customized power, welcome to contact us.
4. Will you test your generators or engines before shipped?
Yes, every product will be tested individually in our test lab and test report and test video can be provided.
5. What's the lead time and delivery time for your generator?
Usually 15-35 days for lead time. Delivery time is according to your choice of shipping method.
6. What's the payment method do you accept?
We accept L/C, TT, etc. If you have special requirement, welcome to contact us.
7. Are you manufacturer?
Yes, we are both manufacturer and foreign trade company, cooperating with many famous brand suppliers. Welcome to visit our factory.
The standard warranty is 12months or 1500 running hours whichever occurred first.
Any damaged parts during warranty period can be shipped free by express to you.
And we will offer life time technological support and trouble shooting service.
2. Which fields or what's the application of your generator?
According to different power, the natural gas generator, biogas generator,biomass generator and LPG generator can be used in residential, industrial, animal husbandry,marine, generating, power plant, etc. If any special application project, welcome to contact us firstly.
3. What's the power range you can make for generator?
10-1000 kW is normal choice for customers. For other customized power, welcome to contact us.
4. Will you test your generators or engines before shipped?
Yes, every product will be tested individually in our test lab and test report and test video can be provided.
5. What's the lead time and delivery time for your generator?
Usually 15-35 days for lead time. Delivery time is according to your choice of shipping method.
6. What's the payment method do you accept?
We accept L/C, TT, etc. If you have special requirement, welcome to contact us.
7. Are you manufacturer?
Yes, we are both manufacturer and foreign trade company, cooperating with many famous brand suppliers. Welcome to visit our factory.
