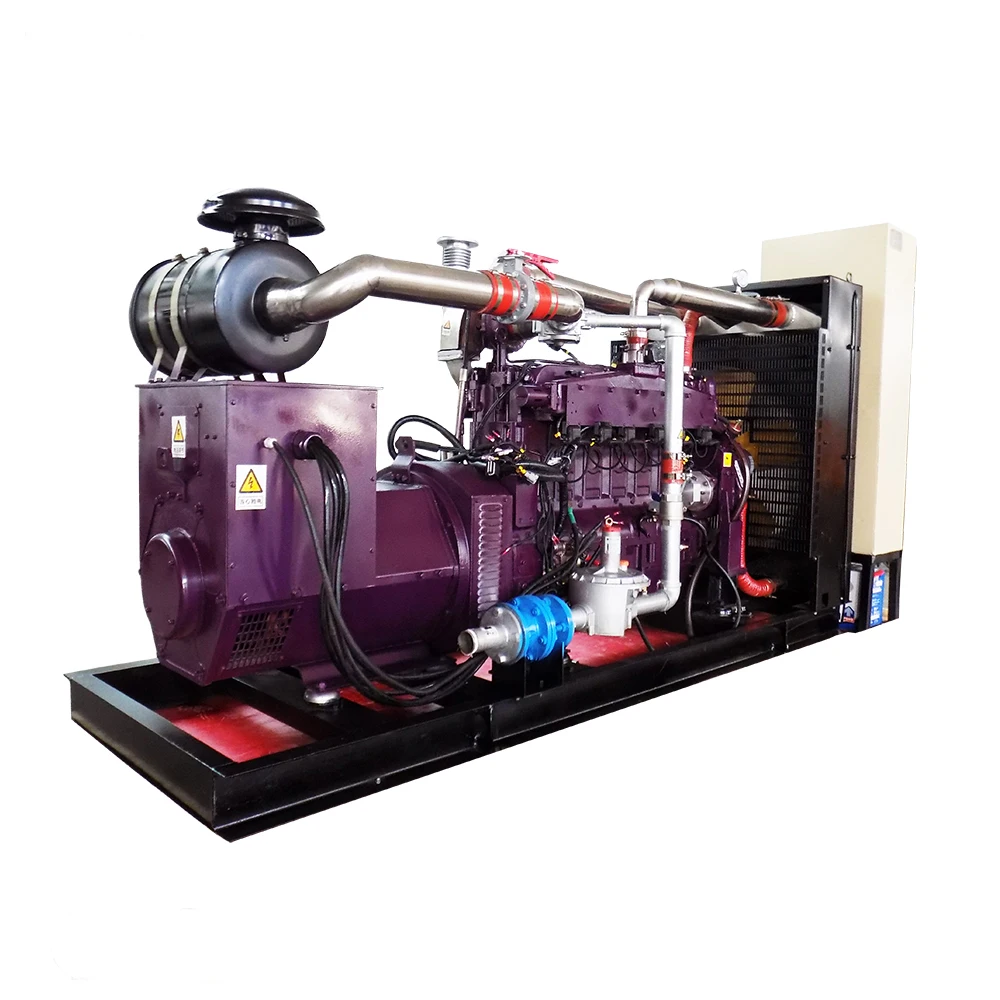

100kW biomass/syngas generator with world famous brand Steyr engine
1) Valve seat materials are imported special steel, valve use wear-resistant materials and the latest technology. 2) Piston and cylinder head production using new materials, high-performance low-emission hybrid rapid combustion cylinder. Combustion control technology to protect machine film. 3) Change the duration of the ignition control, long-life spark plugs. 4) Integrated control diagnostics, integrated approach to control the explosion-proof technology.
Packaging & Shipping
sea worthy package & door to door service
Our Services
1)Before-sale Service: we provide detailed product technical parameters for equipment choosing and system designing
2)Service quality assurance: our sale staffs are all experience and professional, who can provide the most proper system design and optimized equipment for the customers.
3)After sale maintenance service: We create files for end user and provide them follow-up service, regular return visit and permanent maintenance.
4)Spare parts supply: We provide all kinds of spare parts and technical support.
5)Main overhaul or maintenance service: We provide perennial major overhaul and maintenance service
Technical Data
100kW Biomass/syngas Generator Set
Product Type
biomass/syngas generator set
Genset Model
LH-100GFT
Rated Power
100KW/125KVA
Rated Frequency
50Hz
Phases Arrangement
3P4W
Rated Voltage
400V/230V
Rated Current
180A
Rated Power Factor
0.8
Engine
Engine Series
steyr
Engine Model
LH120-618.116TG
Engine Power
120KW
Rated Speed
1500rpm/1800rpm
Cylinde Qty
6
Bore*Stroke
126*155mm
Displacement
11.6L
Air Intake Method
Turbocharged
Speed Regulation
Electronic Governor
Start Method
Electrical Starting
Alternator
Brand
Stamford or Sunvim
Model
UCI274E / SV274E
Dimension(L*W*H)
2700*1080*1680mm
Net Weight
1950kg
PS: 60Hz@1800 biomass/syngas generator sets are available; Marathon, Leroy Somer, Mecc Alte, Siemens and other international brand alternator are available;
Soundproof canopy, Container type canopy, CHP, synchronous system are options.
Ronsun gas genset description:
1. 10-1000kw(12.5kva-1250KVA) gas generator (Natural gas/Biogas/ LPG,biomass etc) with Deutz,Man,Steyr,Cummins brand engine etc. 2. Alternator "Marathon" "Leroy Somer" “Mecc Alte” "Siemens" Brand 100% copper brushless alternator. Brushless excitation and "H" class insulation.
3.Controller : Deepsea,comap,smartgen etc. 4. Super silenced canopy / container type canopy 5. Longer life: Special design engine has longer life and overhaul time of 25000hours 6. Moistureproof and derusting processing, effectively protect the generator from humid weather 7. High quality steel 8. Green environmental protection paint 9. Cooling system: combined cooling water tank fitted to meet the requirement of radiation at ambient temperature 40°C 10. Advanced reasonable structure, high efficiency, low vibration and noise, smooth running, good reliability, easy handling. It is widely used in national defense, telecommunications, field construction, high-rise buildings, commercial buildings, industrial and mining enterprisers, oil fields,roads, ports, villages, banks, hospitals etc. 11. ISO, CE approval 12. Warranty: 1 Year
Application area: Natural gas generator : Pipeline natural gas, liquid natural gas (LNG),coal mine industry, crude oil industry Biogas generator : dairy and poultry farm, food processing ( starch, alcohol, palm oil ),industrial waste, Bio garbage processing, landfill LPG generator : Crude oil industry Biomass generator: agriculture straw, wood chips etc.
