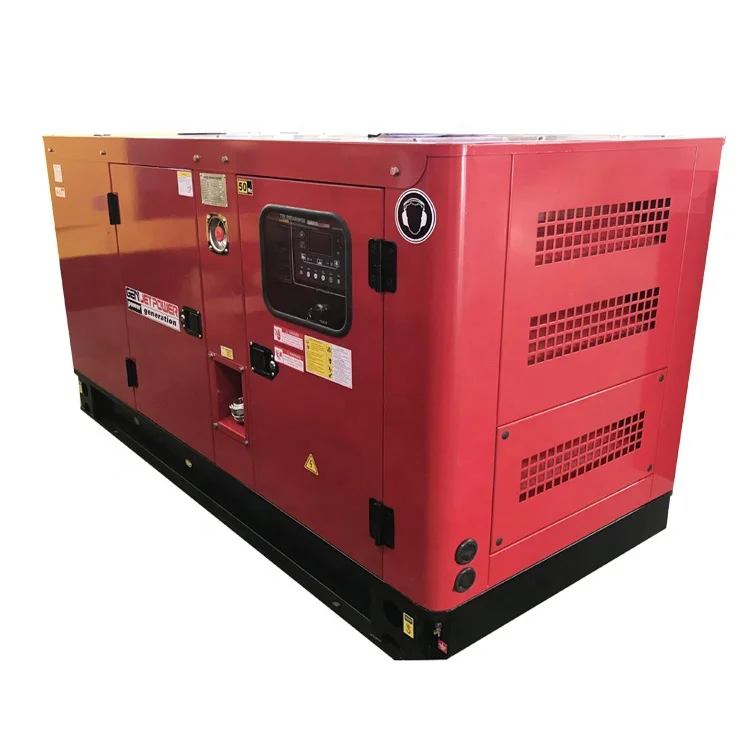

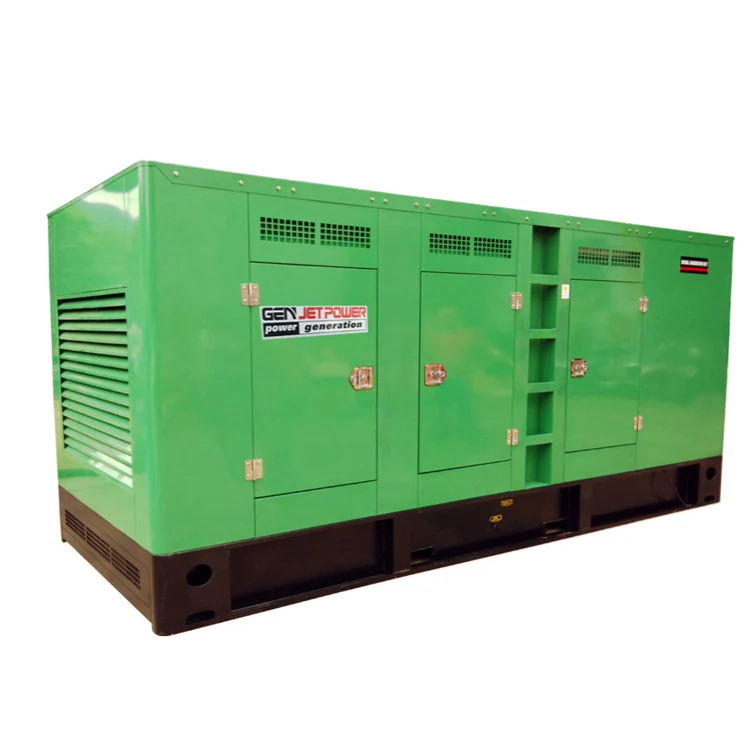

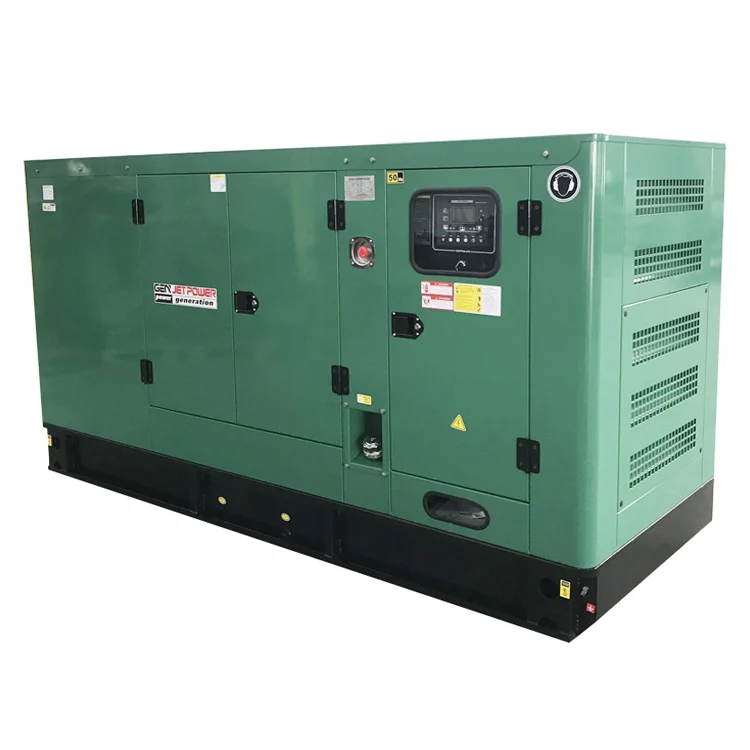

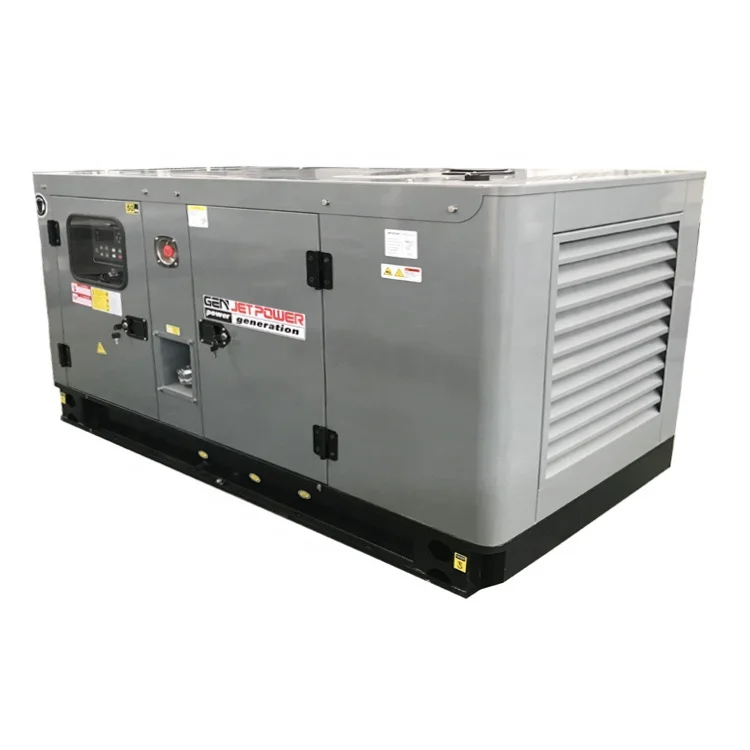

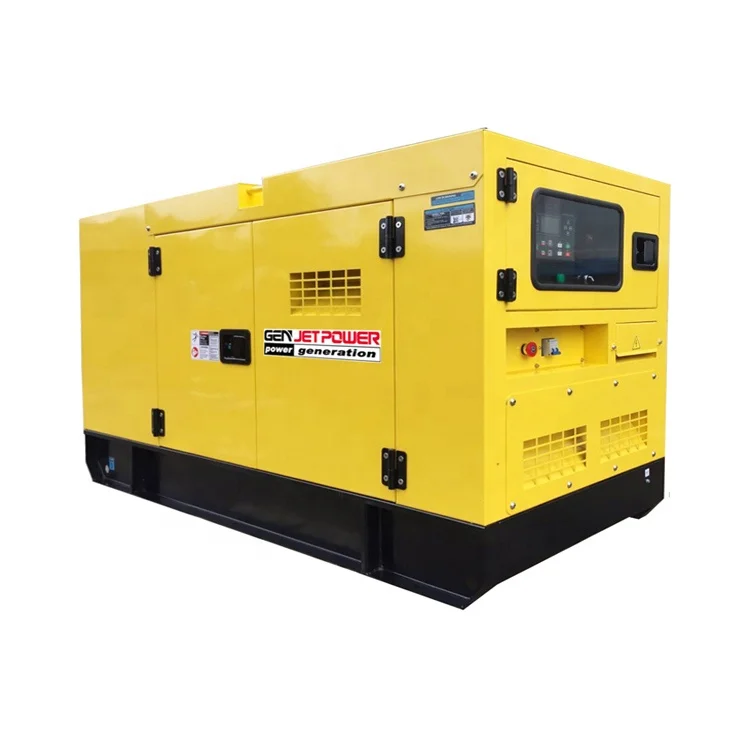

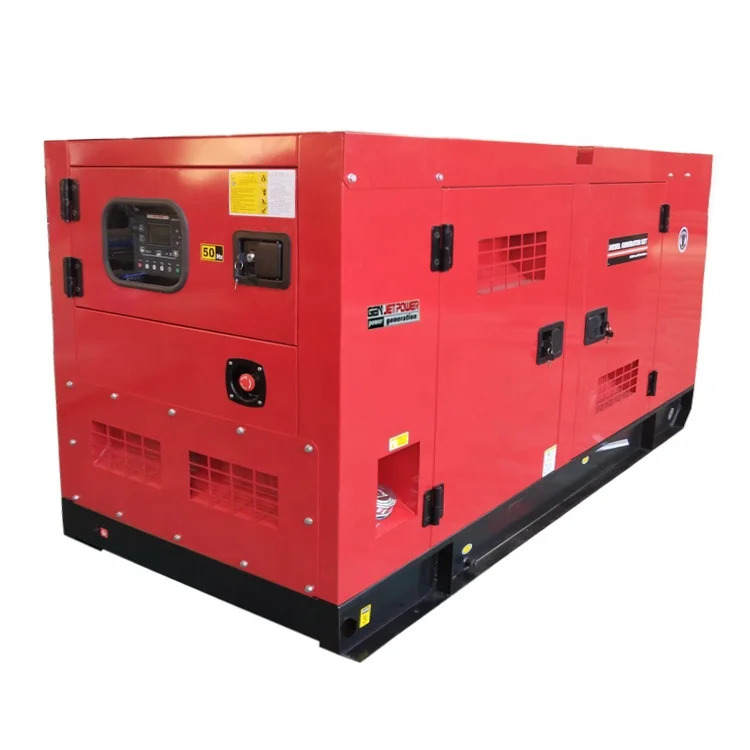

12kw 20kw 24kw 30kw 50kw small bio gas turbine generator price

Natural Gas / Biogas  / Landfill Gas / Oil Field Gas generator set

Safety – Stability – Economy - Reliability Power

1. Brand new original Natural Gas / Biogas special use water cooled diesel engine\t
2. Engine ECU governing and ignition system use BOSH and Germany part, with High reliability and safety
3. Genset equipped with explosion-proof safety system and Gas mixture automatically control system
4. Brand new Stamford type brushless AC alternator, 230/400V, 3-Phase, 50Hz, 1500Rpm, 0.8PF, IP23, H insulation class\t
5. Genset equipped with radiator with engine driven fan mounted on skid.
6. Genset Digital-6120U Automatic control system of diesel generator include, High speed protect, High water temperature protect,\tlow oil pressure protect, 3 phase Voltage,current and frequency,calculagraph,output power, LED display with AMF functions (for ATS)
7. Genset equipped with MCCB
8. Anti-vibration mounting
9. 24V DC Electric start system with maintenance free battery and Battery Connect wire
10. ndustrial class silencers with flexible connects and elbow
11. Genset with engine manual, controller manual, operation manual and standard engine tools
12. H igh protect class control box and power output box. IP55, Waterproof, Electric leakage protect, Breaker

Main Features

1) Gas engine (corrugated tube, silencer, switch for battery, starter relay, alternator AVR, USA Baldwin filters, stainless steel heat-shield cover, high quality sensors, tool case, free spare parts, catalogue & manual)
2) Alterantor (air breaker, AVR, instruction manual)
3) Small control cabinet( Smartgen controller, battery float charger, Schneider breaker, Omron relay)
4) Base steel frame ( industrial shock absorbers, forklift work hole)
5) Free-maintenance battery (connecting cables)(lead-acid)
6) Strong shipping packing.

Machine Parts

Main Features

Alternator Insulation:Class H

Alternator Protection:IP21 ~ IP23

Voltage regulation:AVR automatic control 1%

Altitude above sea level :≤1000 meters

Ambient air temperature:≤40°C

Relative air humidity:≤ 90%
