original Discharge Tube Gas Gdt SMD4532 Series 3KA 500V for power supplies Surge Protector Arrester
- Category: Gas Discharge Tubes >>>
- Supplier: Shenzhen Longzhan Electronics Materials Co. Ltd.
Share on (1600385790858):
Product Overview
Description
Products Description
Description

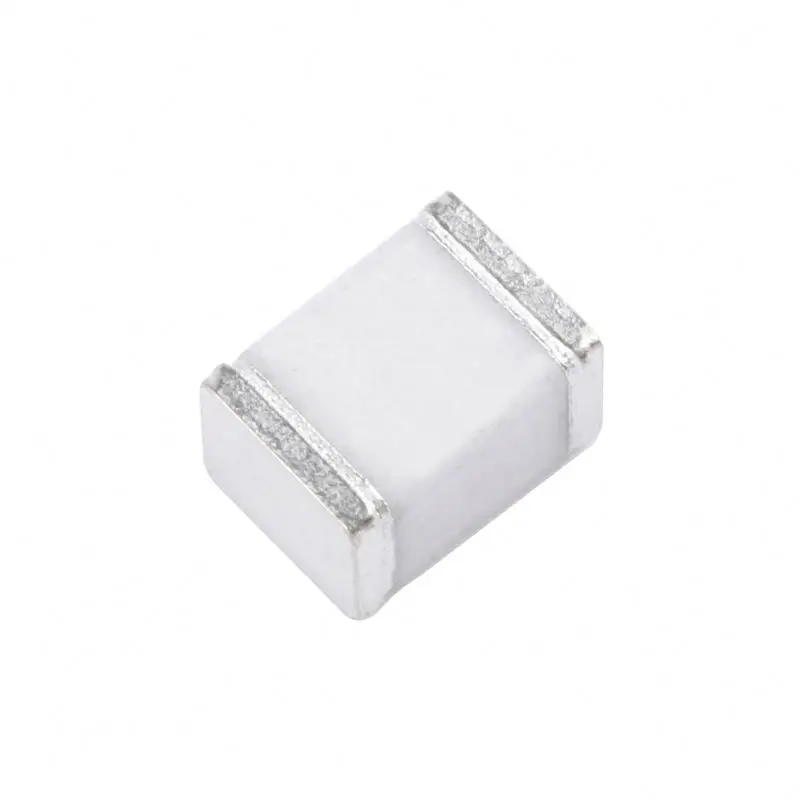

Gas discharge tube(GDT) use noble gasses enclosed in ceramic tubes to provide an alternate circuit path for voltage spikes. The ceramic envelope and with nickel connectors allow for high loads.SMD4532 Gas Discharge Tubes (GDT)series has a surge rating of 2kA,8/20µs .Offered in a Squared Surface Mount package,which helps to make pick and place on PCB process easier.
This GDT series is perfectly suited for broadband equipment applications.The GDT's low off-state capacitance is compatible with high bandwidth applications and this capacitance loading value does not vary if the voltage across the GDT changes.
SMD4532 Gas Discharge Tube(GDT)series are specifically designed for protection of electrical,multimedia,and communiction equipment against over voltage transients in surface mount assemble application.
Features | Applications | ||
Excellent response to fast rising transients. | Communication equipment. | ||
Stable breakdown voltage. | CATV equipment. | ||
GHz working frequency. | Broadband equipment. | ||
8/20µs Impulse current capability:2KA. | Test equipment;Data lines. | ||
Surface Mount package. | Telecom SLIC protection. | ||
Non-Radioaactive. | ADSL equipment including ADSL2+. | ||
Ultra Low capacitance(<0.5pF)and insertion loss. | XDSL equipment. | ||
Lead-free compliant. | Satellite and CATV equipment. | ||
UL497B Recognized:E465335. Very Small Size(EIA1812). | General telecom equipmen | ||
Storage and operational temperature:-40~+90℃. | Power supplies. | ||
Detailed Images

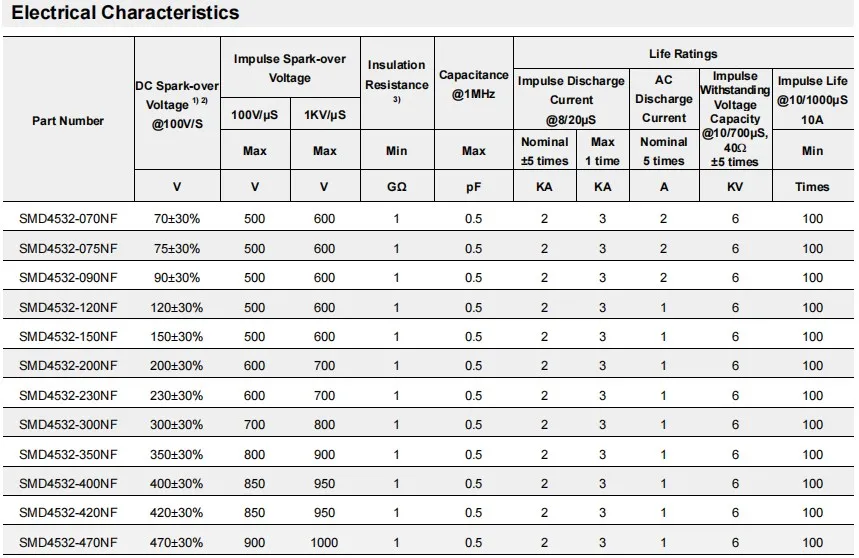

Electrical Charactristics

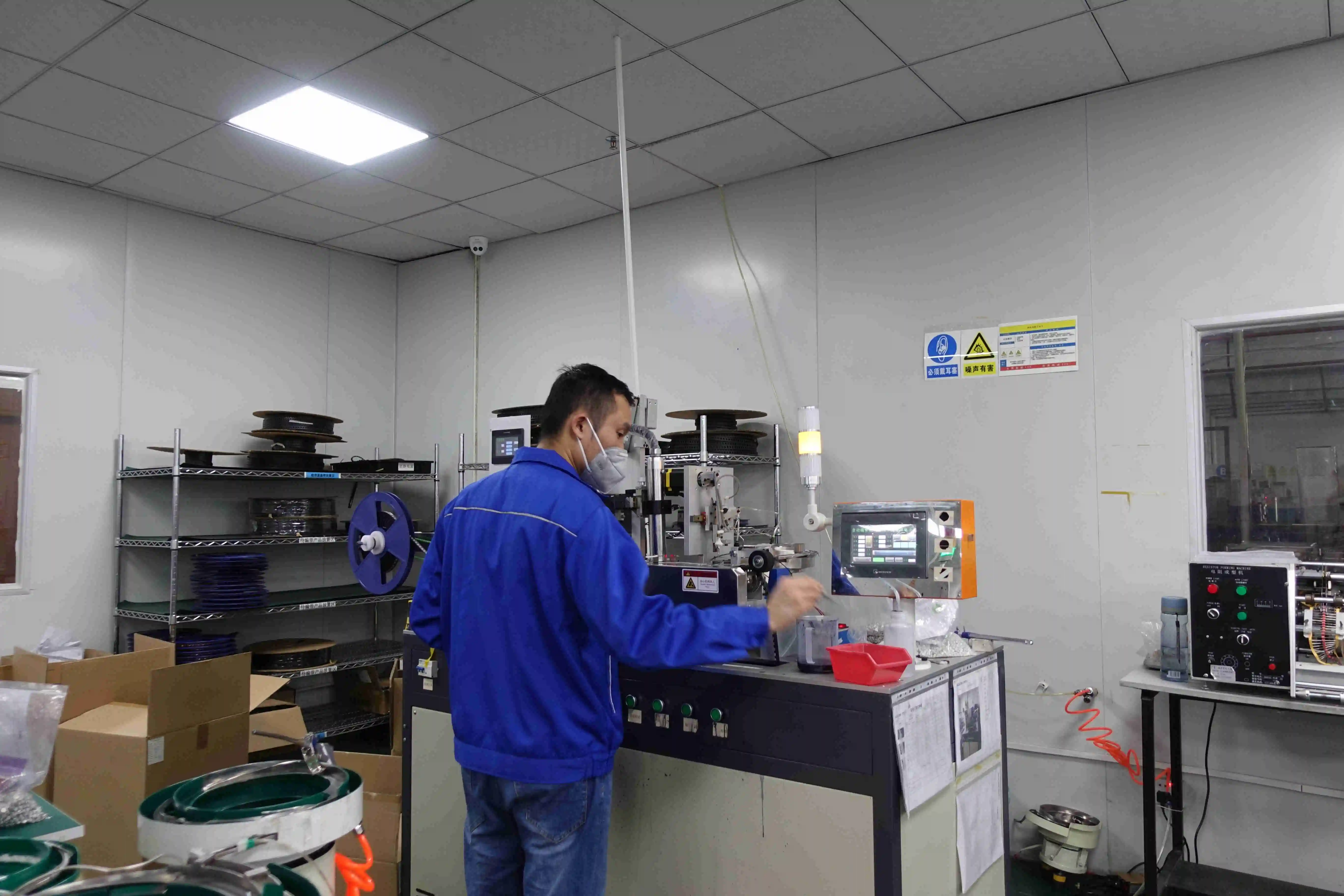

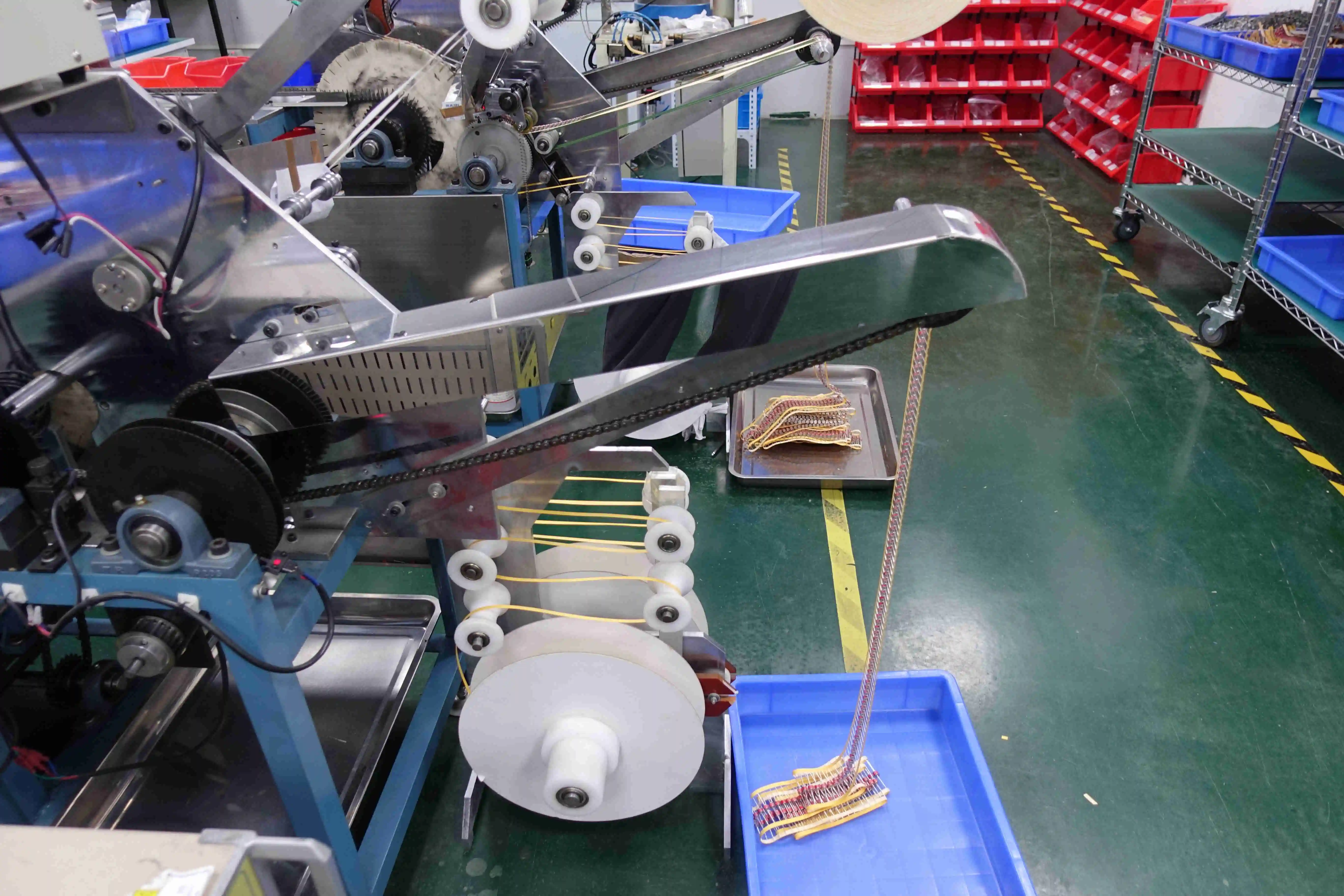

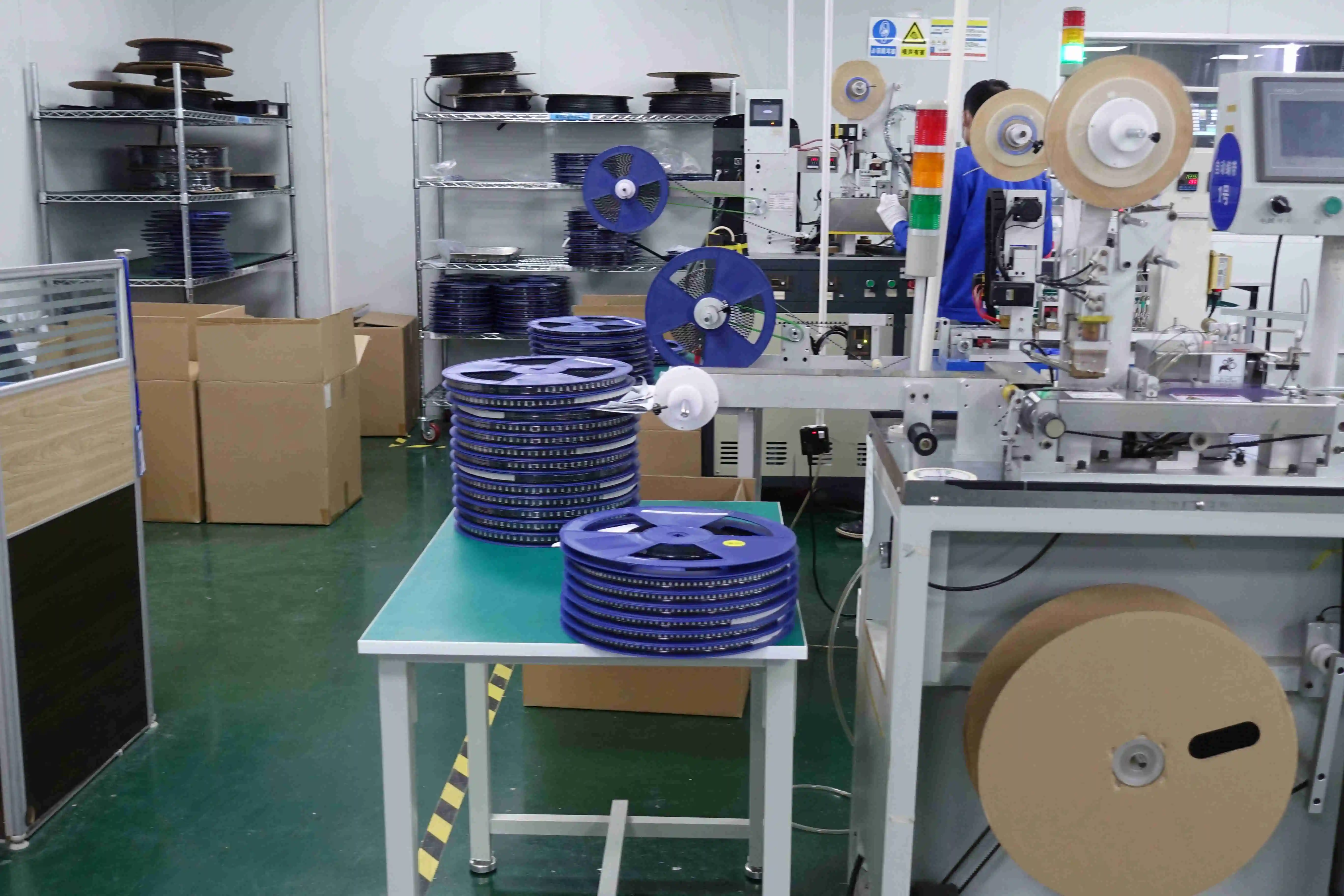

Production Process
Related Products

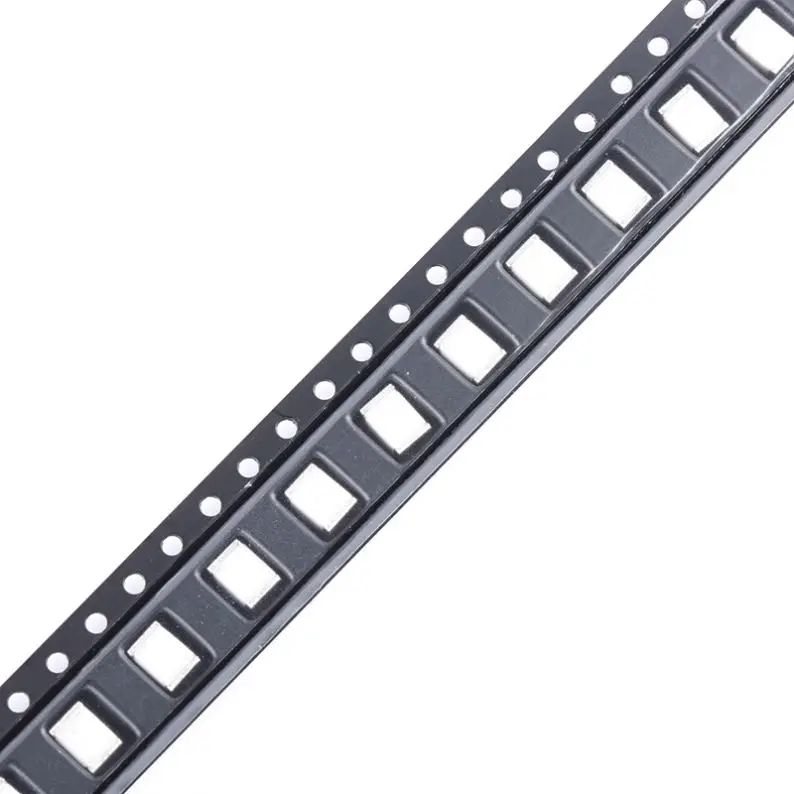

Package and Shipping
Company Profile
FAQ
Q1:Are you trading company or manufacturer?
A1: We are manufacturer.
Q2:Do you have your own R&D team?
A2: Yes, we can customize products as your requirements.
A1: We are manufacturer.
Q2:Do you have your own R&D team?
A2: Yes, we can customize products as your requirements.
Q3:How about the quality?
A3: We have the best professional engineer and strict QA and QC system.
A3: We have the best professional engineer and strict QA and QC system.
Q4:How's the package?
A4: Normally are cartons, but also we can pack it according to your requirements
A4: Normally are cartons, but also we can pack it according to your requirements
Q5:How's the delivery time?
A5: It depends on the quantity you need, 1-25 days usually.
A5: It depends on the quantity you need, 1-25 days usually.
