Roofing Sheet Bend IBR Galvanized Cold Roll Forming Machine For Roof Panel

Share on (1600387446262):


Price:$5,500.00 - $11,500.00

Quantity:


Product Overview

Description

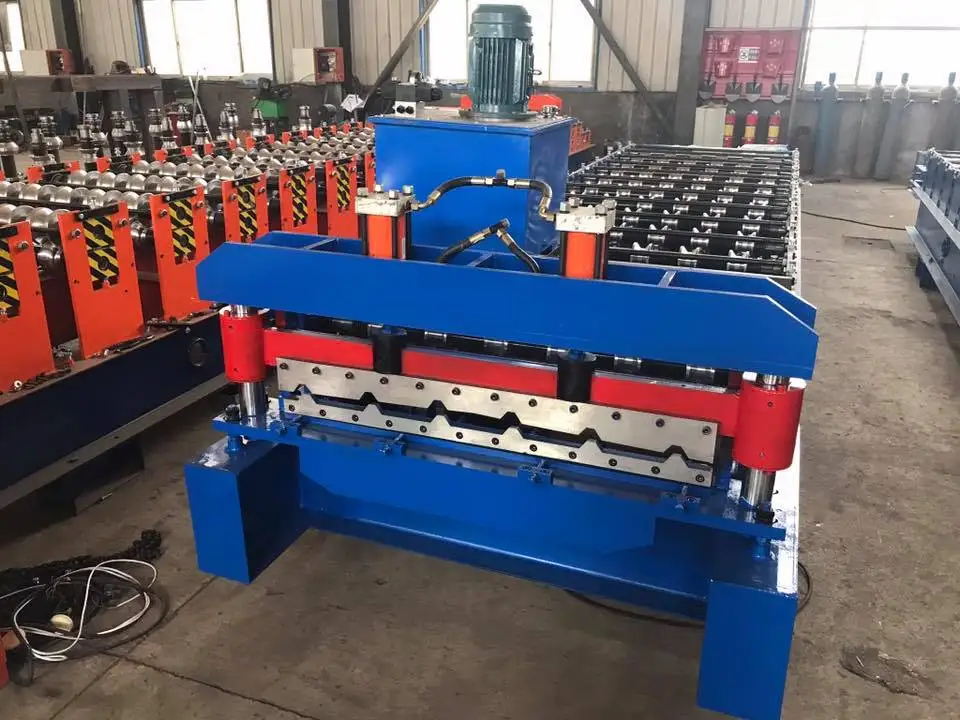

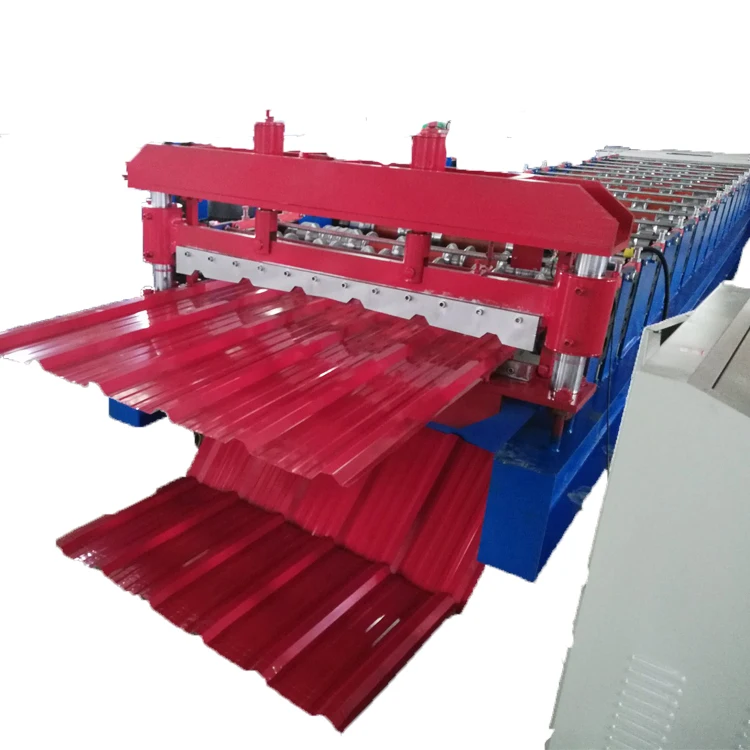

Roofing Sheet Bend IBR Galvanized Cold Roll Forming Machine For Roof Panel-1.jpg





Product Description








































NameRoofing Sheet Bend IBR Galvanized Cold Roll Forming Machine For Roof Panel
Suitable MaterialColored or galvanized steel coil, HRB60 or equivalent
Thickness Range0.3-0.8 mm
Coil Width RangeCoil

914, 1000, 1220 or 1250 mm.


According to your actual drawing.


Electric Power380V, 50 Hz, 3 phase or according to your need.
DimensionAbout 6.8*1.6*1.45m (L*W*H), as per the drawing
CuttingAutomatically stop and cutting when it comes to the set length.
Length of the Sheet

You can set the length according to your need.


It is controlled by PLC


length accuracy: ±1mm.

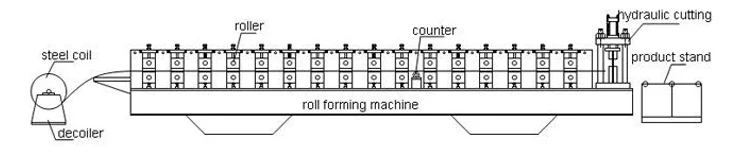

Flow Chart

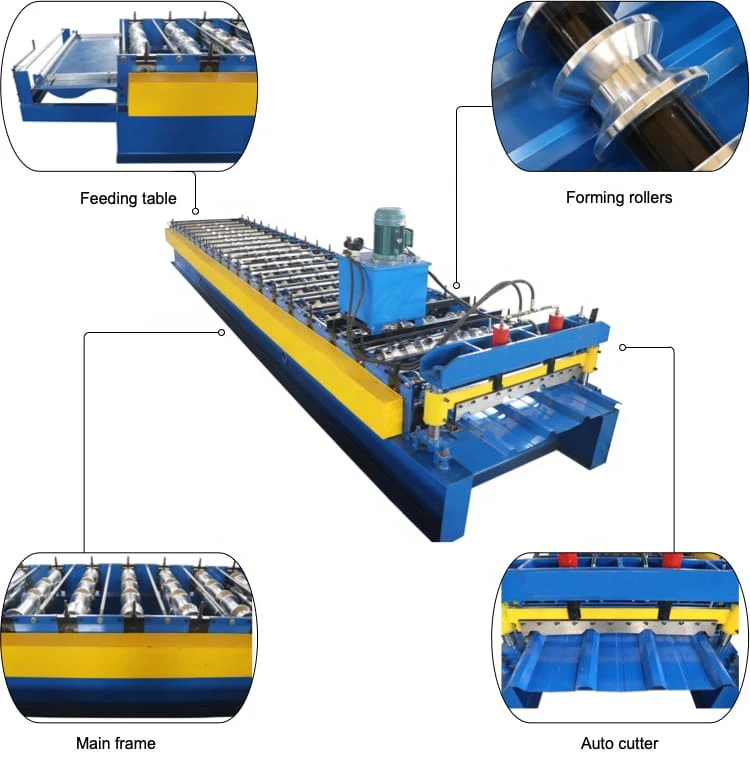

Details Show

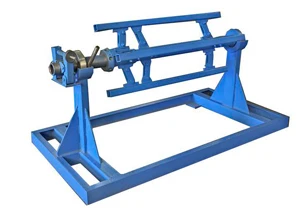

uncoiler



 Loading capacity



 5T



 Inner diameter



 470-530mm



 Steel coil width



 914, 1000, 1220, 1250 mm.


 According to your actual drawing.



 Working speed



 0-15m/min


adjustable

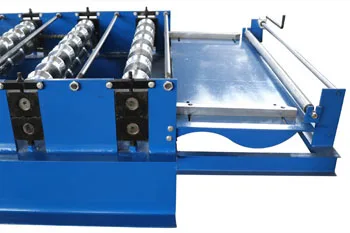

feeding table



It is used to control the width and position of the steel sheet.



The sheet is guided into the machine with the correct position


to make sure the panel is neat and parallel.

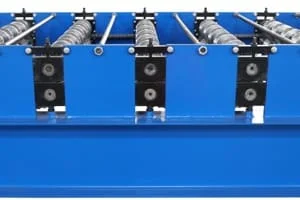

mainframe



Material



350 H steel



Feature



more table, no shaking

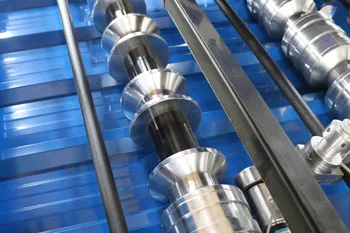

forming rollers



Material



High grade 45# steel.



Roller stations



11-16 stations.


According to your actual drawing

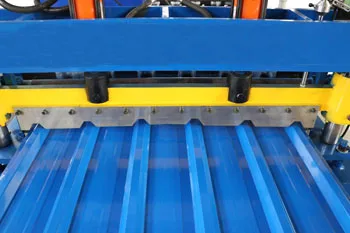

cutting system



Material of blade



Cr12MOV


much better than  normal Cr12 material



Hydraulic power



3 KW

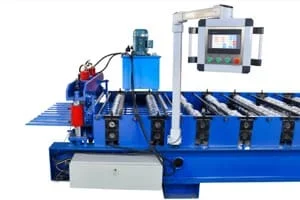

control cabinet



Suitable power



380V, 50Hz, 3phase


or according to your need.



Feature



The whole process is automatically controlled by the computer.


In this way, you can ensure accuracy and easy work.











About Us


We know well the requirements for the customers from different countries and have an outstanding export team who will take care of your requests. Our experts and skilled workers complete the work with great precision.


 We provide an extensive line of products, including roof and wall panel machine, tile roof machine, purlin forming machine, shutter door machine, floor decking machine and other associated equipment.


Our products have been sold worldwide over 90 countries including America, the UK, Australia, India, Sri Lanka South Africa, Tanzania, Nigeria, etc.







Packaging & Shipping


a. Need one 20 or 40 ft container, according to your final drawing.


b. The main body of the machine is fixed to container by 8mm diameter steel wire, rollers and shaft is  covered with anti-rust oil.


c. Spare parts in a carton box.


.jpg





FAQ


 1) Q: Do you have after sales support?


 A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.


 2)Q: How do your machines compare with other big companies in this market?


 A: We are up to date with the latest technology and improve our machines accordingly


 3) Q: Will you deliver the right goods as ordered? How can I trust you?


 A: Yes, we will. The core of our company culture is honesty and credit. AOFA is ALIBAB’s Gold supplier with BV assessment and CE certificate.


 4)Q:What can you do if the machine broken?


A:Our machine's warranty period is 18months,if the broken parts can't repair,we can send the new parts replace the broken parts freell,but you need pay the express cost yourself.if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.


 5) Q:Can you be responsible for transport?


A:Yes,please tell me the destination port or address.we have rich experience in transport.
