B88069x0340t502 Fs08x 1gh Gdt 800v 3 электрод Переключение разрядника
- Category: Gas Discharge Tubes >>>
- Supplier: Shenzhen Longzhan Electronics Materials Co. Ltd.
Share on (1600389253545):
Product Overview
Description
Product Description
GDT is placed in front of, and in parallel with, sensitive telecom equipment such as power lines, communication lines, signal lines and data transmission lines to help protect them from damage caused by transient surge voltages that may result from lightning strikes and equipment switching operations. These devices do not influence the signal in normal operation. However, in the event of an overvoltage surge, such as a lightning strike, the GDT switches to a low impedance state and diverts the energy away from the sensitive equipment.
Our GDT offer a high level of surge protection, a broad voltage range, low capacitance, and many form factors including new surface mount devices, which makes them suitable for applications such as Main Distribution Frame (MDF) modules,high data-rate telecom applications (e.g. ADSL, VDSL), and surge protection on power lines. Their low capacitance also results in less signal distortion. When used in a coordinated circuit protection solution with PolySwitch devices, they can help equipment manufacturers meet stringent safety regulatory standards.
Our GDT offer a high level of surge protection, a broad voltage range, low capacitance, and many form factors including new surface mount devices, which makes them suitable for applications such as Main Distribution Frame (MDF) modules,high data-rate telecom applications (e.g. ADSL, VDSL), and surge protection on power lines. Their low capacitance also results in less signal distortion. When used in a coordinated circuit protection solution with PolySwitch devices, they can help equipment manufacturers meet stringent safety regulatory standards.
Application scenarios:
．CATV equipment
．Antennas
．RS 485
．Power supply AC Main

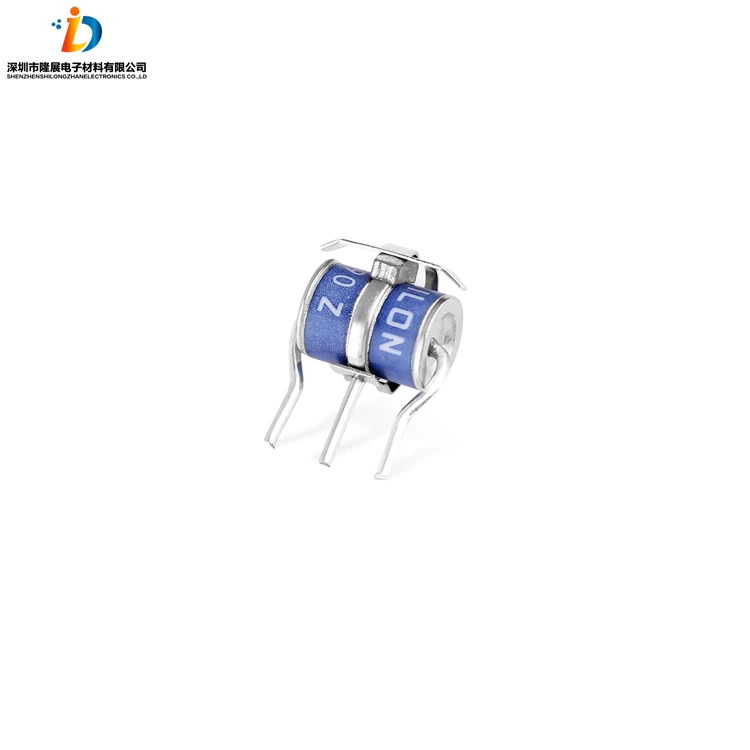

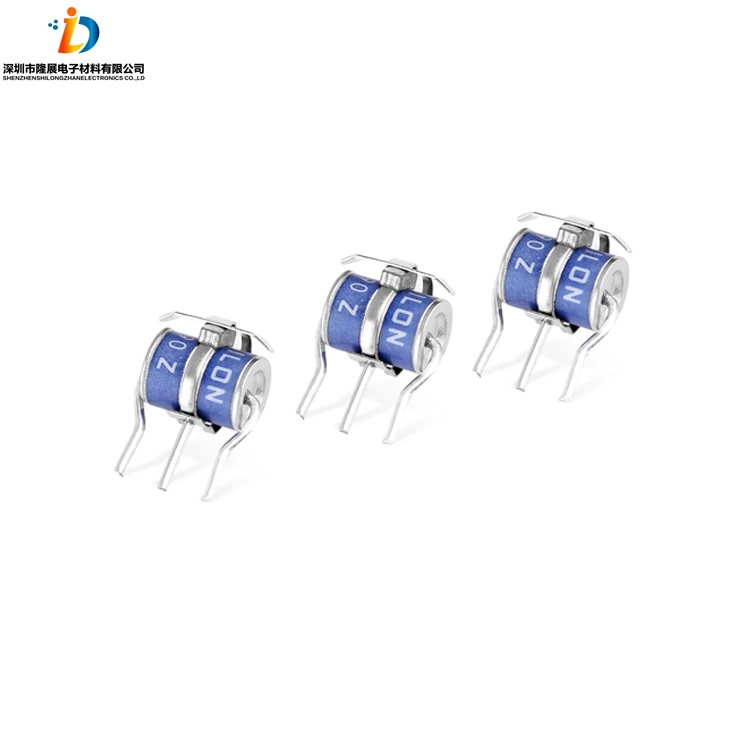

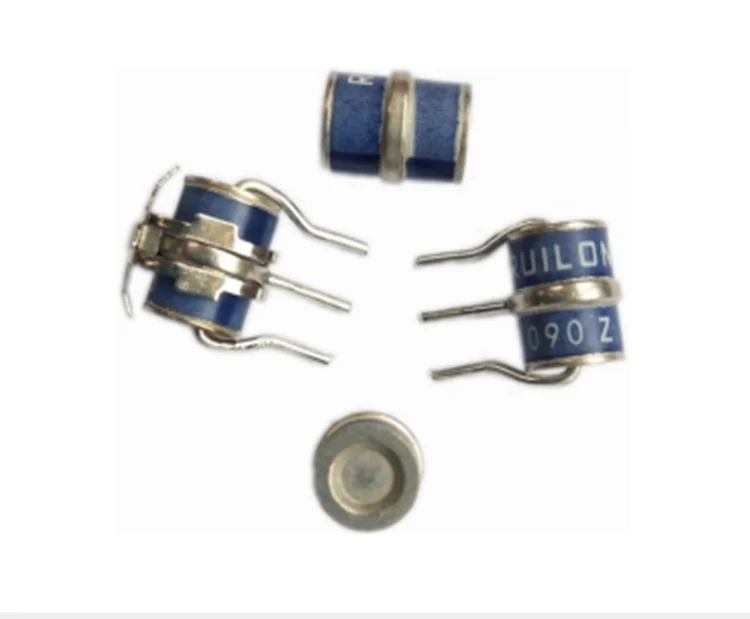

Detailed Images
Product Presentation
Glow Voltage at 10mA | 60V |
Arc Voltage at 1A | 10V |
1A | |
Lead Time | |
Quality | 100%Tested |
Model | 3RB-8 |
Nickel Plated |

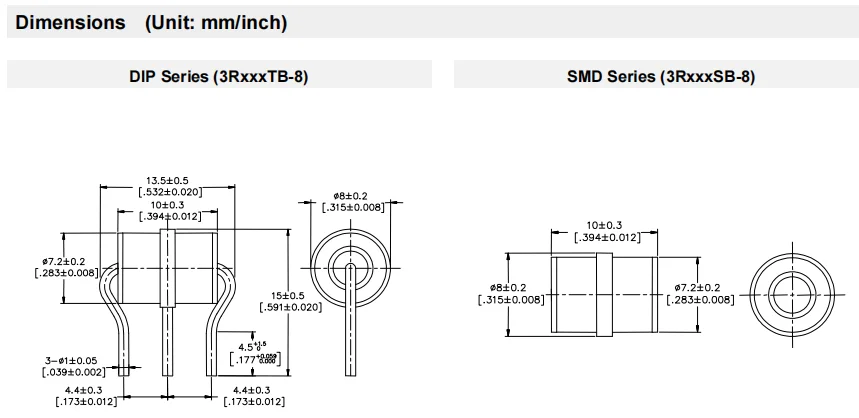

Size introduction and size picture
Certificate
Related Products
Company Introduction
Packing&Shipping
FAQ
1. Are you a trading company or a manufacturer? We are a manufaturer, and have our own trading company(Shenzhen Longzhan Electronic Materials Co., Ltd.) | ||||||||
2. What are the advantages of your products? We have more than 20 years of experience in this industry.We have a batch of top class production equipment, such as full-automatic coil winding machines, full-automatic assembling,packing and testing all-in-one machines. We have passed ISO9001, CQC and CE certification. Our products comply with international quality standards and measure up to the environmental protection standards of EU. We hold several patents in this field. Competitive price,delivery on time. | ||||||||
3. How about your after-sale service? We will reply customer within an hour when there is quality complaint. Also we need customer's help to provide relevant pictures and videos, and finish the accident investigation within 24 hours. If it is our responsibility, we will give 8D report within 48 hours, and all the defective product will be returned or replaced. The warranty period is 2 years. | ||||||||
4. Do you provide customizable products? Yes, we can customize products as your requirements. | ||||||||
5. Is the sample free? Yes, it is. | ||||||||
6. What about the lead time? Samples need 2-7 days, mass production time is usually about 1-3weeks, but it depends on the order quantity. | ||||||||
7. What is your MOQ for mass production? 500PCS, but any small trial orders are welcomed. | ||||||||
8. What is your terms of payment? We accept T/T, L/C. | ||||||||
9.Do you test all your proudcts before shipping? Yes, we 100% test before shipment, and we have full-automatic testing facilities which can reduce human error. | ||||||||
12. What's your trade term? EXW, CFR, FOB, CIF, DDU, DDP are all acceptable, or online transactions. | ||||||||
