YX1000 Colored Roofing Sheet Glazed Tile Roll Forming Making Machine
Features:
Features of Roof/Wall Panel Roll forming Machine:
Different roof/wall panel cold rollformer can produce different shapes of steel roof wall sheets according to the client's profile drawings and requirements.
We can also supply the customized machines.
Applications of Roof/Wall Panel Roll forming Machine:
The finished products are used as the roof and walls of gymnasiums, airports, theatres, factories, warehouses, garages, exhibition centers etc.
Process Flow of Roof/Wall Panel Roll forming Machine:
Uncoiler -Feeding -Straightening-Roll Forming -Cutting-Exit Rack
Machine Configurations of Roof/Wall Panel Roll forming Machine:
1.Manual De-coiler or Hydraulic De-coiler 5t (optional)
2.Feeding device
3.Straightenting device
4.Roll Forming Machine
5.Cutting device
6.PLC control system
7.Exit Rack
8.Hydraulic Station

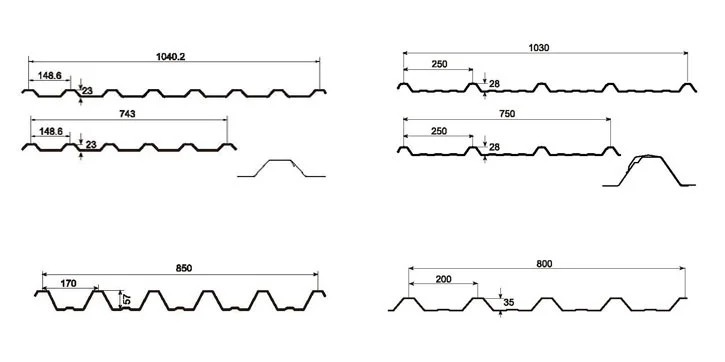

Profile Drawing of Reference:
Machine Parameters
| No | Item | Parameter |
| 1 | Material feeding width | 925~1220mm |
| 2 | Material thickness | 0.3~1.0mm |
| 03 | Uncoiler | Manual Uncoiler |
| 04 | Loading weight | 5ton |
| 05 | Forming speed | 8-15m/min |
| 06 | Forming Steps | 16stations |
| 07 | Shafts materials | 45# high quality steel |
| 08 | Shafts diameter | 70mm |
| 09 | Roller materials | 45# high quality steel, hard chrome coated 0.05mm |
| 10 | Transmission | Chains-sprockets |
| 11 | Main motor power | 11kw |
| 12 | Cutting blade | Cr12 with quenched treatment 60-62 |
| 13 | Hydraulic power | 5.5kw |
| 14 | This machine will automatically measure and cut the length and quantity as per clients set on the PLC touch screen | |
| 15 | Length cut Accuracy | ±1mm |
| 16 | PLC control system | Omron Japan |
| 17 | Frequency converter | TAIAN |
| 18 | Screen | TouchWin |
| 19 | Voltage | 380V/50HZ/3Phase |
| 20 | Total weight | Approx 6.2t |
| 21 | Overall dimensions | 8600x1500x1300mm |
Packaging & Shipping
PACKAGE:
LCL Loading Packaging: Steel pallet and plywood case.
——FCL Loading Packaging: Steel pallet with plastic film.
——Shipping: by sea
Our Service:
- Provide Pre-sales Consultant & On-purchase service 8 hr × 6 days per week
- Reply within 24 hours
- Provide relevant product information
- Answer questions if request
- Give technical suggestion
² Provide After-sales service 24hr × 7days per week
- Test the machine before shipment
- Provide technical guidance relate to use the machine
- Supply one-year warranty period for the machine
- Provide the spare parts at cost price after warranty period
- Collect the feedback for the machine working
- Provide long-term technical assistance.
