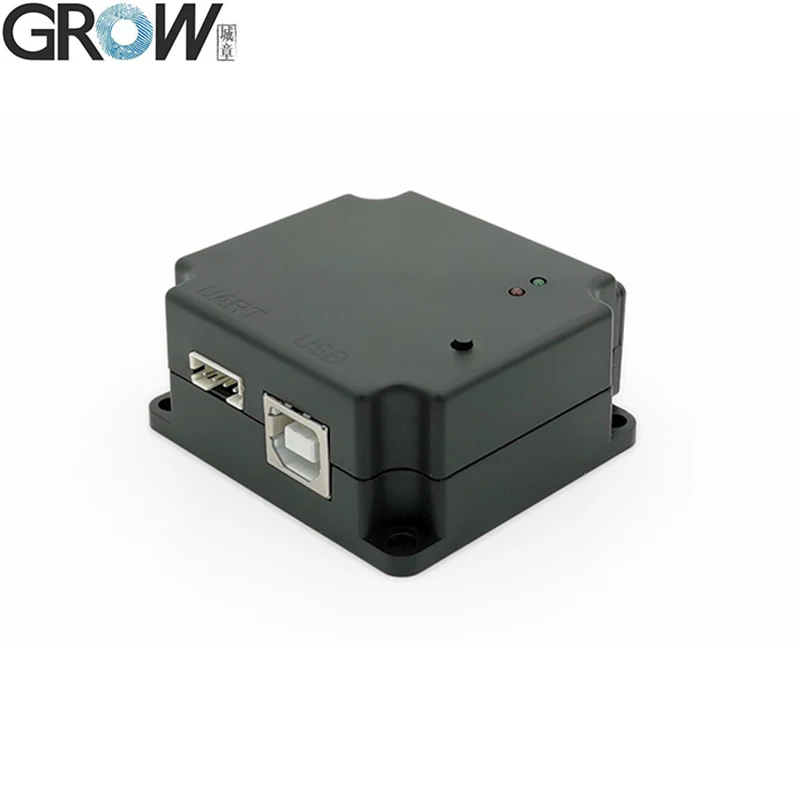

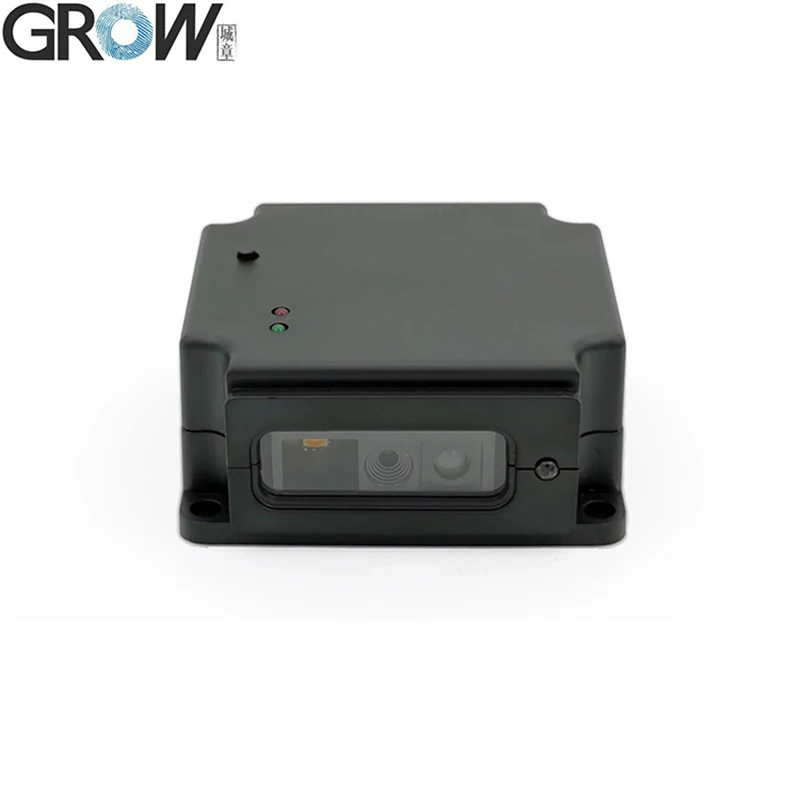

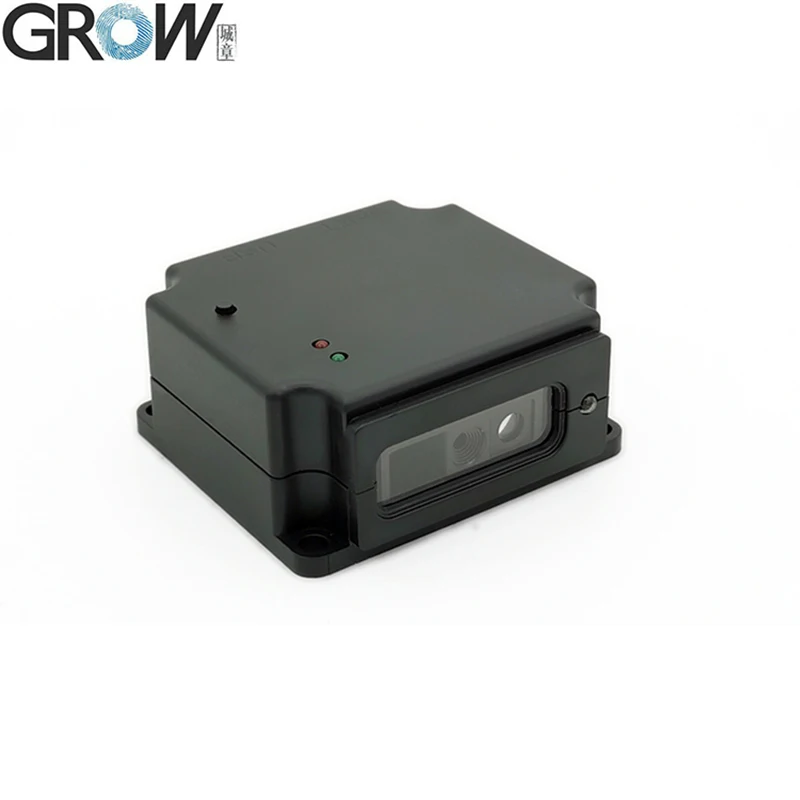

GROW GM75 DC5V USB UART Qr Code Bar Code Fast Speed Global Exposure Barcode Scanner Module Reader For Express Box Hospital
- Category: Scanners >>>
- Supplier: Hangzhou Grow Technology Co. Ltd.
Share on (1600401461127):
Product Overview
Description
Product Description
Description
1. USB wired barcode scanner to capture 1D, 2D code on labels, paper, mobile phone or computer.
2. High-efficiency recognization and high upload speed for improving your working efficiency.
3. With buzzer for reminding you that the scanning successfully or not.

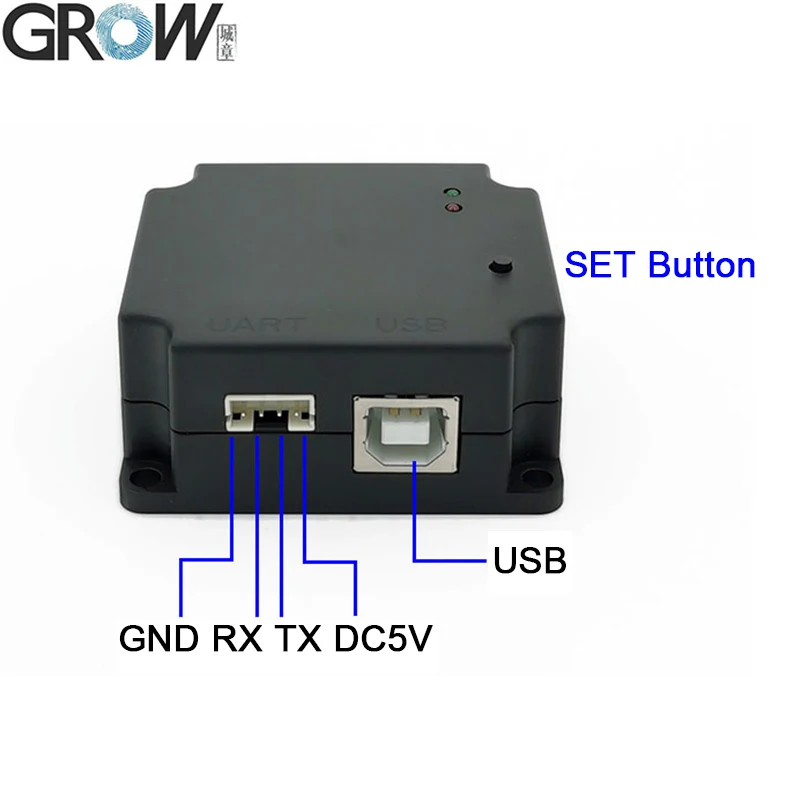

4. Compatible with USB and UART interface.
5. Over 180 configurable options
6. Macro support replace a string in the bar code with another
7. Programmable preamble postamble and termination strings
8.Superior reading performance utilizing advanced decoding algorithms

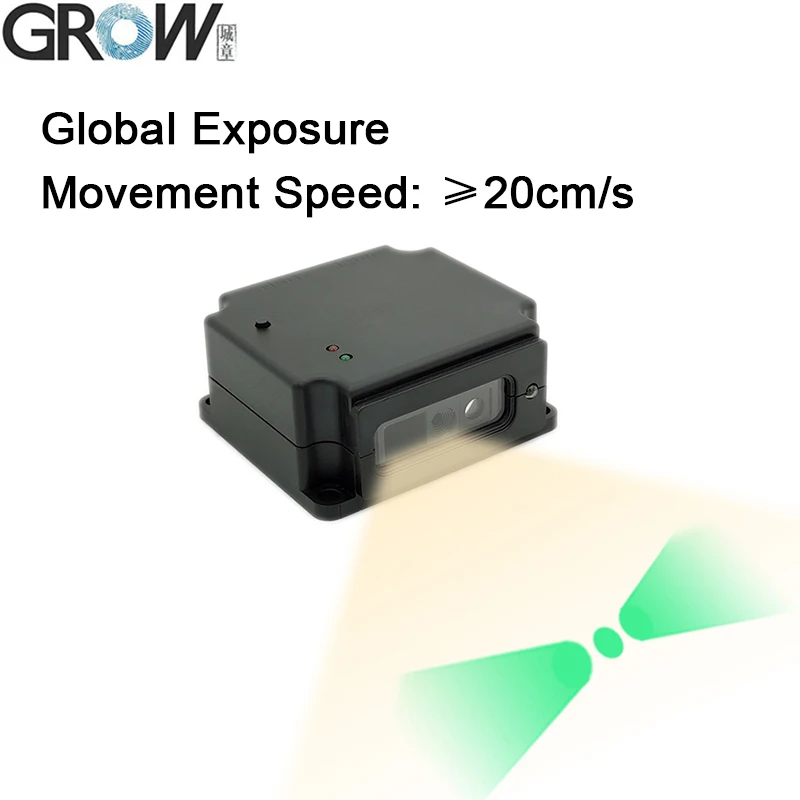

9. Global Exposure, Movement speed: 20cm/s
Specifications
Model | GM75 |
Type | Barcode Scanner |
Decoding Ability | 1D: EAN-13, EAN-8, UPC-A, UPC-EM ISSN, ISBN, CodaBar, Code 128, Code93, ITF-14, ITF-6, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, GS1 Databar(RSS), Code 39,Code 11, MSI-Plessey, etc 2D: QR Code, Data Matrix, PDF417, Micro PDF417, Micro QR, Aztec,etc |
Interface | USB2.0 \\ UART |
Resolution | 1D: 3MIL(Code39,CODE128,EAN13) 2D: 5MIL(QR,DM,PDF417) |
Operating Voltage | 5V |
Operating Current | 250mA(Max) |
Weight | 31.3g |

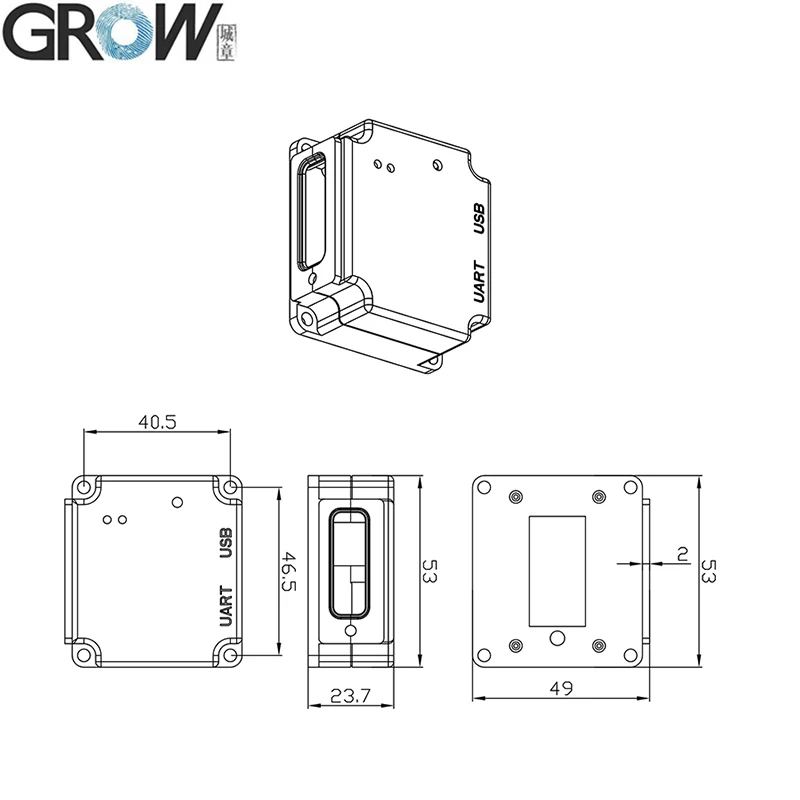

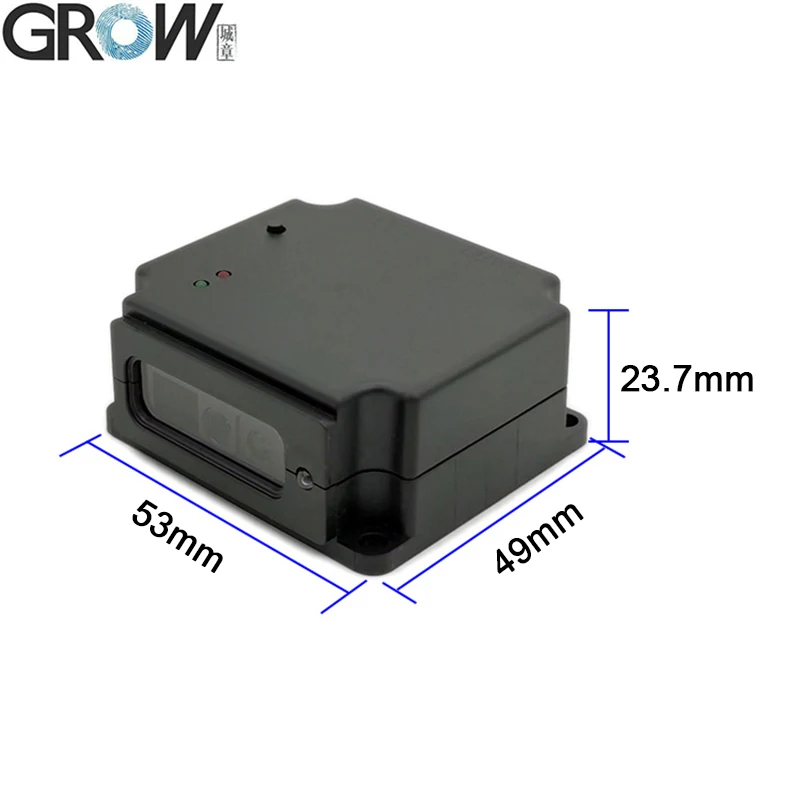

Size | 53*49*23.7mm |

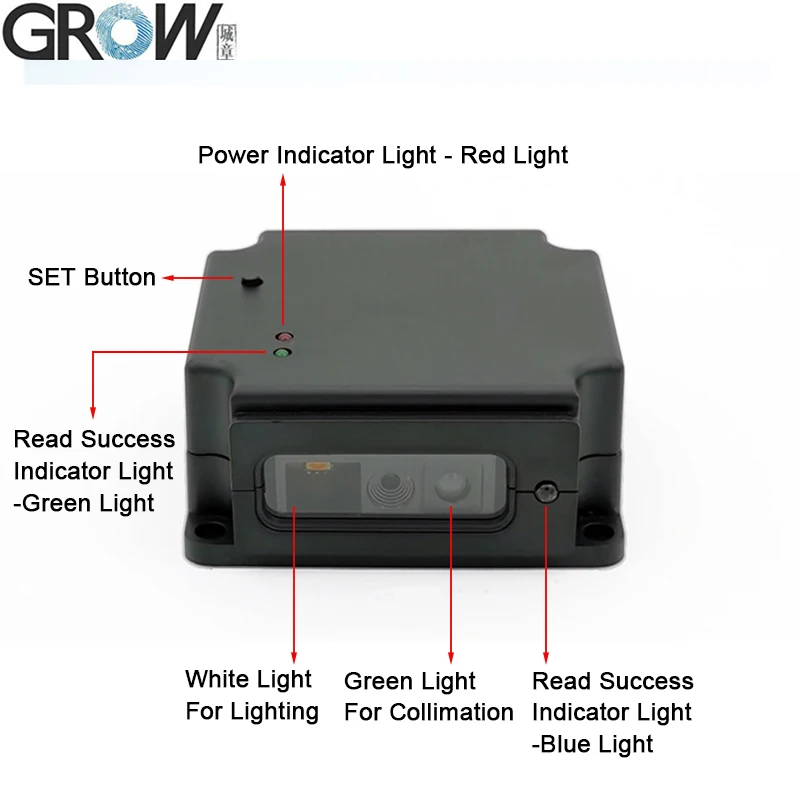

Lighting | White Light (3000K) |
Collimation | Green Light (527nm) |
Scan Angle | Roll:0-360°, Pitch:±60°, Yaw:±60° |
Viewing Angle | Horizontal 42°,Vertical 32° |
Contrast | ≥15% |
Reading Distance | 30 - 550mm |
Operating Temperature | -20 degrees to 60 degrees |
Storage Temperature | -40 degrees to 70 degrees |
Temperature Humidity | 5% to 95% Relative humidity, Non-condensing |
Light Levels | 0-85000LUX |
Files
·Provide User Manual
You can download the GM75 user manual from this website link:
https://www.dropbox.com/sh/buysgr2aeutuub3/AADsvupiGseFm-6IowMBWGCOa?dl=0
Images

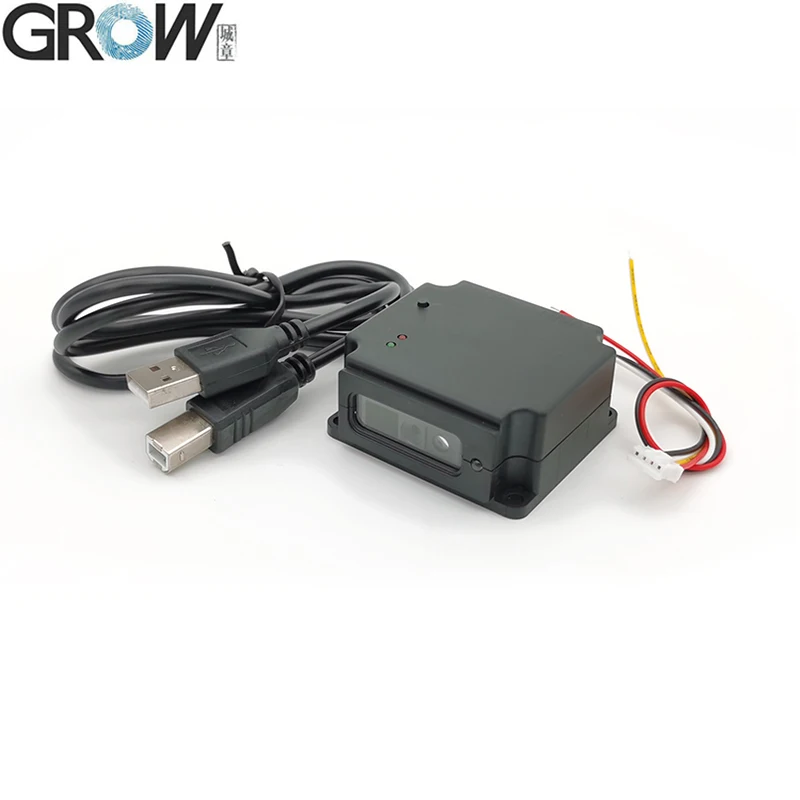

Package Listing
