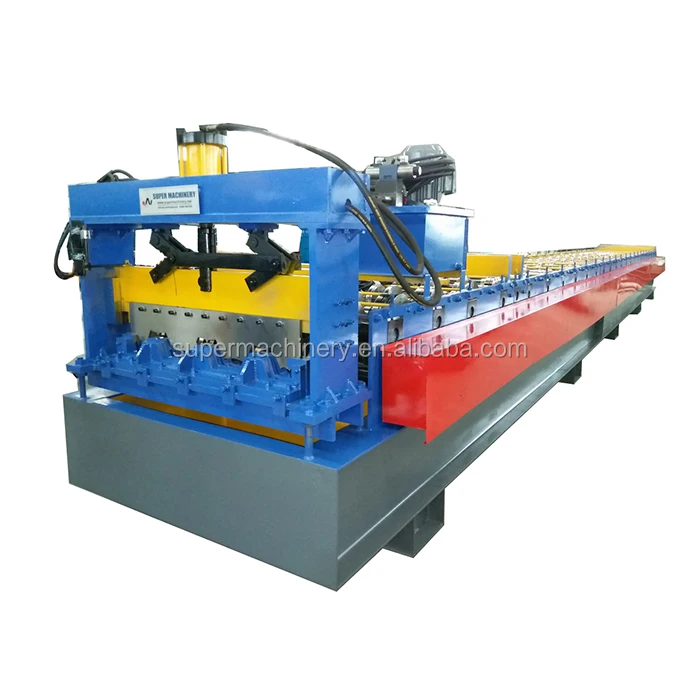

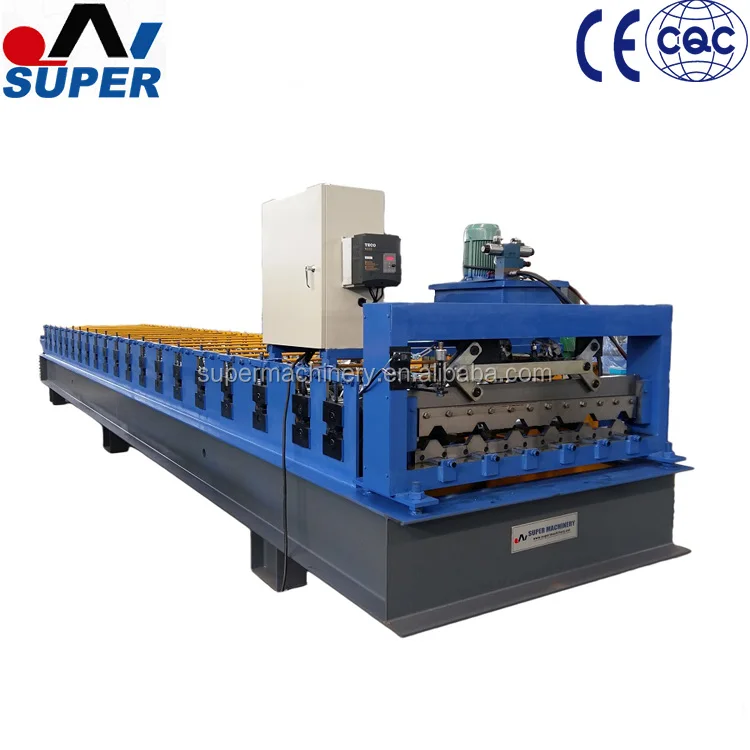

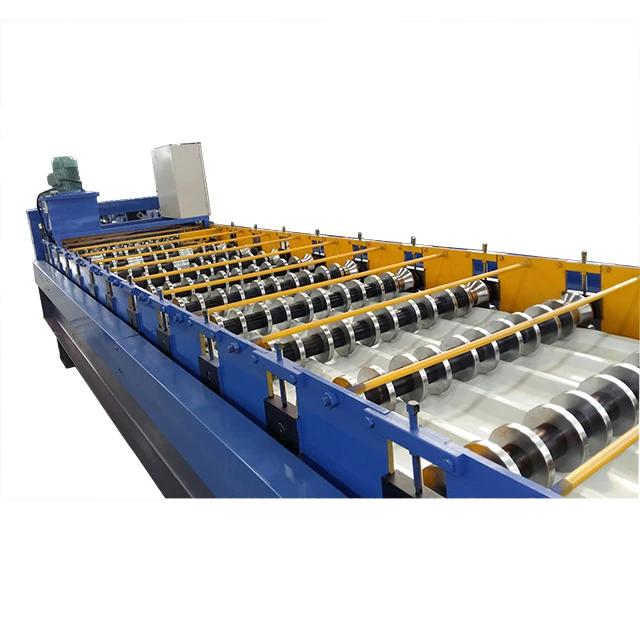

Colored Roofing Sheet Glazed Tile Roll Forming Making Machine
Products Description
1.Features of Roof/Wall Panel Roll forming Machine:
Different roof/wall panel cold rollformer can produce different shapes of steel roof wall sheets according to the client's profile drawings and requirements.
We can also supply the customized machines
2. Applications of Roof/Wall Panel Roll forming Machine:
The finished products are used as the roof and walls of gymnasiums, airports, theatres, factories, warehouses, garages, exhibition centers etc.
3.Process Flow of Roof/Wall Panel Roll forming Machine:
Uncoiler -Feeding -Straightening-Roll Forming -Cutting-Exit Rack
4.Machine Configurations of Roof/Wall Panel Roll forming Machine:
1.Manual De-coiler or Hydraulic De-coiler 5t (optional)
2.Feeding device
3.Straightenting device
4.Roll Forming Machine
5.Cutting device
6.PLC control system
7.Exit Rack
8.Hydraulic Station
Item | Parameters | |
Material feeding width | 925~1220mm | |
Material thickness | 0.3~1.0mm | |
Uncoiler | Manual Uncoiler | |
Loading weight | 5ton | |
Forming speed | 8-15m/min | |
Forming Steps | 16 stations | |
Shafts materials | 45# high quality steel | |
Shafts diameter | 70mm | |
Roller materials | 45# high quality steel, hard chrome coated 0.05mm | |
Transmission | Chains-sprockets | |
Main motor power | 11kw | |
Cutting blade | Cr12 with quenched treatment 60-62 | |
Hydraulic power | 5.5kw | |

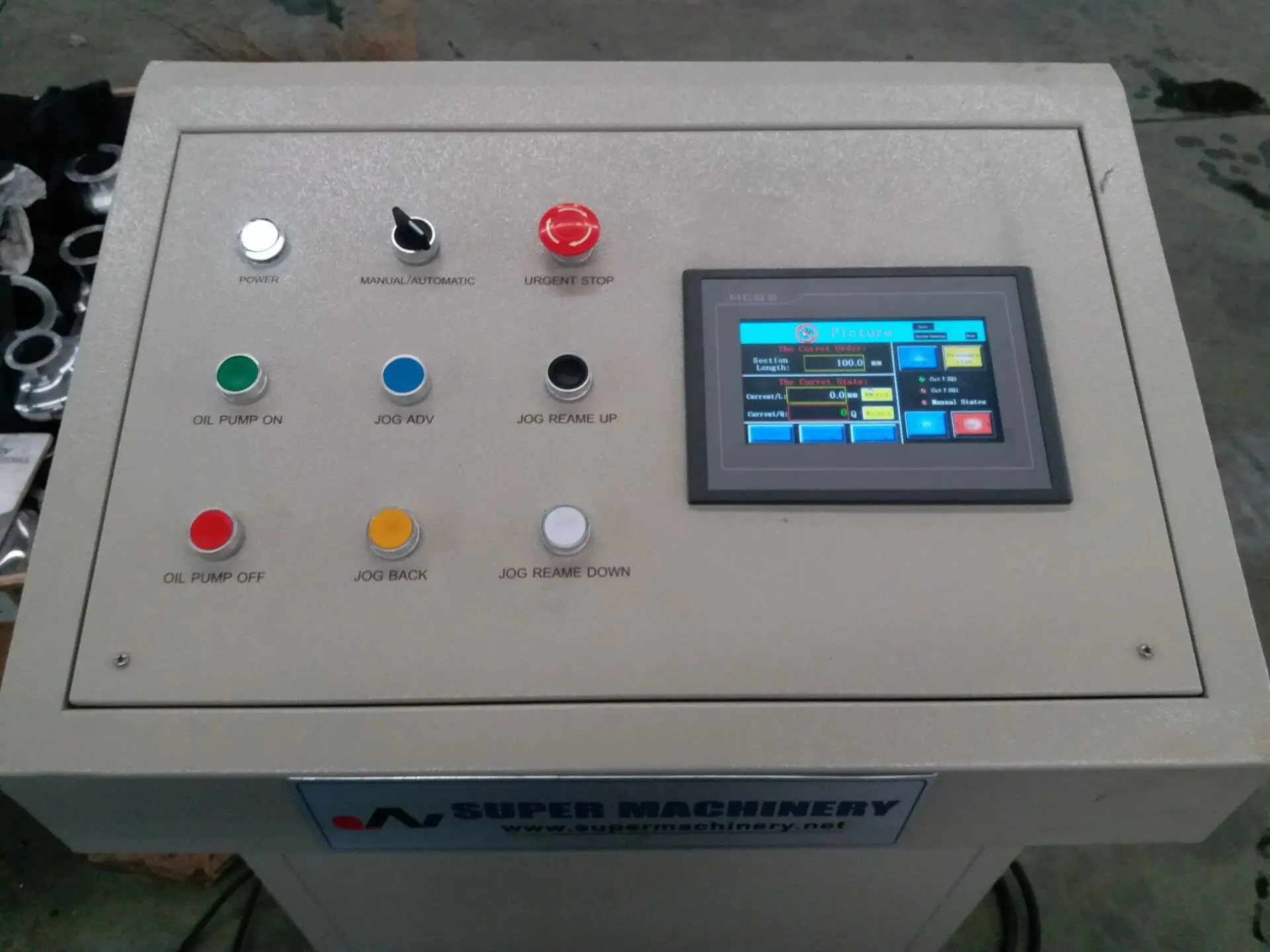

This machine will automatically measure and cut the length and quantity as per clients set on the PLC touch screen | ||
Length cut Accuracy | ±1mm | |
PLC control system | Omron Japan | |
Frequency converter | TAIAN | |
Screen | TouchWin | |
Voltage | 380V/50HZ/3Phase | |
Total weight | Approx 6.2t | |
Overall dimensions | 8600x1500x1300mm | |

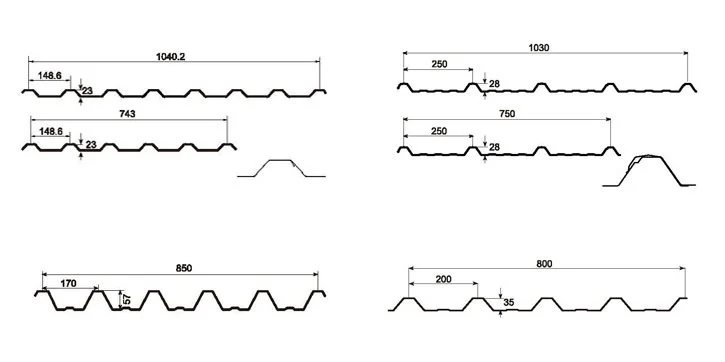

Profile Drawing of Reference:
YX13-180-1080
YX28-205-820
YX25-205-1025
YX30-200-1000
YX13-116-1044
YX33.5-150-900
Optional Configuration

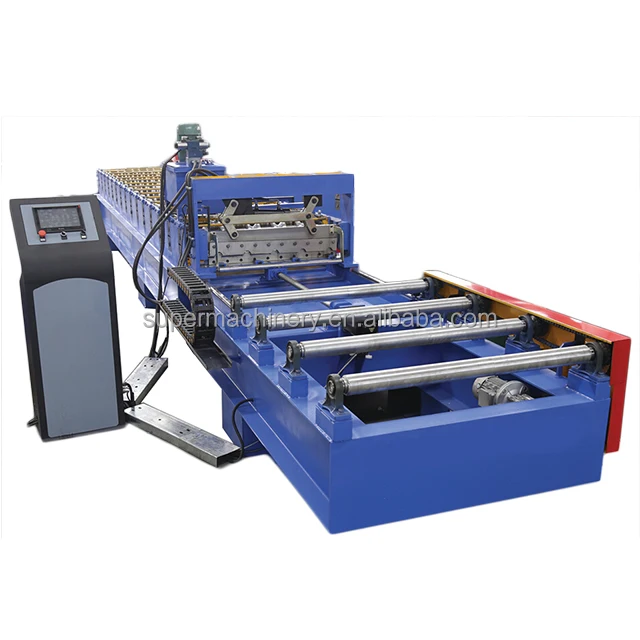

Full automatic fly cutting wall panel roof roll forming machine.
Our Advantages

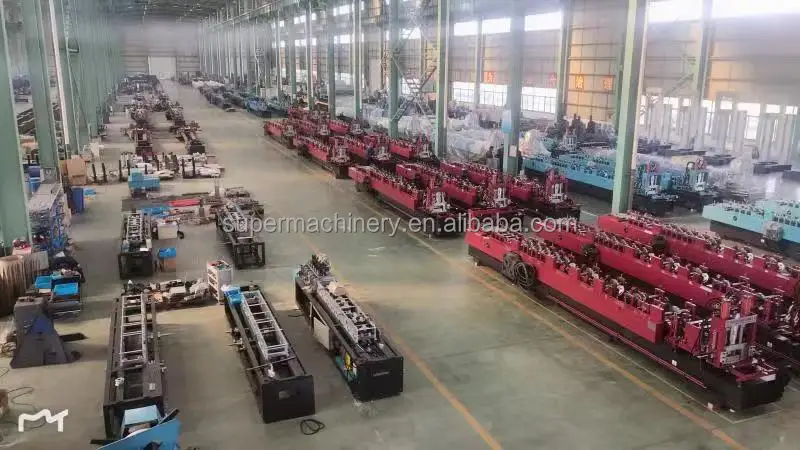

Factory view

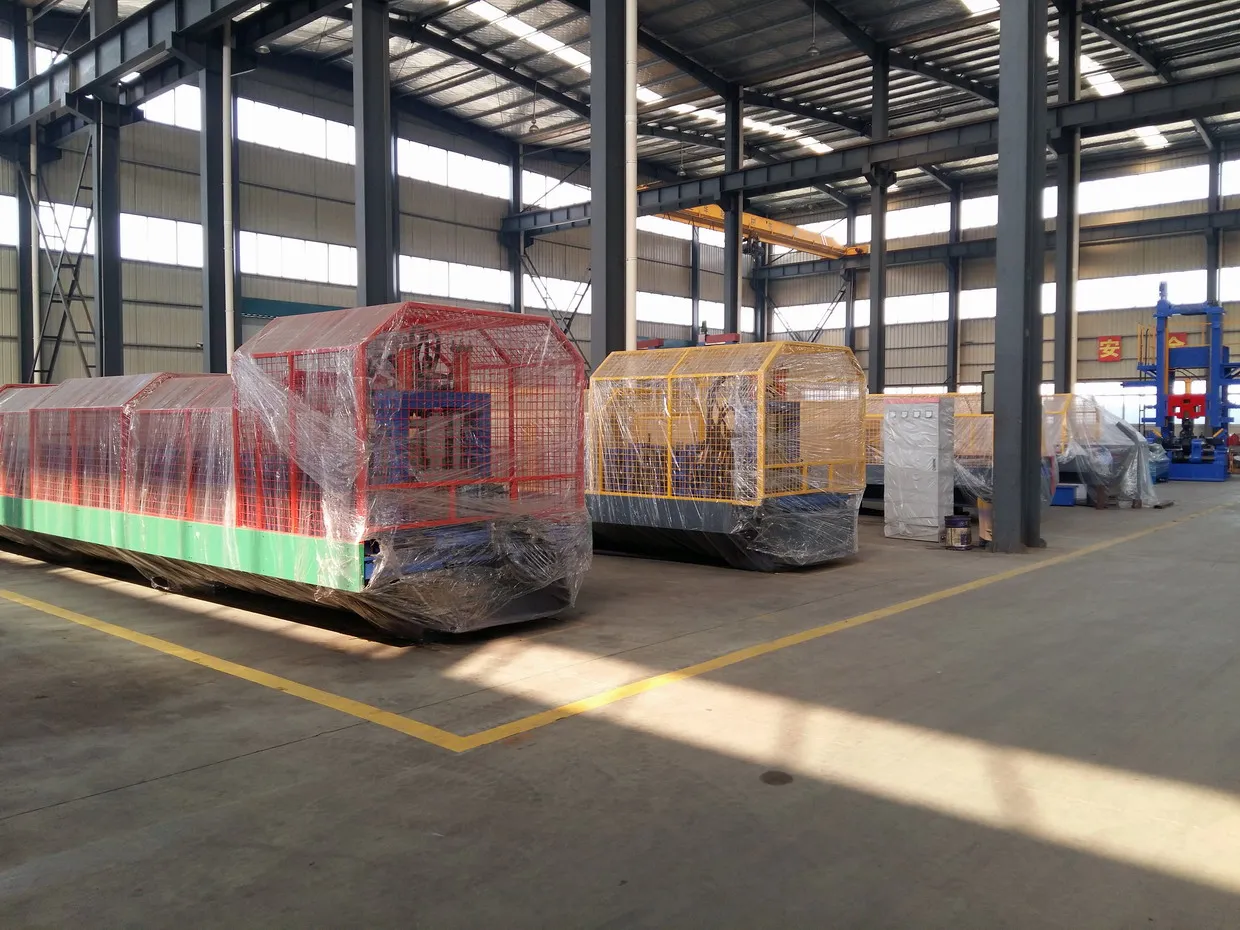

machine stock
Factory view

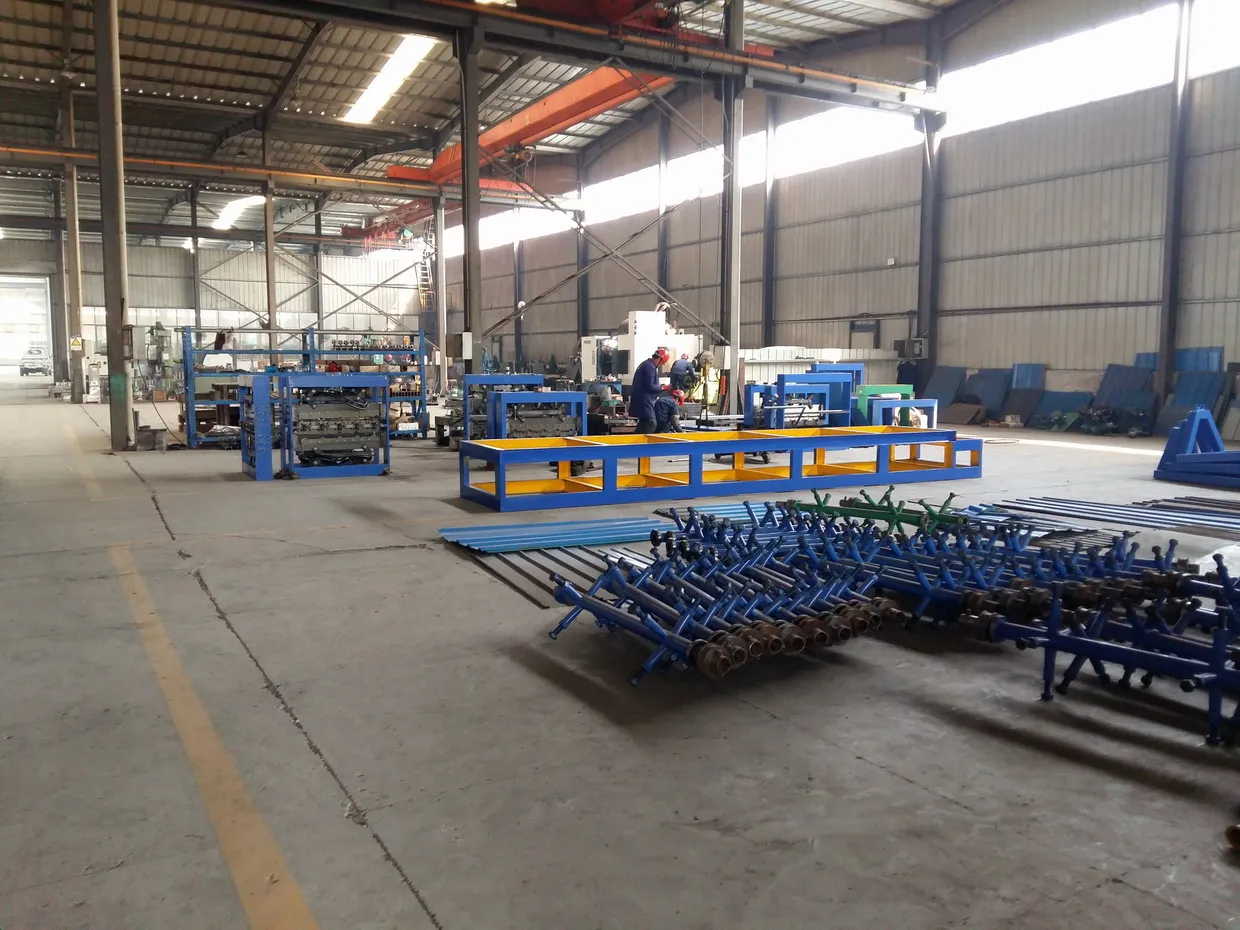

workshop
