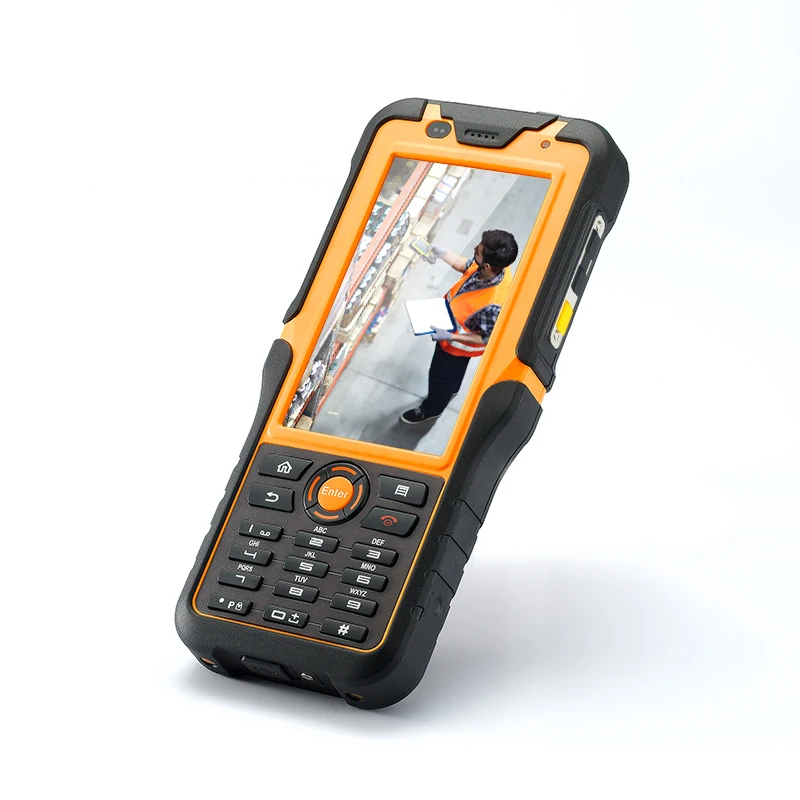

S50(2021) industrial explosion-proof pda android ES202 2D barcode scanner rugged handheld computer terminal
S50(2021) industrial explosion-proof pda android ES202 2D barcode scanner rugged handheld computer terminal
S50(2021) industrial explosion-proof pda android ES202 2D barcode scanner rugged handheld computer terminal
S50(2021) industrial explosion-proof pda android ES202 2D barcode scanner rugged handheld computer terminal
S50(2021) industrial explosion-proof pda android ES202 2D barcode scanner rugged handheld computer terminal
S50(2021) industrial explosion-proof pda android ES202 2D barcode scanner rugged handheld computer terminal
S50(2021) industrial explosion-proof pda android ES202 2D barcode scanner rugged handheld computer terminal
S50(2021) industrial explosion-proof pda android ES202 2D barcode scanner rugged handheld computer terminal
S50(2021) industrial explosion-proof pda android ES202 2D barcode scanner rugged handheld computer terminal

S50(2021) industrial explosion-proof pda android ES202 2D barcode scanner rugged handheld computer terminal

Share on:


Price:$225.00 - $235.00
Price in USD:Details

Quantity:


Product Overview

Description

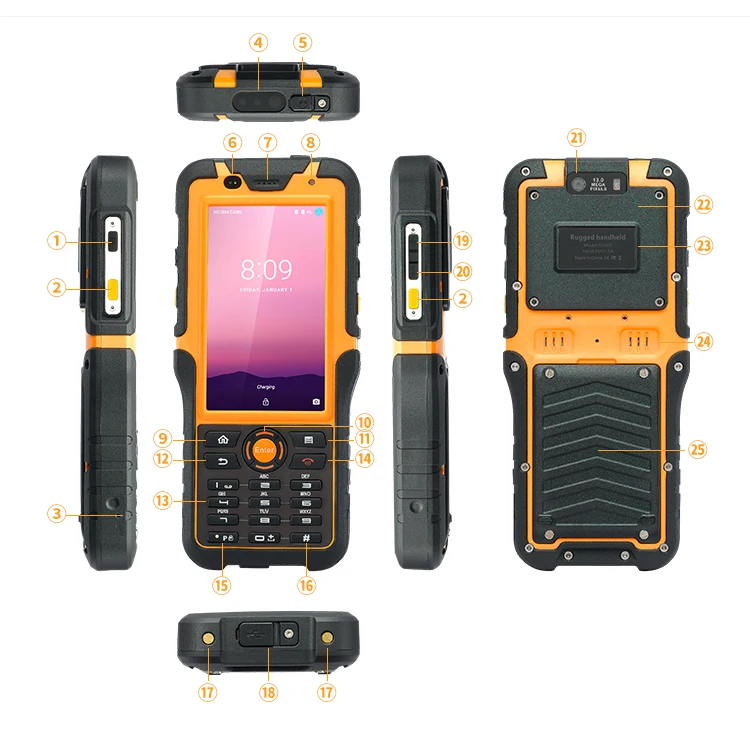

1：Power button
2：Scan button
3：MIC
4：Barcode scanner(optional)
5：earphone (Sealed Cover)
6：light sensation
7：Handset
8：charge lamp
9：Home
10：Arrow and confirm Button
11：Menu Button
12：Back Button
13：Number Button
14：Power ON/OFF
15：* Button
16：# Button
17：2pin pogo pin
18：Type-C (Sealed Cover)
19：Volume up
20：Volume Down
21：main camera （optional)
22：Function box(optional)
23：Nameplate
24：Speaker
25：battery














Hardware
CPU
MTK P60（ARM A73 2.0GHz Octa-core）
GPU
Arm Mali--G72 MP3
RAM
4GB
Internal Memory
32GB ROM
External Memory
Micro SD card ( T-FLASH card), max 256GB
Main Camera
13.0MP(AF) with flash led
Sub Camera
N/A
Battery

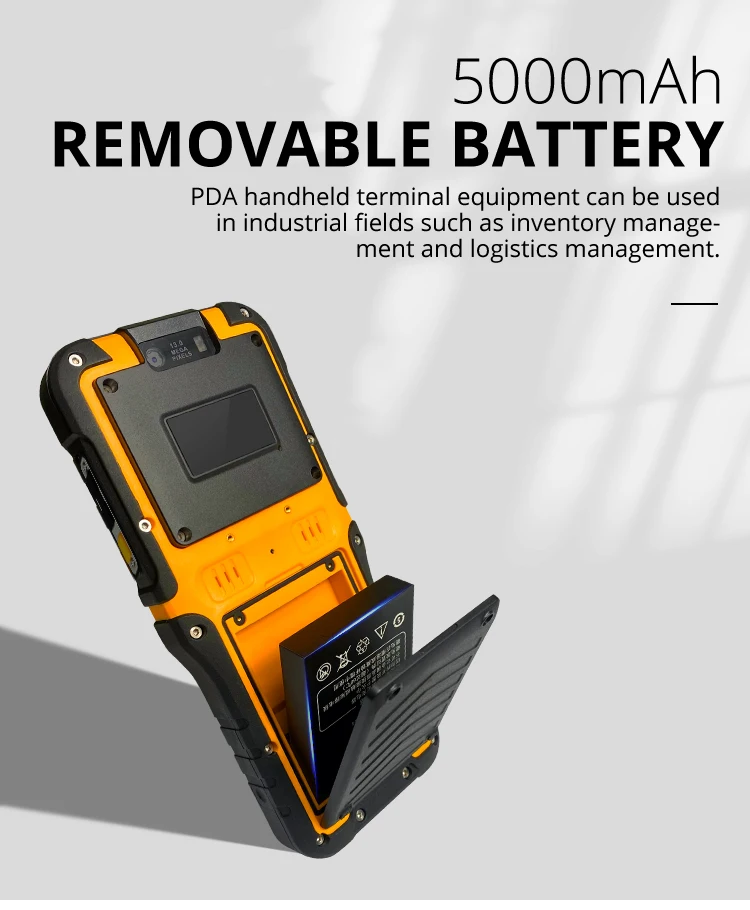

5000mAh（Replaceable battery）
Display
4.5 inch IPS/AFFS 960*540 QHD industrial 500nit Sunlight Readable

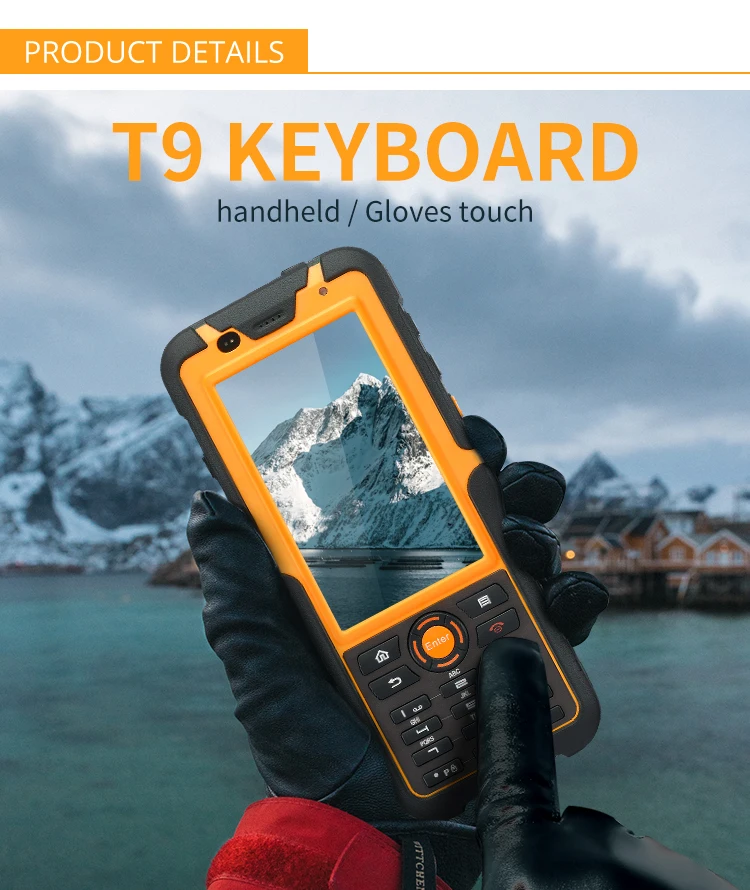

Touch Panel
Capacitive/frosted tempered film supports glove touch/spray/active capacitive pen


IO/Sensor/Navigation
SIM Card
1.8/3.3V SIM card
TF Card
Micro SD card ( T-FLASH card) ;max 256GB
Headphone
3.5mm (CTIA）
Charging interface
Type-C & 2pin pogo pin
Data interface
USB Type-C(OTG)*1
Direction Sensor
Support
Gravity sensor
Support
Magnetic Field Sensor
Support
Motion sensor
Support
Rotation Vector
Support
Light-sensor
Support
Acceleration sensor
Support
Charger
5.0V 2A-10W
Navigation
GPS+Beidou+Glonass+AGPS+SBAS （EPO 2.5m）


Appearance

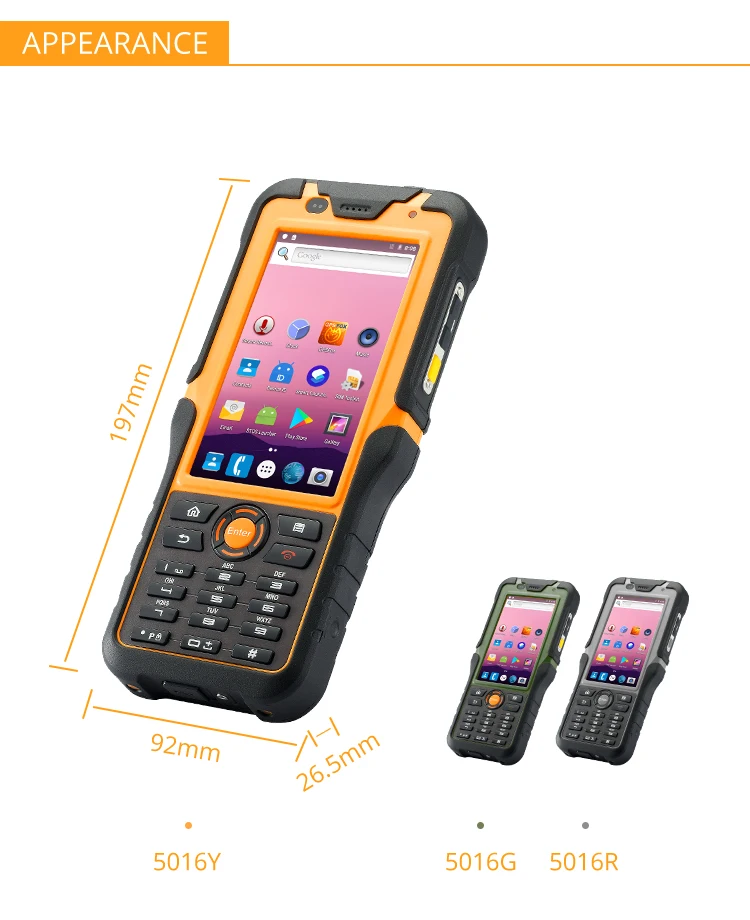

Size
197*92*26.5mm（L×W×H）
Weight
420g
Color & Material
Black&yellow Black&green Black&Gray


Communications & Networking
Phone Call
GSM /WCDMA/CDMA 1X/VoLTE
2G
GSM/CDMA 1X/EDGE/GPRS/WAP
2G Band
GSM（B2/3/5/8）
3G
WCDMA 3.75G (HSDPA+ 42.2Mbps, HSUPA+ 11.5Mbps),EVDO
3G Band
WCDMA（B1/2/5/8）,Evdo: BC0/BC1 CDMA: BC0/BC1
4G
FDD: 150Mbps down, 50Mbps UP TDD: 150Mbps downlink, 50Mbps uplink
4G Band
TD-LTE（B38/39/40/41）；FDD LTE（B1/2/3/4/5/7/8/12/17/20/28）
WI-FI
Dual-band WIFI (2.4GHz/5Ghz) single stream 802.11 a/b/g/n/ac
Bt
4.2 Low Energy (LE)


Industrial & Reliability Design
Shake-proof
1-19Hz/1.0mm; 19-200Hz/1.0g
Dropproof /IK

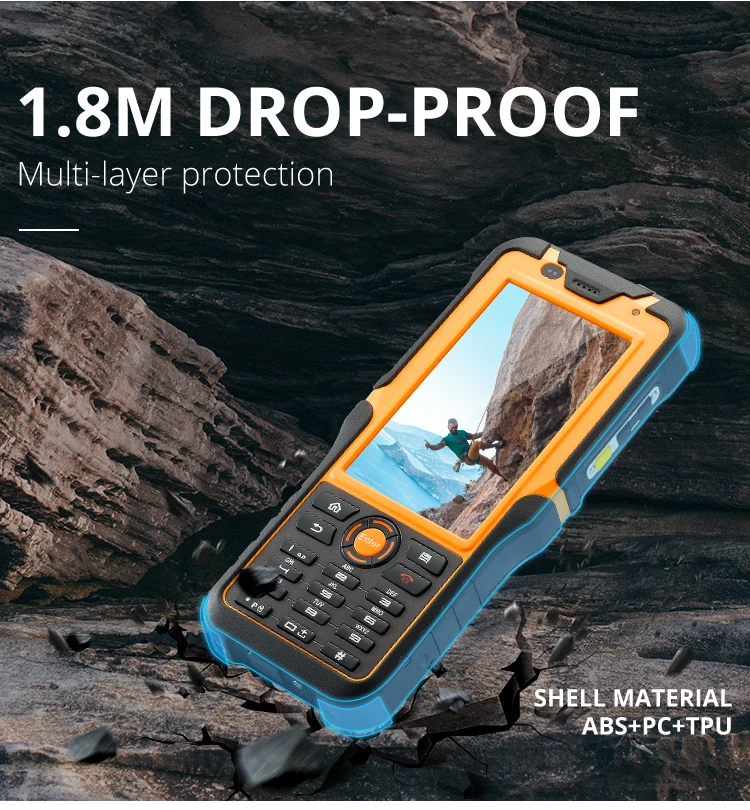

MIL-STD-810G/Method516.6/Procedure IV & Touch Panel IK05

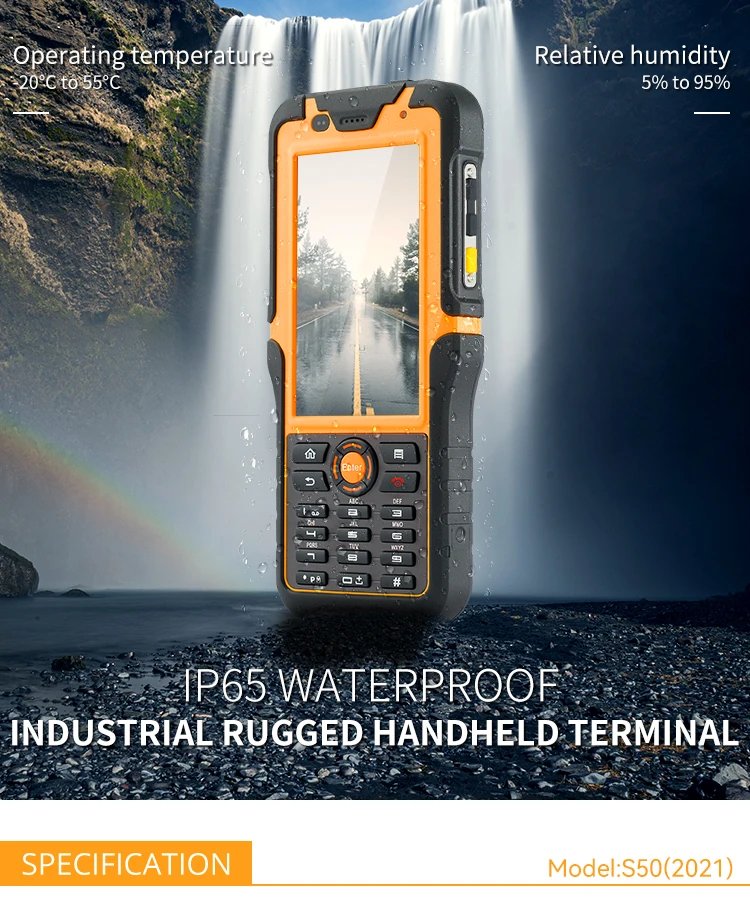

Waterproof
Class 5 ( IEC 60529 )
Dustproof
Class 6 ( IEC 60529 )
Reliability
MTBF>5000h；MTTR
Operating
-20°C to 55°C
Storage Temperature
-40°C to 80°C
RH
5% to 95%
Operating Altitude
Max: 4,500 m（15,000 feet）


Certification/OS/Software

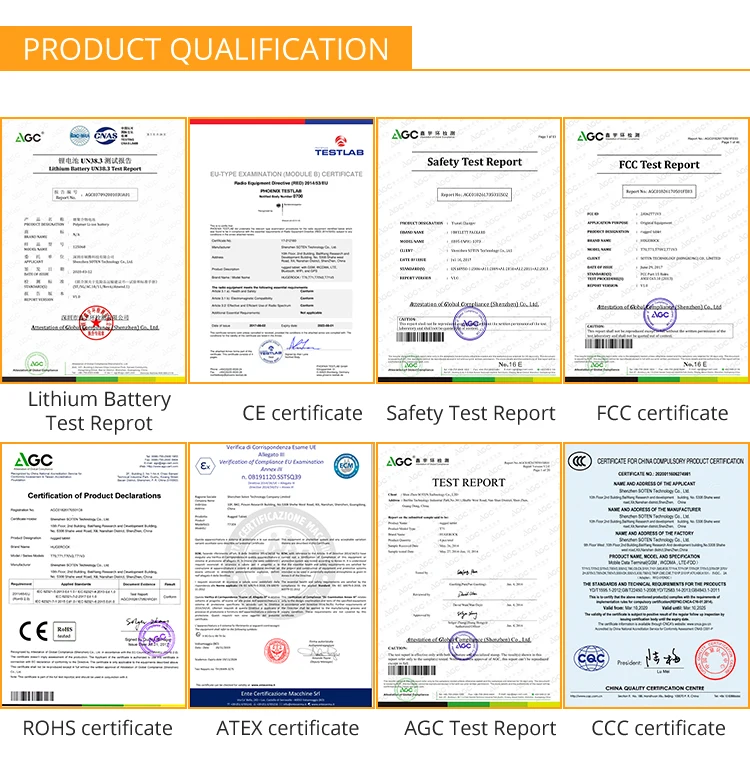

Certification
3C /FCC/CE/ROHS/IP65（IEC 60529）
Language
English, Spanish, Portuguese (Brazil), Portuguese (Portugal), Italian, German, Dutch, French, Polish, Romanian, Turkish, Russian,
Arabic, Indonesian, Malay, Thai, Vietnamese, Hindi, Hebrew, Simplified， Chinese,Chinese Traditional,etc
OS

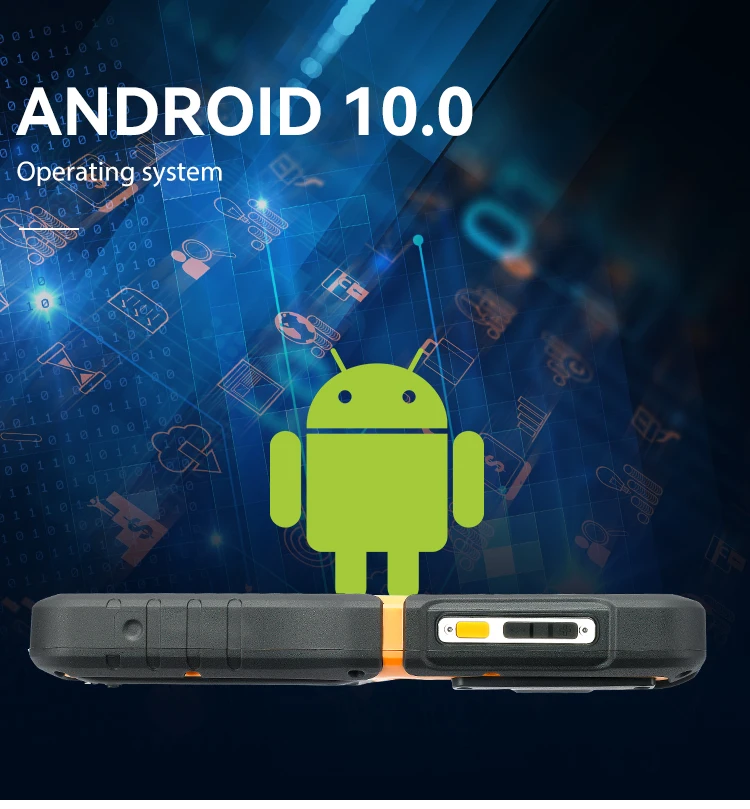

Android 10.0


Package/Warranty terms/OEM
Warranty
24 months
OEM/ODM
Support

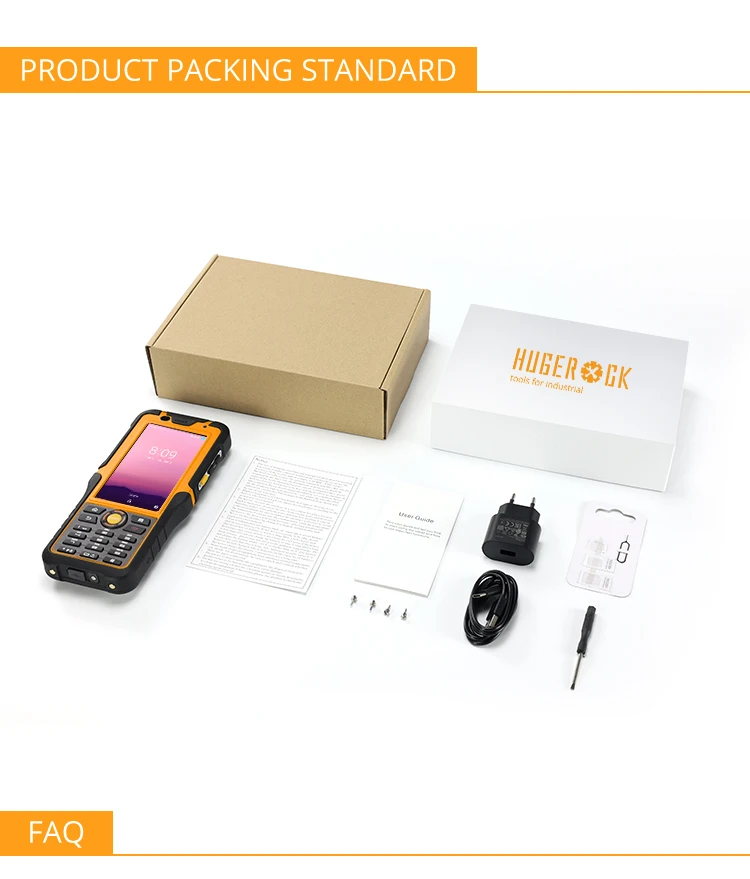

Package
USB cable/Charger 5V 2A/Introduction manual/Screen protector/Packing box（Can be customized logo）/Aircraft box/Toolkit（optional）










Q :Are you manufacturer?
A: Yes, we are manufacturers.We can provide OEM / ODM customized service according to our customers’ various application and demands.All of our products are fully patented, ID/MD design, hardware and software,mold,assembly are done by our own team.

Q: Would you provide SDK for me?
A: Yes, we offer free SDK if you order sample.In addition, we also have support engineers to assist you with software development.

Q: What is the minimum order(MOQ)?
A: We accept one unit for standard products.we can even customized with your logo if needed. If require OEM, will see detailed requirements and confirm MOQ to you from our sales department.

Q: Can we get the free sample?
A: Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation.

Q: Can i choose multiple function into 1 device?

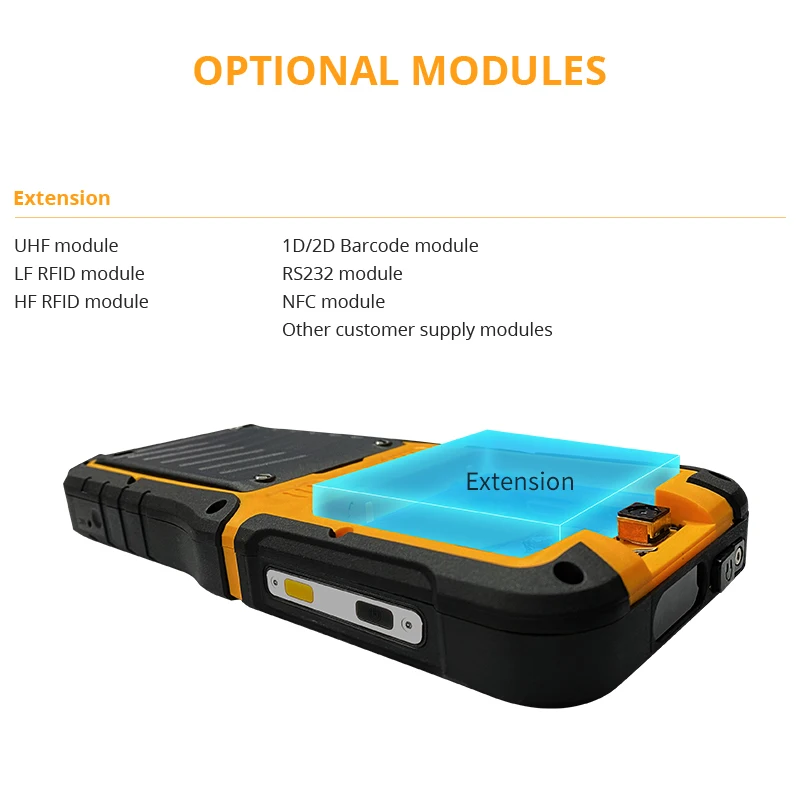

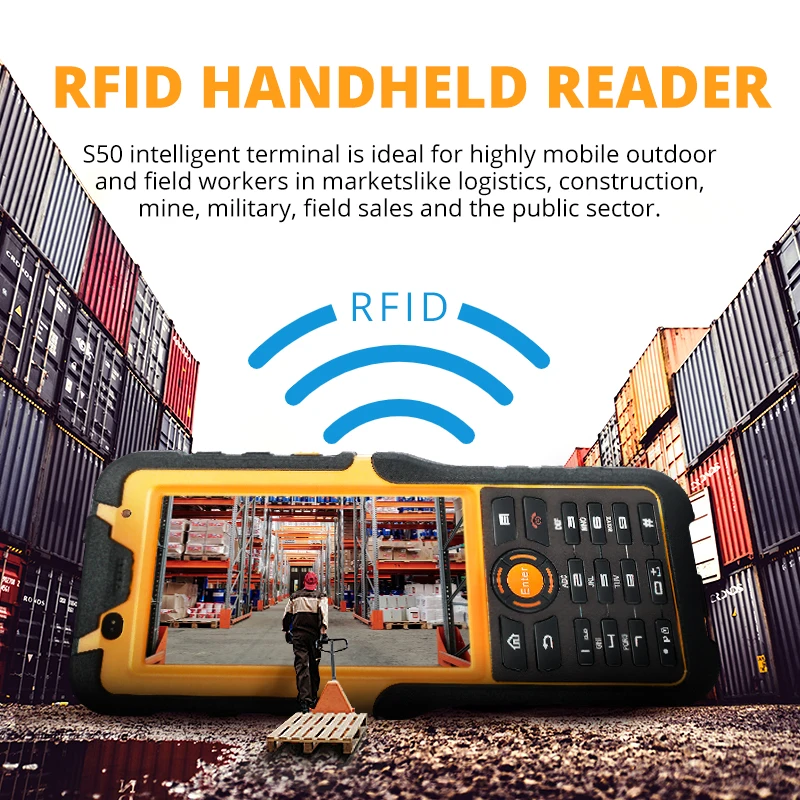

A: Yes, you can choose multiple fuction into onedevice, Different functions depending on the product model,optional functions:RFID (LF/HF/UHF)1 Fingerprint/ Bar code scanner.

Q: How to order and pay?
A: We accept T/T (bank transfer), Alibaba online,Western Union 1 Trade Assurance

Q: What's Your Products Warranty?
A: We Offer 24 Months Warranty after shipment sent.

Q: Can I extend the warranty?
A: We offer a deferred warranty for up to 36 Months, and the price for the warranty extension is 10% up.

Q: How long it will take for delivery?
A: For production lead time around 3-10days depend on requirement, and shipping time by DHL/UPS/FEDEX/TNT, delivery time would around 3-5 working days. For some remote place, delivery time maybe a little bit longer.

Q:How to repair the device if any problem ?
A: We will provide technical support online to solve problem; If for the hardware problem , we couldsend the parts or components and teach customer to fit if they have technician or can also send backto us to fix it.

Q: Can you do customized and preload our software?

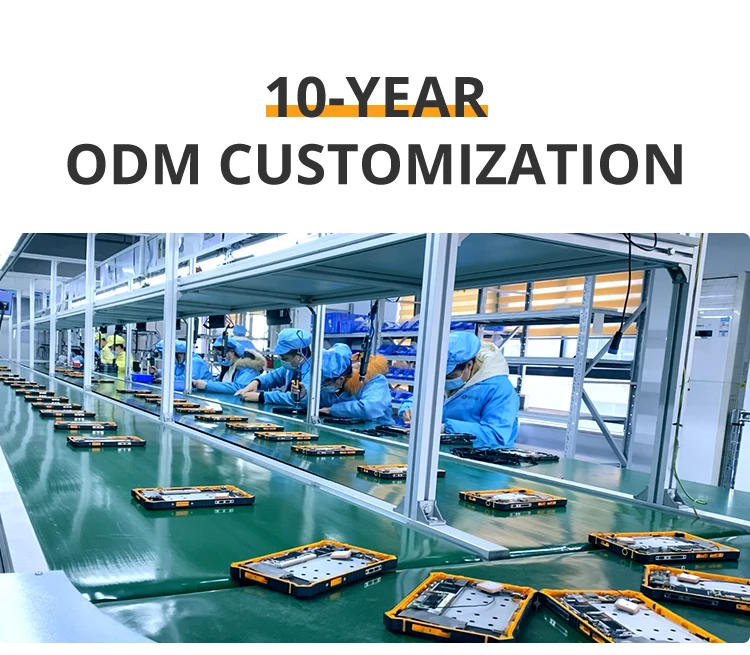

A:We are professional rugged device manufacture with 11 years experiences
