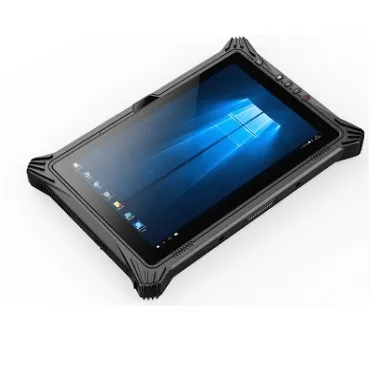

China manufacturer industrial pda biometric handheld device industrial rugged tablet outdoor IP65 10 inch i5 8250U i7 8550U PDA
- Category: PDAs >>>
- Supplier: Shenzhen MobileX Technology Co. Ltd.
Share on (1600410371356):
Product Overview
Description
Product Description
Core i5-8250U/i7-8550U 10inch industrial tablet pc for the windows 10 OS with 8GB 128GB /16GB 128GB PC tablet
This device is rugged tablet. With its powerful processor and wireless connections such as 4G and Wi-Fi, as well as other data capture options,including 1D/2D barcoding you can find this easy-to-deploy device an exceptionally valuable helper to increase working efficiency and productivity. This device with abundant functions can best satisfy your different industrial needs.
Product Outlook | ||||||||||||
Type | Details | Standard Configuration | Optional | |||||||||
Product Form | Type | Rugged Tablet | NA | |||||||||
Dimension | 290*196*22mm | NA | ||||||||||
Weight | Device unit: 1140g 5000mAh battery：250g | NA | ||||||||||
Device Color | Black（Front and Rear Panel: Black，Decorate Board:Black） | NA | ||||||||||
LCD | Screen Size | 10.1 inch 16:10 | Full-fit components | |||||||||
Resolution | 1200×1920 (or 800*1280) | |||||||||||
Brightness | 400 cd/m2 (or 450 cd/m2 ) | |||||||||||
TP | Touch Panel | 10 points Capacitive，G+G，Rigidity: above 7H-Anti-scratch | Optional SLR Sunlight visible film | |||||||||
Camera | Front | Front:2.0MP | NA | |||||||||
Rear | Rear: 8.0MP USB Camera With flash light | NA | ||||||||||
Speaker | Built-in | Embedded 8Ω/0.8W waterproof speaker x 1 | NA | |||||||||
Mic | Sensitivity:-42db, Output resistance:2.2kΩ | NA | ||||||||||
Small Battery | Type | Build in Lithium-ion polymer battery, Non-removable | NA | |||||||||
Capacity | 7.4V/860mAh | NA | ||||||||||
Endurance | 30mins(default 50% volumn，default200nit，play 1080P HD video) | NA | ||||||||||

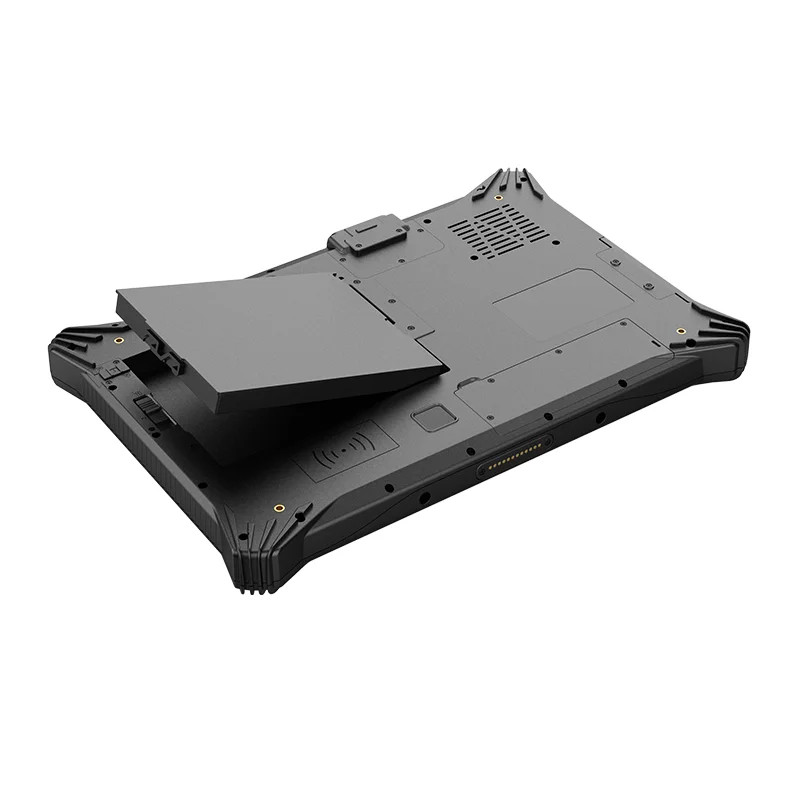

Bigl Battery | Type | Lithium-ion polymer battery , pluggable, Hot Swap | NA | |||||||||
Capacity | 7.4V/5000mAh | NA | ||||||||||
Endurance | 5hrs(default 50% volumn，default200nit，play 1080P HD video) | NA | ||||||||||
System Hardware Configuration | ||||||||||||
Type | Details | Description | Optional | |||||||||
CPU | Type | 8th Generation KBL-R Intel® Core™ i5-8250U | 8th Generation KBL-R Intel® Core™ i7-8550U | |||||||||
Speed | 4M Cache, 3.40 GHz | maximum frequency 4.0 GHz | ||||||||||
GPU | Type | Intel® UHD Graphics 620 | Intel® UHD Graphics 620 | |||||||||
RAM | DDR4L | 8GB | 16GB | |||||||||
SSD | NGFF SSD | 128GB removable | 256GB/512GB | |||||||||
TPM | Built-in | TPM2.0 SLB9665T | NA | |||||||||
G_sensor | Built-in | Gravity acceleration sensor | NA | |||||||||
Fingerprint | Built-in | ×1 SPI Fingerprint (windows hellow boot login) | NA | |||||||||
Fan | Built-in | ×1 IPX5 | NA | |||||||||
NFC | Built-in | NA | NXP100 | |||||||||
Network Connections | ||||||||||||
Type | Details | Description | Optional | |||||||||
WIFI | WIFI Module | WIFI 802.11(a/b/g/n/ac) dual frequency 2.4G+5.8G WIFI | wi-fi 6 802.11a,b,d,e,g,h,i,k,n,r,u,v,w,ac,ax dual frequency 2.4G+5.8G WIFI | |||||||||
4G | Built-in | EC25-EC LTE FDD: B1/B3/B7/B8/B20/B28A WCDMA: B1/B8 GSM: B3/B8 China (China Unicom Telecom, mobile support is not good, only B8 supports no TDD band) Europe, Middle East, Africa, Taiwan, Japan | NA | |||||||||
GPS | Built-in | U-blox M8Q ,Support:GPS, Beidou module, glonass | NA | |||||||||
Interface Configuration | ||||||||||||
Type | Details | Descriptions | Optional | |||||||||
type A usb | USB3.0 | x1 USB 3.0 | NA | |||||||||
Type C | Type C | *1 Type C (USB3.0/HDMI/Charging) | NA | |||||||||
Earphone Jack | Audio Output | ∮3.5mm Standard Earphone Jack x1 | NA | |||||||||
TF Slot | Extensive External Memory | Support TF x1 max：128G | NA | |||||||||
SIM Slot | SIM Slot | SIM x1 | NA | |||||||||
DC Jack | Power | DC 19V 3.42A ∮5.5mm Power connector x1 | NA | |||||||||
pogo pin | pogo pin | x1 12pin（USB&Docking charging） | NA | |||||||||
Keys | ||||||||||||
Type | Details | Descriptions | Optional configuration | |||||||||
F KEY | Scanner key | Scanner key x1，No barcode then customizable ((GPIO) | NA | |||||||||
volume+ | volume | Volume adjustment key(+) x 1 | NA | |||||||||
volume- | volume | Volume adjustment key(-) x 1 | NA | |||||||||
windows | windows key | x1 | NA | |||||||||
power | power key | x1 | NA | |||||||||
Indicator light | ||||||||||||
Type | Details | Descriptions | Optional configuration | |||||||||
power | Built-in | Power on is always blue, power off light is off ×1 | NA | |||||||||
baterry | Built-in | (Red and Green) Charging red, full of green, red light flashing on low power, not discharging ×1 | NA | |||||||||
Module extension (Note: The following modules are one of five) | ||||||||||||
Type | Details | Descriptions | Optional configuration | |||||||||
Ethernet interface | RJ45 board | *1(10/100M) Ethernet interface | ||||||||||
serial port | DB9 board | NA | *1 (RS232)9-line full function | |||||||||
USB2.0 | USB2.0 | NA | *1 USB2.0 Big USB | |||||||||
One-dimension barcode | optional | NA | MOTO SE655E100R/Optical resolution: 5mil/scan speed: 50 times /s serial port | |||||||||
Two-dimension barcode | optional | NA | Honeywell N3680 hardcode | |||||||||
Optical resolution:5mil | ||||||||||||
scan speed:50 times /s | ||||||||||||
Code system:PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse Maxicode,QR Code, MicroQR, QR Inverse,Aztec,Aztec Inverses,Han Xin,Han Xin Inverse | ||||||||||||
Standard Accessories | ||||||||||||
Type | Details | Descriptions | Optional | |||||||||
Power Adaptor | Standard | AC100V ~ 240V、19V3.42A/65W Output USA Standard CE approval | UK Standard | |||||||||
EU Standard | ||||||||||||
Software Configuration | ||||||||||||
Type | Details | Descriptions | Optional | |||||||||
Operation System | OS version | For windows 10 Home 64bit Default language：English | For windows 10 Home 64bit | |||||||||
For Windows 10 Pro 64bit | ||||||||||||
For Windows 10 IOT 64bit | ||||||||||||
Product Certificate | ||||||||||||
Type | Details | Descriptions | Optional | |||||||||
Certificate System | IP65 | IP65 Report：Water Resistance：IP-X5，Dust Resistance：P-6X Report ID no.：SET2015-07677 a.Inner Nozzle Diameter：6.3mm； b. Water Speed：12.5±0.625L/min； c. Water Pressure：Adjust according to water volumn； d.Central part of water volumn ：A round with a diameter of about 40mm at the distance from the nozzle 2.5m. e.Spray time in surface of panele: About 1 min/Square meter；f.Test time：at least 3min； g.Distance between nozzle and panel surface：2.5～3m。 After test，there is no water leakage in sample. | NA | |||||||||
CE-NB | YES | NA | ||||||||||
MIL-STD-810G | YES | NA | ||||||||||
CCC | YES | NA | ||||||||||
Battery | UN3803，MSDS,IEC62133,Aviation, Ocean shipping reports | NA | ||||||||||
Reliability | ||||||||||||
Type | Details | Descriptions | Optional | |||||||||
Product Reliability | Drop Height | 1.22cm composite wood floors, in operation status | ||||||||||
Operate Temperature | ‘-20 °C to 60 °C | |||||||||||
Store Temperature | ’-30 °C to 70 °C | |||||||||||
Humidity | Humidity: 95% Non-Condensing | |||||||||||
Product feature： 1.Support For Windows 10； 2.Support USB3.0 type A connector； 3.Support Battery Single Charger Docking; 4.Support GPS navigation; 5.Support 1D/2D barcode scanner； 6.Support Finger Identification； 7.Rugged IP65 protection level； 8.Support 5000mAh pluggable battery, big and small double batteries; 9.Support UART port, RJ45 port and customized port; 10.Support Wrist Strap and back jacket； | ||||||||||||

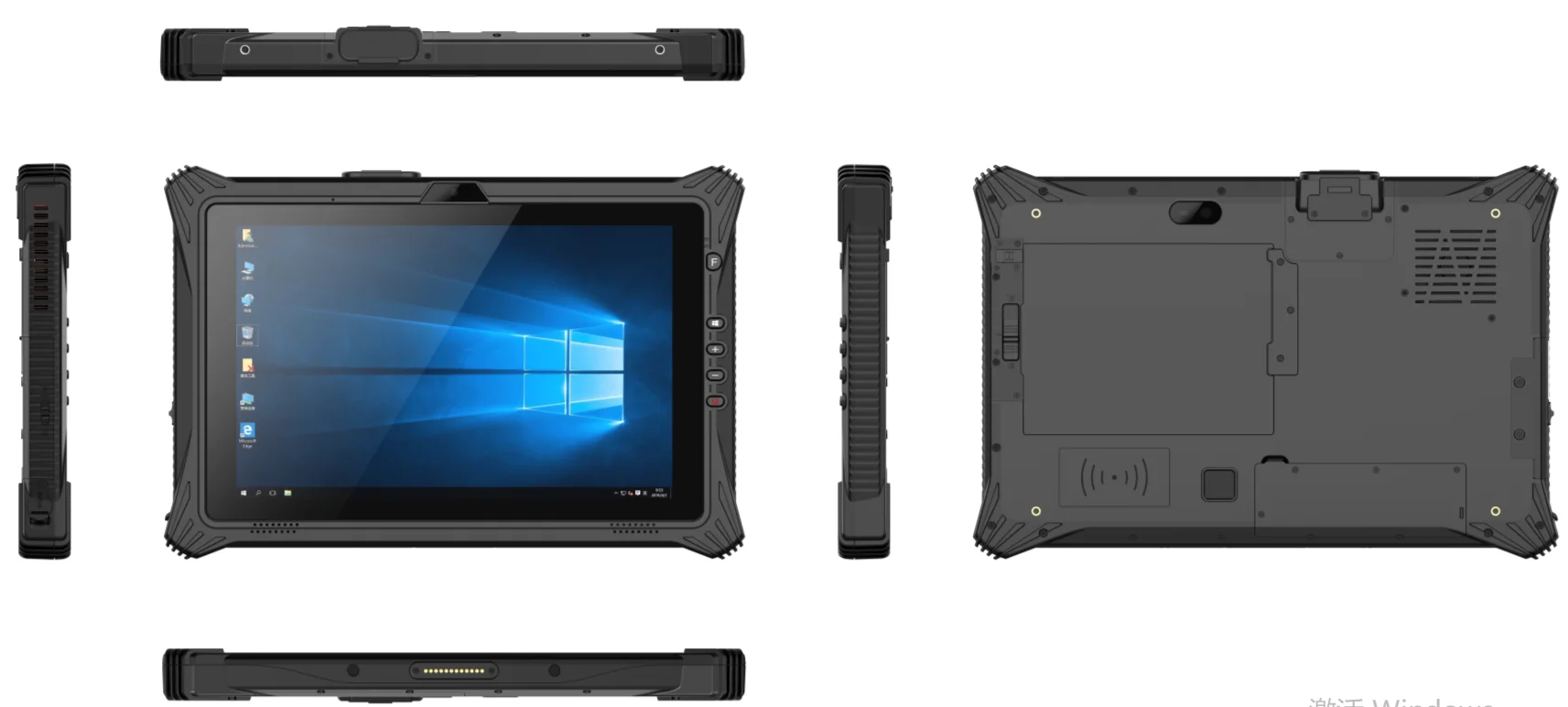

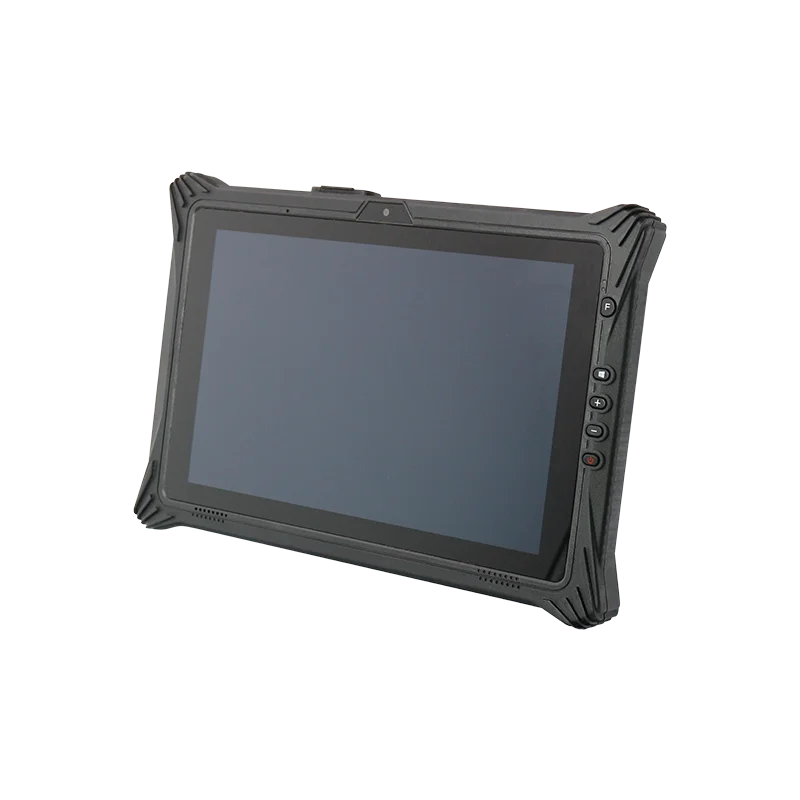

Products Show
Our Company
Factory
Our Factory
Workshop
Our Workshop
Warehouse
Our Warehouse
Team
Our Team
Our Certifications
FAQ
Q: Are you trading company or manufacturer ?
A: We are handheld mobile computer manufacturer
Q: How long is your delivery time?
A: samples order:3-5 working days.
Bulk order:10-20 working days.
Q: Do you provide samples ?
A: Yes, the sample order is available before bulk order.
Q: What is your terms of payment ?
A: Samples order:100% TT.
Bulk order:30% pepayment start production,70% balance before shipping.
About US
MobileX put the technology innovation and customer value as the core for many years in order to win the competition in the market home and abroad. we are in charge of solving the technical difficulties and give guides for the hardware designs, background software programs.
With the core value of Customer Supreme, Staff Value, Team Work, Result First, MobileXer is shouldering the mission of on-site Management and Mobile Payment Experts to elevate customers' value by scientific management and good service and finally realize our enterprise prospect "Chinese First Brand of Mobile data collection and Application Solution " Currently,we have more than 125 employees,R&D stuff more than 20.And have long cooperation relationship with our OEM factory which in Shenzhen as well."Innovation" is the label of our staff members. We have a professional and experienced technical development group. The members of this group have been improving product quality and trying to develop new products with the latest technology. Definitely we can provide powerful and timely support for technical issues and further development. Meanwhile, we design and make our products according to customers' specifications or requests. ODM&OEM orders are welcome!
"Quality" is the final quest of our members. All our products must be 100% tested to ensure their functionality, reliability, security and durability before shipment. During the past few years, our No.1 priorities have always been customer service and customer satisfaction. We have done a lot to raise quality levels. We are striving to establish a sound quality management and guarantee system.
We are increasingly expanding our international market share based on quality products, excellent service, reasonable price and timely delivery. Selling well throughout the domestic market, our products are also warmly welcomed by clients in Japan, India, South Africa, Brazil, the UK, America, Mexico, Peru and so on. We are looking forward to cooperating with more clients worldwide for common development and mutual benefits.
Service after sales
Thank you for the interest about our products,we will handle the service after sale as following:
1).We offer 1 year warranty,any terminals with quality issue(Exclude human factors) can get
repaired or replacement from us during this period.
2).If clients handle the service locally,we will free offer 1% complete units as spare terminals,2%
LCD,Housing and keyboard.1% other spares.All the quality issue terminals should take picture
and be reported,we will supply it if our spare parts is not enough.
3).For the product maintenance,we will send the video for your reference.If necessary,we will
send technical staff to train client's repairer for free.
4).Wewill provide technical assistance for the whole life.
In case clients would like to extend 1 year warranty period in their market,we would suggest
clients buy 2.5% terminals for replacement.And 2% LCD,Housing and keyboard.1% other spares.
