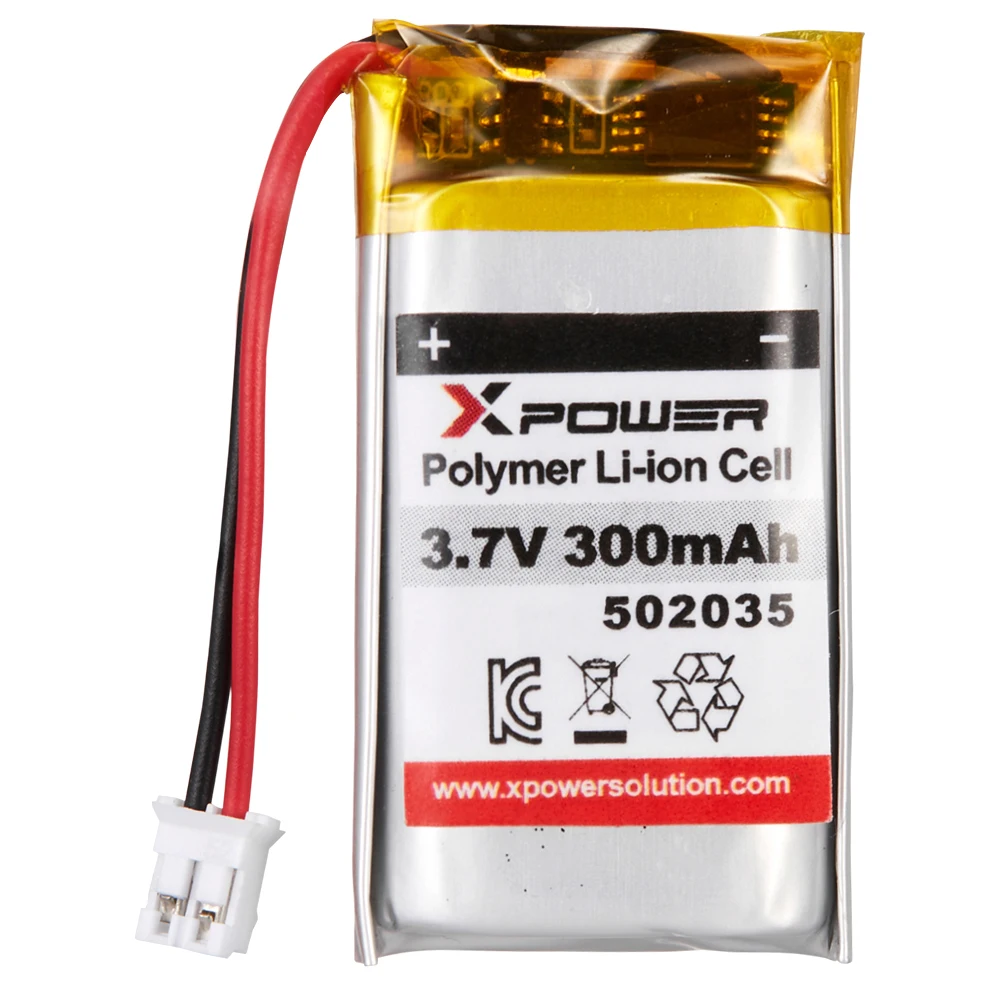

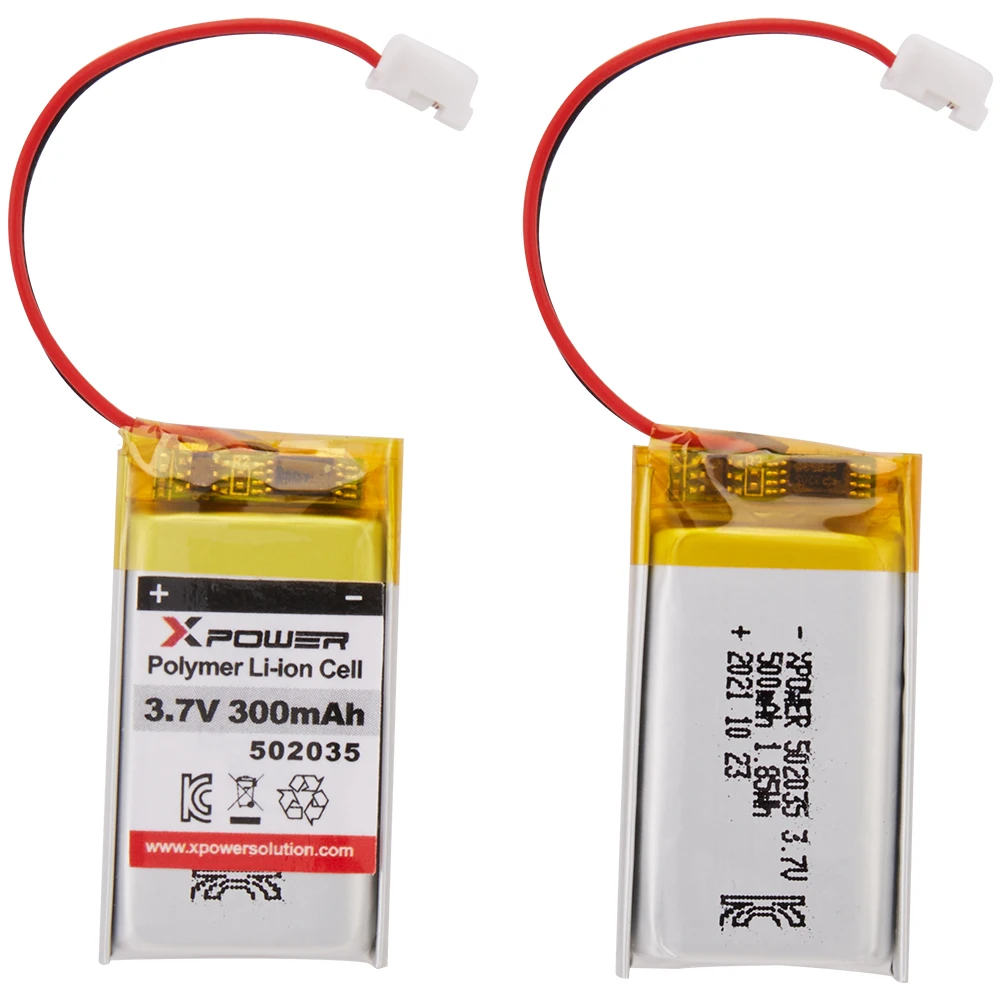

Lithium Polymer Battery Pack 502035 300mAh 3.7V with Protection Circuit Module (PCM)
This data sheet describes the requirements and properties of lithium polymer rechargeable
battery pack manufactured by XPOWER.

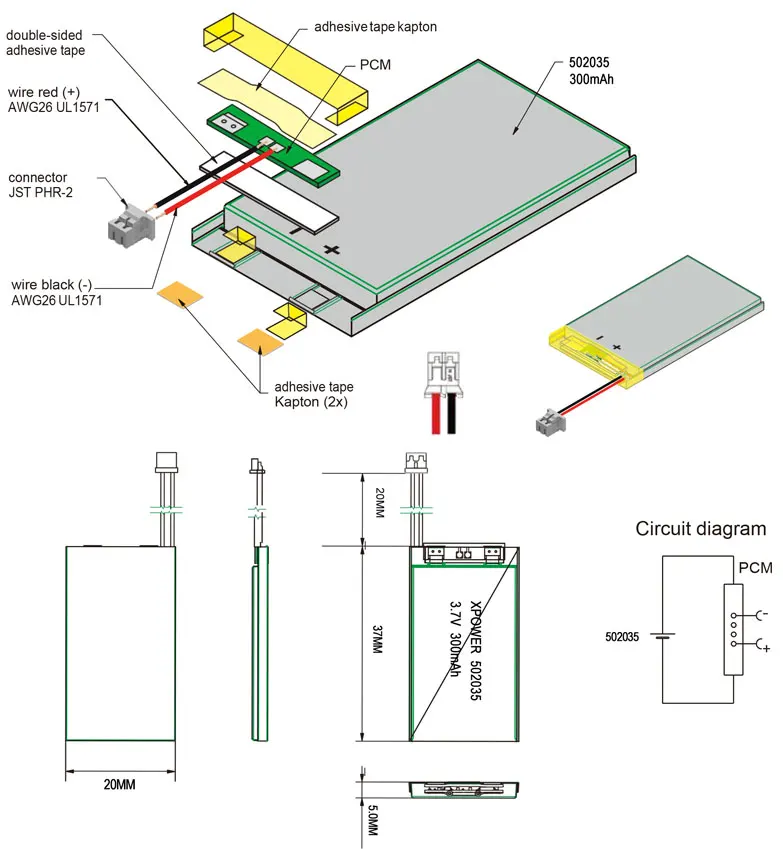

Mechanical Characteristics
Cell : 502035
PCM :Yes
NTC : No
Configuration : 1S1P
Weight : appr 12g

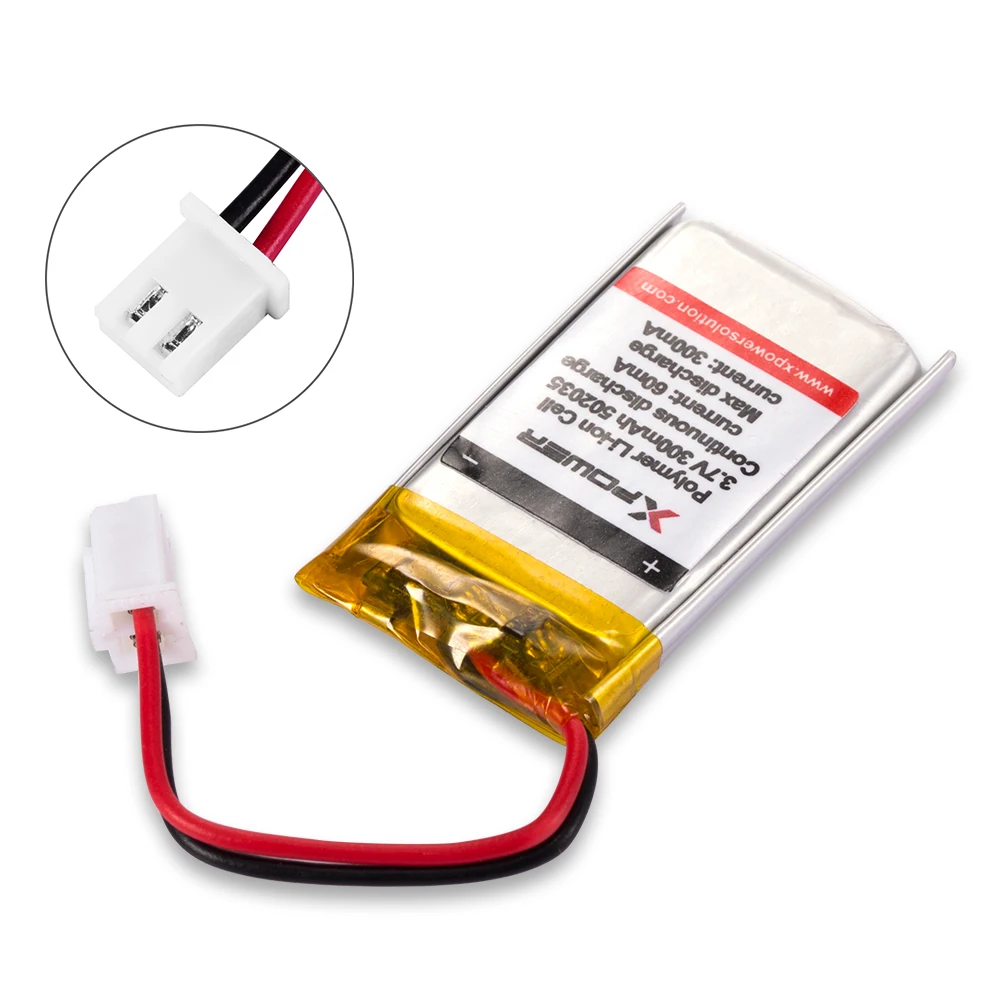

Connector :JST PHR-2

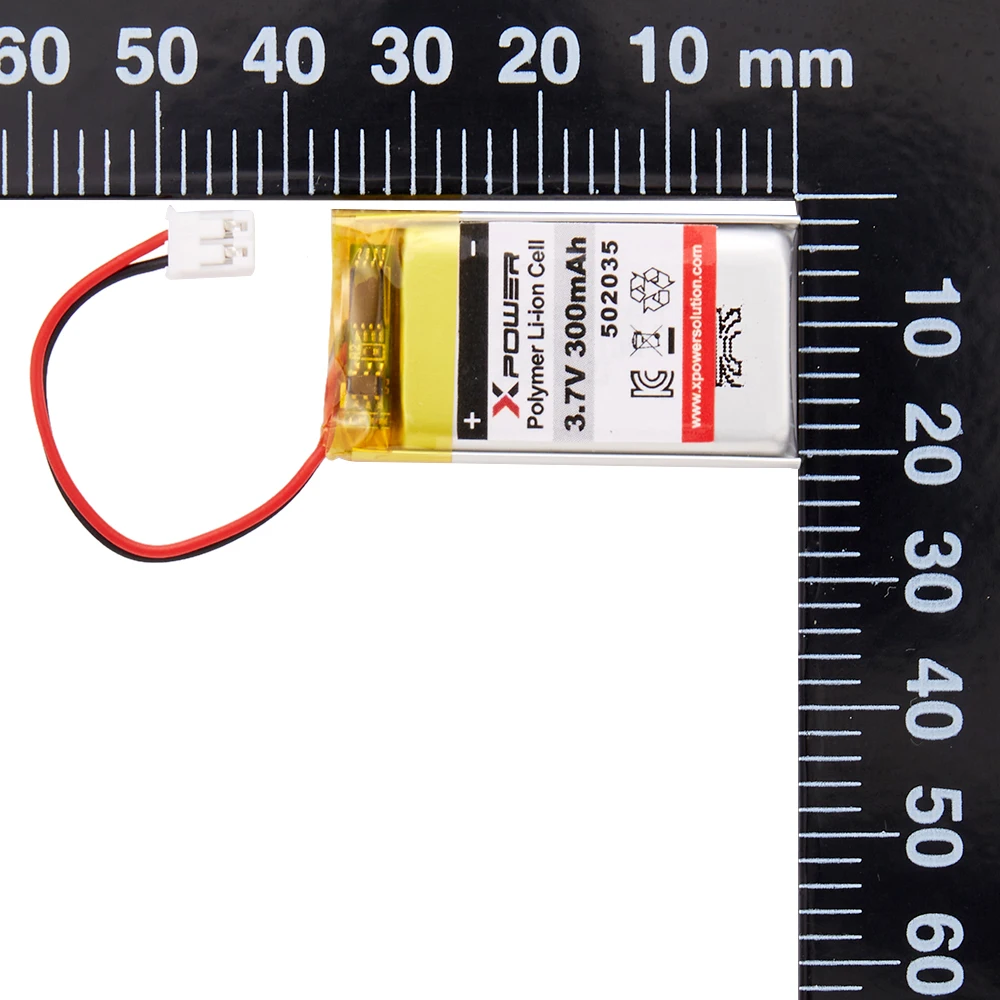

Dimension:Thickness 5.0 * Width 20 * Length 37mm (Including PCB)
Electrical Specification
Rated Capacity: 300mAh
Nominal Voltage :3.7V
Watt Hour : 1.11Wh
Max Operating Voltage Range : 2.75V~4.2V
Max Charge Voltage: 4.2V±50mV
Max Charge Current : 150mA (0.5C)
Standard Charge Current: 60mA (0.2C)
Max Continuous Discharge Current: 300mA (1C)
Standard Discharge Current: 60mA(0.2C)
Discharge Cut-off Voltage: 2.75V
Initial Cell Impedance: ≤ 120mΩ
Expected Cycle Life (0.5C|0.5C, 23±5℃):300 cycles ≥ 80% Capacity
Cell Protection
Over Charge Detection: 4.280±50mV (0.08~0.2sec delay, release 4.08±50mV)
Over Discharge Detection: 2.4V±100mV (0.04~0.12sec delay, release 3V±100mV)
Over Current Detection: 3.2A to 4.5A
Short Circuit Protection: Available (Delay time: 500µs)
Working and Storage Condition
Charge Temperature Range:10 to +45℃
Discharge Temperature Range: -20 to +60℃
Storage Temperature Range: <1 month: -20℃~+45℃, >3 months: -10℃~+45℃
Recommend Storage Temperature: 15℃~35℃
Humidity: 85%~90% RH Max.

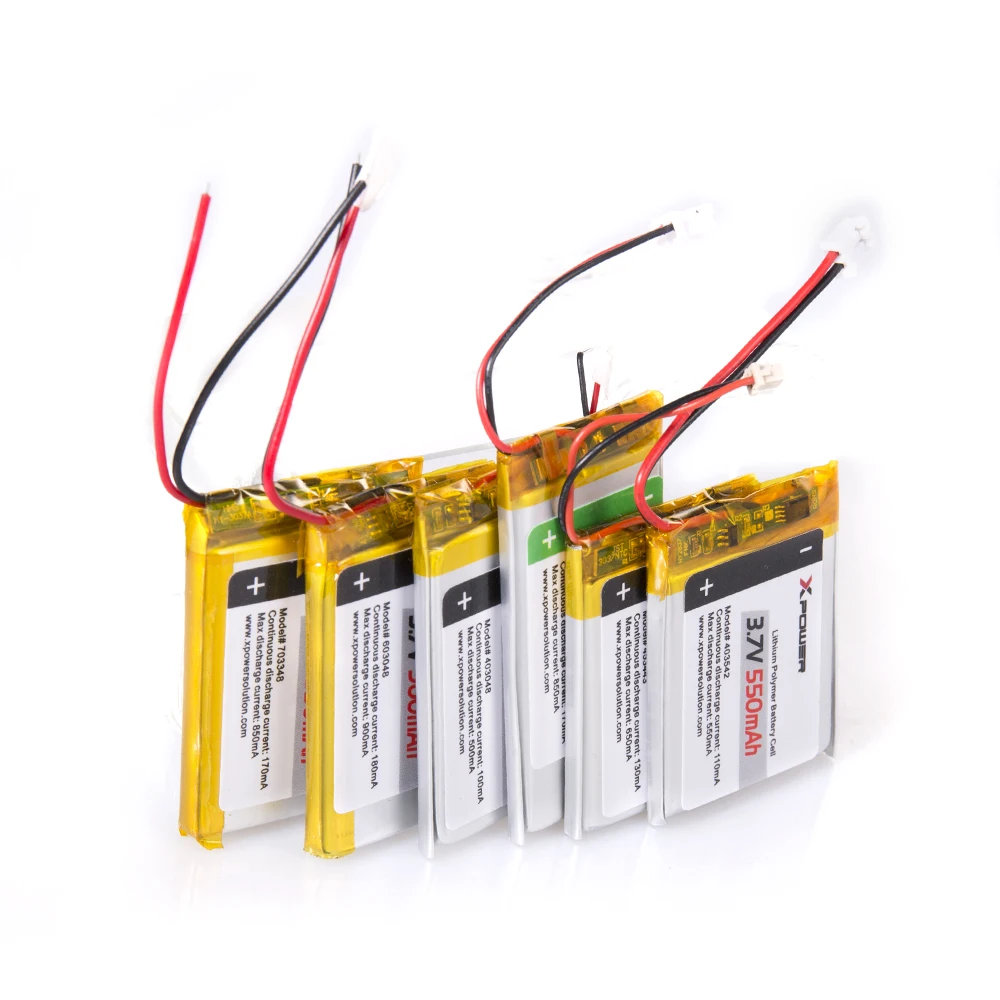

Model | Voltage | Capacity | Thickness (mm) | Width (mm) | Length (mm) | KC | Other Certificate |
502030 | 3.7V | 250mAh | 5.0 | 20 | 32 | KC | UL/CE |
601535 | 3.7V | 250mAh | 6.0 | 15 | 37 | KC | / |
601730 | 3.7V | 250mAh | 6.0 | 17 | 32 | / | ROHS |
501447 | 3.7V | 280mAh | 5.0 | 14 | 49 | KC | / |
402535 | 3.7V | 300mAh | 4.0 | 25 | 37 | / | / |
502035 | 3.7V | 300mAh | 5.0 | 20 | 37 | KC | / |
602030 | 3.7V | 300mAh | 6.0 | 20 | 32 | KC | UL1642/CE |
701435 | 3.7V | 300mAh | 7.0 | 14 | 37 | / | / |
702025 | 3.7V | 300mAh | 7.0 | 20 | 27 | KC | UL/CE |
303040 | 3.7V | 320mAh | 3.0 | 30 | 42 | KC | / |
462035 | 3.7V | 320mAh | 4.6 | 20 | 37 | / | UL |
402934 | 3.7V | 350mAh | 4.0 | 29 | 36 | KC | / |
502530 | 3.7V | 350mAh | 5.0 | 25 | 32 | KC | / |
701535 | 3.7V | 350mAh | 7.0 | 15 | 35 | KC | UL/CE/ROHS |
