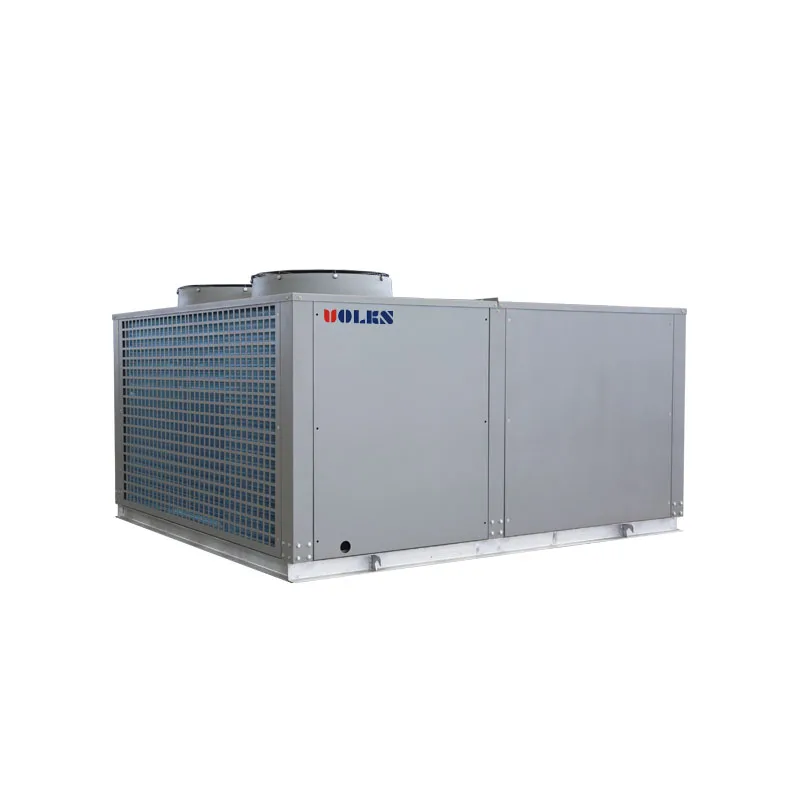

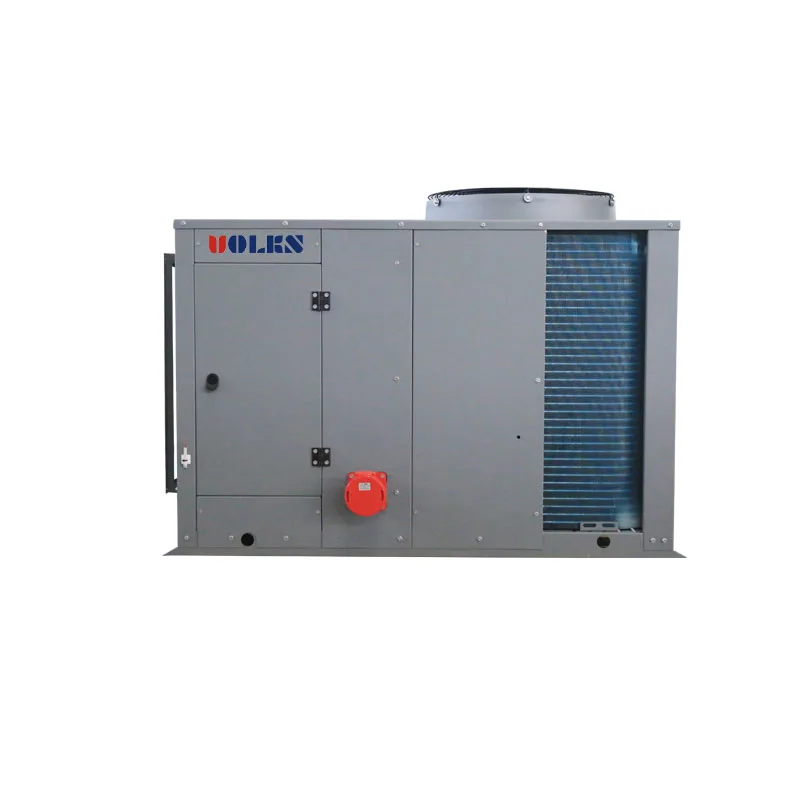

8 тонн/RT установка кондиционирования воздуха на крыше DX A/C с высоким ESP
- Category: Air Conditioners >>>
- Supplier: Shandong Volks Air Conditioner Group Co. Ltd.
Share on (1600413682222):
Product Overview
Description
Product Description
Rooftop packaged air conditioning unit
Applicable area: 50-2000m2
Applicable places: hotels, restaurants, theaters, stadiums, shopping malls, schools, offices, residences, etc.
Product features: Full-Enclosed scroll compressor built in with high reliability.
Equipped with automatic control, LED status display, simple operation, multiply functions.
It can be installed directly on the roof or courtyard which saves installation space. (No need special or extra certain standing spot)There are multiple ways of air return, side return &supply, bottom return&supply, upper return &supply, straight-through return &supply , etc. , Which ensure convenient,simple, easier maintenance .
Applicable places: hotels, restaurants, theaters, stadiums, shopping malls, schools, offices, residences, etc.
Product features: Full-Enclosed scroll compressor built in with high reliability.
Equipped with automatic control, LED status display, simple operation, multiply functions.
It can be installed directly on the roof or courtyard which saves installation space. (No need special or extra certain standing spot)There are multiple ways of air return, side return &supply, bottom return&supply, upper return &supply, straight-through return &supply , etc. , Which ensure convenient,simple, easier maintenance .
Model | WRF9Z | WRF11Z | WRF13Z | WRF18Z | WRF20Z | WRF23Z | |||||||||||
WF9Z | WF11Z | WF13Z | WF18Z | WF20Z | WF23Z | ||||||||||||
Cooling capacity | kW | 8.6 | 10.6 | 12.6 | 17.6 | 19.6 | 23.3 | ||||||||||
Heating capacity | kW | 9.3 | 11.3 | 13.4 | 18.8 | 21.3 | 24.9 | ||||||||||
Power | 380V / 3Ph / 50Hz | ||||||||||||||||
Refrigerating system | 1 | ||||||||||||||||
Refrigerant | R22/R410A/R407C | ||||||||||||||||
Compressor | Quantity | 1 | |||||||||||||||
Condensor | Fan power | 380-420V / 3Ph / 50Hz | |||||||||||||||
Quantity | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||||
Air volume | m3 /h | 3960 | 3780 | 5500 | 7200 | 8640 | 8640 | ||||||||||
evaporator | Centrifugal fan power | 220V / 1Ph / 50Hz | |||||||||||||||
Driving form | direct drive | ||||||||||||||||
Residual pressure outside the machine（Pa） | 160 | 150 | 180 | 180 | 170 | 150 | |||||||||||
Refrigerant charge（kg） | 2.3 | 3.1 | 3.1 | 5.3 | 6 | 6.5 | |||||||||||
Dimensions | length | mm | 1280 | 1280 | 1280 | 1660 | 1780 | 1780 | |||||||||
width | mm | 1040 | 1040 | 1040 | 1040 | 1390 | 1390 | ||||||||||
length | mm | 875 | 875 | 875 | 1045 | 1045 | 1045 | ||||||||||
Weight | kg | 240 | 248 | 255 | 360 | 400 | 420 | ||||||||||

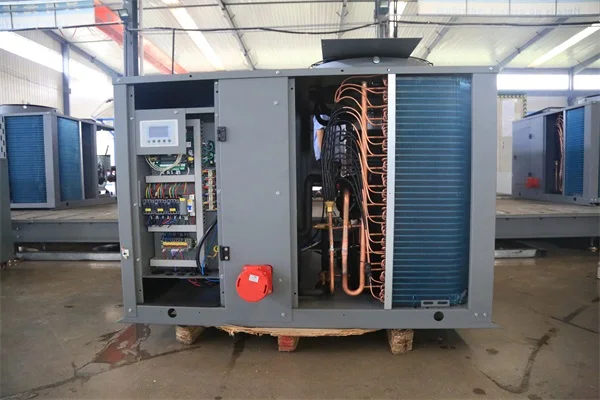

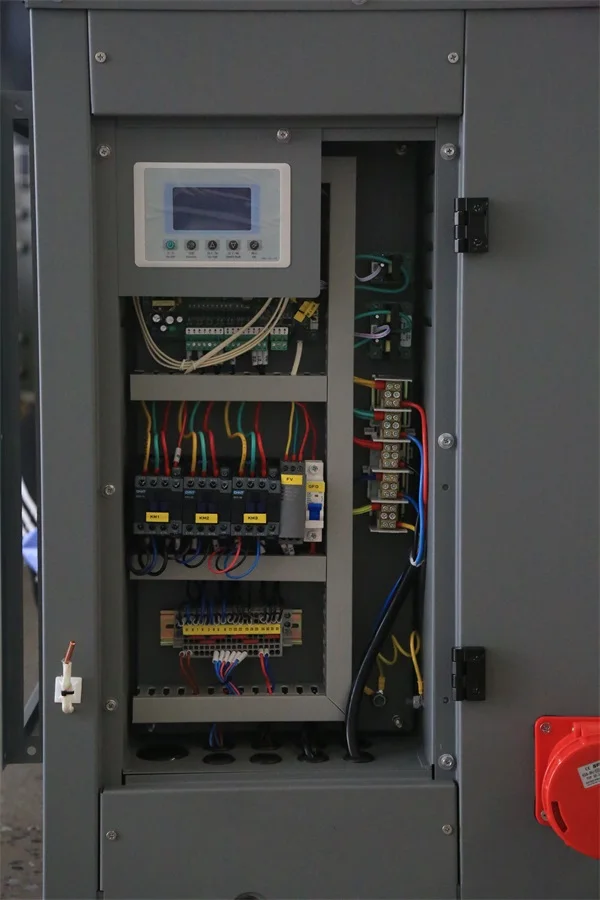

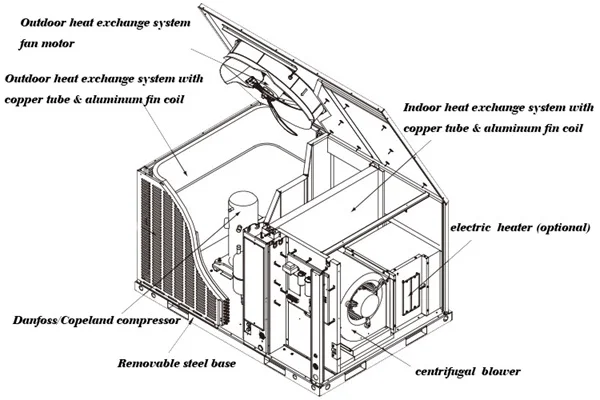

Details Images
Company Profile
Shandong Volks Air Conditioning Group co.,ltd., established in 2011, as a professional central air conditioning manufacturer in China, we are engaged in the research, development, sale and after sale service of modular chiller and heat pump, water/air cooled screw chiller, water source heat pump, packaged rooftop unit, duct split unit, fan coil unit, air handling unit, etc. All kinds of products have passed the inspection of the National Air Conditioning Testing Center; We also established our owner major labs: national standard central air conditioning laboratory, and heat pump dryer laboratory. Our factory is located in Dezhou city, Shandong province, it is more near Beijing with about 75 minutes by high speed train. We have more than 100,000m3 workshop, and total more than 260 employees till now. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. In addition, we have obtained CRAA, ISO9001, ISO14001 and ISO45001 system, AAA credit rating certificates. Selling well in all cities and provinces around China, and also exported to oversea market with many countries. We also welcome OEM and ODM orders.
Certifications
Packing & Delivery
FAQ
Q1. What is the advantage about your company?
A1. Our company has professional team and professional production line.
Q2. Why should I choose your products?
A2. Our products are high quality and low price.
Q3. Any other good service your company can provide?
A3. Yes,we can provide good after-sale and fast delivery
A1. Our company has professional team and professional production line.
Q2. Why should I choose your products?
A2. Our products are high quality and low price.
Q3. Any other good service your company can provide?
A3. Yes,we can provide good after-sale and fast delivery
