New Global Shutter 1D 2D QR Bar Code Scanner Nearest Reading Distance Auto Sensing Barcode Scanner Module With TTL RS232 USB
- Category: Scanners >>>
- Supplier: Shenzhen Honor Way Electronic Co. Ltd.
Share on (1600423302866):
Product Overview
Description
Product details
Feature and advantage
1. Global shutter
2. 32-bit high performance CPU,1GHz frequency
3. Decoding min barcode density:4mil
4. Support 1D/2D barcode on paper and screen
5. Extremely high sensitivity, quick scanning
6. Motion tolerance up to 50cm/s
7. Interface RS232 and USB(HID,COM),TTL
8. Decoding at low and high brightness environment
9. Manual, Auto-sensing, Continuous, Host Mode
10. Large window, small size, fast convenient installation
Detailed Parameters
Reading performance | Image Sensor | CMOS |
Exposure | Global shutter | |
Resolution | 300 thousand 640*480pixels 60fps | |

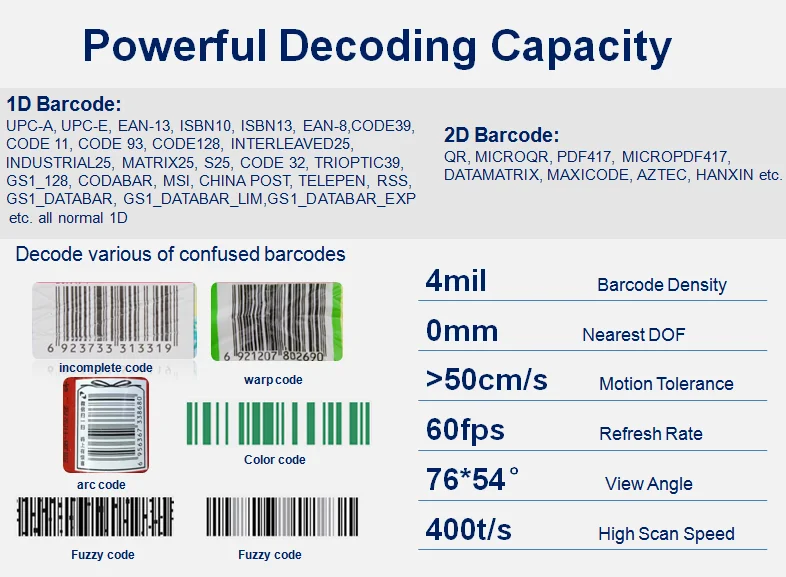

Decoding capacity | Support paper and screen barcodes | |
2D: QR, MICROQR, PDF417, MICROPDF417, DATAMATRIX, MAXICODE, AZTEC, HANXIN etc. | ||
1D: UPC-A, UPC-E, EAN-13, ISBN10, ISBN13, EAN-8,CODE39, CODE 11, CODE 93, CODE128, INTERLEAVED25, INDUSTRIAL25, MATRIX25, S25, CODE 32, TRIOPTIC39, GS1_128, CODABAR, MSI, CHINA POST, TELEPEN, RSS, GS1_DATABAR, GS1_DATABAR_LIM, GS1_DATABAR_EXP etc. all normal 1D | ||
Precision | 4mil | |
Light Source | LED(630nm±10nm) | |
View Angle | 76.7°(H) x53.4°(V) | |
Scan Angle | Rotation360°,tilt±65°,skew±65° | |
Min Contrast | 25% | |
Motion Tolerance | 0.5meter per second | |
IR Sensing | Support | |
Typical DOF | 15-90mm(5mil code39) 15-150mm(10mil code39) 15-110mm(5mil UPCA) 15-120mm(10mil UPCA) 25-150mm(15mil QR) 15-110mm(8mil QR) 12-90mm(5mil PDF417) 11-110mm(8mil Data Matrix) Performance may be impacted by bar code quality and environmental conditions | |

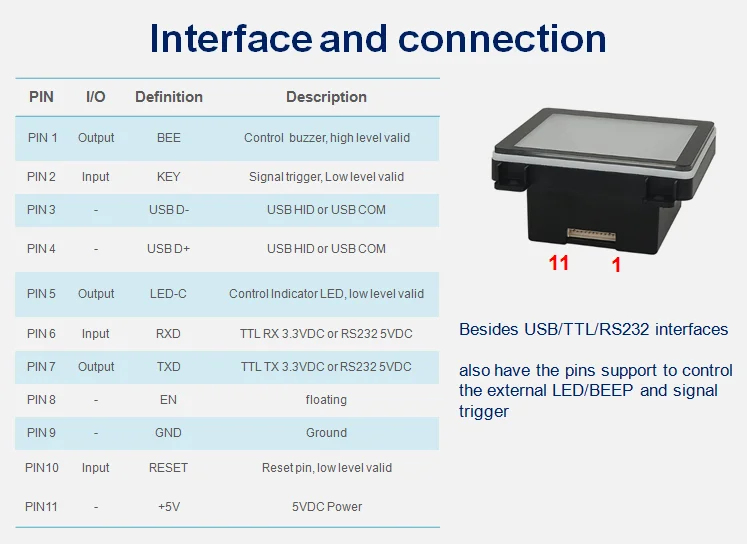

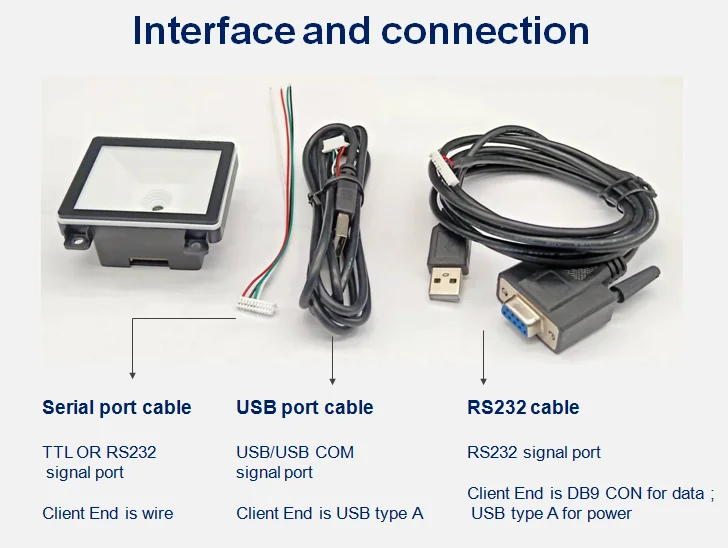

Mechanical and electrical | Interface | RS232(DB9, USB(HID, COM),TTL232 |
Working Voltage | DC 5V | |
Current | 150mA(Max) 90mA(working) 1mA(standby) | |

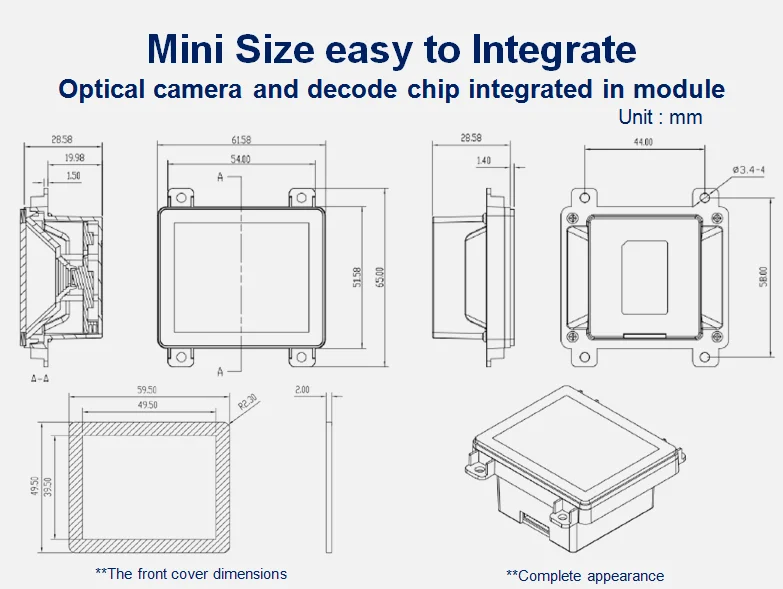

Dimensions | 65*61*29mm | |
Weight | 35g(without cable) | |
Indication | Buzzer & LED | |
Environment Request | Working Tem | -30~65℃ |
Storage Tem | -40~70℃ | |
Humidity | 5%-95%(Non-condensing) | |
Light Immunity | 0~100,000Lux | |
Drop Test | 1.8M(6ft) |
