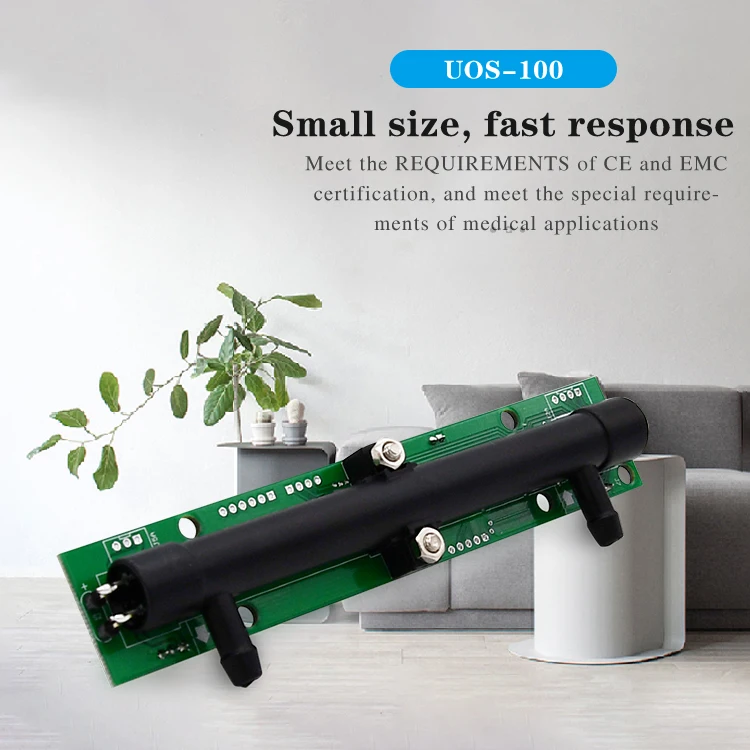

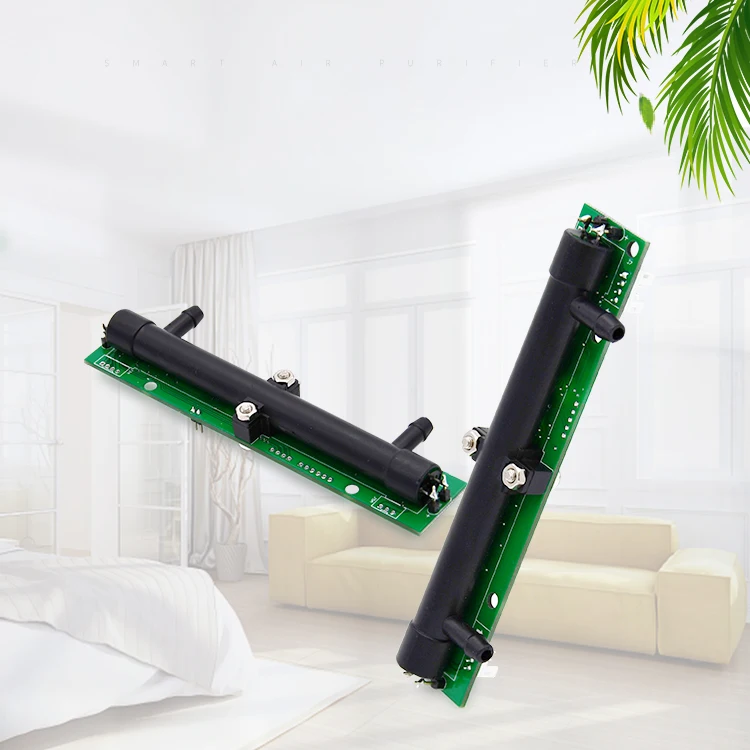

UOS 100 Micro embedded Oxygen concentration, flow test Oxygen generator use Ultrasonic oxygen sensor
- Category: Gas Analyzers >>>
- Supplier: Shenzhen Kainafu Technology Co. Ltd.
Share on (1600424045248):
Product Overview
Description
Product Description

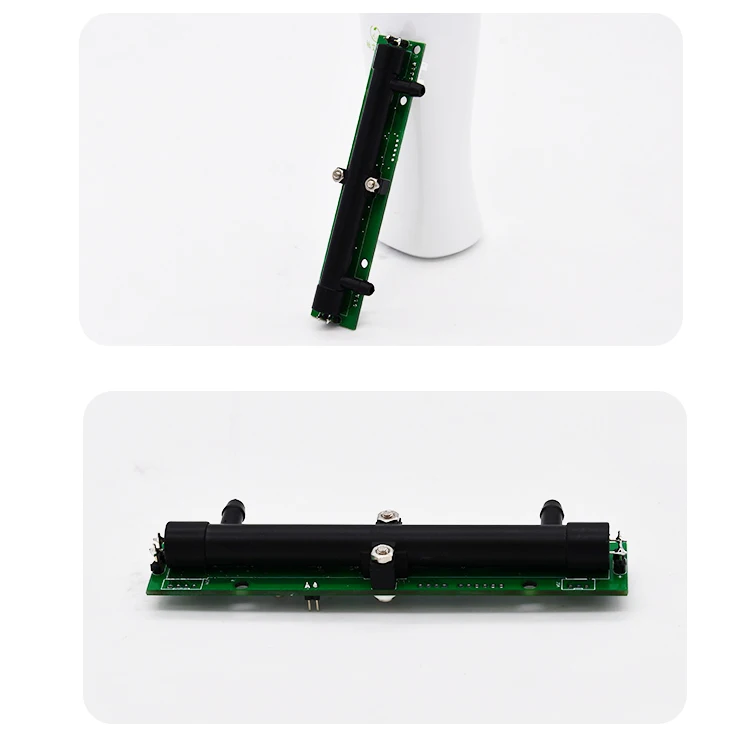

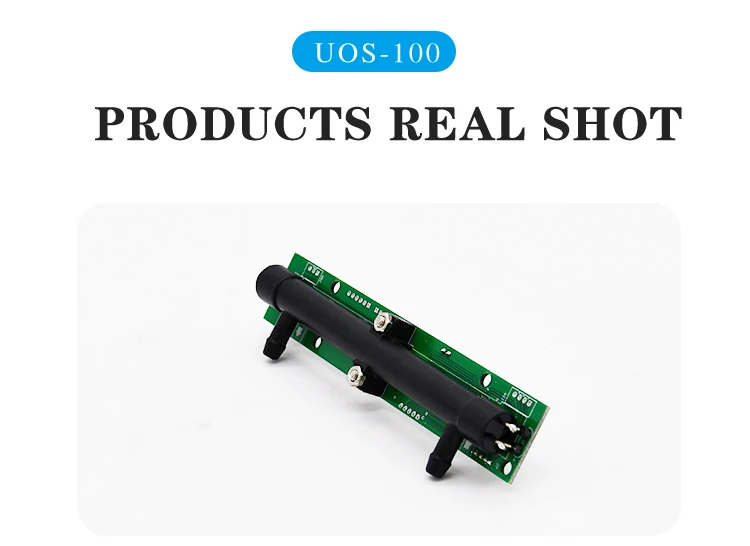

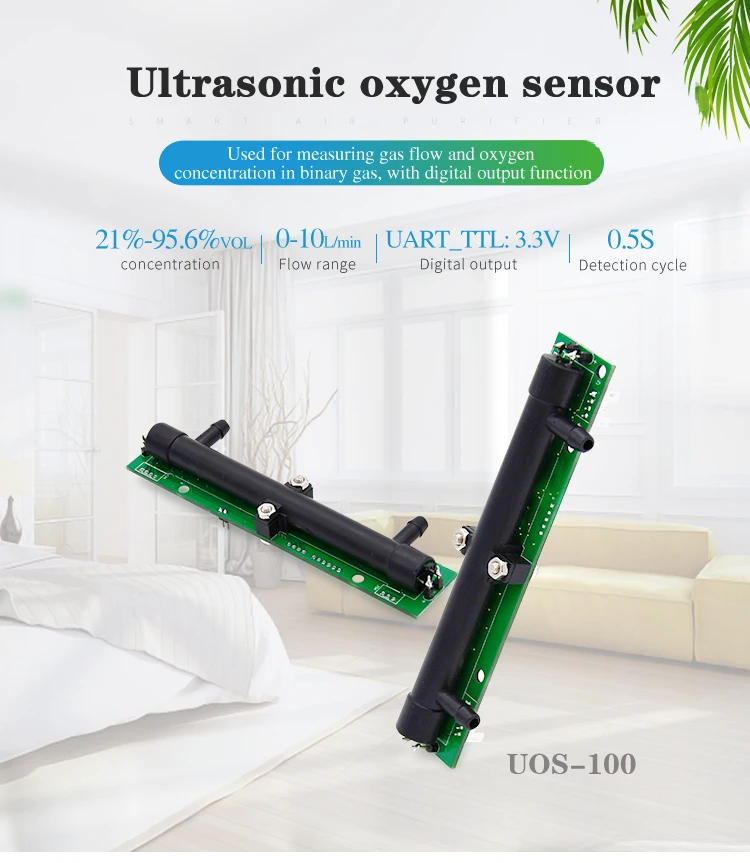

UOS-100 ultrasonic oxygen concentration sensor uses ultrasonic detection technology to measure the gas flow and oxygen concentration in binary gases. With digital output, it is widely used in oxygen equipment such as oxygen detectors, oxygen generators, oxygen chambers, and ventilators.
Features of Ultrasonic Oxygen Concentration Sensor
1. Using ultrasonic measurement principle, it can measure gas concentration and oxygen flow rate at the same time
2. With temperature compensation function, stable measurement and high accuracy
3. Calibration before leaving the factory, no need for user calibration to collect and use directly
4. Long lifespan (more than 5 years), compact size and fast response

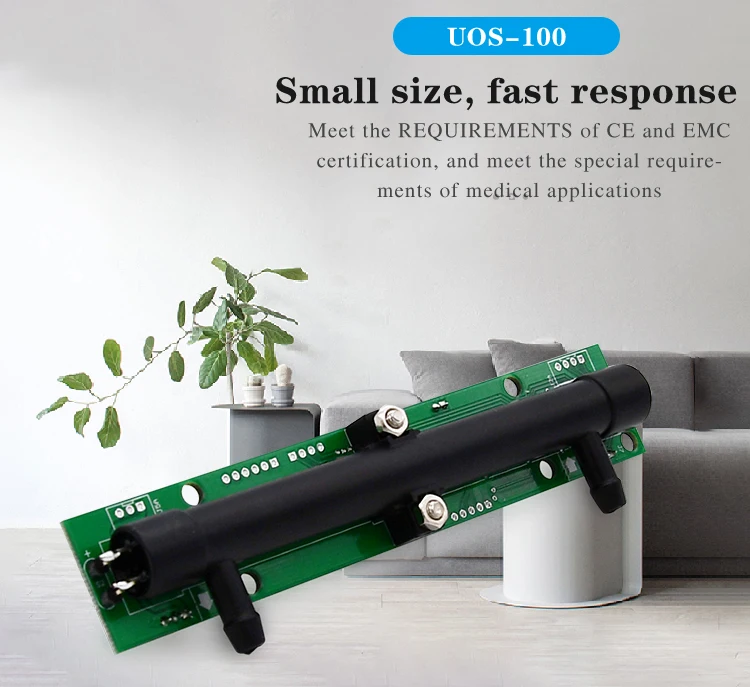

5. Meet the requirements of CE and EMC certification, and meet special requirements such as medical applications
Technical index
| Concentration measurement range | 21%-95.6%VOL | Concentration resolution | 0.1% |
| Concentration detection accuracy | ±1.5%FS @(5 - 55)℃ | Flow detection range | 0-10L/mi |
| Flow resolution | 0.1L/mi | Flow detection accuracy | ±0.2L/min or 5% of reading (whichever is greater) |
| Sample gas requirements | In addition to water (no condensation); Dust filtration (< 1 u m) | Detection cycle | 0.5S |

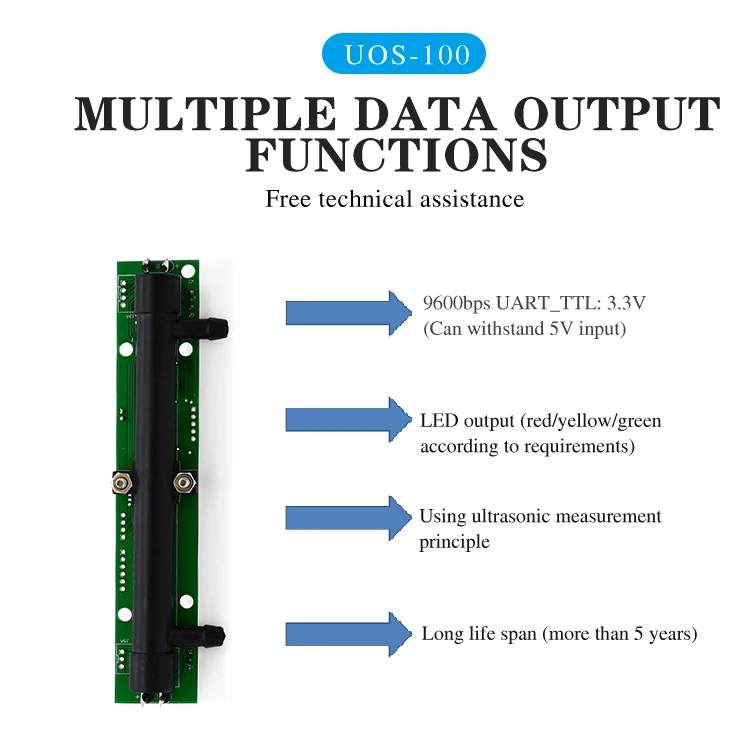

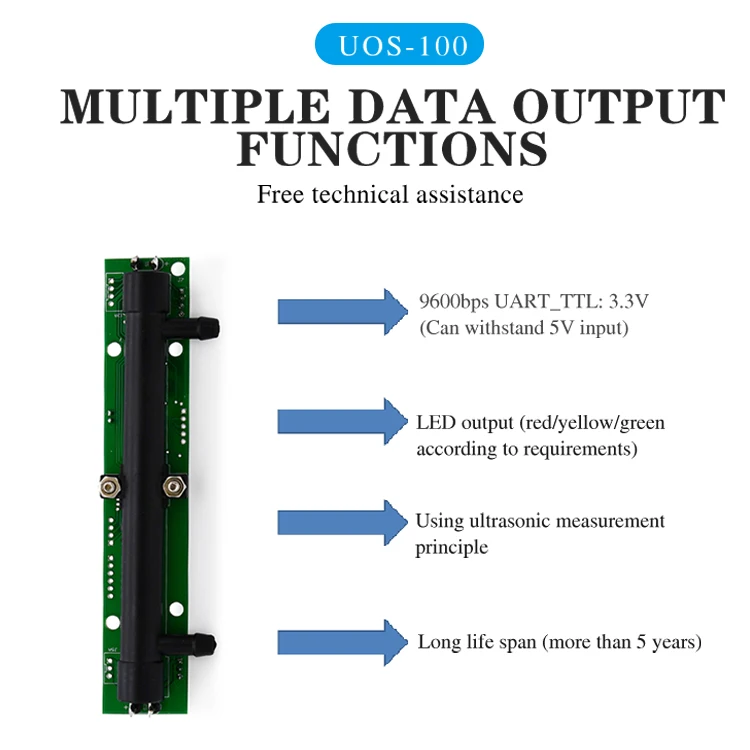

| Warm up time | It can be measured after starting up, and the basic accuracy can be reached by 10S | Data output | 9600bps UART_TTL: 3.3V (Can withstand 5V input) |
| Analog output | 0~2.5V (need to be customized) | LED output | Green: Oxygen concentration >82% Yellow: 82%> oxygen concentration >50% Red: 50%> oxygen concentration |
| Maximum pressure | 150 kPa | The weight of the | About 26g |

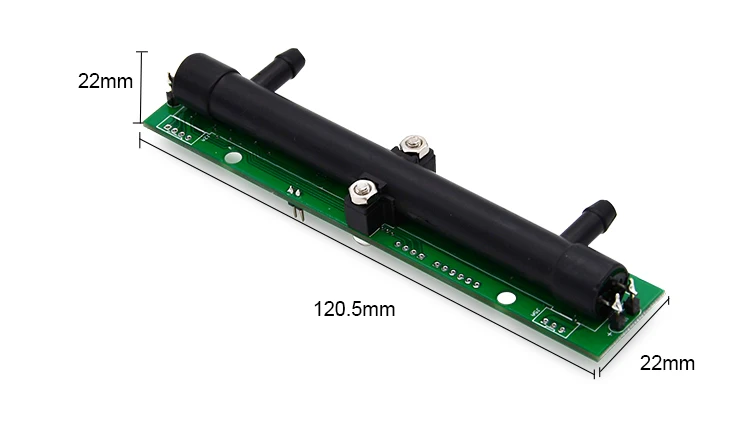

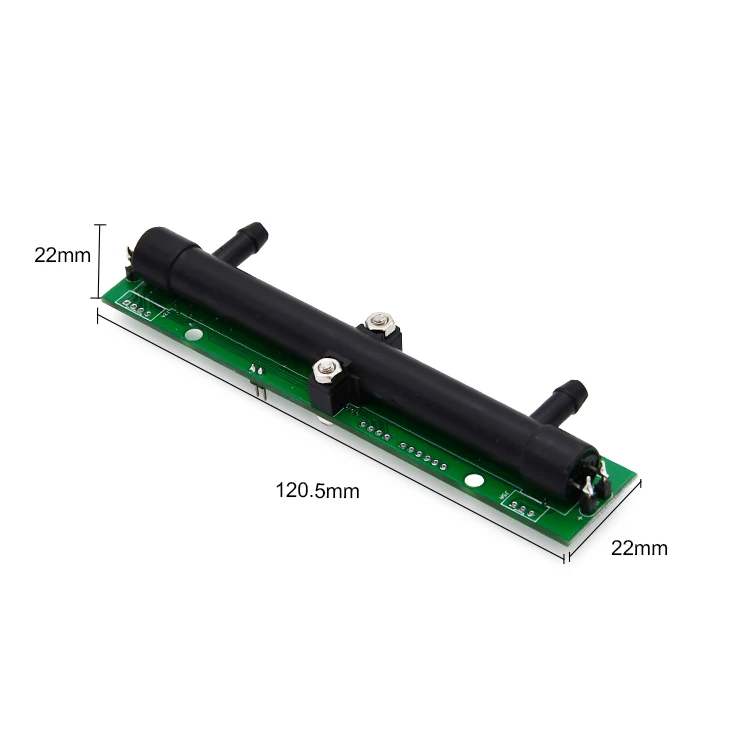

| Power supply | DC 6.5-12V,50mA | size | 120.5mm x 22mm x 22mm ( L x W x H) |
Company Information
Our Services
* Standardized workshop and calibration process
* Professional quality inspection of 4-12 employees
* Fast delivery, free technical assistance
* Warranty 1 year
FAQ
Q What price can I get?
We usually quote within 12 hours after receiving your inquiry. If you are very anxious to get the price, please let us know in your email so that we can contact and communicate in time.
How can I get samples to check the quality of your products?
fter confirming the price, you can request samples to check the quality of our products. As long as you can afford the express freight, we will provide you with samples.
What is your business scope?
We mainly produce and sell air quality and water quality instruments, such as water quality sensors, water quality online monitoring equipment, air anion detectors, radiation detectors, gas detectors and some of our agents. Welcome to consult
What is your delivery time and warranty period?
Within 5-7 working days after payment is confirmed, customized products need to be discussed in detail, and the warranty period is one year
