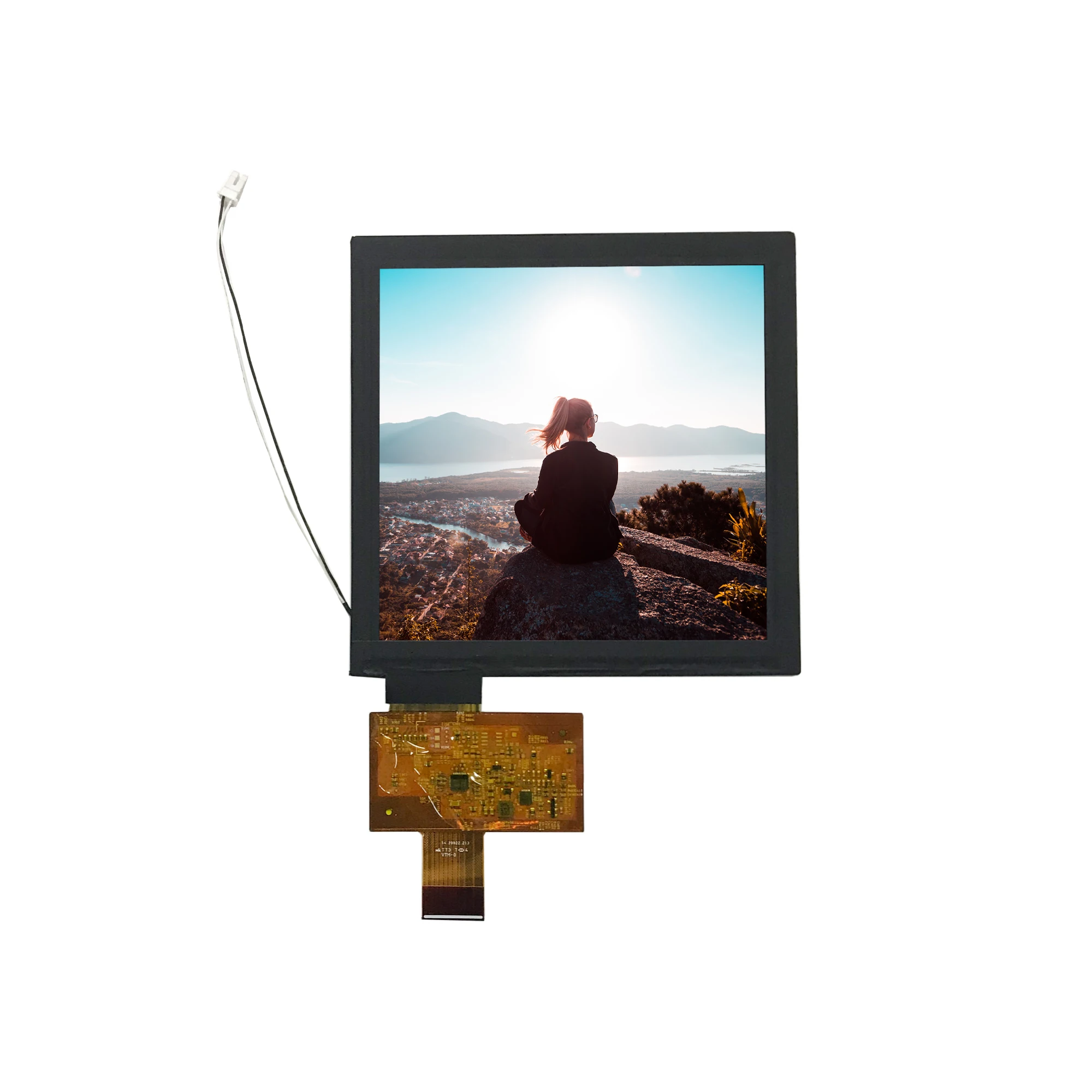

High quality 7 inch 720*720 500nits Square IPS TFT LCD display with driver board
- Category: Electronic Components, Accessories & Telecommunications >>>
- Supplier: Shenzhen Aptus Technology Co. Ltd
Share on (1600424404523):
Product Overview
Description
Product Description

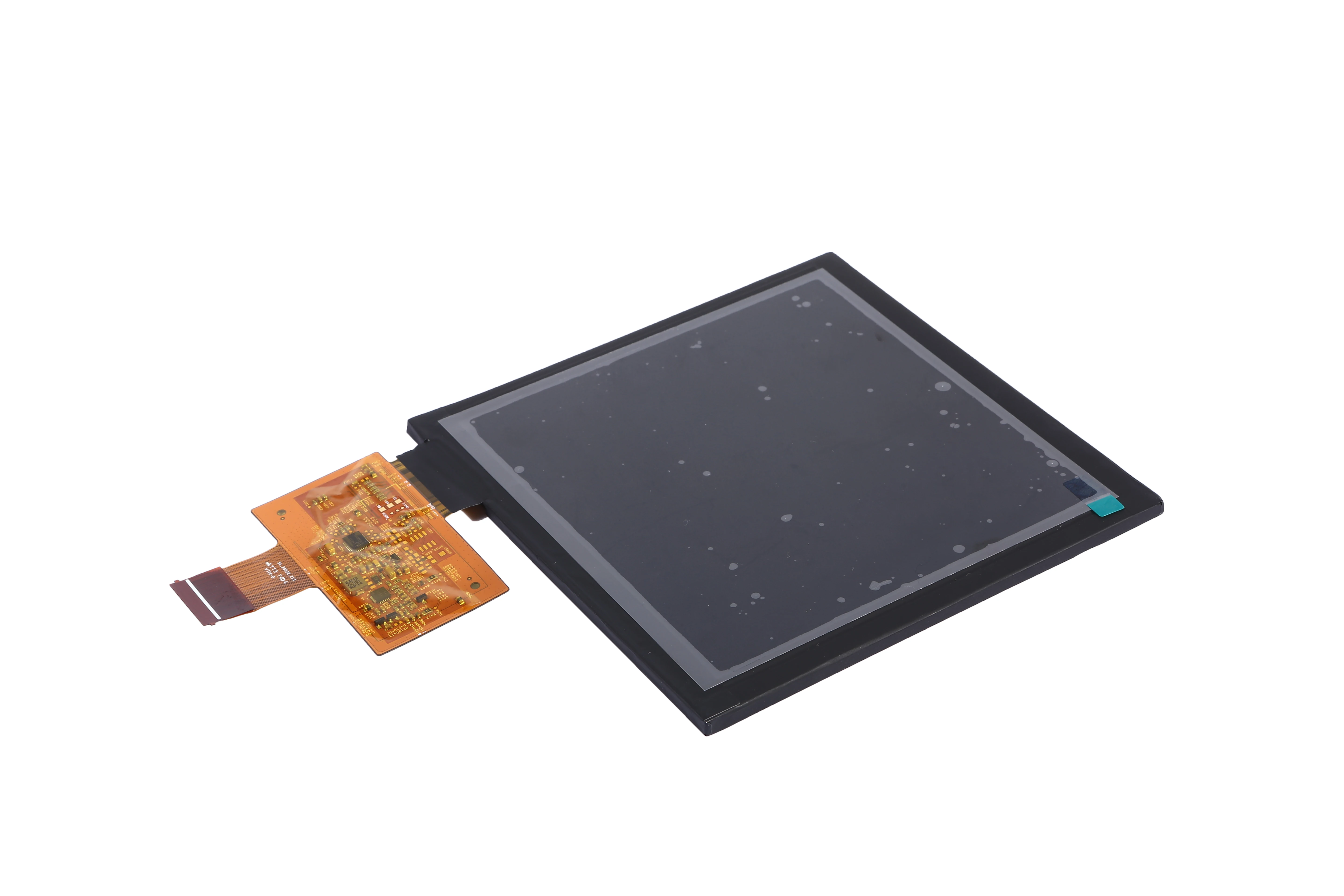

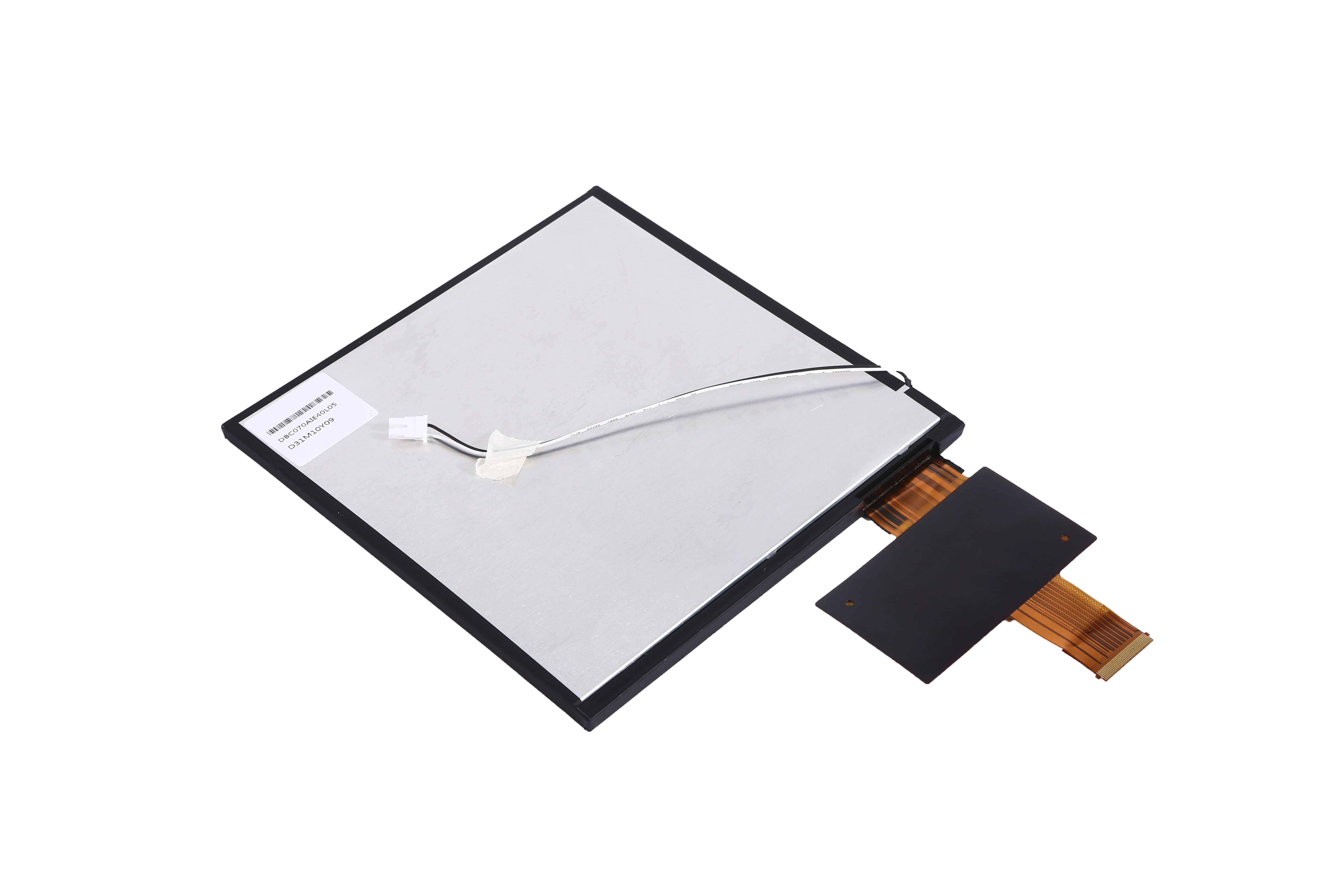

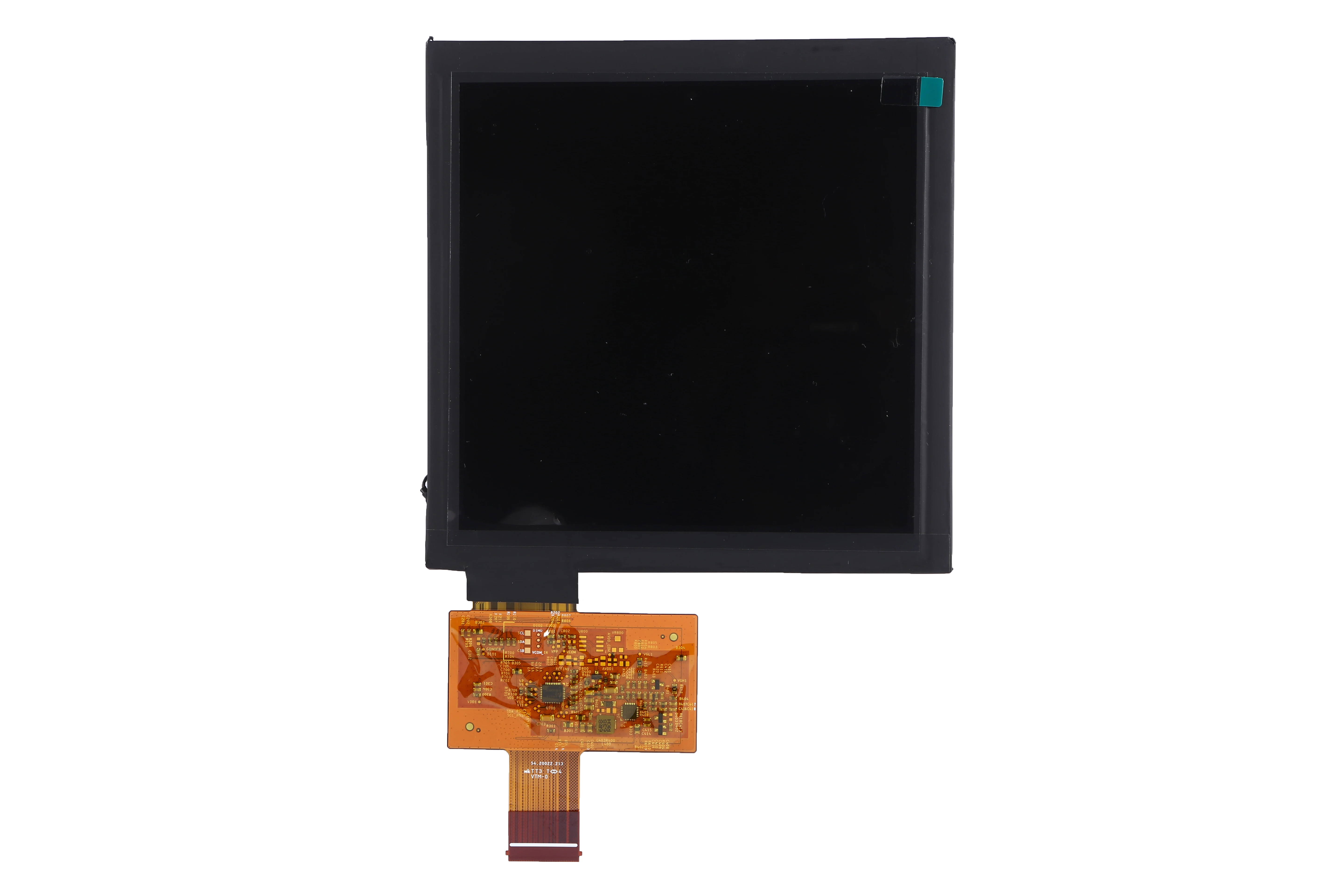

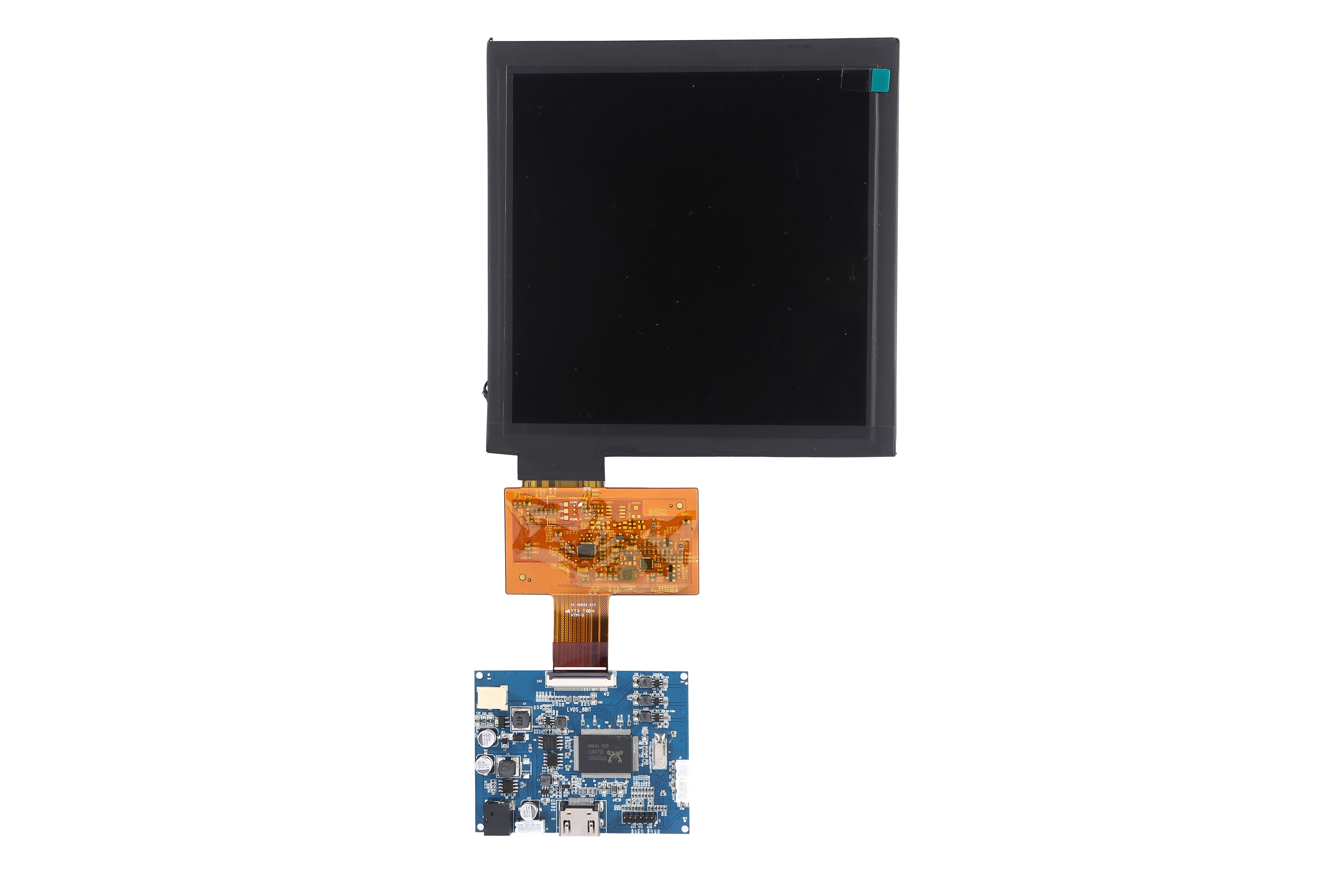

IPS square tft display 7inch 720*720 square lcd display with HDMI driver board
Product parameter
No. | Item | Specification |
1 | LCD size | 7.0 inch(Diagonal) |
2 | Luminance | 500 cd/m² |
3 | Resolution | 720*720 |
4 | Active area | 125.82x125.82mm |
5 | Viewing Angle | 80/80/80/80 (Typ.) |
6 | Support Color | 16.7M |
7 | Operating Temperature | -20 ~ +70 ℃ |
8 | Outline Dimension | 150(H)*150(V) *4.5(D) |
9 | Surface | Antiglare |
10 | Interface Type | 40 pin LVDs |
11 | Model Name | DBC070AIE40L05 |
12 | Touch Screen | Without but available |
13 | Weight | TBD |
General Clauses
1 | MOQ: | 1 pcs |
2 | Lead time: | Samples in stocks within 2 days,3~6 weeks for mass production |
3 | Trade Terms : | EXW or FOB |
4 | Payment: | 100% Paypal or T/T or Western union in advanc for samples |
5 | Warranty: | 12 months |
6 | Package: | Plastic Tray+Anti-Static Foam+Paper Card+Vacuum Bag+Carton |
All our products are standard packed, you can contact us sales for detailed information.
We can ship the products by DHL, UPS, FedEx,EMS Express.
Related Products
Click the product "Model number" in the list to enter the corresponding product interface for details!If you feel that there are too many words and it is inconvenient to find the product you want, you can contact our sales staff.
All products support customization!
Backlight, Touch panel, FPC, Outline dimensions., etc.
Size | Model number | Resolution | Interface | Viewing angle (Typ.) | Brightness |
1.33" | 240xRGBx240 | 8BIT MCU | 80/80/80/80 | 200cd/m2 | |
1.44" | 128xRGBx128 | 4-Line Serial MCU | 70/70/65/60 | 200 cd/m2 | |
1.77" | 128xRGBx160 | 4 wire spi | 45/45/45/20 | 180 cd/m2 | |
2" | 240×RGB×320 | MPU 8 Bits | 80/80/80/80 | 180 cd/m2 | |
2.31" | 320xRGBx240 | 6-RGB | 70/70/70/60 | 180 cd/m2 | |
2.31" | 320xRGBx240 | SPI | 70/70/70/60 | 180 cd/m2 | |
2.4" | 240xRGBx320 | MPU 8 Bits | 70/70/70/60 | 200cd/m2 | |
2.4" | 240xRGBx320 | 4-LINE SPI | 80/80/80/80 | 200cd/m2 | |
2.4" | 240×RGB×320 | SPI | 80/80/80/80 | 220cd/m2 | |
2.8" | 240×RGB×320 | MPU 8 Bits | 70/60/70/70 | 180cd/m2 | |
3" | 360xRGBx640 | MIPI | Free | 230cd/m2 | |
3.4" | 800xRGBx800 | MIPI (3 data lanes) , FPC , 39 pins | 80/80/80/80 | 350cd/m2 | |
3.5" | 320×RGB×480 | MCU 16 Bits | 70/70/60/60 | 250cd/m2 | |
3.6" | 1024xRGBx768 | MIPI, 35 pins | 85/85/85/85 | 900 cd/m2 | |
4" | 480×RGB×800 | MIPI | 80/80/80/80 | 250Cd/m2 | |
4.3" | 800xRGBx480 | 40 pins LVDs | 80/80/80/80 | 800 cd/m2 | |
5" | 1080xRGBx1080 | MIPI (3 data lanes) , FPC | 80/80/80/80 | 400cd/m2 | |
5.1" | 480xRGBx480 | parallel RGB 24-bit | 80/80/80/80 | 500cd/m2 | |
7" | 720xRGBX720 | 40 pin LVDs | 80/80/80/80 | 500 cd/m2 | |
7" | 800xRGBx480 | 40 Pins TTL | 80/80/80/80 | 350 cd/m2 | |
7" | 800xRGBx480 | 40 Pins TTL | 80/80/80/80 | 350 cd/m2 | |
7" | 800xRGBx480 | 50pins TTL | 70/70/50/70 | 1000 cd/m2 | |
7" | 800xRGBx480 | 8bits LVDS | 80/80/80/80 | 800cd/m2 | |
7" | 800xRGBx480 | 60PIN FPC,24bit RGB,TN | 60/70/75/75 | 2500cd/m2 | |
7" | 800xRGBx480 | 50PIN FPC,24bit RGB | 50/70/70/70 | 500cd/m2 | |
7" | 1024xRGBx600 | 50 pin TTL | 70/70/60/70 | 1500cd/m2 | |
7" | 1200xRGBx1920 | MIPI | 80/80/80/80 | 400cd/m2 | |
7" | 1200xRGBx1920 | MIPI | 80/80/80/80 | 600cd/m2 | |
7" | 1280xRGBx800 | 40 pins LVDs FPC | 88/88/88/88 | 400cd/m2 | |
8.8" | 768xRGBx768 | LVDS | 85/85/85/85 | 400~1200 cd/m2 | |
9" | 800xRGBx480 | 50pins TTL | 70/70/50/70 | 1000 cd/m2 | |
10.1" | 1280xRGBx800 | 40 pins LVDS | 85/85/85/85 | 1000~1200 cd/m2 | |
10.1" | 1920xRGBx1080 | I2C (Up to 400kbits/sec) | 85/85/85/85 | 1100cd/m2 | |
10.1" | 1920xMONOx1080 | 40 Pins EDP | 80/80/80/80 | 500~4000 Cd/m2 | |
10.1" | 1920xRGBx1200 | 45Pins LVDS | 85/85/85/85 | 1500cd/m2 | |
10.4" | 1024xRGBx768 | 30Pins LVDS | 88/88/88/88 | 400~1200 cd/m2 | |
11.6" | 1920xRGBx1080 | 30Pins EDP | 85/85/85/85 | 400~1200 cd/m2 | |
15.6" | 1920xRGBx1080 | eDP (2 Lanes),30 pins | 85/85/85/85 | 300 cd/m² |

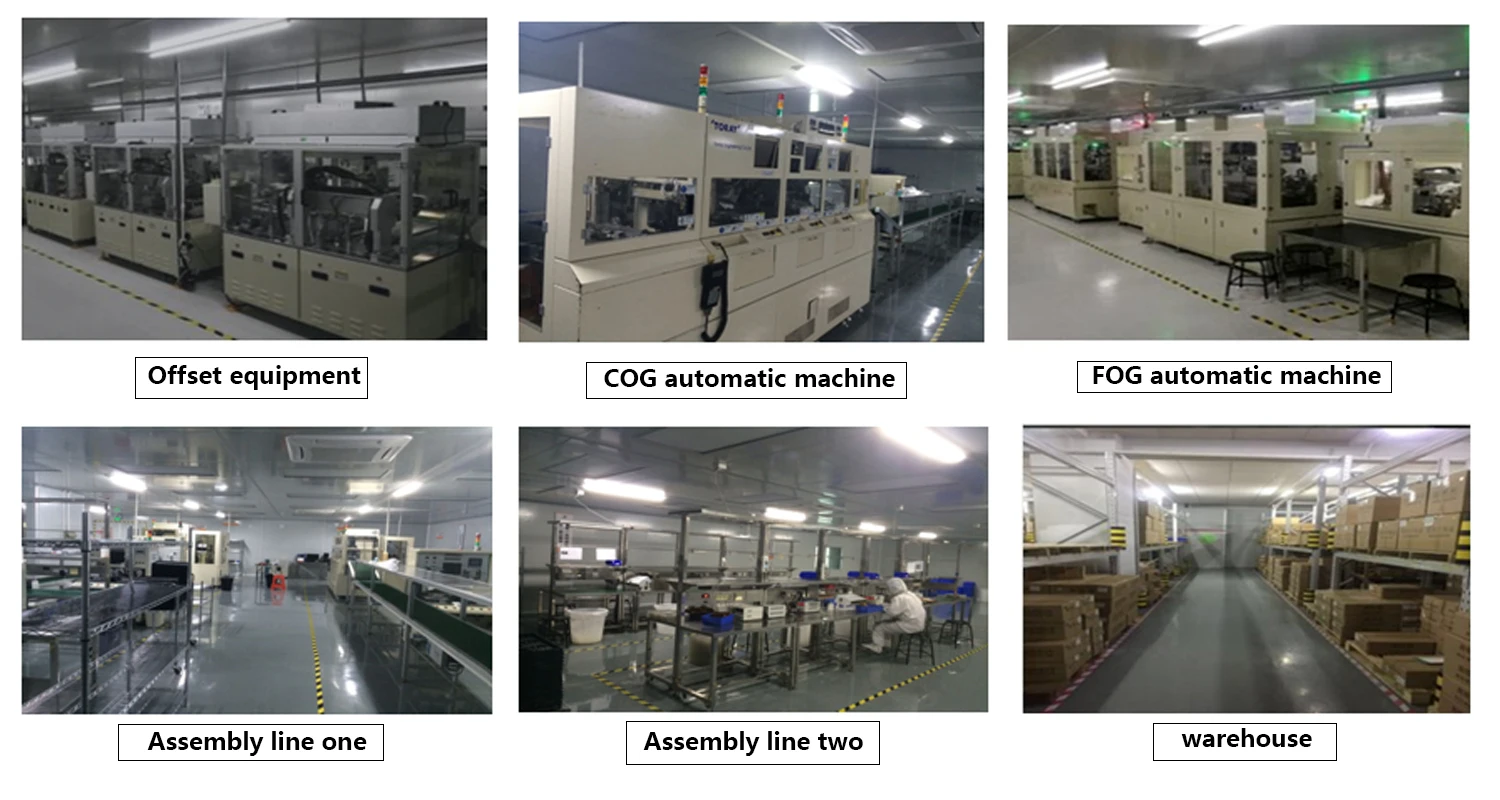

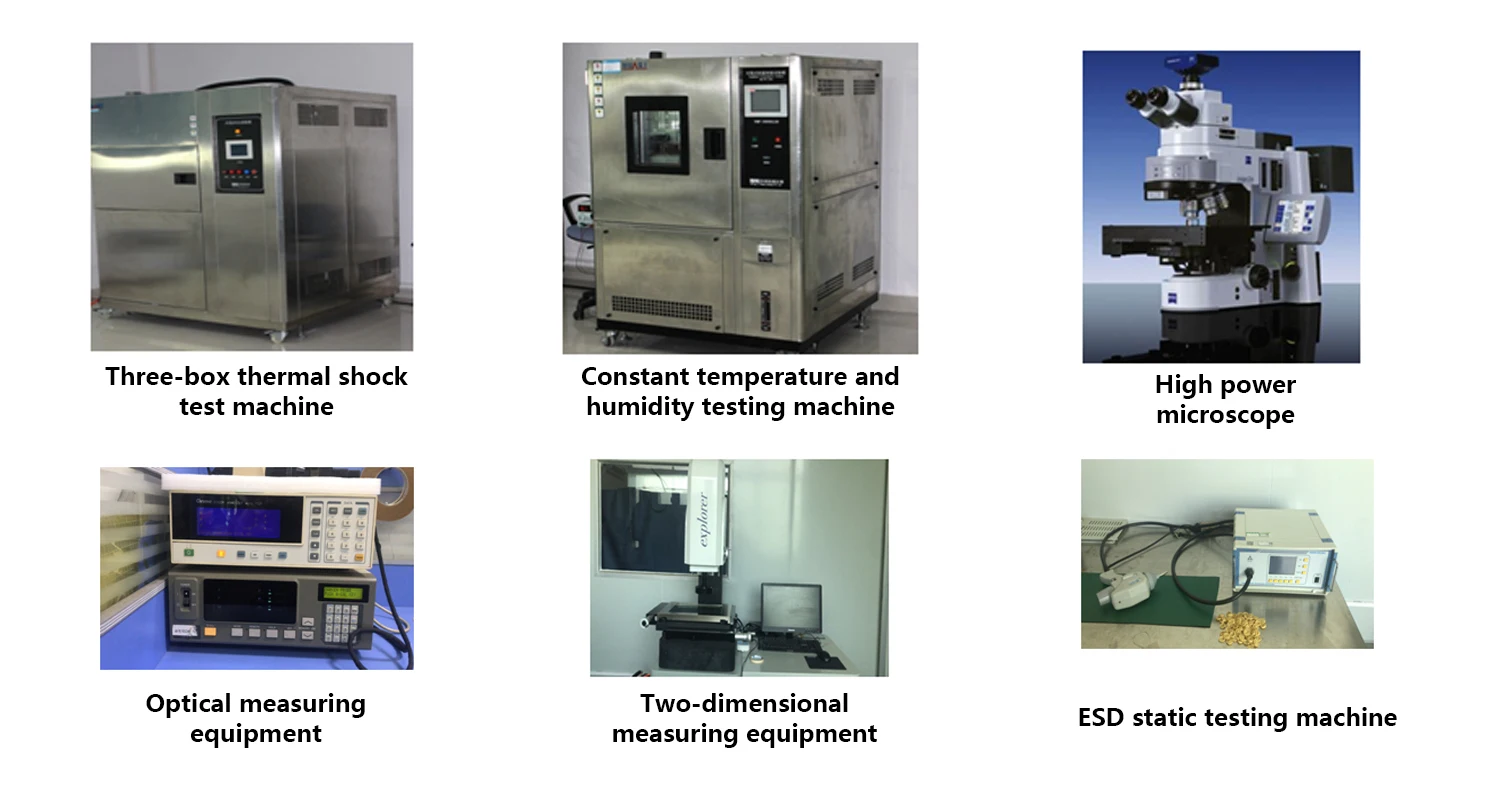

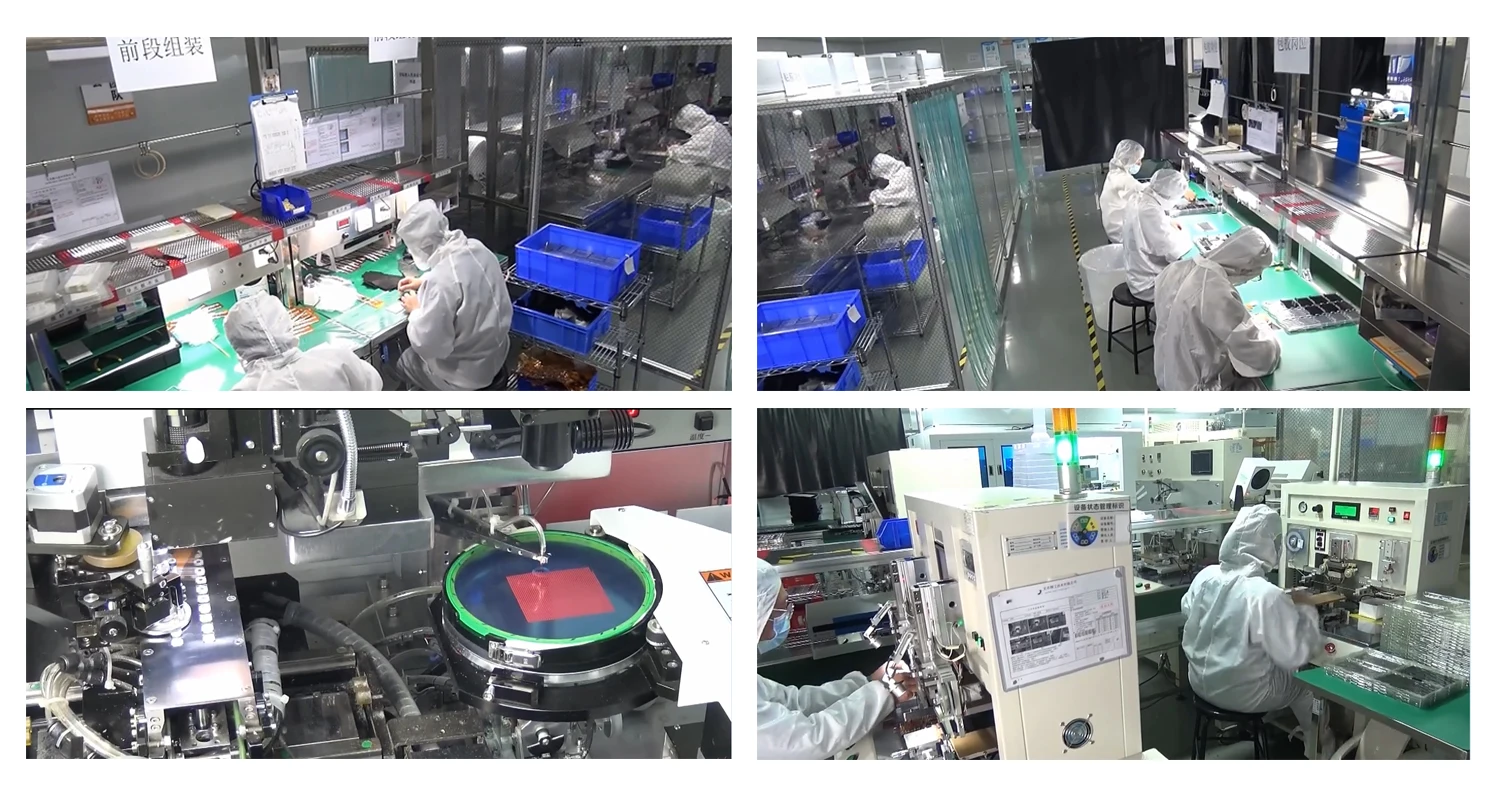

About Us
Certifications
FAQ
Q: What is the MOQ?
A: MOQ is 1 pcs.We can do the support when the test process.
Q: What about the delivery time?
A: We will have 7 inch 720*720 square LCD in stock,can ship them within 30 working days.
Q: What's your payment method?
A: We usually accept the payment methods include T/T,Alibaba order,Paypal.
Q: What's your shipping method?
A: For small quantity orders, we ship via UPS Air-Express, or through DHL/FEDEX/TNT/EMS Express service. This method is safe and fast.
For large quantity orders, we offer shipping through the buyer's chosen cargo agent in China, and can also arrange for air or sea transportation.
Q: Do you offer custom solution?
A: Yes,If our standard products do not meet the buyer's requirements, we can provide customized solutions to meet their specific needs.
Q: How to Contact us?
A: MOQ is 1 pcs.We can do the support when the test process.
Q: What about the delivery time?
A: We will have 7 inch 720*720 square LCD in stock,can ship them within 30 working days.
Q: What's your payment method?
A: We usually accept the payment methods include T/T,Alibaba order,Paypal.
Q: What's your shipping method?
A: For small quantity orders, we ship via UPS Air-Express, or through DHL/FEDEX/TNT/EMS Express service. This method is safe and fast.
For large quantity orders, we offer shipping through the buyer's chosen cargo agent in China, and can also arrange for air or sea transportation.
Q: Do you offer custom solution?
A: Yes,If our standard products do not meet the buyer's requirements, we can provide customized solutions to meet their specific needs.
Q: How to Contact us?
A: Send your Inquiry Details in the Below, Click "Send" Now!
