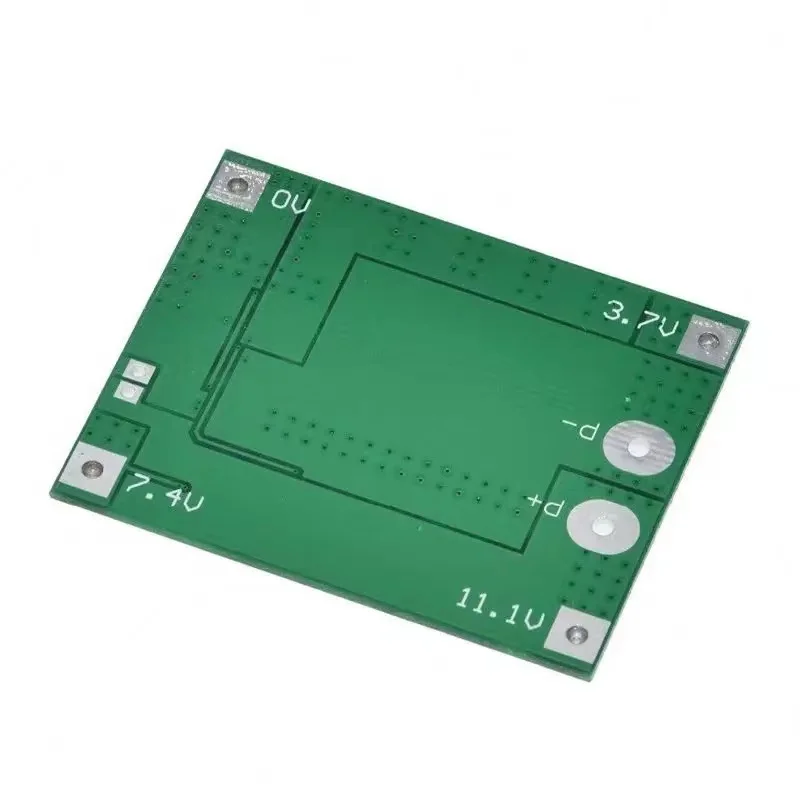

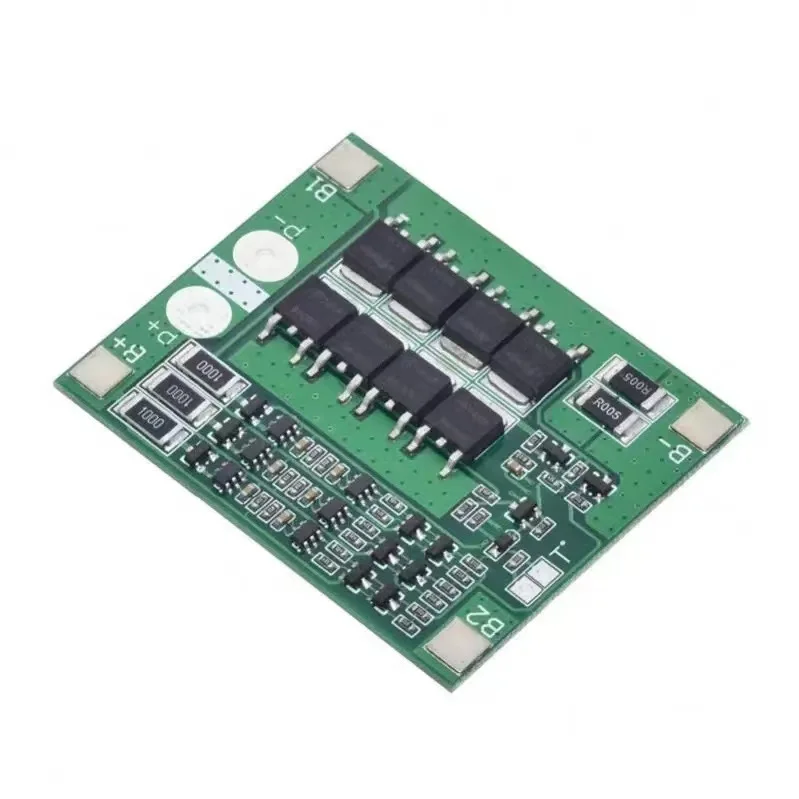

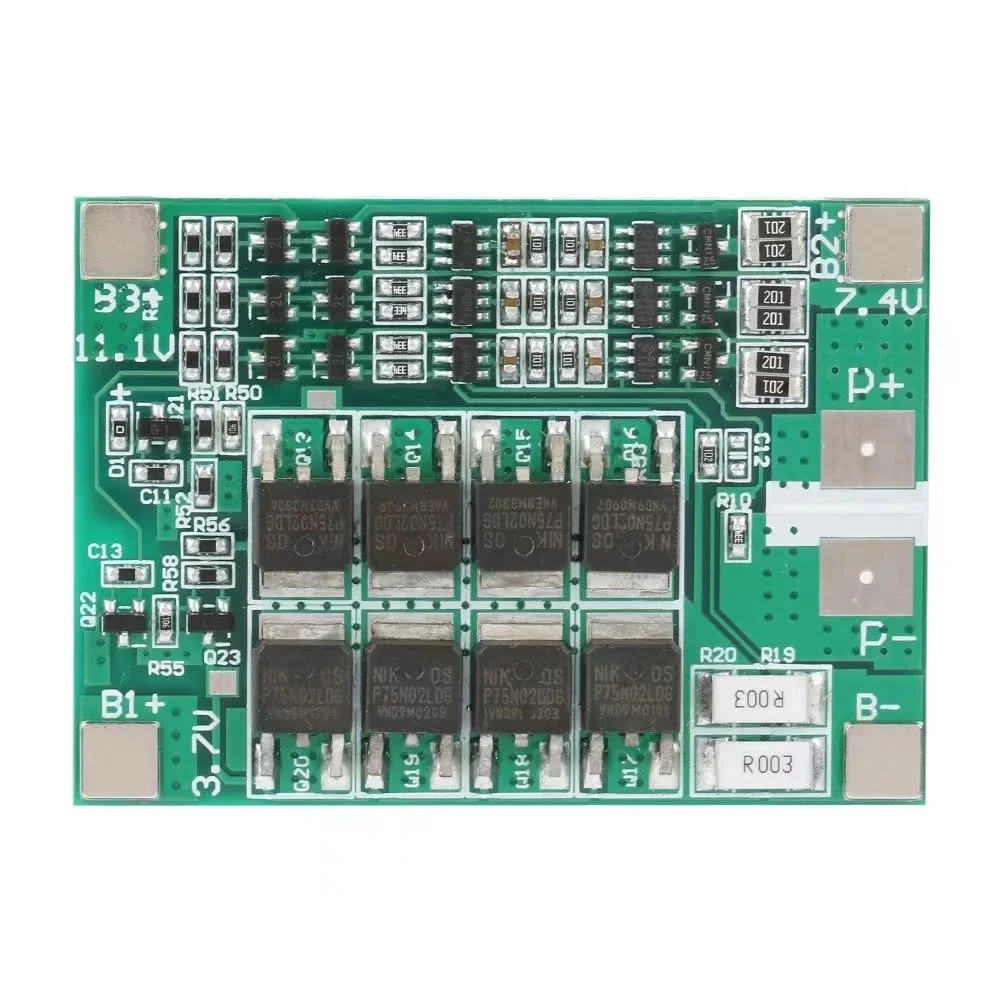

PW 3S 25A BMS PCM With Balance For li ion Lipo Battery Cell 3S 25A Li ion 18650 Battery Protection Board Power Supply Module (1600879693236)

Share on:


Price:$0.85 - $1.00
Price in USD:Details

Quantity:


Product Overview

Description



Product Description


Items
PW-3S-25A BMS PCM With Balance For li-ion Lipo Battery Cell 3S 25A Li-ion 18650 Battery Protection Board Power Supply Module
Size
56*45*4MM
Upper limit working current:
25A
Max peak current
35-40A
Overcharge voltage range
4.25V+0.05V
Over discharge voltage range
2.5V+0.05V
Working temperature
-40---+50
Storage Temperature
Storage Temperature
Life cycle
More than 30000hours,Less than 100mΩ
Small current
50uA
Short circuit protection
can be protected


PW-3S-25A BMS PCM With Balance For li-ion Lipo Battery Cell 3S 25A Li-ion 18650 Battery Protection Board Power Supply Module
3 Series 18650 battery
11.1V (Li-ion 18650 or li-ion battery rated voltage)
12.6V (Li-ion battery full charge voltage)
10.8V ( Lipo battery pack rated voltage)
The lithium battery protection board is not included the welding tabs.
BMS activate method : Use 12.6V Li-ion charger to charge it.

NOTE:
1) This board is not suit high power electronic tools, if use for screw drier and drill,electric bike series make,fishing machine and 1W LED, please don't buy this.
2)Above 3A device,means the battery discharge rate is more than 3C.
1C rated battery, 2000mah equals 2ah*1=2A max working current.
3C rated battery means 2ahx3=6A Max working current.

Balance is just a Auxiliary function, The balancing means when the battery charging,each series battery need with the same voltage.when ONE cell voltage get 4.2V ,the other cells not, the first cell voltage will discharge to wait the other cells rising to the same level.
Note:
battery internal resistance differences within 5 milliion ohm, voltage within 0.03 V voltage, capacity vary within 50 ma
Features:
1) high-accuracy voltage detection circuit;
2) terminal of the charger using high voltage device;
3) Built-in three-stage over-current detection circuit (over-current 1, over-current 2, or load short circuit);
4) MOS transistor can control the battery charge and discharge;
5) low standby current consumption.
