40m RS232 Output Range Finder Laser Measuring Distance Sensor (62479848793)

Share on:


Price:$45.60 - $56.50
Price in USD:Details

Quantity:


Product Overview

Description


5-12---



Click to Contact

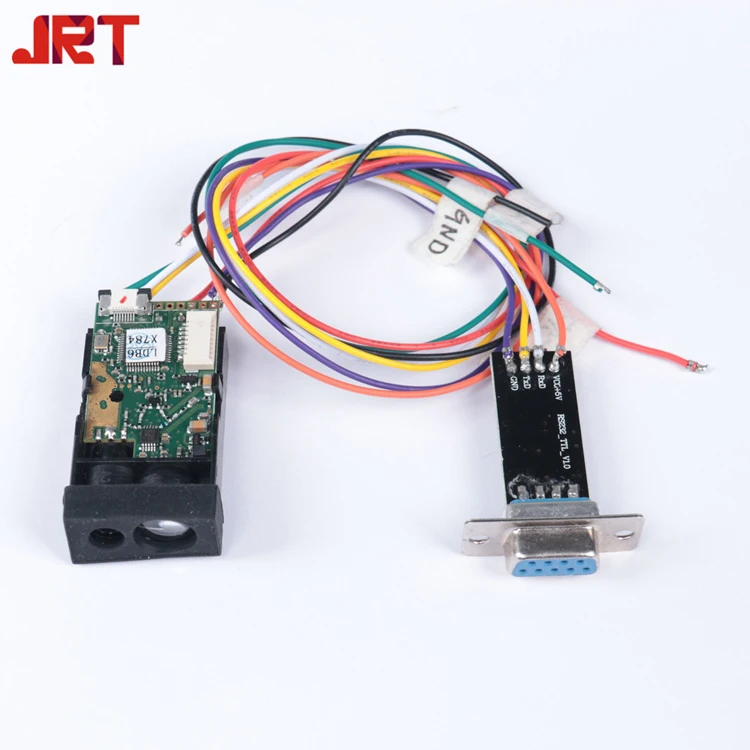

40m RS232 Output Range Finder Laser Measuring Distance Sensor





1. JRT module responds quickly with high accuracy and long range measuring


2. We have been in this laser line for over 18 years, leading supplier of laser distance meter modules in China


3. 30m, 40m, 60m, 80m, 100m, 120m, 150m, each distance can be multifunctional


4. Voltage can be changed by power converter LDO


5. Operating temperature -10 ℃~50 ℃ can be customized
6. Analog can be customized.



Product Description

Laser range sensor M88B, which is designed for industrial application. Particularly, the USB laser rangefinder sensor, you can test directly when connecting to your computer.


M88B Laser Distance Sensor's principle is Point-to-Point precise measurement up to 40m. Supporting single and continuous measure mode.


























































Accuracy



1mm (0.04 inch)



Measuring Unit



meter(m/mm)



Measuring Range



0.03-40m



Measuring Time



0.4~4 seconds



Laser Class



Class II



Laser Type



620nm-690nm, <1mW

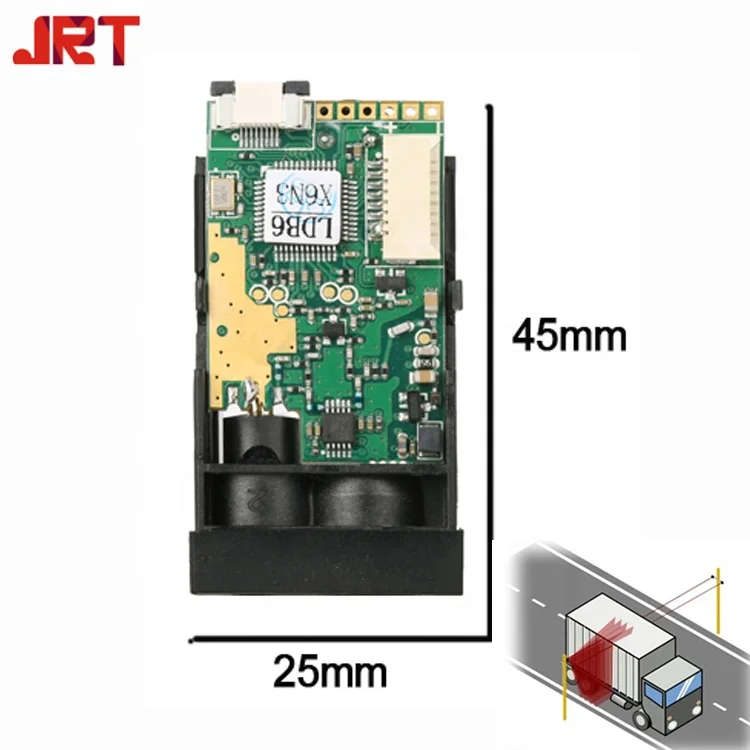

Size



45*25*12mm (±1 mm)



Weight



About 9g



Voltage



DC2.0~3.3V



Electrical Level



TTL/CMOS



Frequency



3Hz



Operating Temperature



0-40 ℃



Storage Temperature



-25~60 ℃

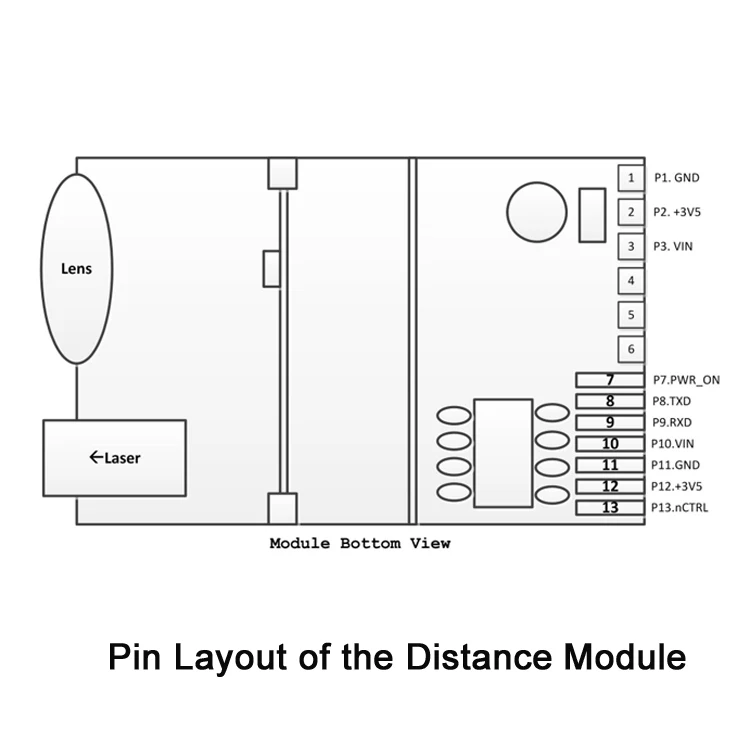

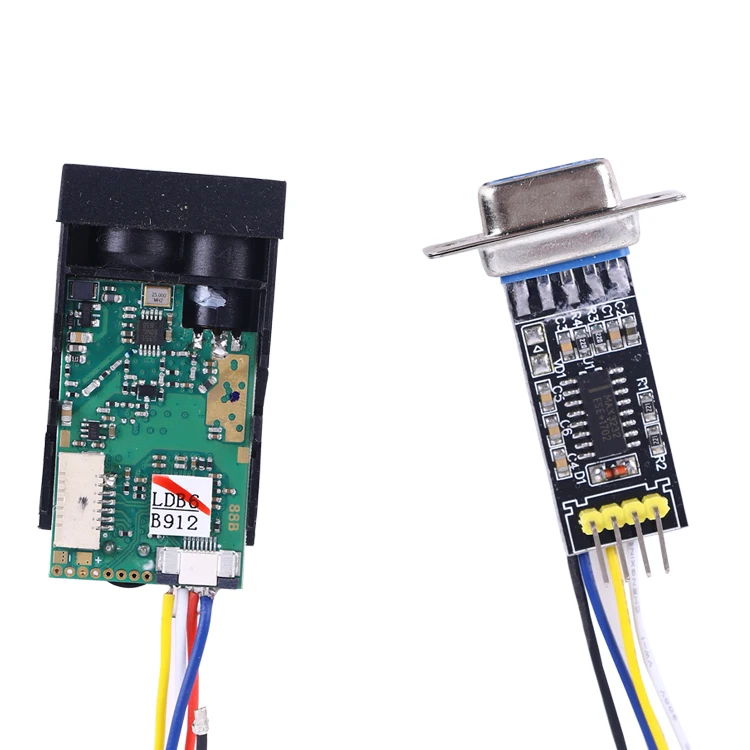

Distance Sensor RS232laser working principle703A Distance Pin Layout

Welcome To JRT!


About Module's Model:






















Product NameJRT Industrial Laser Distance Sensor
Old Version Model No.M512A/M701A/M703A
Latest Version Model No.M88B
Data Interface OptionalSerial port/USB/RS232/RS485


40m output range finder laser measuring distance sensorPls Click Here to Get More Details





Application

JRT laser distance sensor is a very convenient tool for various types of applications in industries, construction and house decoration,such as rooms, apartments, buildings, real estates, factories, warehouses, infrastructures, gardens, roads, and many other applications requiring accurate results for distance , area and volume measurement.40m output range finder laser measuring distance sensor



Company Information


40m output range finder laser measuring distance sensor


40m output range finder laser measuring distance sensor


40m output range finder laser measuring distance sensor


40m output range finder laser measuring distance sensor





Certifications


 - 1120





Buyer Feedback




Clients


40m output range finder laser measuring distance sensor40m output range finder laser measuring distance sensor





FAQ


40m output range finder laser measuring distance sensor


1: Are you factory or wholesaler or trading company?
We're the one of three leading manufacturers in China, production capacity up 10000 units/day.





2: What’s the delivery time after an order placed for this Laser Distance Module?


Our standard delivery is 3 days if we have stock, otherwise we will let you know in time, usually we manufacture 5000pcs a day.





3: What’s the MOQ?


Regular products only 1pcs, OEM/ODM products need 1000pcs at least.





4: What’s the warranty of the laser sensor?


All our products have one year guarantee and a life-time after sales service.





5: Can I have a sample for testing?


Yes. We do not offer free samples, but will reimburse the buyer once an order is confirmed.





6:Can you offer customized service?
Yes, we can offer customized service. If your laser measurement project has other requirements, please contact us.





After-sale service
a. Lifetime warranty for software
b. 1 year warranty
c. Lifetime Technical support


Wish You Have A Pleasant Purchasing Time!
