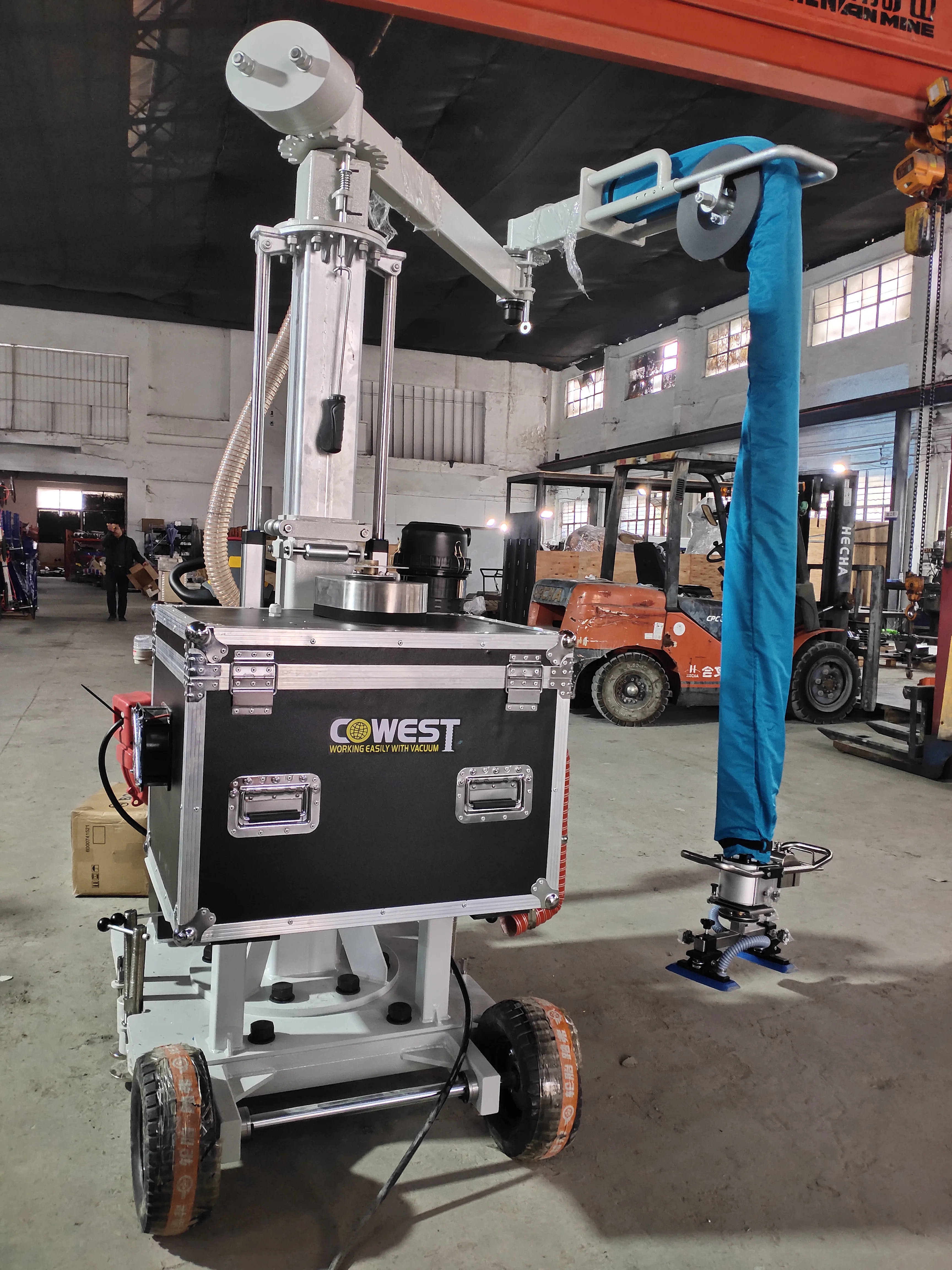

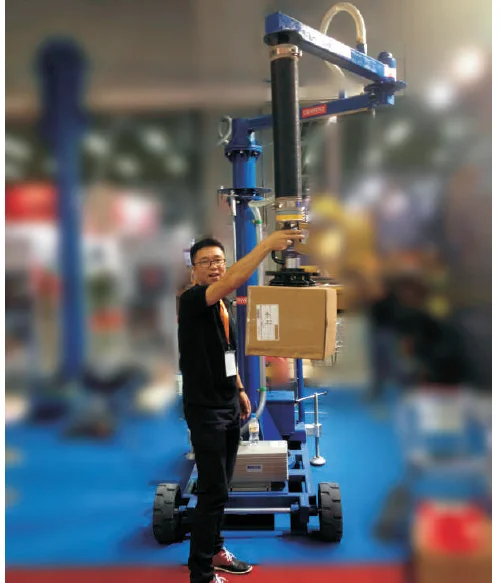

Мобильный вакуумный подъемник

Product Overview

Description



            Main Specifications:

1.        Maximum load: 45kg (trigger-like control handle)

2.        Maximum lifting height: 1700mm

3.        Driving Power: DC 24V

4.        Driven unit: the back wheels driven , the unit power was 700W

5.        Brake for driving: electromagnetism brake

6.        Vacuum pump power: AC 220V, 1.75KW

7.        Wheels: Driven wheel on rear was diameter 250mm, the front wheels were Dia.300mm.

8.        Power source: the machine could be powered by both of batteries and AC 220V

·           Batteries: 12V,150A*2

·           AC 220V power adaptor

9.        Inverter: DC24V to AC 220V

10.   Crane: dual arm, foldable crane, with spring lock as brake

11.   Maximum working period: continuous working 3 hours by batteries

12.   Dimensions: 1950*1055*2650mm

13.   Charging power:110-220V

14.   Charging time: about 8 hours

15.   Vacuum lifting tube :diameter 100mm

16.   Maximum driving speed:5KM/H

17.   maximum climbing: 15% without loads, 8% with loads

18.   Maximum steering degree: 40º on each side

19.   Arm swiveling degree: The first arm swiveling degree 180º, the second arm swiveling degree 360 º

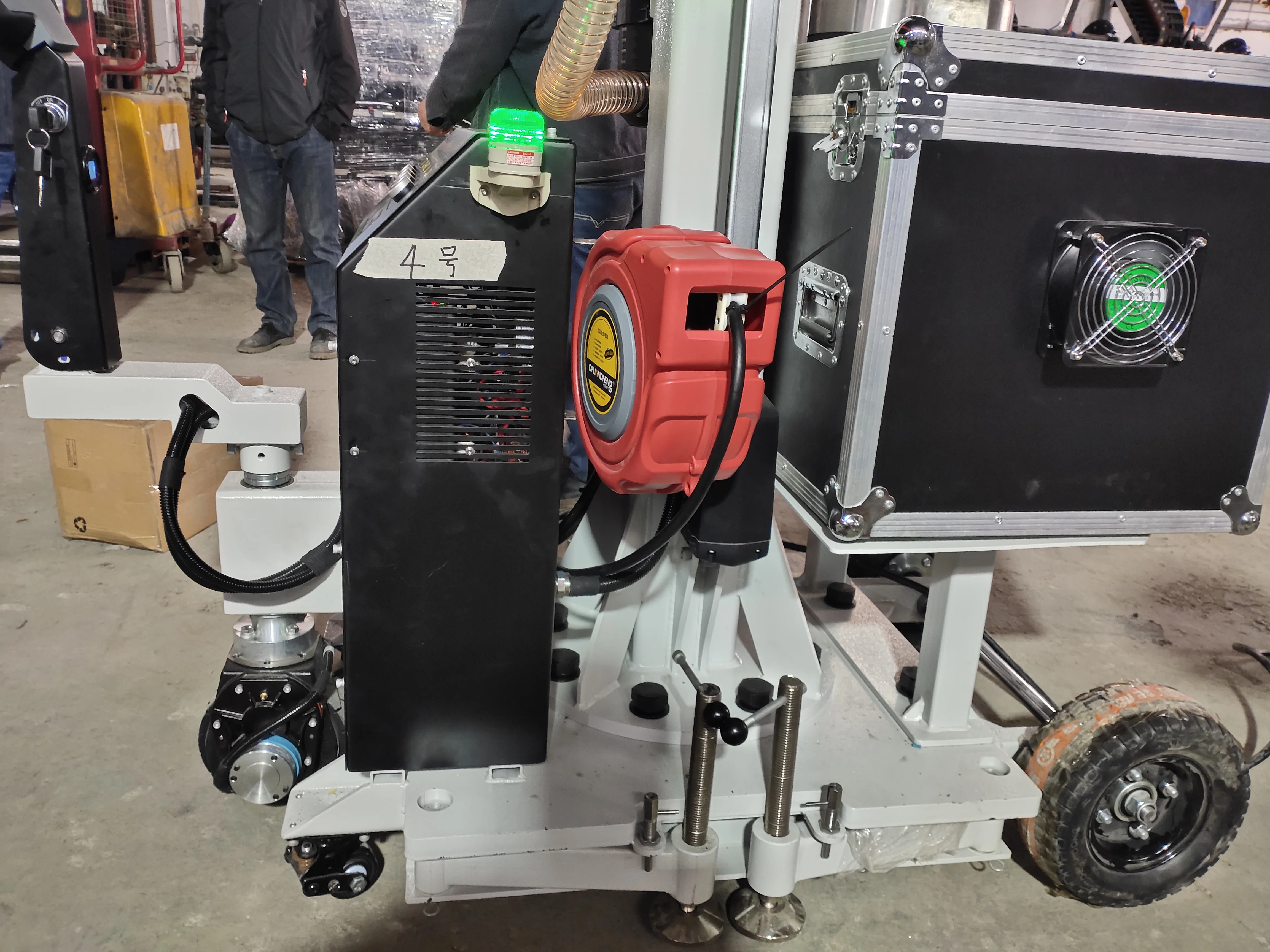

            Main parts in Auto-driving assembly

1.      Frame: welded by square pipe, dimensions 1300*800mm.

2.      Driving unit: single wheel driven, wheel diameter 250mm, the driving motor power 700W

3.      Counter weight: totally 160kg

4.      Extractable legs: 2 of extractable legs with screwed rod for prevent side falling

5.      Steering handle: integrated with accelerate roller, emergent stop, a approaching sensor inside of the handle to activate driving motor and release brake.

6.      Front wheels: solid tyre, diameter 300mm, suited for rough ground conditions





            Main parts in foldable crane:

1.        Column: Diameter 160mm round pipe

2.        mounting plate: diameter 400mm, mounted on the driving frame by screws

3.        swiveling arm: made by 80*80 square pipe, the first arm length 1200mm, the second arm length 1000mm

4.        Manual brake: spring lock with pin for quick lock, which prevent the arm self-swiveling during driving or off work time







            Main components for vacuum lifter:

1.      Vacuum Pump: Becker GmbH, model no. KVT3.80, maximum vacuum flow 80cbm/ hour, maximum vacuum pressure -85kpa. Single phase, 190v-255V, 50-60Hz,1.75KW



2.      Vacuum lifting tube: diameter 120mm, total length 2550mm, maximum lifting height 1700mm.

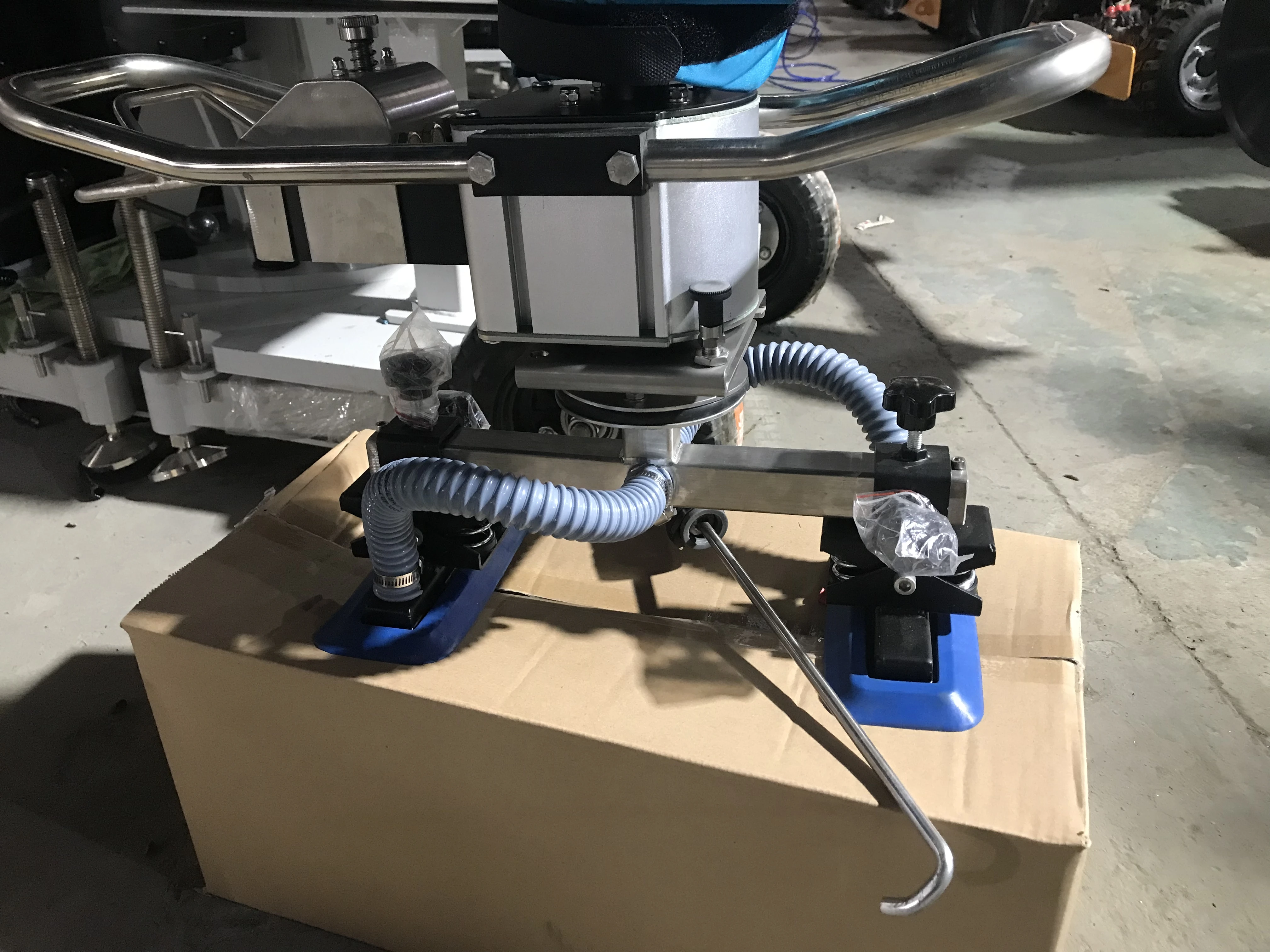

3.      Suction cup:.one of suction cup for bags lifting, the body of cup is made by SUS304, with high flexible foam rubber as seals, cup dimensions is 190*290mm

4.      A Non-return valve integrated upper rotator offered 360º rotating endlessly, also ensure slow descend in case power failure.

5.      vacuum filter mounted on vacuum pump to protect pump damage by particles

6.      A standard control lever called “swing lever” for lower, grip, lifting and release.



7.      Vacuum feeding pipe: 8M, diameter 32mm, PVC materials and steel wire inside

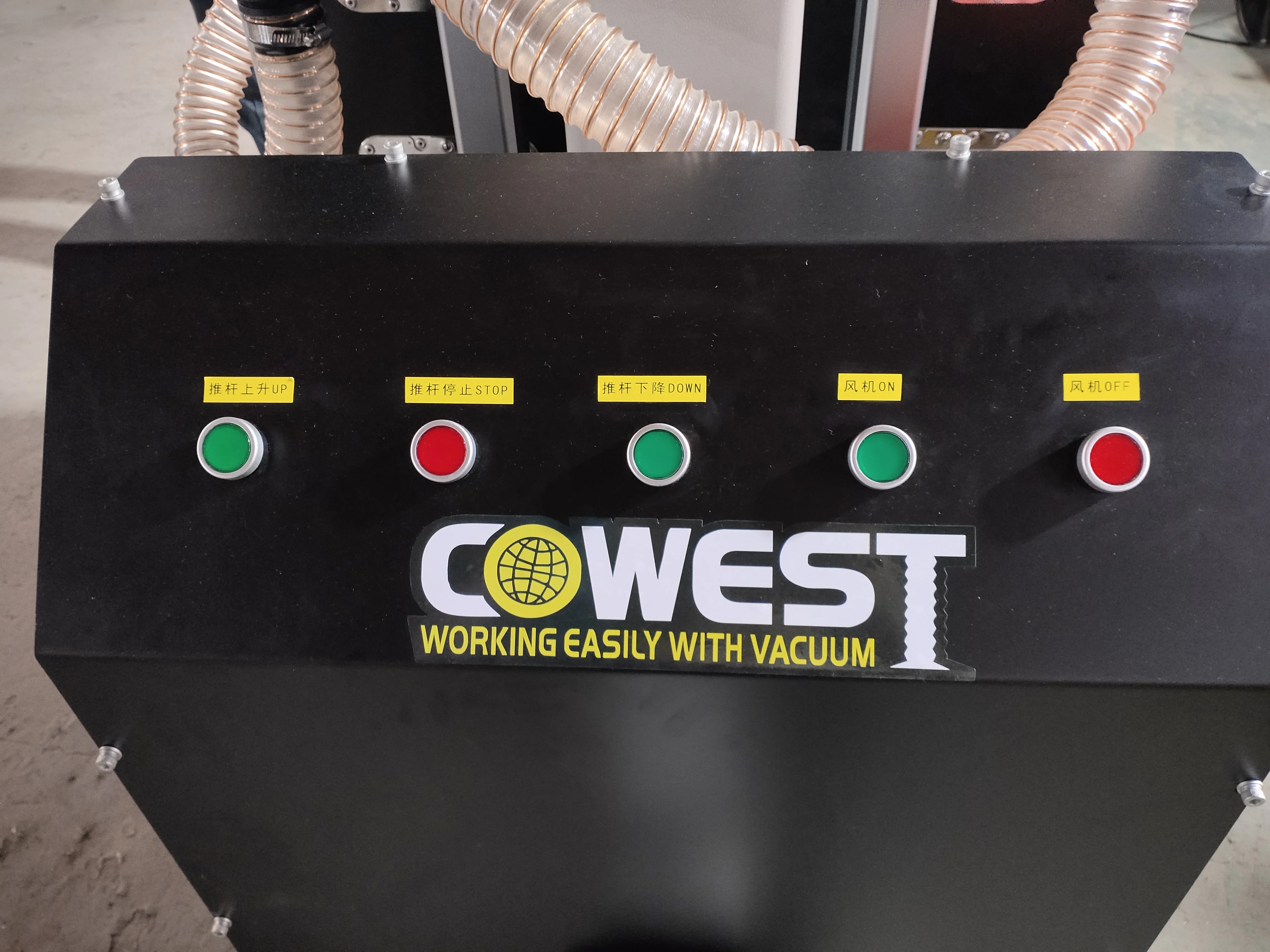

8.      Power Switch box, integrated the power converter from DC24V to AC230V, 3 phase



            Attachment

Cable reel: 12M*1.25, for AC 220V connection
