Product Overview
Description
240fps/120fps/60fps 720P Monochrome high speed global shutter Infrared webcam USB camera module

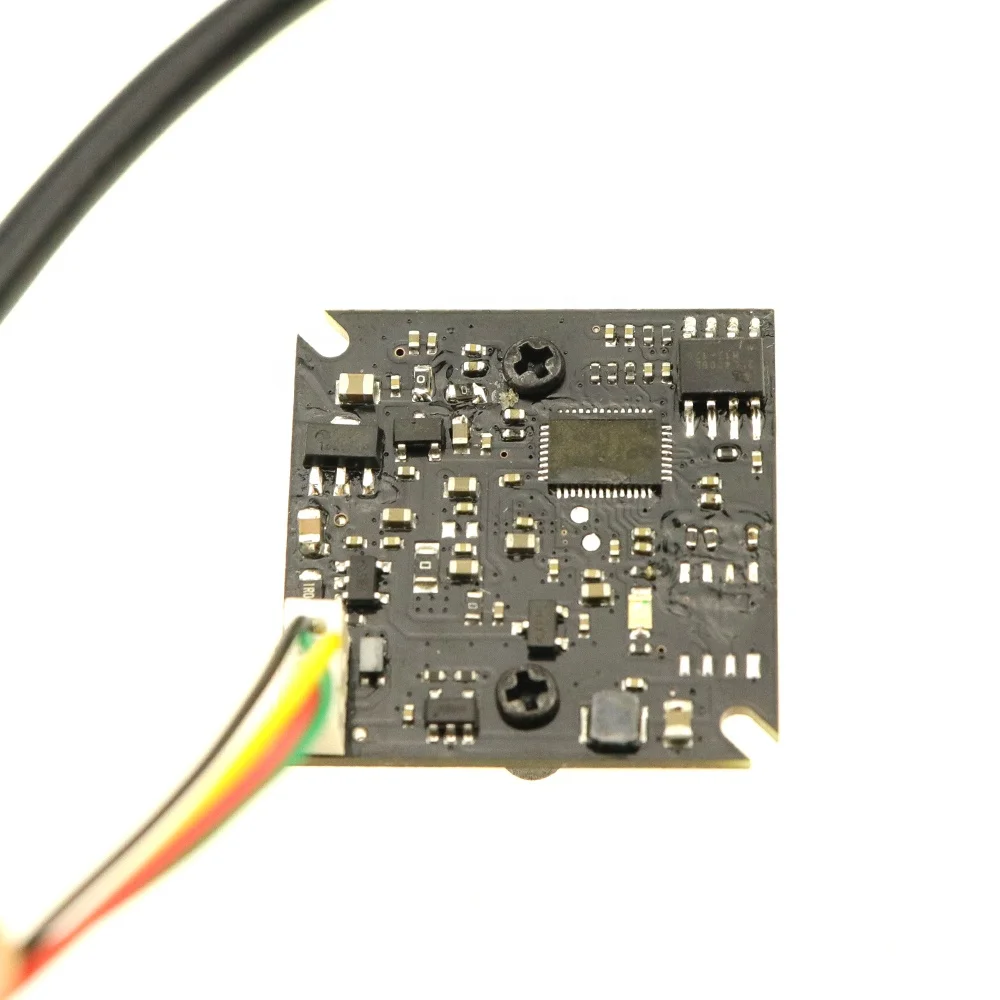

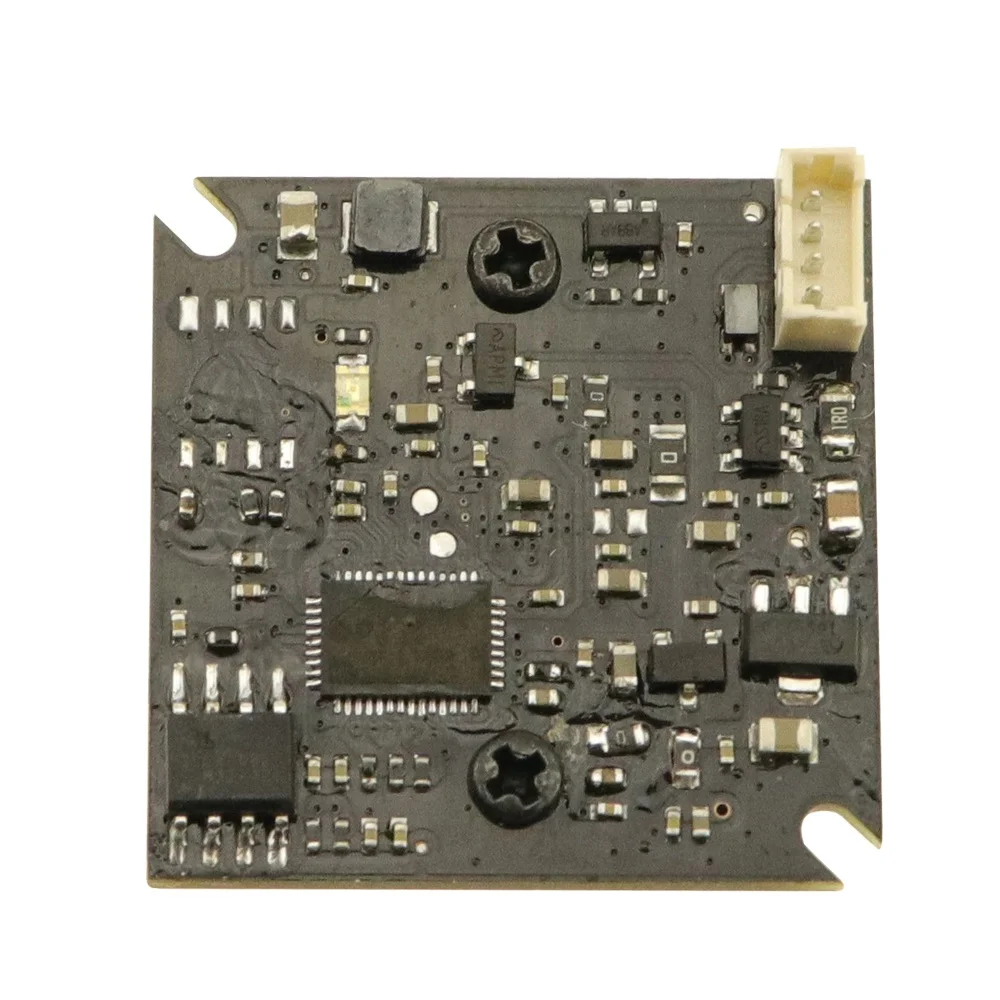

Mini USB Camera Board Module

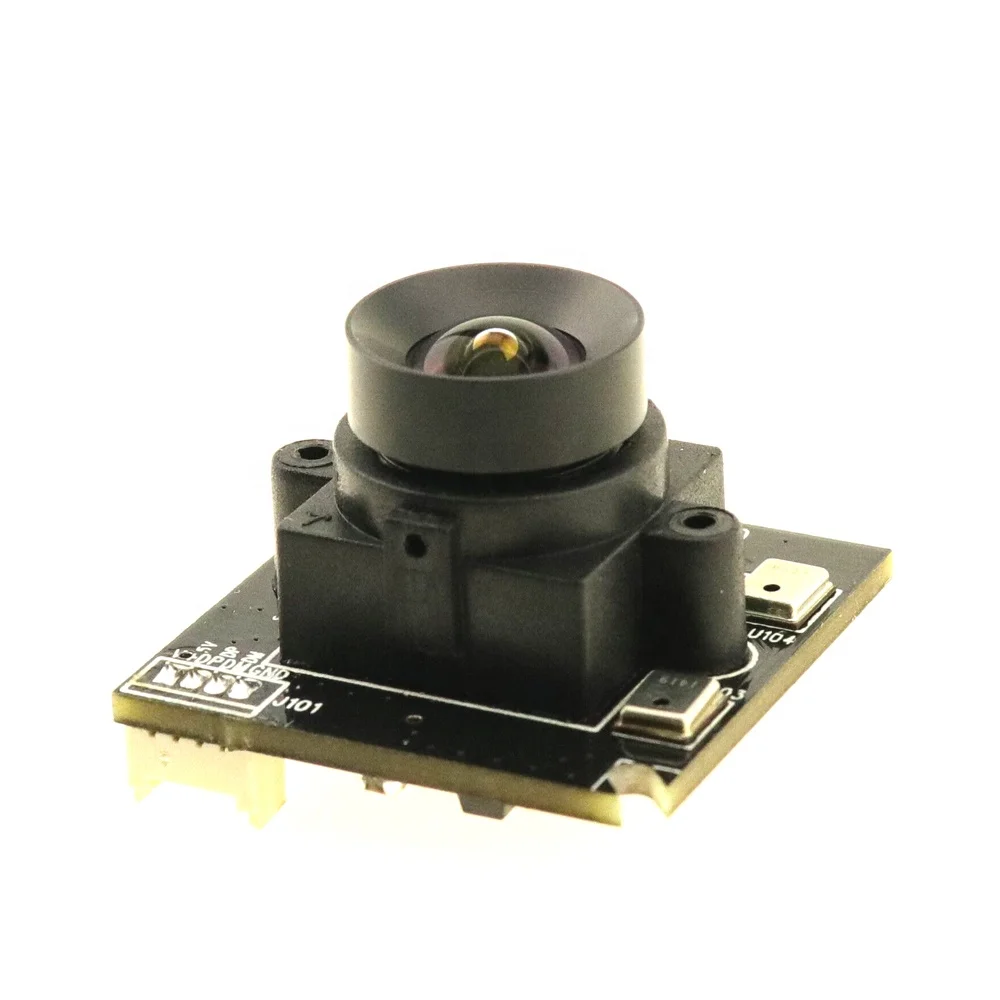

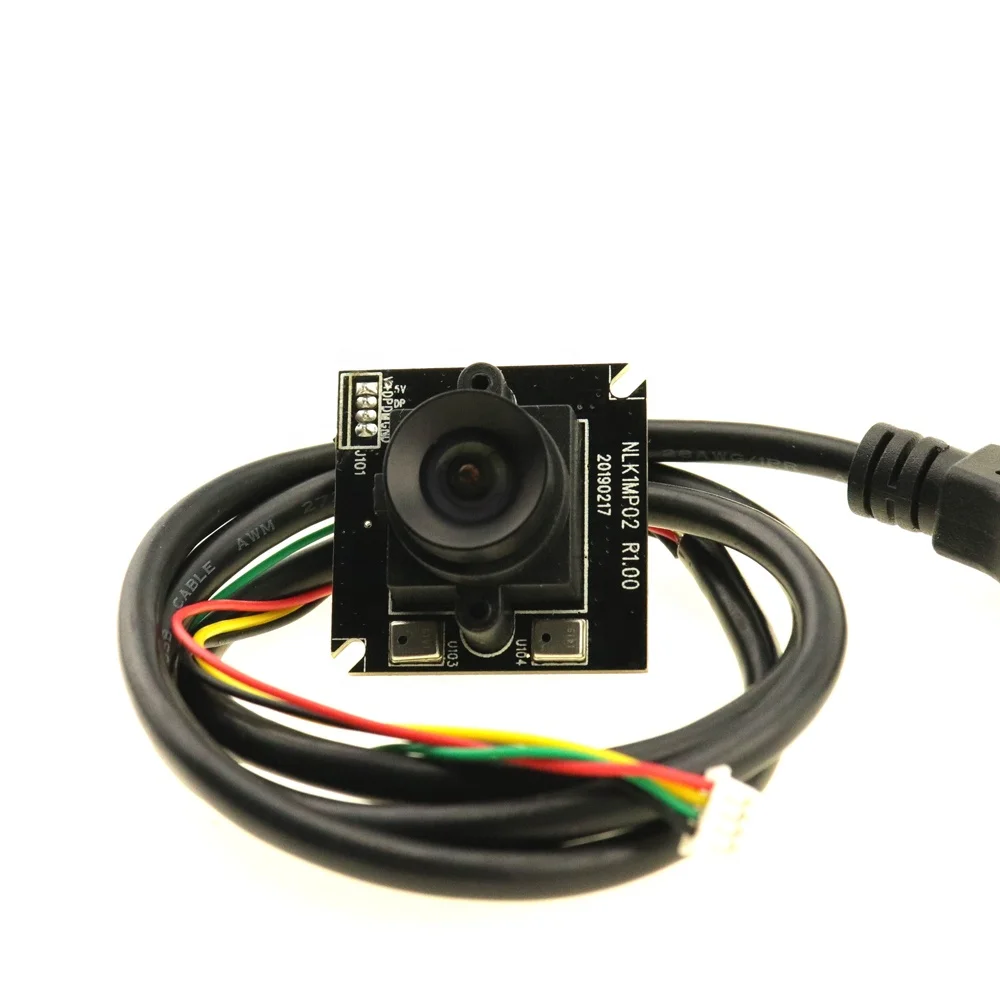

This is the 1mega pixels camera module(NLK1MP04 VER:1.00) with sensor on-board, lens module and USB2.0 video/image process controller. It is designed for the webcam application with the low power consumption.
Features
| 1.1/4" Global shutter Monochrome USB camera |
2.Support Audio MIC. |
| 3.Standard UVC/UAC protocal, Plug in/out,Support Windows/Android/Linux system. |
| 4. Support 220fps/120fps/60fps @720P |
Main Parameters
NLK-1MP04 720P parameters
Parameter | SPEC. | |
Optical size Sensor | 1/4 inch COMS sensor | |
Sensor Resolution | 1280(H) x 800 (V),720P | |
Unit pixel size | 3um*3um | |
Color filter | Monochrome(B/W) | |
Shutter type | Global Shutter | |
Max. video frame rate (MJPEG) | 220fps@640*400, 640*360, 320*240, 320*200 120fps@720P/1280*800, 800*600, 640*480 | |
View Angle | Diagonal=90° ,Horizontal=75°,vertical=60°(w/t distortion) | |
F Number | 2.67mm(TY2019B) | |
AEC / AGC/ White Balance | Auto | |
Focus Distance | with fixed lens 50CM-∝ | |
Interface | USB 2.0 | |
Power | USB Bus Power | |

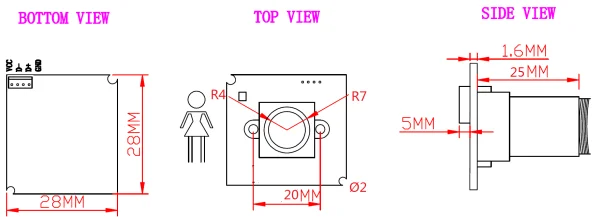

Dimensions (mm) (L x W x H) | 28*28*16mm | |
Operating Temperature | -10℃to +70°C | |
Operating System Request | Windows XP/ Windows 7/ Windows 10(UVC), Linux(>V2.6 ) | |
Max pixel rate | 28Mp/s | |
ADC accuracy | 10-bit | |
USB 2.0 PHY | On Chip PHY | |
Power Consumption | Standby | 4mA |
Operating | 150mA+/-10mA @ 720P | |
NLK-2MP08s high speed color parameter:
Technical Details | |
SENSOR | |
Sensor | SC200AI |
Pixels | 2.08M pixels |
Resolution | 1920*1080 MAX |
Image Size | 1/2.8INCH |
Unit Cell Size | 2.9um (H)*2.9um(V) |
| 0.24lx |
ISP | |
YUY2 Frame Rate | 640*360@50fps / 60fps |
MJPG Frame Rate | 1920*1080@50fps /60fps, 1280*720@50fps / 60fps, 640*360@50fps / 60fps |
Exposure | Auto or Manual |
White Balance | Auto or Manual |
Shutter | 1/25(1/30)s to 1/50,000s |
Slow Shutter | Coming Soon |
Denoising | 2D/3D noise reduction |
Image Setting | Brightness, Contrast, Sharpness, Saturation,Flip, Mirror |
Image Enhancement | BLC, Digtal WDR, Defog |
Day/Night Switch | Manual or IR-CUT filter with external trigger |
Lens & IR-CUT | |
Lens Mount with IR-cut | Support M12*0.5 or M16*0.5 depend on lens mount,MTV12 or MTV16 |
Mounting Hole | 2 screw holes with diameter of 2.2mm,20mm Center-to-Center Spacing |
Interface | |
Connector | MX1.25*4,USB2.0 Interface |
Communication Interface | USB2.0,UVC Protocol |
IR-CUT Control | IR-CUT motor control, 3.3VDC |
Day/Night External Trigger | 3.3VDC to 5VDC compatibility |
General | |
Operating Conditions | -20℃~60℃, Humidity 95% or less, non-condensing |
Power Supply and Consumption | 5VDC,1.5W MAX |
Dimension | 38mm*38mm*10mm(not include lens and lens mount)(32*32mm optional) |
Q1: Can I get some samples? Are they free?
A1: Of course you can get sample for testing before bulk order, but samples are not free.
Q2: What's the delivery time?
A2: Depend on product and quantity of your order. Usually, samples can be sent to you in 3 work days after your payment.
Q3: What about payment methods?
A3: Payment terms: Online payment, T/T and Western Union etc.
Q4: Can you list the product of your company?
A4: CCTV camera board,USB Web camera board,LCD memory controller board,LCD display module,Intercom Audio Board,Video Camera board for optical fiber tester
Q5: Where can we download the user manual of your products?
A5: Datesheet will be sent to you by email after get your email.
Q6: Warranty time?
A6: 2 years.
Q7: Can you accept ODM products?
A7: Yes,ODM is our main business. We will make quotation according to your details.
Q8: Product OEM?
A8: Yes, need your Gerber file and Drawing and BOM.
Q9: Customer service?
A9: Any questions of product after you receipt,please contact us,we'll reply you in 24 hours.
Q10: What shiping methods do you have?
A10: Since our products are small and expensive, the common shiping methods are post air mail or fast express.
