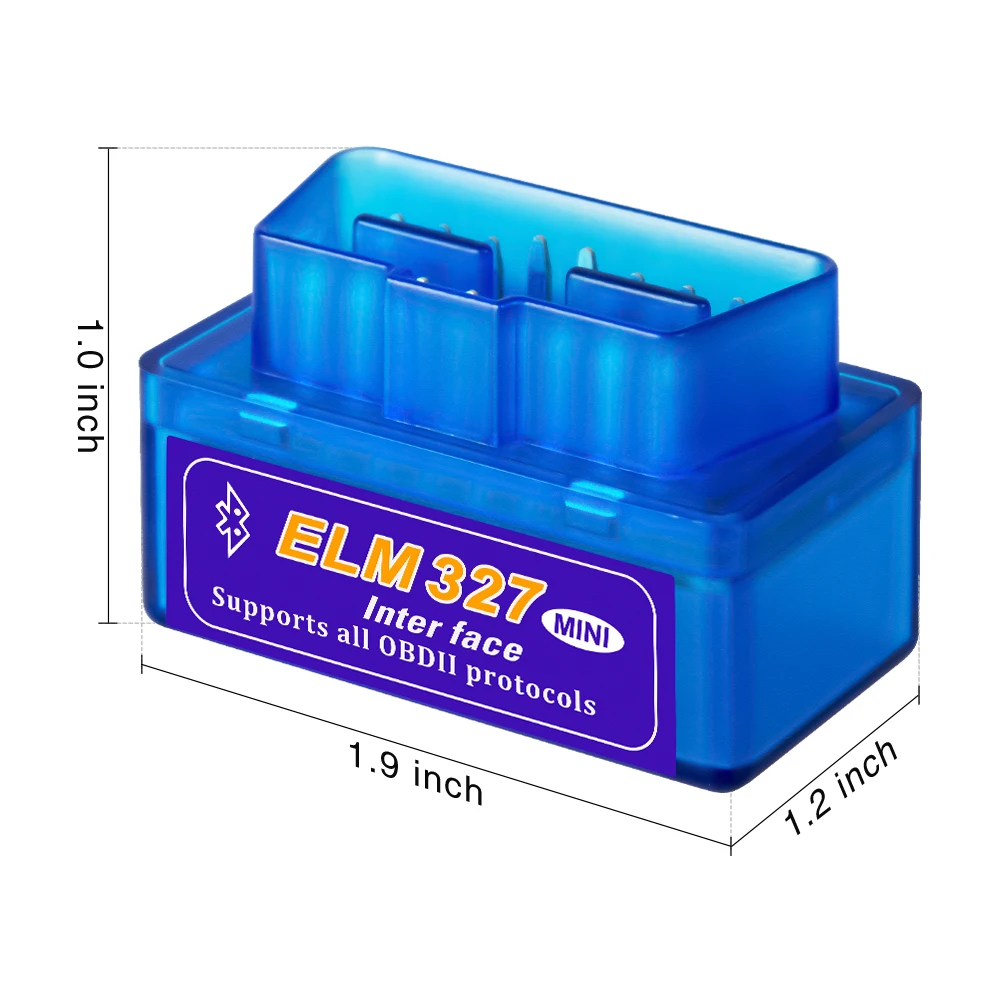

KINGBOLEN Super Mini ELM327 BT V1.5 PIC18F25K80 Chip Android Torque ELM 327 OBD2 Car Diagnostic Scanner

Product Overview

Description



click to chose your favorite brand

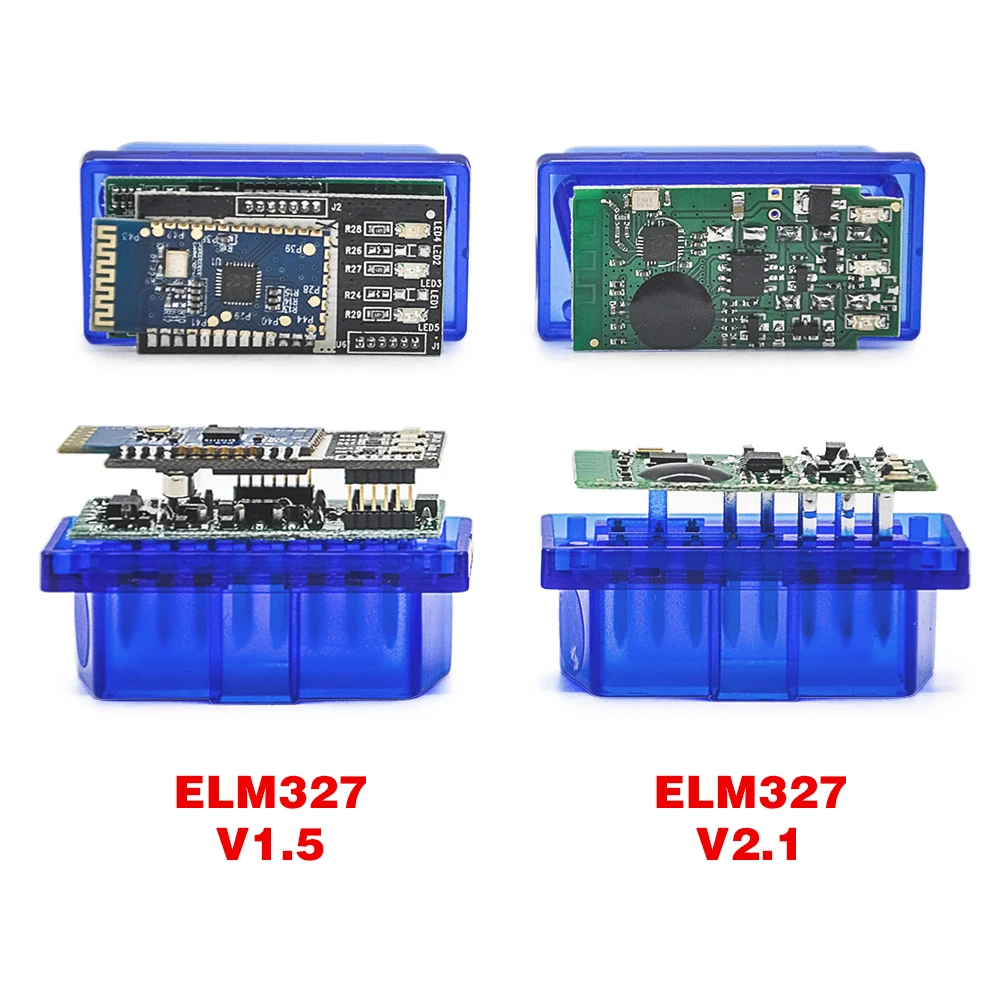

Our V1.5 Firmware ELM327 vs Cheap ELM327 V2.1

Our ELM327 is V1.5, which is support full protocols version(9 protocols), especially J1850 Protocols for Japanese Cars and American Cars, V2.1 elm327 doesn't support 9 protocols











Highlights:

The newly developed wireless scan tool.

It supports all OBD-II protocols.

It is the latest version 1.5

BT connection, no Batteries, Cables, or Switches.

Wireless (BT) 5~ 10 meters

Retrieve Fault Codes (DTCs) and clear Check Engine lights.

Can also be used with a PC with a BT Card.



Features:

Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).

Clear trouble codes and turn off the MIL ("Check Engine" light)

Set the maximum number of responses to obtain

Remove spaces from ECU responses (to speed data transmission)

Store a unique identifier in EEPROM

Set the CAN mask and filter with one command

Easily switch between variable and fixed CAN message lengths

Send CAN remote frames (RTRs)

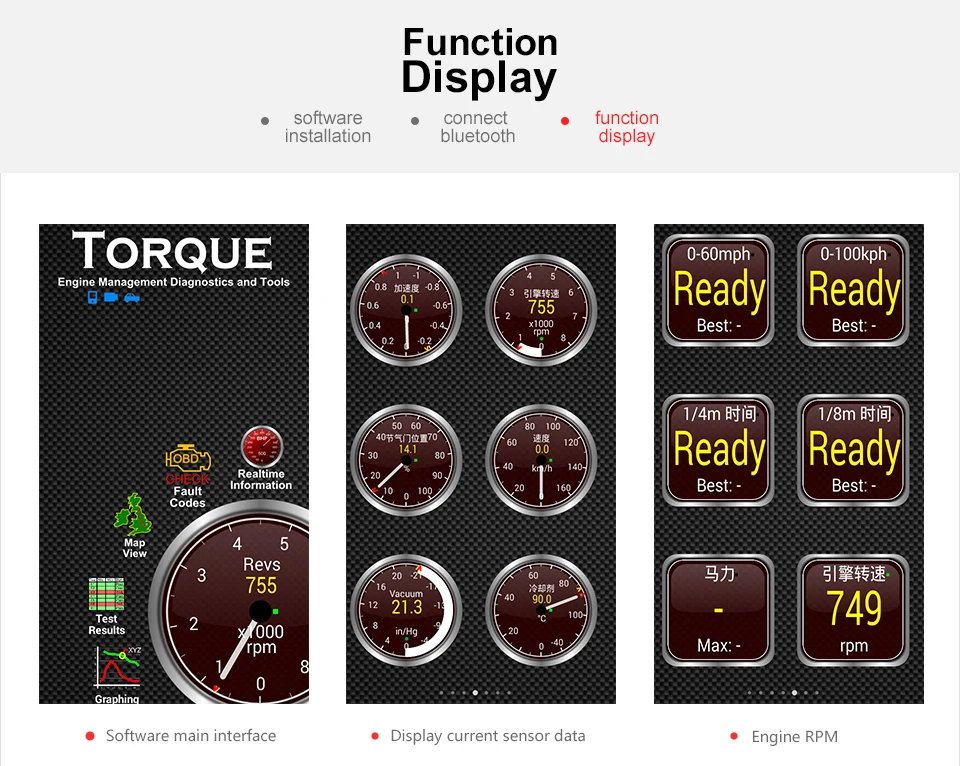

Display current sensor data, including:

      Engine RPM

      Calculated Load Value

      Coolant Temperature

      Fuel System Status

      Vehicle Speed

      Short Term Fuel Trim

      Long Term Fuel Trim

      Intake Manifold Pressure

      Timing Advance

      Intake Air Temperature

      Air Flow Rate

      Absolute Throttle Position

      Oxygen sensor voltages/associated short term fuel trims

      Fuel System status

      Fuel Pressure

      Many others...



Multi-Protocol Support:

1. SAE J1850 PWM (41.6Kbaud)

2. SAE J1850 VPW (10.4Kbaud)

3. ISO9141-2(5 baud init, 10.4Kbaud)

4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)

5. ISO14230-4 KWP (fast init, 10.4 Kbaud)

6. ISO15765-4 CAN (11bit ID, 500 Kbaud)

7. ISO15765-4 CAN (29bit ID, 500 Kbaud)

8. ISO15765-4 CAN (11bit ID, 250 Kbaud)

9. ISO15765-4 CAN (29bit ID, 250 Kbaud)

A.SAE J1939 CAN (29bit ID, 250*Kbaud)

B.USER1 CAN (11*bit ID, 125*Kbaud)

C.USER2 CAN (11*bit ID, 50*kbaud)

   *default settings (user adjustable)





Software Included:

Scantool_net113win (Full Version)

EasyOBDII V2.2 (Free Version)

OBD2Spy (Demo Version)

Scan Master-ELM (Demo Version)

wOBDCRAZY  (Demo Version)



This hardware can match much other software still! But most of them are not free!

Works for Windows98/ME/2000/XP/Vista & 7!

This tool does not match abs and airbag system!

BT pair code: 1234

Main Control Chip: PIC18F2480



Packing List:

A.1*EOBD / OBD2 BT Diagnostic Interface
