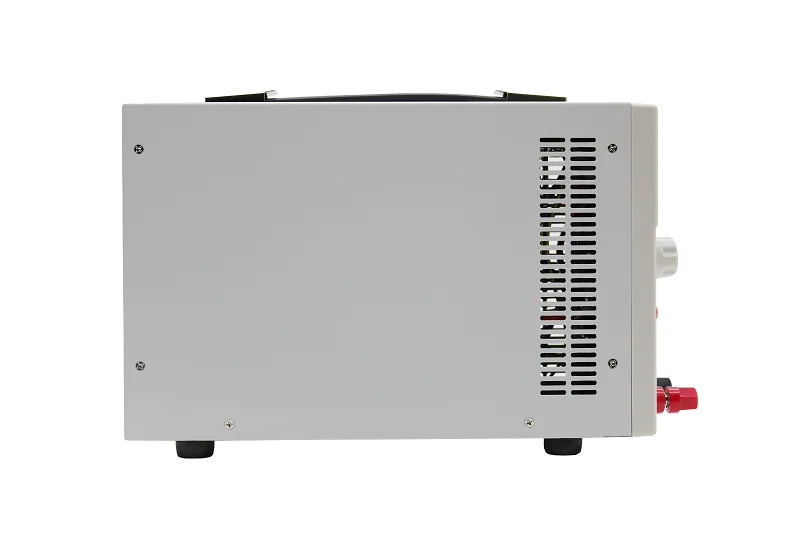

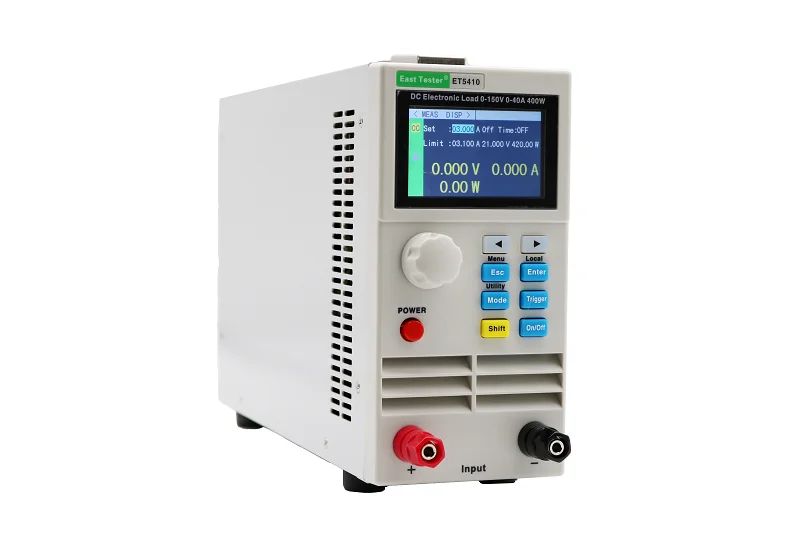

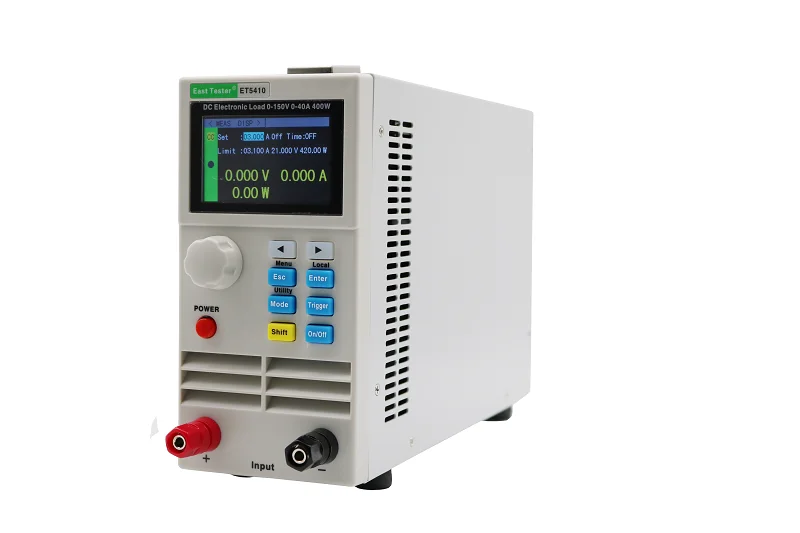

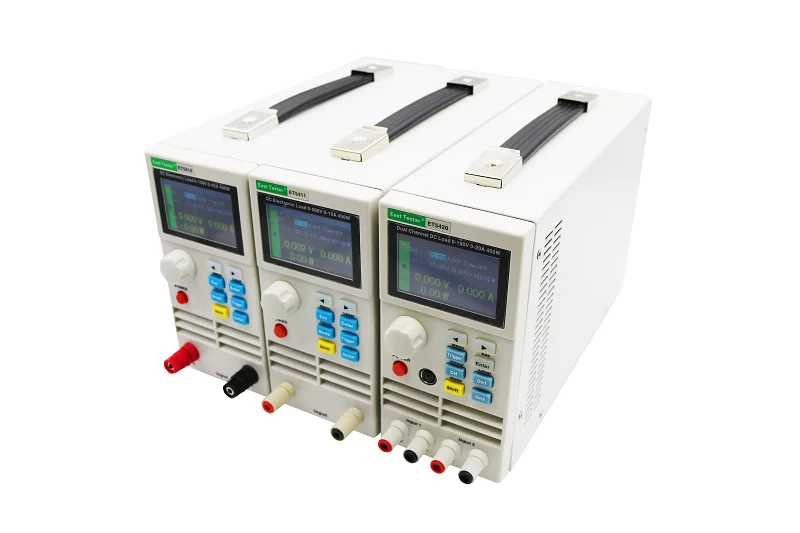

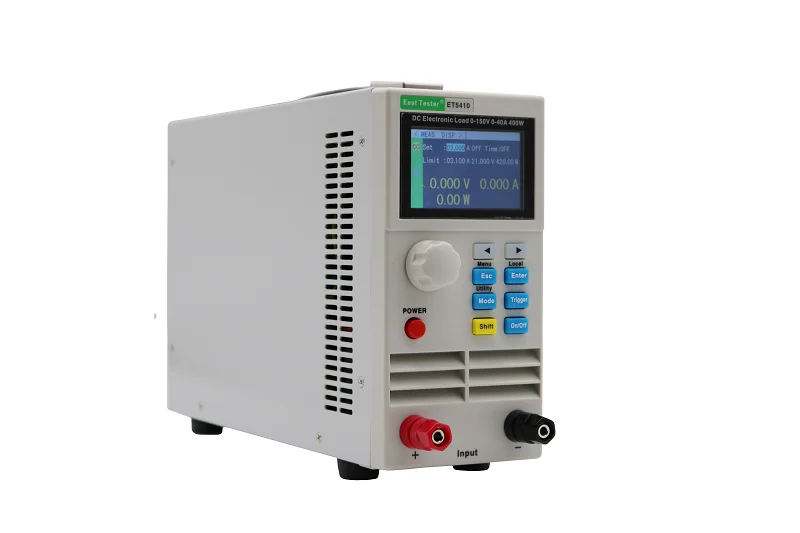

ET5410 High Performance Current Electronic Load Module DC Electronic Load Tester
ET5410 High Performance Current Electronic Load Module DC Electronic Load Tester
ET5410 High Performance Current Electronic Load Module DC Electronic Load Tester
ET5410 High Performance Current Electronic Load Module DC Electronic Load Tester
ET5410 High Performance Current Electronic Load Module DC Electronic Load Tester
ET5410 High Performance Current Electronic Load Module DC Electronic Load Tester
ET5410 High Performance Current Electronic Load Module DC Electronic Load Tester

ET5410 High Performance Current Electronic Load Module DC Electronic Load Tester

Share on (1600425853955):


Price:$128.13 - $148.44

Quantity:


Product Overview

Description







PRODUCT DETAILS






Model
ET5410
ET5420
ET5411
Number of channel
Single channel
Dual channel
Single channel
Rated input
Power
400W
400W (200W×2)
400W
Input voltage
0-150V
0-150V
0-500V
Input current
0-40A
0-20A×2
0-15A
CV mode
Range
0.1~19.999V，0.1~150.00V
0.1~19.999V，0.1~500.00V
Resolution
1mV，10mV
Accuracy
±(0.05%+0.02%FS)
CC mode
Range
0~3.000A，0~40.00A
0~3.000A，0~20.00A
0~3.000A，0~15.00A
Resolution
1mA，10mA
Accuracy
±(0.05%+0.05%FS)
CR mode
Range
0.05Ω~1 kΩ，1 kΩ~4.5kΩ
Resolution
10mΩ，100mΩ
Accuracy
±(0.1%+0.5%FS)
CP mode
Range
0~400W
0~200W
0~400W
Resolution
10mW
Accuracy
±(0.1%+0.5%FS)
Tran Test
Battery Test
Mode
CC，CV
T1&T2
1ms~60s；分辨率：1ms
Accuracy
0.1%+1ms

Rated input
Discharge mode
CC，CR
Maximum discharge capacity
9999Ah
Power
1mA，10mA，10mΩ，100mΩ
Range of measurement
Voltage read-back value
Range
0~19.999V，0 ~150.00V
0~19.999V，0~500.00V
Resolution
1mV，10mV
1mV，10mV
Accuracy
±(0.05%+0.1%FS)
Current read-back value
Range
0~3.000A，0~40.00A
0~3.000A，0~20.00A
0~3.000A，0~15.00A
Resolution
1mA，10mA
Accuracy
±(0.05%+0.1%FS)
Power read-back value
Range
0~400W
0~200W
0~400W
Resolution
10mW
Accuracy
±(0.1%+0.5%FS)
Scope of protection
Overvoltage protection
＞21V 155V or 510V overvoltage protection
Overcurrent protection
＞3.1A 16A 22A or 42A input cut off
Overpower protection
420W
220W
420W
Over-temperature protection
85℃
