Fiber Optic ftth Indoor/Outdoor fiberhome GJYXCH 1B6 G657A Aerial Steel Wire FTTH 1 2 4 Core Drop Cable
- Category: Communication Cables >>>
- Supplier: Qingdao Sunet Technologies Co. Ltd.
Share on (1600426133941):
Product Overview
Description
Product Description
Description:

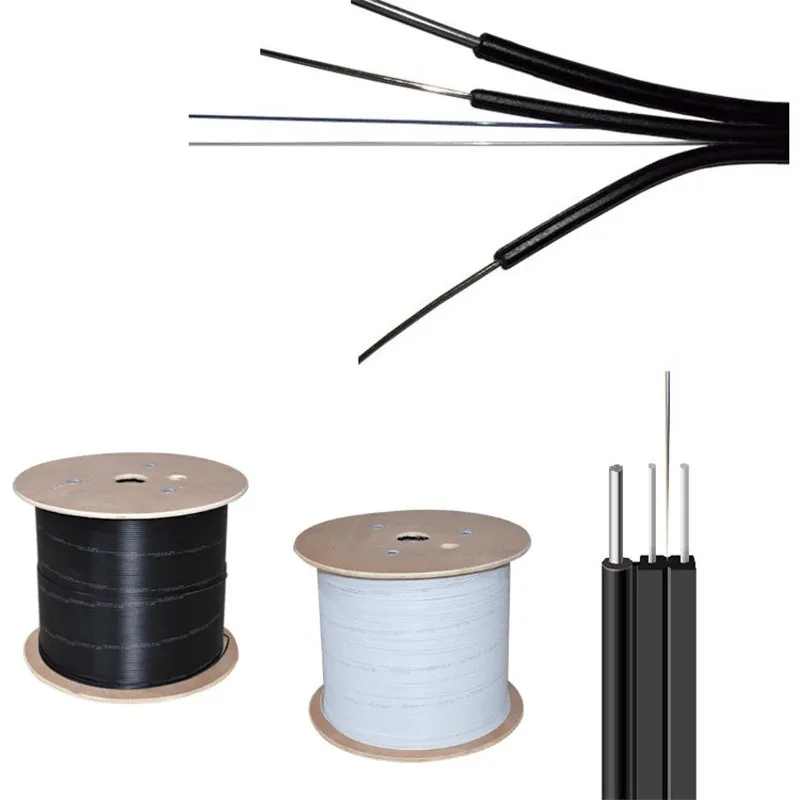

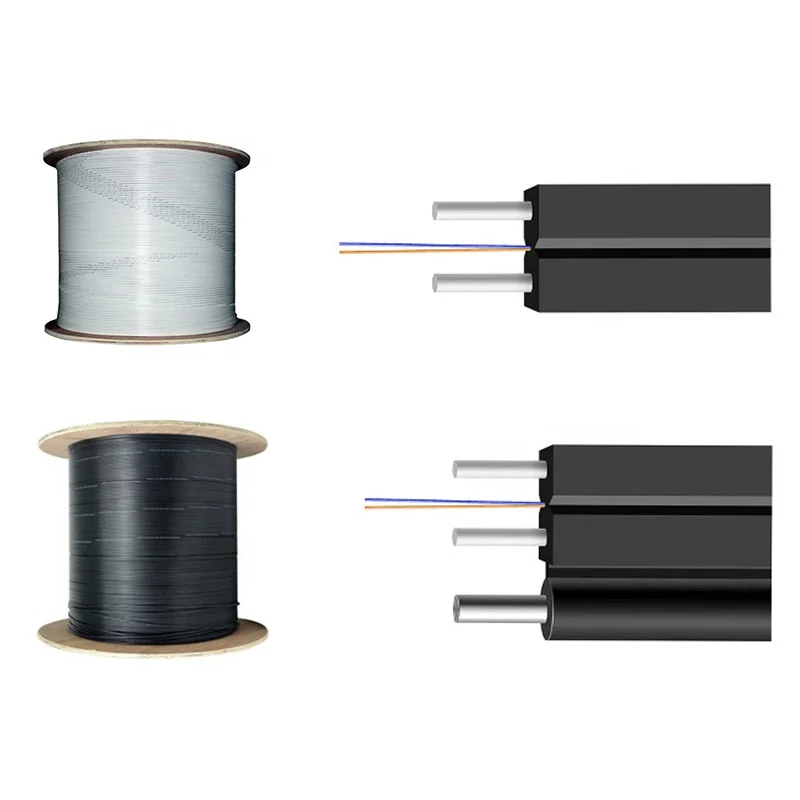

The FTTH drop cables are with flame retardant cable jacket and with supporting wire, this cable has strengthen members inside for supporting the whole body.
The FTTH drop cables are with flame retardant cable jacket and with supporting wire, this cable has strengthen members inside for supporting the whole body.

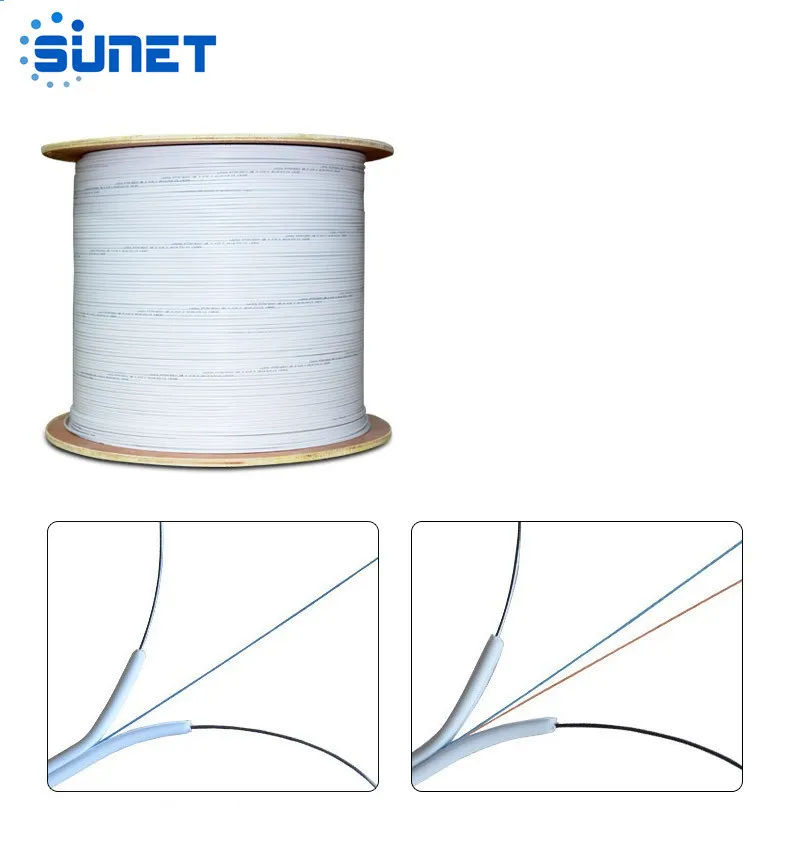

The drop ftth optical fiber cable is with special structure to easily pull the fibers out from the cables, the FTTH drop cables are ideal to use for direct installation into the rooms, especially good for being used in homes and offices.
Features:
- Suitable for indoor or duct application
- Easy jacket removal without special tools
- Self-support structure
- Excellent crush and impact resistance
- Flame Retardant LSZH jacket is applied
- ITU-T G.657 fiber is available
- Available from 1 to 8-fiber counts

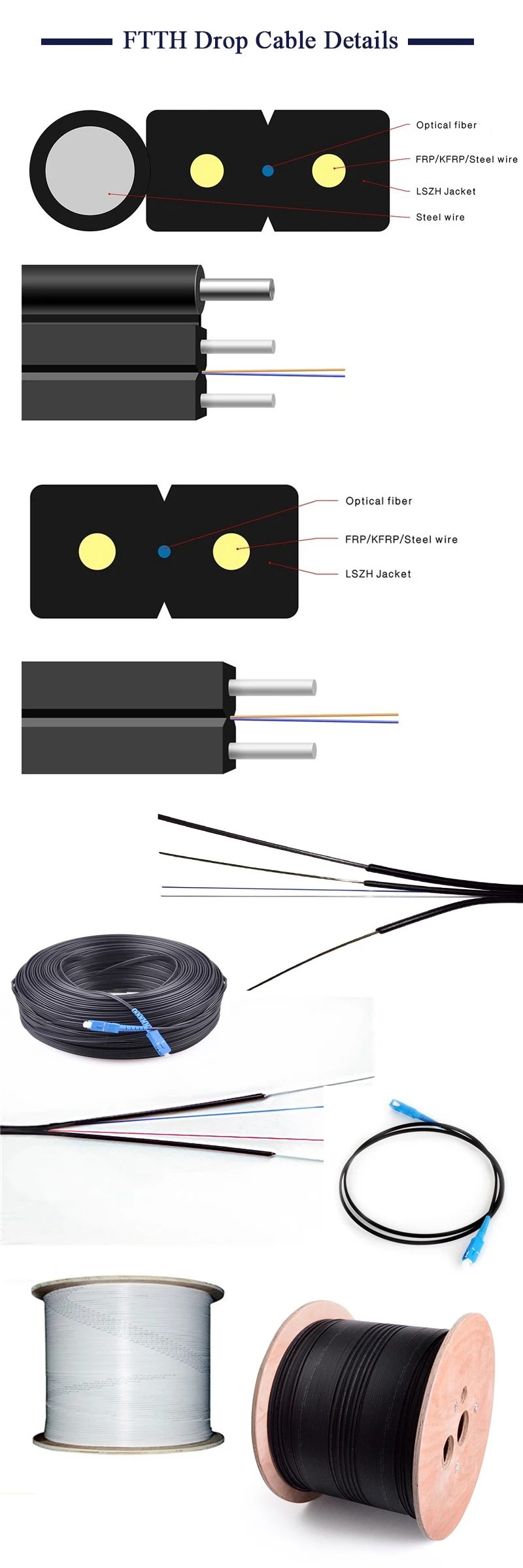

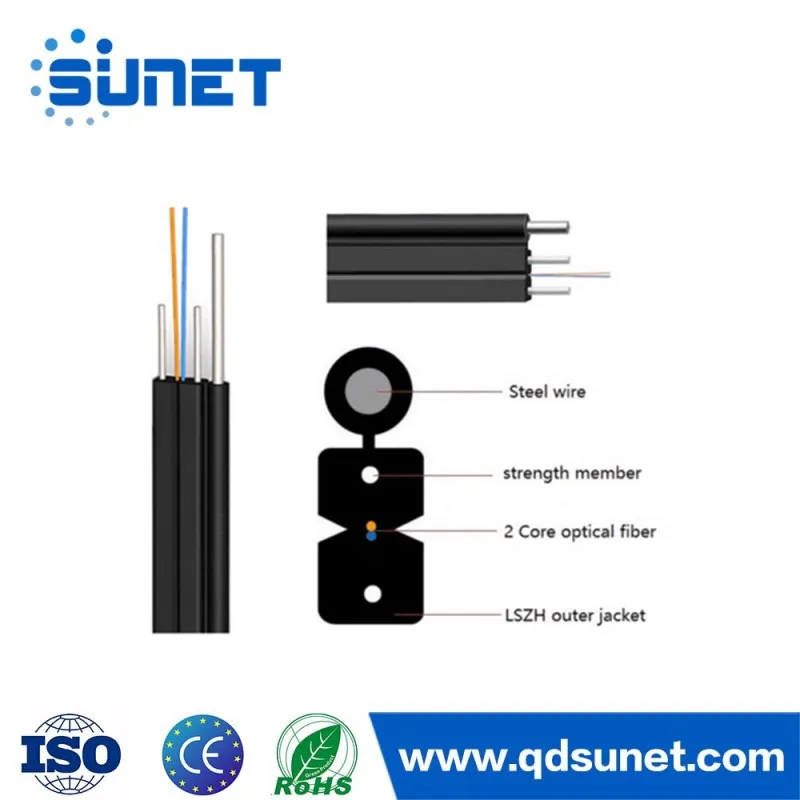

Specification
Items | Specifications | ||
Fiber Count | 2 | ||
Colored Coating Fiber | Dimension | 250mm±15μm | |
Color | Blue,Orange | ||
Tight buffer | 0.9mm Tight buffer no jelly | ||
Supporting messenger wire | Dimension | 0.33* 7 | |
Material | Galvanized steel wire strands | ||
Strength member | Dimension | 0.45mm±0.10 | |
Material | FRP (or steel wire) | ||
Outer Jacket | Material | PVC | |
Color | Black | ||
Cable Diameter dimensions | 2.0( Height) × 5.3 W ± 0.1 mm(width) | ||
Fiber Count | Cable Diameter (mm) | Cable Weight (kg/km) | Tensile Strength (N/100mm) | Crush Resistance (N/100mm) | |||
Short Term | Long Term | Short Term | Long Term | ||||
1-4 | 5.2*2.0 | 18 | 600 | 300 | 2200 | 1000 | |
6-12 | 3.0*9.0 | 27 | 1200 | 600 | 1100 | 500 | |

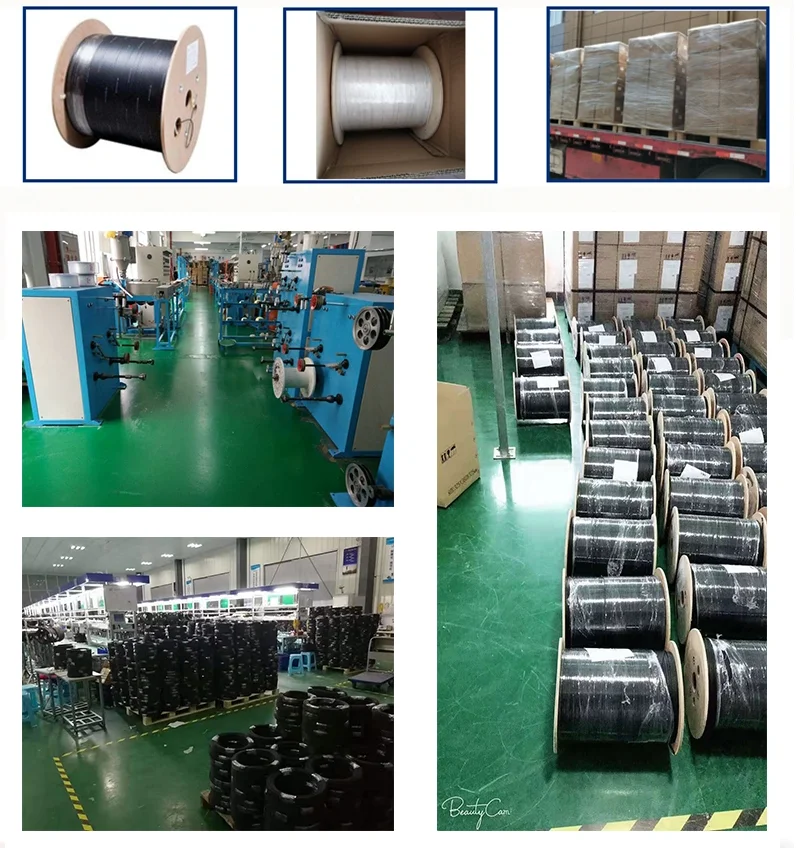

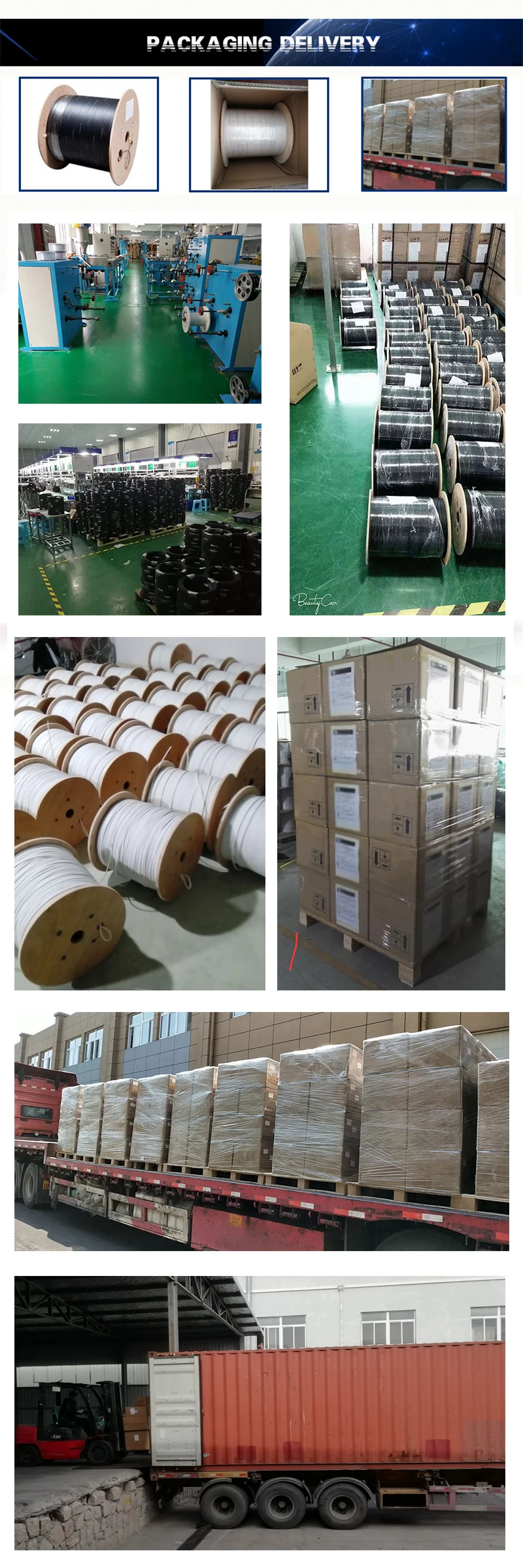

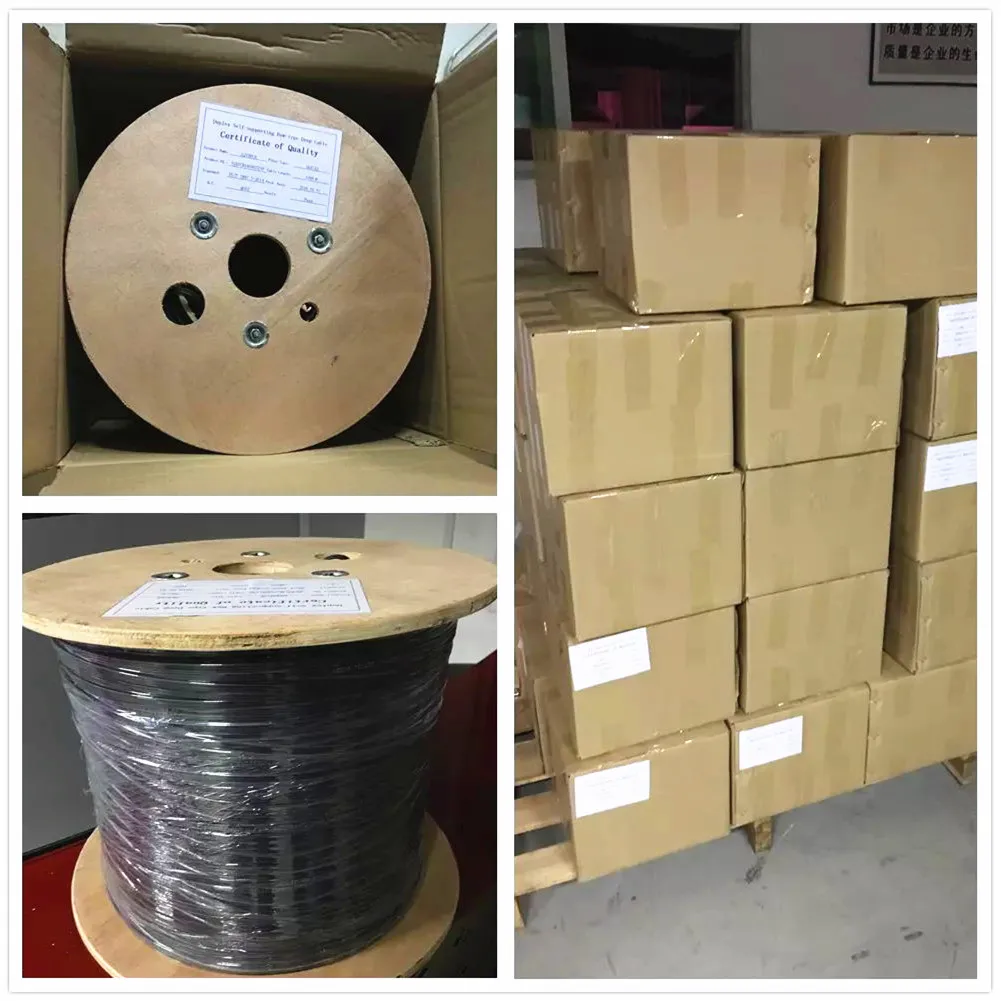

Packaging & Shipping
`
