High Quality Black Compression F connector RG6 Coaxial Cable
US $13.99-$75.20

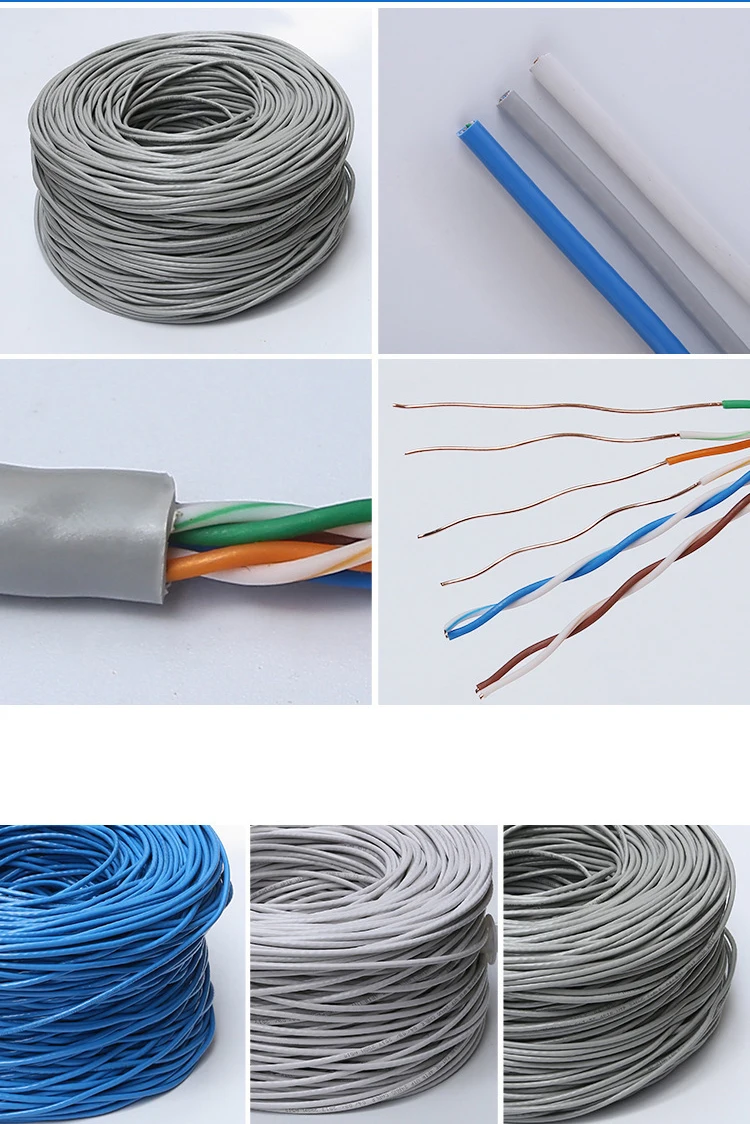

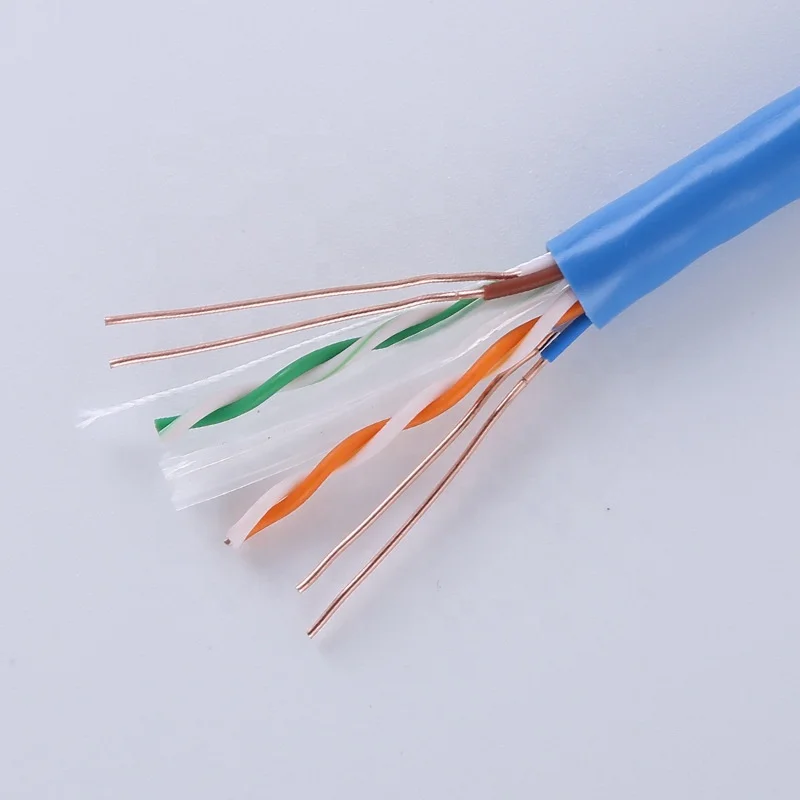

305 м (1000 футов) мощность через Ethernet alhua CCTV система безопасности UTP CAT6 кабель
- Category: Communication Cables >>>
- Supplier: Shenzhen Guowei Security Electronic Co. Ltd.
Share on (1600608138329):
Product Overview
Description
Product Description
Specification
Brief specifications for a quick acknowledge of this item, for further detailed parameters or technical consult, please feel free to contact us at HERE.

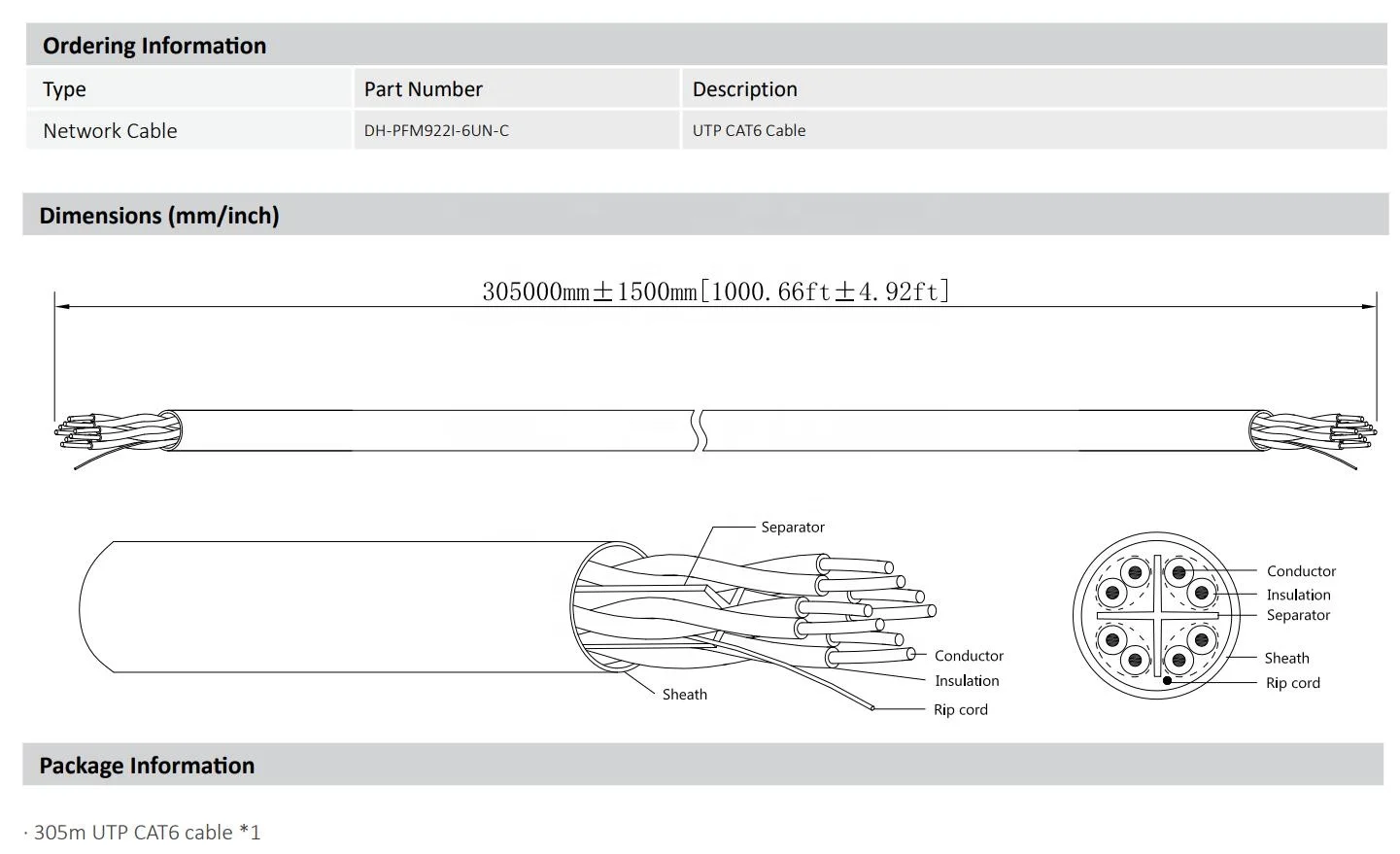

Conductor | ||
Material | CCA(Copper content 22%–31%) | |
Diameter | 0.57 mm ± 0.01 mm | |
American Wire Gauge | 23AWG | |
Insulation | ||
Material | HDPE | |
Min. Average Thickness | 0.21 mm | |
Diameter | 1.02 mm ± 0.06 mm | |
Color (4 Pairs) | Blue, white/blue; orange, white/orange; green, white/green; brown, white/brown | |
Separator | ||
Material | PE | |
Specification | Translucent 4.5 × 0.4 mm | |
Rip Cord | ||
Material | Polyester | |
Specification | 500D | |
Sheath | ||
Material | PVC | |
Min. Average Thickness | 0.5 mm | |
Diameter | 6.5 mm ± 0.3 mm | |
Color | Orange | |
Electrical | ||
Max. DC Resistance of a Single Conductor | 11.5Ω/100 m | |
Min. Insulation Resistance | 5000MΩ·km | |
Max. DC Resistance Unbalance | 2% (pair intra), 4% (pairs inter) | |
Dielectric Strength | No breakdown with 1KV DC for 1 min | |
Transmission | ||
Characteristic Impedance | 100 ± 15Ω | |
Near End Cross Talk | ≥39.30 dB/100 m@250 MHz | |
Max. Attenuation | 34.8 dB/100 m@250 MHz | |
Return Loss | ≥17.3 dB/100 m@250 MHz | |
Mechanical | ||
Tensile Strength | Sheath≥13.5 MPa, insulation≥16 MPa | |
Elongation at Break | Sheath≥150%, insulation≥300% | |
Installation Bending Radius | >8 times of outer cable diameter | |
Conductor Elongation at Break | ≥10% | |
Environmental | ||
Shrinkage of Insulation | ≤5% | |
Color Migration Resistance of Insulation | No migration | |
Sheath Tensile Strength and Elongation at Break after Aging | ≥12.5 MPa, ≥100% | |
Low Temperature Bending Test | No cracking after the test | |
Heat Shock Test | No cracking after the test | |
Operation Temperature | –20°C to +60°C (–4°F to 140°F) | |
Installation Temperature | 0°C to +50°C (32°F to 122°F) | |
Storage Temperature and Humidity | –10°C to +40°C (14°F to 104°F), <60% (RH) | |
Security | ||
Vertical Fire Propagation Test | Comply with IEC 60332-1-2 | |
Packaging | ||
Length | 305.0 m (1000.66 ft) ± 1.5 m (4.92 ft) | |
Packaging Dimensions | 390.0 mm x 390.0 mm x 247.0 mm (15.37"x15.37"x9.73") (L × W × H) | |
Packaging Method | 305.0 m (1000.66 ft) a carton, one protection carton with 2 cartons inside | |
Net Weight | ≥9.2 kg (20.28 lb) | |
Gross Weight | ≥10.2 kg(22.49 lb) | |
Executive Standard | ||
Executive Standard | Q/DXJ 067-2019 | |
Certification | ||
Certification | CPR Eca | |
Package and Delivery
We pack the goods well just make sure our customer receive all items in good condition.
Regular cameras and DVR/NVRs will have good enough foam protected. LCD monitor or LCD Display wall will be packed by poly-wooden box, making these fragile goods be well protected.

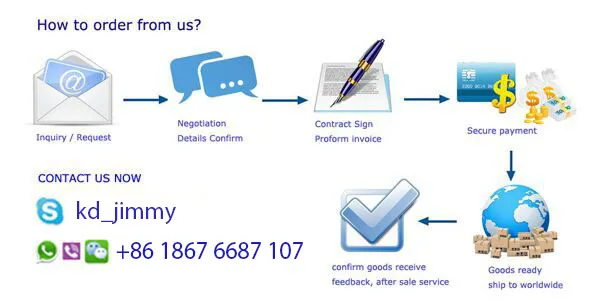

How to order from us
Why Choose Us
Our company
As a professional project-base structure designed hd cctv camera manufacturer, GWSecu had passed ISO9001-14001 quality management system authentication, all products have been successfully certificated by CE, FCC, ROHS.
We're also DH distributor for the brand products as always. Origin English firmware version and 2 years warranty service. Welcome to contact us for more information.
What can we do for you?
A technical team to support continuous upgrade
Fast delivery within 1-10 working business day base on models in stock
16 years golden supplier with Alibaba Trade Assurance
OEM Service available to put your company brand on the products and package box
Successful Projects
1- This a Surveillance Projects installed in Melborne, Australia.
Customer preferred to have a long range visible 4K PTZ camera and people counting 4K Bullet camera. So we suggested DH-SD8A840-HNF-PA which is 8MP 4K 40X zoom with 500m laser IR and auto-tracking function, and IPC-HFW71242H-Z which is 12MP Wizmind Series with face recognition, people counting, ANPR etc intelligent AI camera. Besides that, there also other accessories like PoE switch, camera bracket and cables suggested to customer. The whole system running very well.
Company Introduction
About us
Shenzhen Guowei Security Co., ltd is a national high-tech enterprise that integrates the design, development, production and sales of video surveillance products.
As a member of Onvif, our IP Camera and NVR have passed international ONVIF Profile S standards, perfectly compatible with world-wide platform like Da Hua, Hik-vision, Milestone, Digifort etc.).
GWSecu Factory Show:
A: Raw Materials
Raw Materials sourced from trusted suppliers. Main raw materials like sensor, chipset, lens and infrared lights. We source from Sony, Ti and Aptina directly.
B: Assembling
As ISO certified CCTV factory, we have a management system in conformity with 6S in manufacturing management. We have all kinds of production and inspection equipment to ensure product quality.
C: Quality Test
GWSecu invests abundant capital in advanced testing equipments to ensure products quality.
Test including: Waterspray test, Constant temperature and moisture test, Transportation simulation test,Salt spray test.
D: OEM & ODM
Customer LOGO can be printed on goods/color box/labels upon confirmed.
Worldwide Customer
We attend worldwide exhibitions in Dubai, Las Vegas, Moscow, London, Germany, Thailand, South Africa. "Honest" and "Sincerity" is the principle we serve the customers.
Company Culture
Along with the experience of 17 Years Alibaba verified supplier, GWSECU had been dedicated in CCTV Security industrial for more than 20 years. We had an experienced team with great enthusiasm and professional spirit for CCTV Surveillance systems.
We had online technical support and experience in helping customer for different projects suggestion and recommendation. Looking forward to your inquiry!
FAQ & Contact Me
1- How do you I know your products are genuine?
We offer DH origin English firmware products, same web GUI, Smart PSS, Configtool software.
2- What service can I have?
We offer 2 years warranty service.
3- If I want firmware to upgrade, can you provide?
Yes. We can offer latest firmware for your future upgrading.
But normally we don't suggest as firmware upgrade with risks, unless the products with technical issue and need update.
4- Can we test sample before ordering?
Yes sure. We accept sample order and PayPal payment.
5- Do you offer OEM service for DH products?
It depends. We can print your brand in our factory. But don't offer web page OEM.
6- What will be your technical support?
We have engineers online to support, like skype or teamviewer remotely.
