Волоконно оптический кабель (1600755594224)

Share on:


Price:20,50 $ - 23,80 $
Price in USD:Details

Quantity:


Product Overview

Description

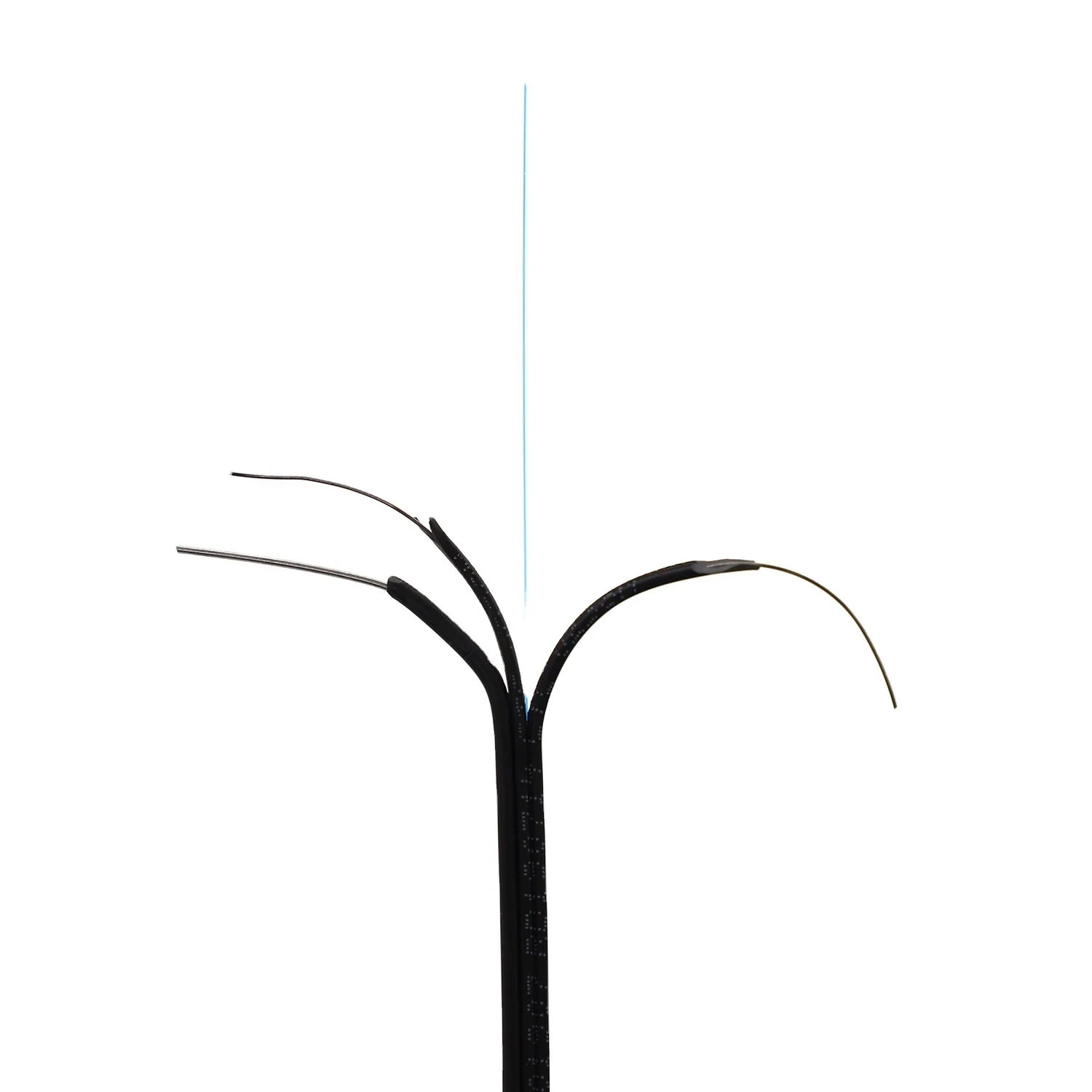

Description:The FTTH drop cables are with flame retardant cable jacket and with supporting wire, this cable has strengthen members inside for supporting the whole body.

The drop ftth optical fiber cable is with special structure to easily pull the fibers out from the cables, the FTTH drop cables are ideal to use for direct installation into the rooms, especially good for being used in homes and offices.Features:- Suitable for indoor or duct application
- Easy jacket removal without special tools
- Self-support structure
- Excellent crush and impact resistance
- Flame Retardant LSZH jacket is applied
- ITU-T G.657 fiber is available
- Available from 1 to 8-fiber counts
Specification




























































 Items



 Specifications



 Fiber Count



2






Colored Coating Fiber



 Dimension



250mm±15μm



 Color



Blue,Orange



Tight buffer



0.9mm Tight buffer no jelly



Supporting messenger wire



Dimension



0.33* 7



Material



Galvanized steel wire strands



Strength member



Dimension



0.45mm±0.10



Material



FRP (or steel wire)



Outer Jacket



 Material



PVC



 Color



 Black



Cable Diameter dimensions



2.0( Height) × 5.3 W ± 0.1 mm(width)













































Fiber Count


Cable Diameter
(mm)


Cable Weight
(kg/km)



Tensile Strength

(N/100mm)



Crush Resistance
(N/100mm)


Short Term


Long Term


Short Term


Long Term


1-4


5.2*2.0


18


600


300


2200


1000


6-12


3.0*9.0


27


1200


600


1100


500





Product Description




















Qilogies-Co-Ltd- (5).jpg

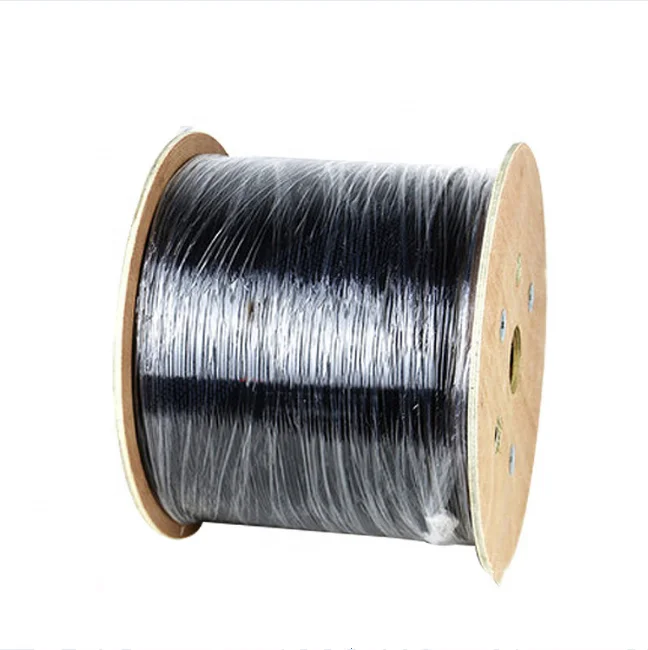

Drop Cable2_QQ20210317135324


















































1600755594224
