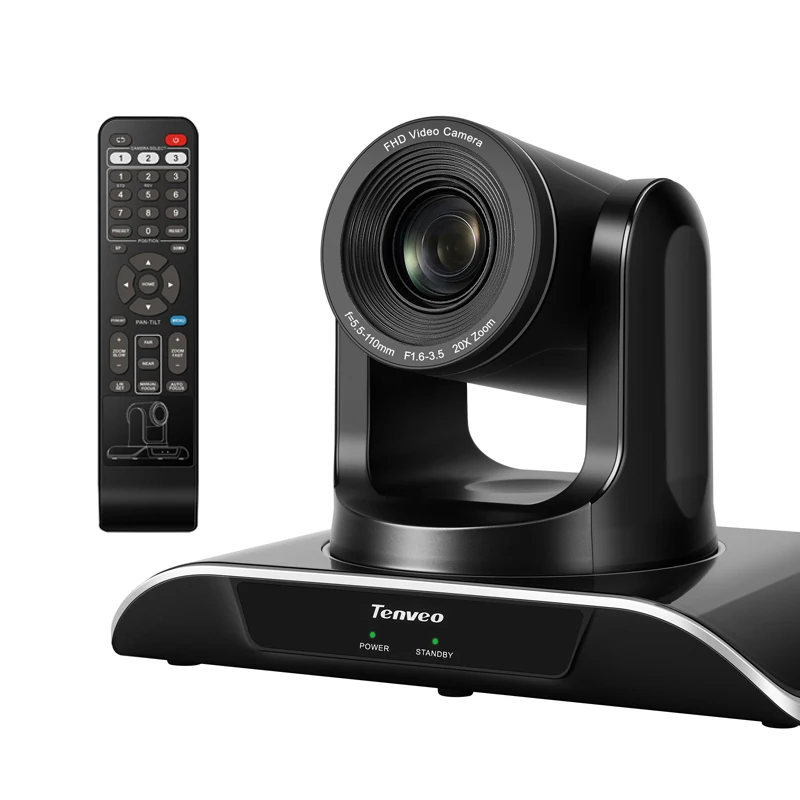

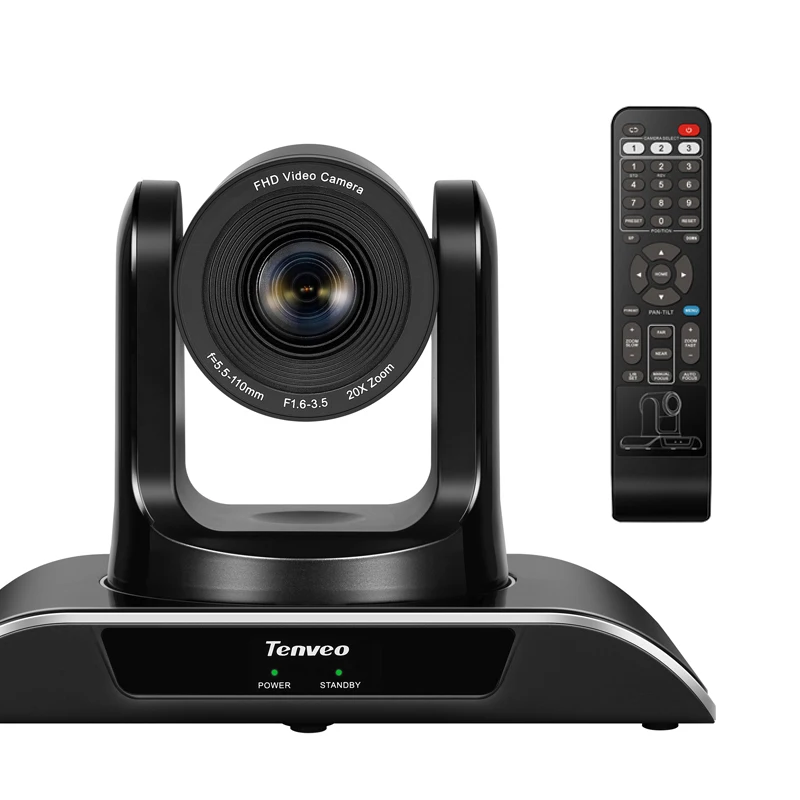

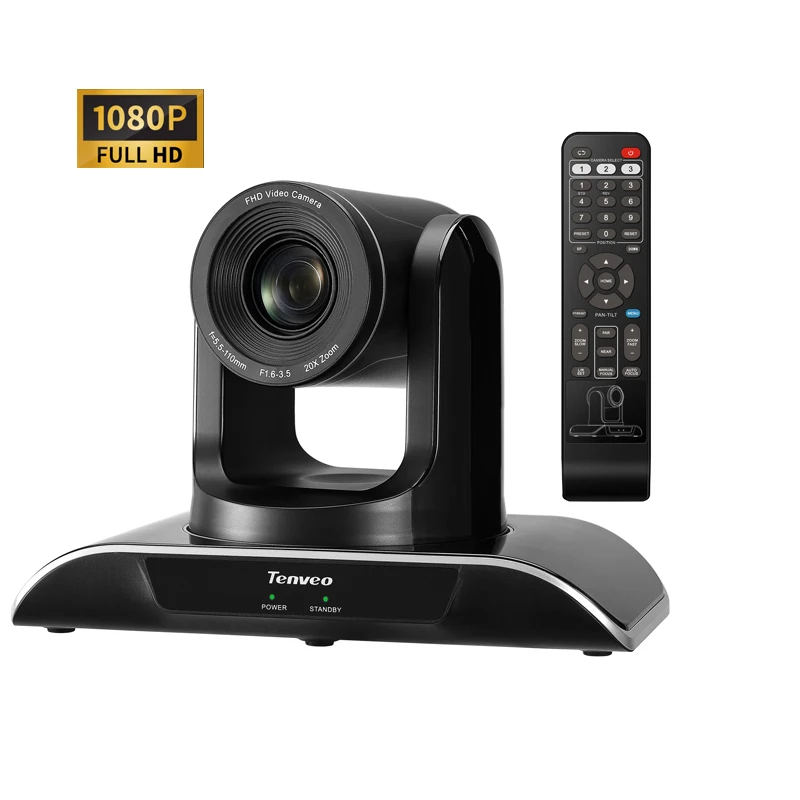

VHD202U 1080P RS485/RS232 keyboard control remote control PTZ 20x usb conference camera
- Category: >>>
- Supplier: Sz Tenveo Video Technology Co. Ltd.
Share on (1600426847514):
Product Overview
Description
Products Description
Main Features
* 20x optical zoom，Sleek and intelligent design, Plug & Play USB2.0 Connectivity
* Crystal clear HD1080P image quality，Wide field of view with no video distortion
* Preset: 9 via IR remote setting (256 via RS232)
* 1/2.9 inch high quality, 2.1MP (16:9) CMOS
sensor
sensor
* Superior quality with Full Glass Lens Material * Support ceiling mount, wall mount and tripod mount (Reverse mountable)
*2D and 3D NR for best video quality in different lighting conditions
* Support Visca, Pelco-P, and Pelco-D protocol, RS232/RS485 Camera Control
Product Paramenters
Model | VHD202U USB PTZ camera |
Sensor | 1/2.9″HD color CMOS |
Effective pixel | 2.1 mega pixel |
Video signals | 1080p-30/25, 720p-30/25 |
Zoom | 20x optical zoom |
Lens | f=5.85~93.6mm |
Aperture | F1.8～F3.9 |
Horizontal angle | 55.4°(W)-3.55°(T) |
Vertial angle | 31.6°(W)-2.00°(T) |
Diagonal angle | 62.6°(W)-4.05°(T) |
Video output | USB 2.0 |
Video encoding format | MJPEG/YUY2/H.264 |
Video resolution | 1080P (1920 *1080) etc |
Siginal standard | NTSC/PAL |
Preset position | User can set up to 64 presets (IR remote 10 presets) |

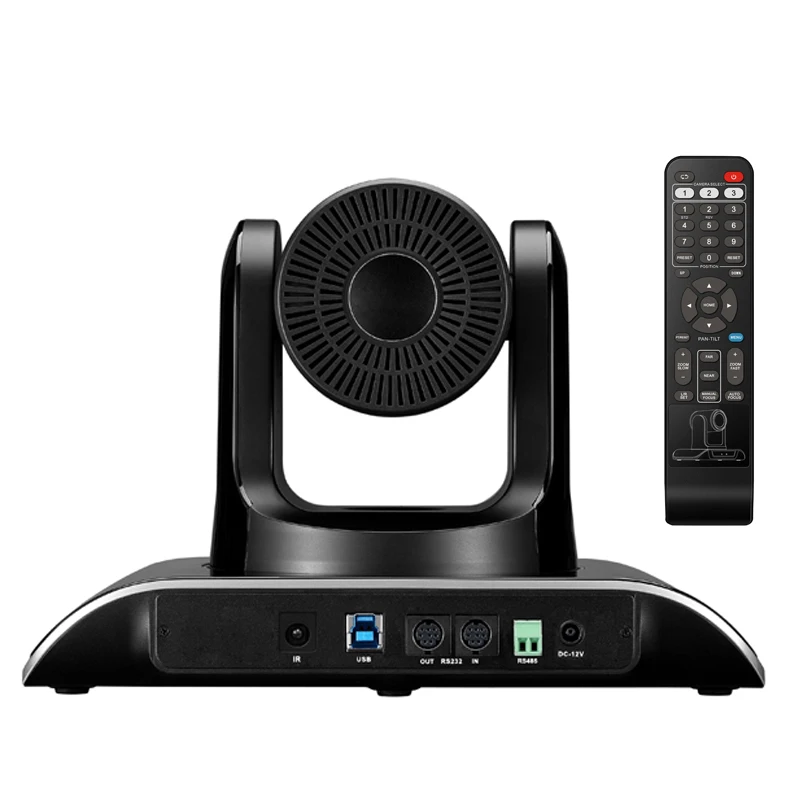

Control terminal | RS-232,RS485 |
Shutter | 1/30s～1/10000s, auto |
Baud rate | 38400/9600bps |
Control protocol | VISCA, PELCO-D, PELCO-P(RS-232, RS485) |
USB protocol | UVC1.1 |
Minimal Illumination | 0.1Lux |
SNR | ≥50dB |
Horizontal rotation | ≥50dB |
Vertical rotation | 180°（±90°）0.1°/s～80°s |
Power supply | DC 12V/2A |
Details Images
Full HD 1080P camera
1080p/30fps resolution makes the image clearer
20X optical zoom camera. Focus on the people in the meeting,like a face-to-face conversation, and improve work effeciency
10 preset positions. The IR remote can adjust(0-9) preset positions and return to the set position with one button, make the meeting more convenient.
General compatibility. Compatible with all popular applications and cloud system
Application Scenarios

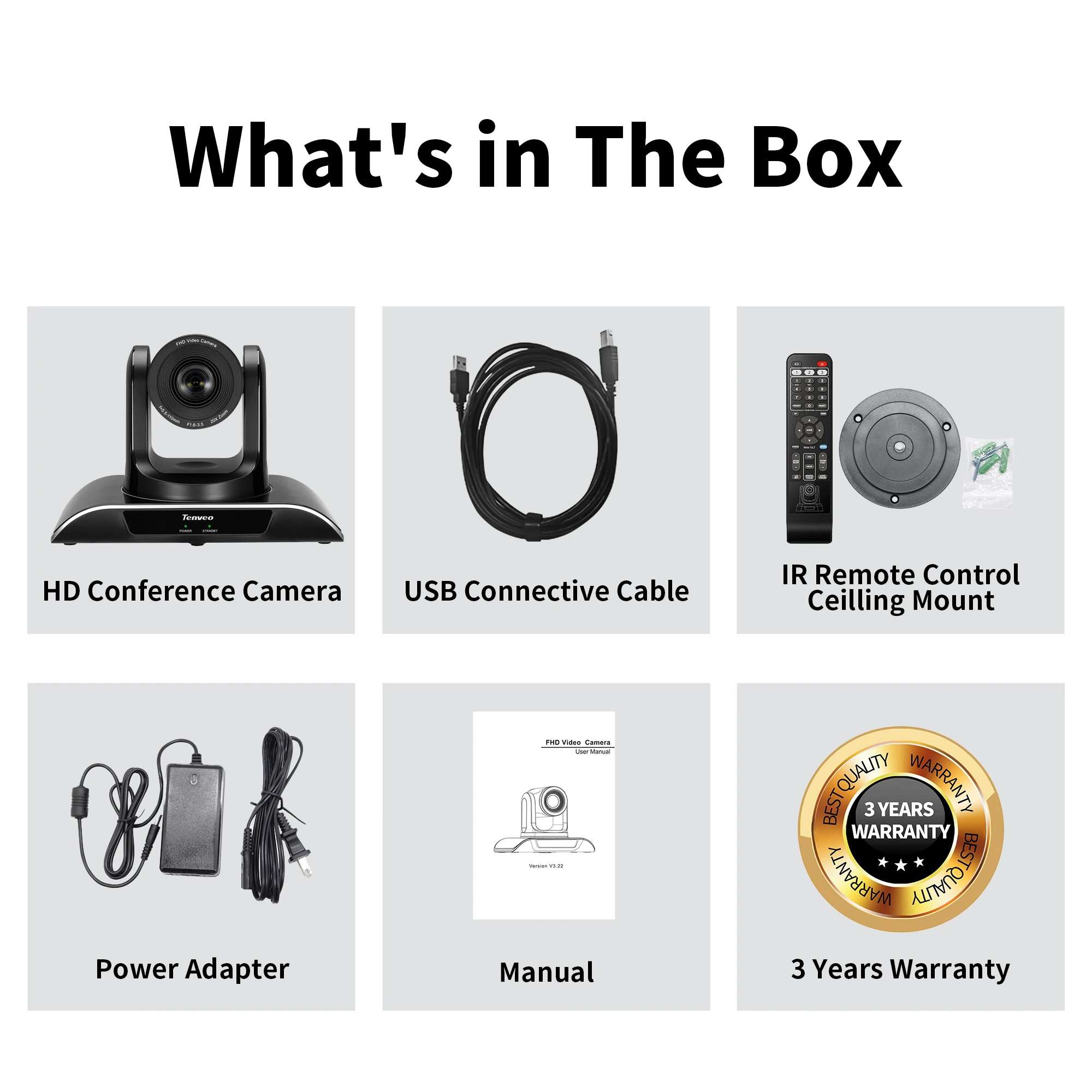

Product Packaging & Shipping
Company Profile
FAQ
Q1: Which kind of software does your camera compatible with?
A:Our cameras are compatible with WebEx, Skype for business ,Zoom, Join me, Vidyo, Lync, Gotomeeting, Blue Jeans, Cisco, Vmix, etc.
Q2: Is your video conferencing camera quality certified?
A: Yes. We can provide the professional certificates for our video conferencing camera, like FCC, CE, ROHS, CSA, etc.
Q3:What kind of cameras should I use?
A: It depends on your meeting room spaces, we provide entry-level cameras for huddle rooms,and we also provide 3x, 10x, 20x and 30x PTZ cameras for larger meeting rooms.
Q4:Is it easy to operation?
A:Yes, easy to Plug-in, Driver free, Plug&Play
Q5 :What is your payment term?
A: We accept Paypal, WU, T/T, L/C at Sight and Alibaba Trade Assurance.
Q6:What is your warranty period?
A: The warranty period is 2 years
Q7:Can I put my own logo on products?
A:Yes,We Provide OEM/ODM service, We accept customer’s design, logo,lable,package .etc
Q8: How about your delivery time?
A: We have Samples in stock for the same day shipping, For bulk order, Please contact us for the delivery time.
Q9:Do you test all your video conferencing camera before delivery?
A: Yes, We have a complete quality assurance control system to ensure full-quality products before delivery.
Q10: Can the camera be mounted upside down on the ceiling?
A: The PTZ conference camera is designed for an upright, vertical orientation and installation on a flat, level surface or tripod. The webcam support the desktop, tripod and PC.
A:Our cameras are compatible with WebEx, Skype for business ,Zoom, Join me, Vidyo, Lync, Gotomeeting, Blue Jeans, Cisco, Vmix, etc.
Q2: Is your video conferencing camera quality certified?
A: Yes. We can provide the professional certificates for our video conferencing camera, like FCC, CE, ROHS, CSA, etc.
Q3:What kind of cameras should I use?
A: It depends on your meeting room spaces, we provide entry-level cameras for huddle rooms,and we also provide 3x, 10x, 20x and 30x PTZ cameras for larger meeting rooms.
Q4:Is it easy to operation?
A:Yes, easy to Plug-in, Driver free, Plug&Play
Q5 :What is your payment term?
A: We accept Paypal, WU, T/T, L/C at Sight and Alibaba Trade Assurance.
Q6:What is your warranty period?
A: The warranty period is 2 years
Q7:Can I put my own logo on products?
A:Yes,We Provide OEM/ODM service, We accept customer’s design, logo,lable,package .etc
Q8: How about your delivery time?
A: We have Samples in stock for the same day shipping, For bulk order, Please contact us for the delivery time.
Q9:Do you test all your video conferencing camera before delivery?
A: Yes, We have a complete quality assurance control system to ensure full-quality products before delivery.
Q10: Can the camera be mounted upside down on the ceiling?
A: The PTZ conference camera is designed for an upright, vertical orientation and installation on a flat, level surface or tripod. The webcam support the desktop, tripod and PC.
