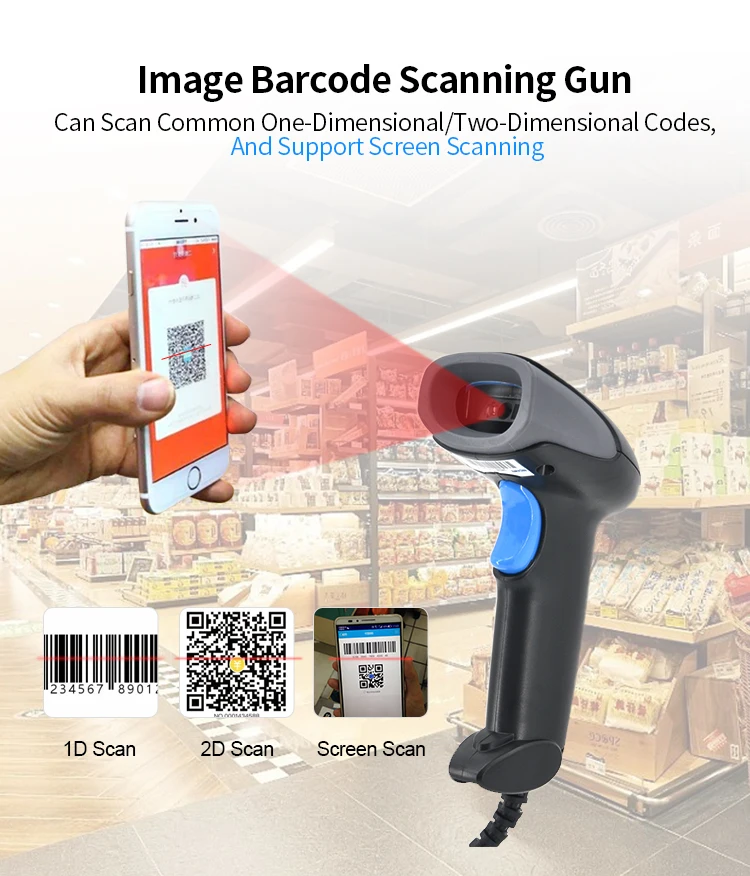

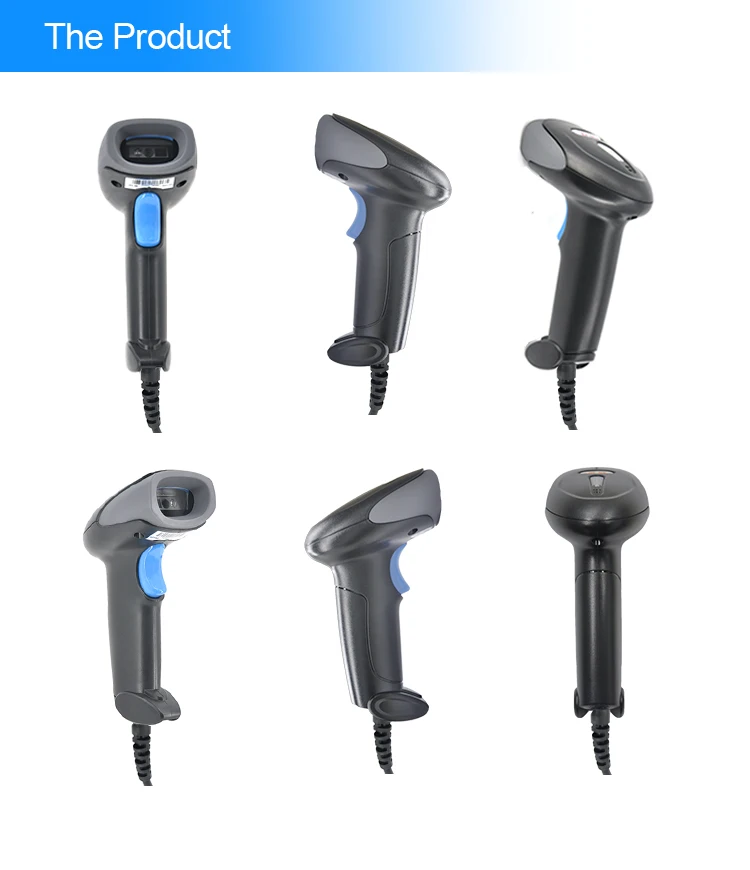

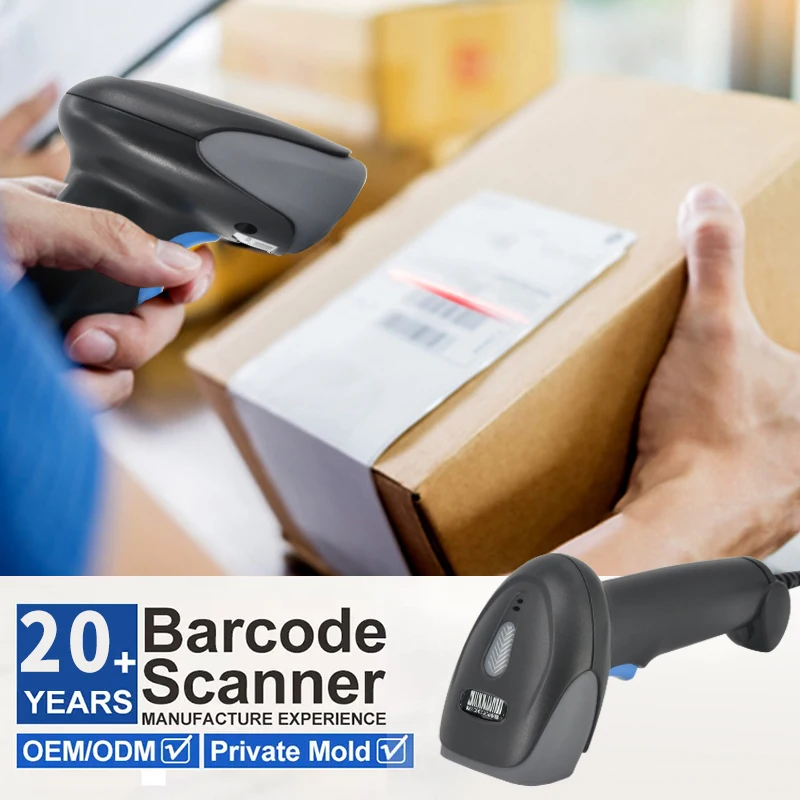

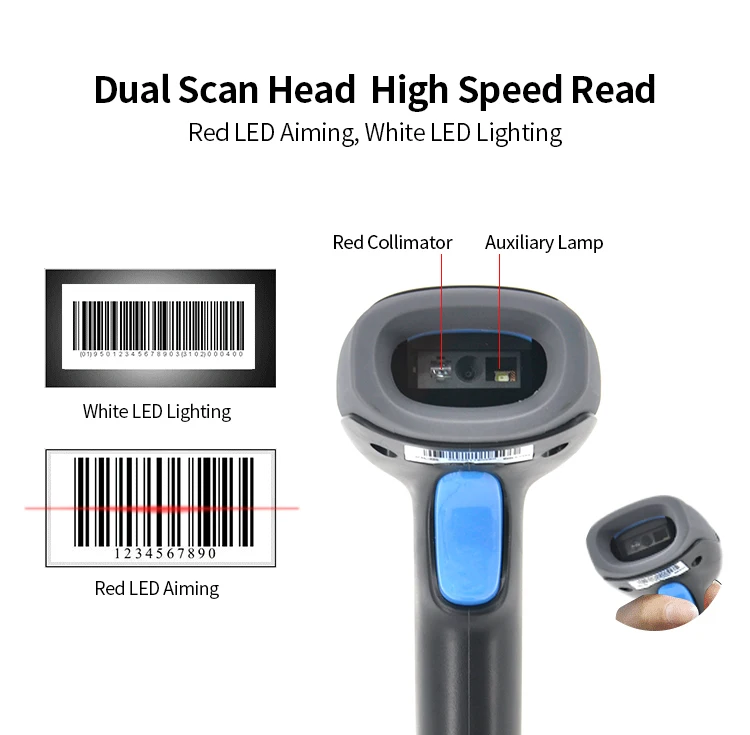

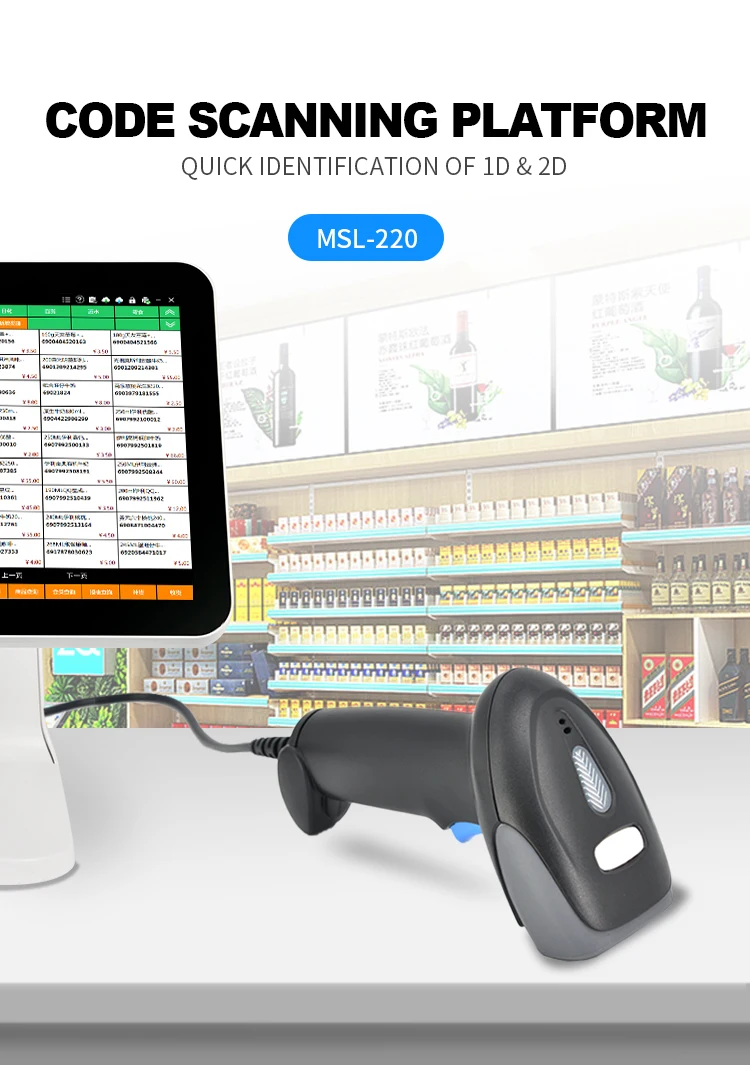

MSL 220 Supermarket USB Handheld Portable Wired Barcode Scanning Gun BT 1D/2D QR Bar Code Reader 1D 2D Laser Barcode Scanners
- Category: Scanners >>>
- Supplier: Guangzhou Jiashangjia Intelligent Technology Co. Ltd.
Share on (1600428596059):
Product Overview
Description
Products Description
Product name | MSL-220 |
Image Sensor | CMOS |
Capture light source | 617nm LED |
Illumination source | 6500KLED |
Sensitivity | Rotate 360° deflection ±35° tilt ±45° |
Minimum contrast | 30% |
Resolution | 300dpi(640*480) |
Reading code system 1D | 1D: UPC/EAN, UPC/EAN with supplementals, BooklandEAN, ISSN, UCC Coupon ExtendedCode, Code 128, GS1-128, ISBT 128, Code 39, Code 39 Full ASCII, Trioptic Code 39, Code 32, Code 93,Code 11, Matrix 2 of 5, Interleaved 2 of 5, Discrete 2 of 5,Codabar, MSI, Chinese 2 of 5, GS1 DataBar variants, Korean 3 of 5,ISBT Concat |
Reading code system 2D | 2D: QR Code,PDF417, Data Matrix |
Voltage | 5V DC ± 20% |
Current | 190mA during scanning / 10mA during standby |
Size | 170mm(L)x 60mm(W)x95mm(H) |
Material | ABS |
Weight | 165g (including cable) |
Interface | USB (RS-232 optional) |
Line length | 150cm |

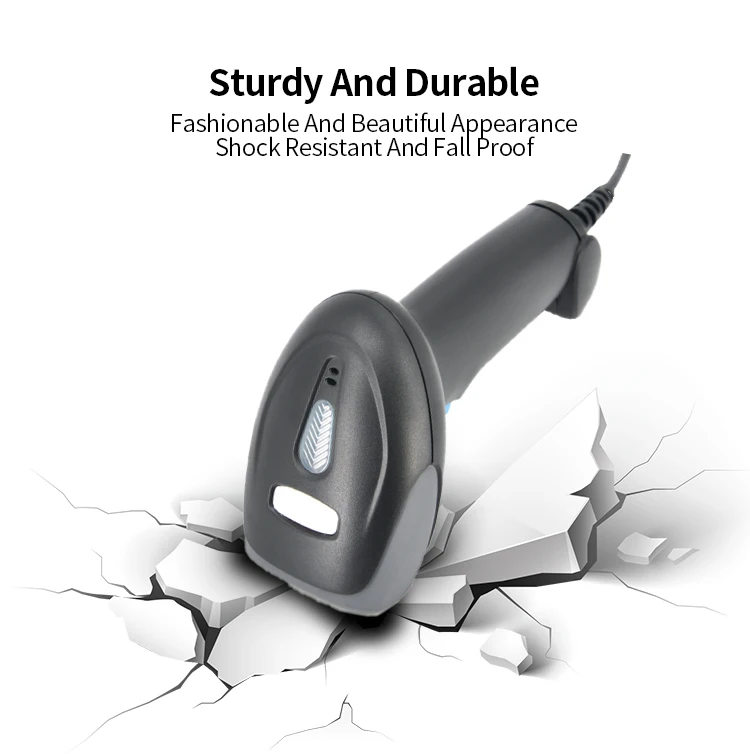

Seismic resistance | Resistance to 1m free fall on concrete floor |
Working temperature | -20℃~50℃ |
Storage temperature | -40℃~70℃ |
Working humidity | 5% to 95% |
Ambient light | 0~86,000lux%~98% |
Additional
Company Profile

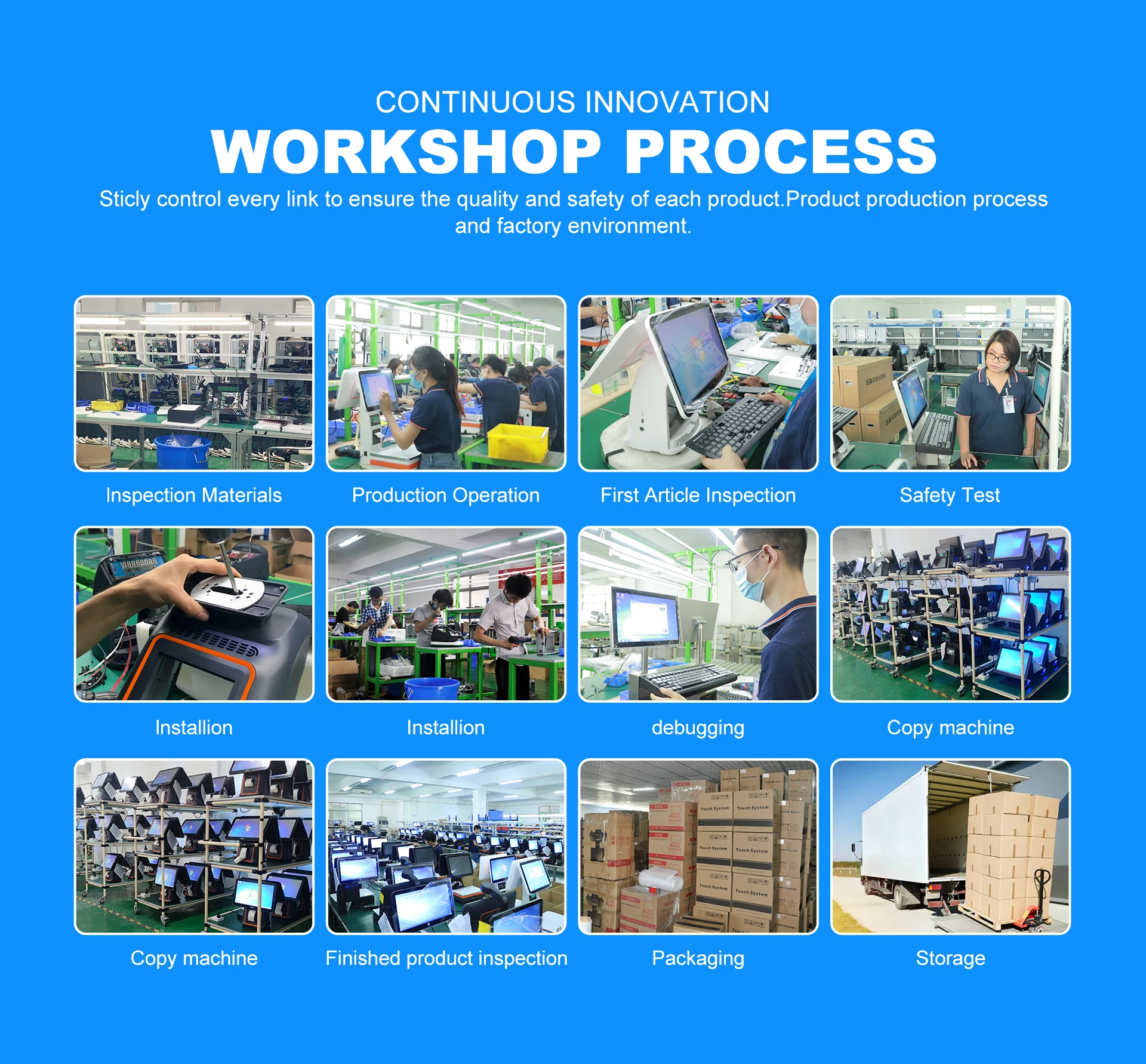

Workshop
Exhibition
Certifications

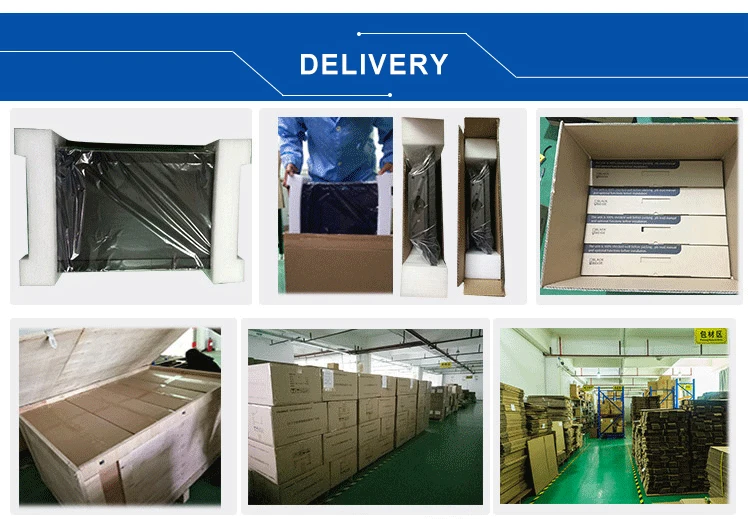

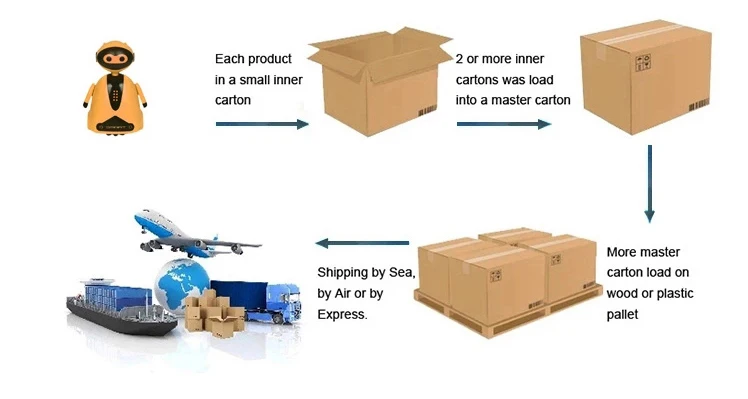

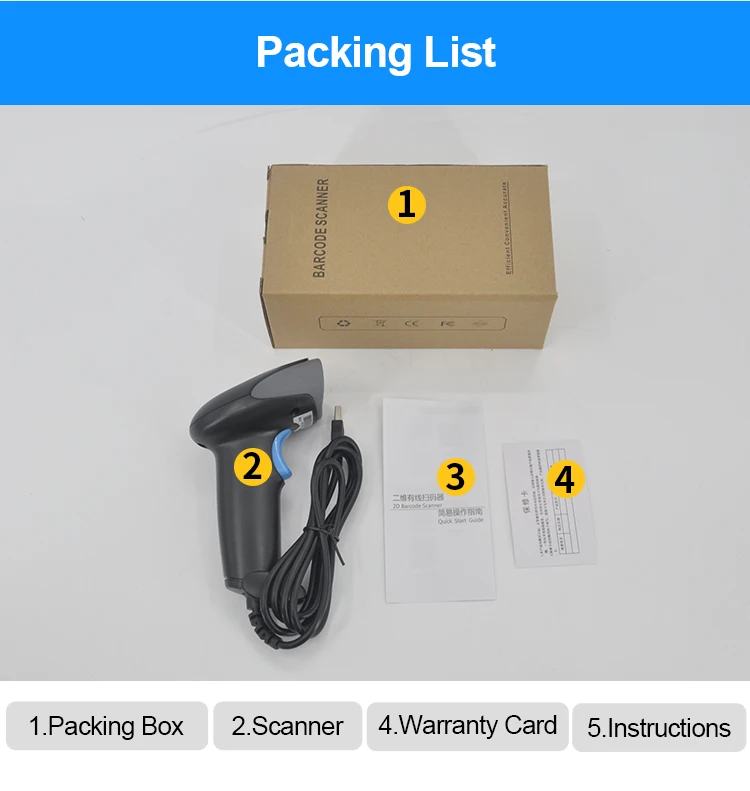

Product packaging
FAQ
Q: How about your product quality?
A: Our cumulative shipments is more than 600,000 pieces. Trust the choice of many well-known companies.
And we suggest you buy sample for testing and comparison.
Q: How can I become your agent?
A: Welcome to become our agent. Please contact with our sales for application form for our evaluation.
Q: How to buy?
A: Contact with us, we or our agents in some regions will provide the products.
Q: What is the Minimum Order Quantity(MOQ)?
A: 1 pcs. twice sample orders are available.
Q: Can you provide SDK?
A: Yes. We will provide free SDK for all devices.
Q: How can you provide technical support?
A: 7*24 Online support. If necessary, on site support will be offered.
Q: What’s the lead time? (How long do you need to prepare my goods?
A: 4-7days for sample orders. 10-40days for mass production orders (based on different quantities).
Q: How will you deliver?
A: Decided by you. By air or by sea. In the mean time, we cooperate with international expresses
such as DHL, UPS, FedEx, TNT to enable our customers get their goods rapidly.
Q: How long do I need to wait before my goods arrive?
A: 7-9 days for air transportation, 4-6 days for international express. 20-40 days for sea transportation.
Q: What is the cost for your OEM service?
A: No need to pay extra for our OEM service if order qty over 1000pcs. Further discussion of other quantity.
Q: Can you offer ODM service?
A: Yes.We have more than 100 R&D staffs. And we have offered ODM services to top brands in the world.
Q: What payment methods do you accept?
A: T/T, Western Union, Paypal, etc.
Q: What is your warranty?
A: 12 months for main device, 6 months for accessories.
A: Our cumulative shipments is more than 600,000 pieces. Trust the choice of many well-known companies.
And we suggest you buy sample for testing and comparison.
Q: How can I become your agent?
A: Welcome to become our agent. Please contact with our sales for application form for our evaluation.
Q: How to buy?
A: Contact with us, we or our agents in some regions will provide the products.
Q: What is the Minimum Order Quantity(MOQ)?
A: 1 pcs. twice sample orders are available.
Q: Can you provide SDK?
A: Yes. We will provide free SDK for all devices.
Q: How can you provide technical support?
A: 7*24 Online support. If necessary, on site support will be offered.
Q: What’s the lead time? (How long do you need to prepare my goods?
A: 4-7days for sample orders. 10-40days for mass production orders (based on different quantities).
Q: How will you deliver?
A: Decided by you. By air or by sea. In the mean time, we cooperate with international expresses
such as DHL, UPS, FedEx, TNT to enable our customers get their goods rapidly.
Q: How long do I need to wait before my goods arrive?
A: 7-9 days for air transportation, 4-6 days for international express. 20-40 days for sea transportation.
Q: What is the cost for your OEM service?
A: No need to pay extra for our OEM service if order qty over 1000pcs. Further discussion of other quantity.
Q: Can you offer ODM service?
A: Yes.We have more than 100 R&D staffs. And we have offered ODM services to top brands in the world.
Q: What payment methods do you accept?
A: T/T, Western Union, Paypal, etc.
Q: What is your warranty?
A: 12 months for main device, 6 months for accessories.
