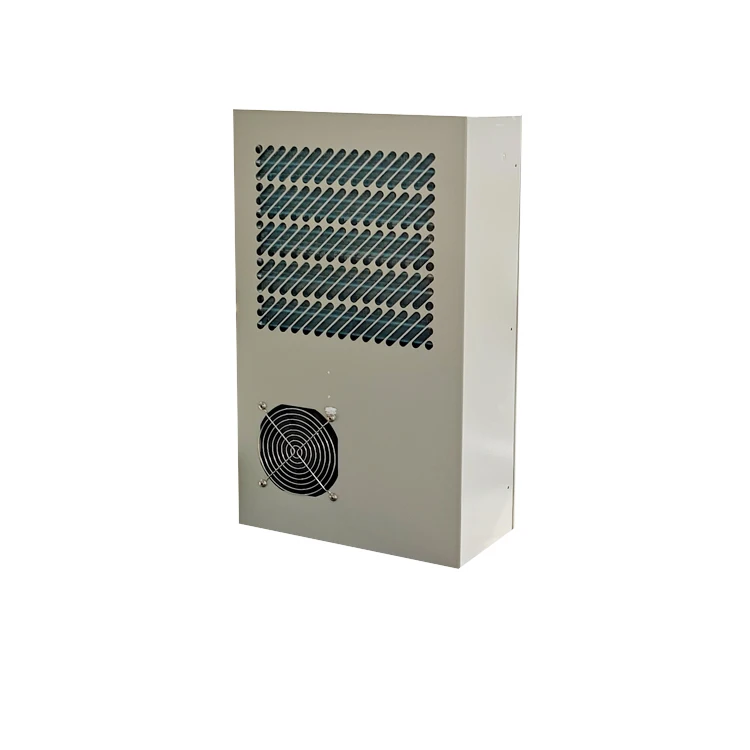

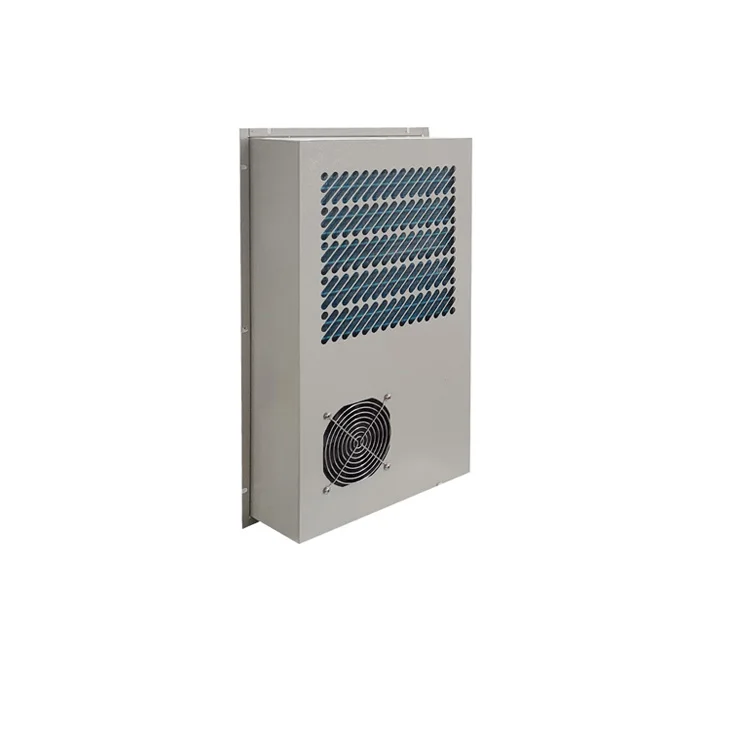

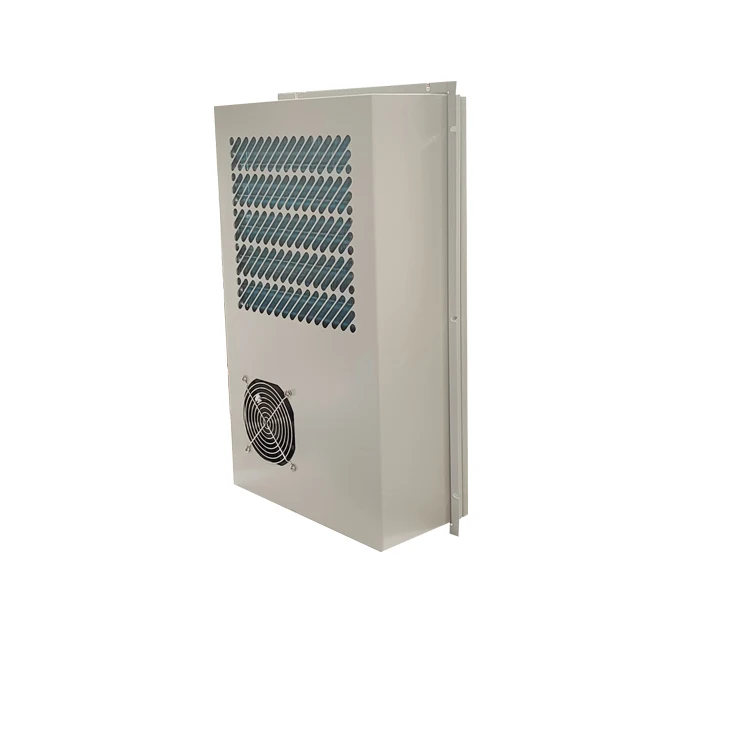

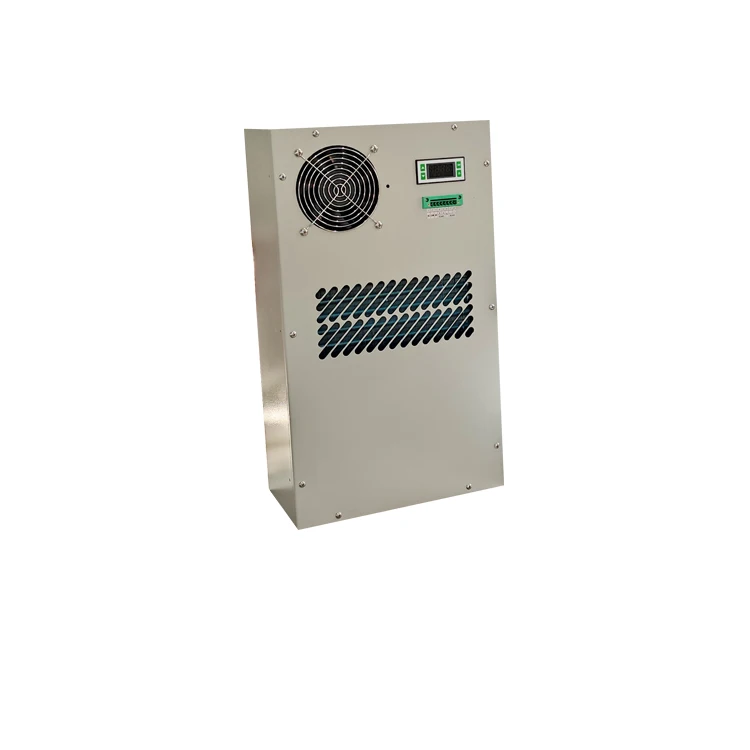

300W 48v DC small industrial air conditioner for telecom cabinet air cooler
- Category: Air Conditioners >>>
- Supplier: Suzhou Langji Technology Co. Ltd.
Share on (1600430273528):
Product Overview
Description
Product Description

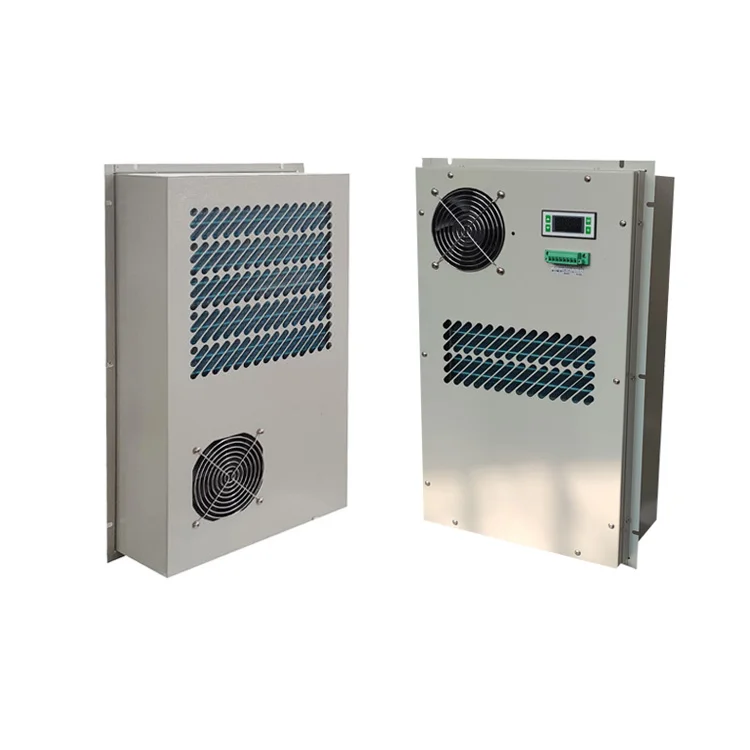

Cabinet air conditioner is actively cooling with compressor, and it will remove the heat inside the cabinet to outside. It also can keep the dust and heat outside the cabinet, avoiding problems from using fan. The inside cabinet can be maintained at an ideal temperature for electrical components which effectively guarantees the stability of the electronic equipment and improves the reliability of the whole system.
The hardware damage caused by the sudden failure of the control system, as well as the economic and reputation loss caused by the suspension of production, are huge. The cost of installing the cabinet air conditioner only accounts for a small part of the total equipment (set). The use of cabinet air-conditioning plays an important role in the safe operation of the entire equipment and prolonging the service life of the control system.
They are designed to maintain safe temperature levels for components inside an electrical enclosure and maintain optimal performance. The machine operates within a specified temperature range set by the manufacturer.
The hardware damage caused by the sudden failure of the control system, as well as the economic and reputation loss caused by the suspension of production, are huge. The cost of installing the cabinet air conditioner only accounts for a small part of the total equipment (set). The use of cabinet air-conditioning plays an important role in the safe operation of the entire equipment and prolonging the service life of the control system.
They are designed to maintain safe temperature levels for components inside an electrical enclosure and maintain optimal performance. The machine operates within a specified temperature range set by the manufacturer.
Product Features

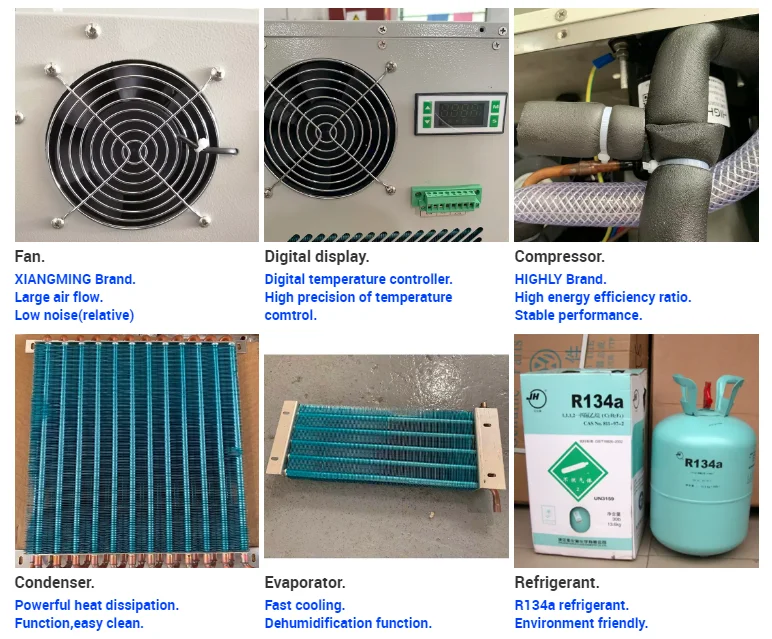

1. Compact structure, reasonable design and easy maintenance;
2. Widely used for outdoor telecom cabinets, battery cabinets, electric cabinets and industry control cabinets etc.
3. The protective level is IP55, can run at high ambient environment 55ºC.
4. Voltage range: AC220v, 50Hz/60Hz; AC110v, 60Hz; DC-48V.
5. Mounting: door, side and top mounted available.
6. Digital temperature controller and high precision of temperature control.
7. The refrigerant is R134a.The compressors are highly and panasonic.
8. CE certified, which can meet EU RoHS requirements.
Technical Data Sheet
Model | SDC103-1 |
Voltage | DC-48V |
Cooling capacity(L35/L35) | 300W |
Power Consumption(L35/L35) | 130W |
Power Consumption(L35/L55) | 160W |
Circuit max pressure | 26bar |
Refrigerant | R134a |
Working temperature | -20～55℃ |
Noise | 55dB |
Heating power(Optional) | 400W |
Weight | 16Kg |
IP Grade | IP55 |
Dimension(W×D×H) | 353×165×583mm |
Product Application
Cabinet air conditioner can be widely used in enclosed area for climate control, such as wireless communication cabinet,battery cabinet, industry control cabinet etc.
