Lowest price mini 5v 12v 24v led rgb rgbw lighting controller xlr dmx 512

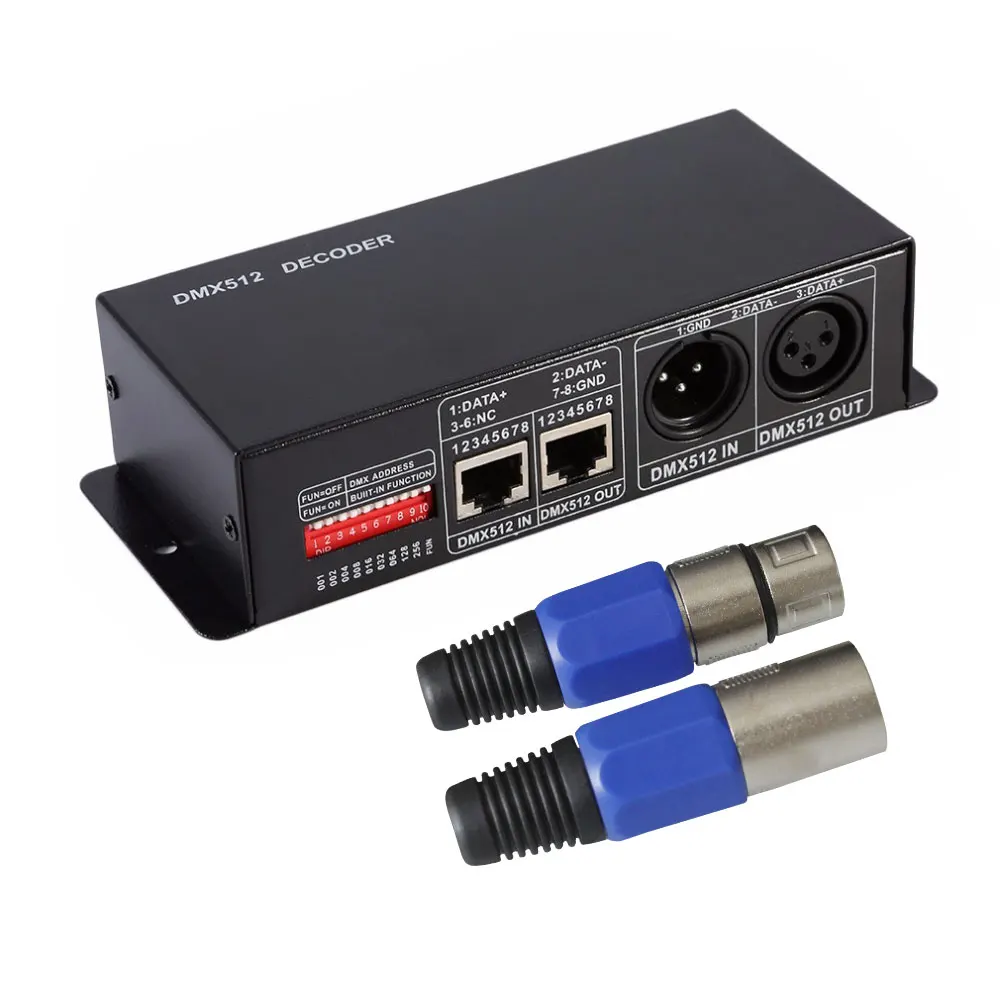

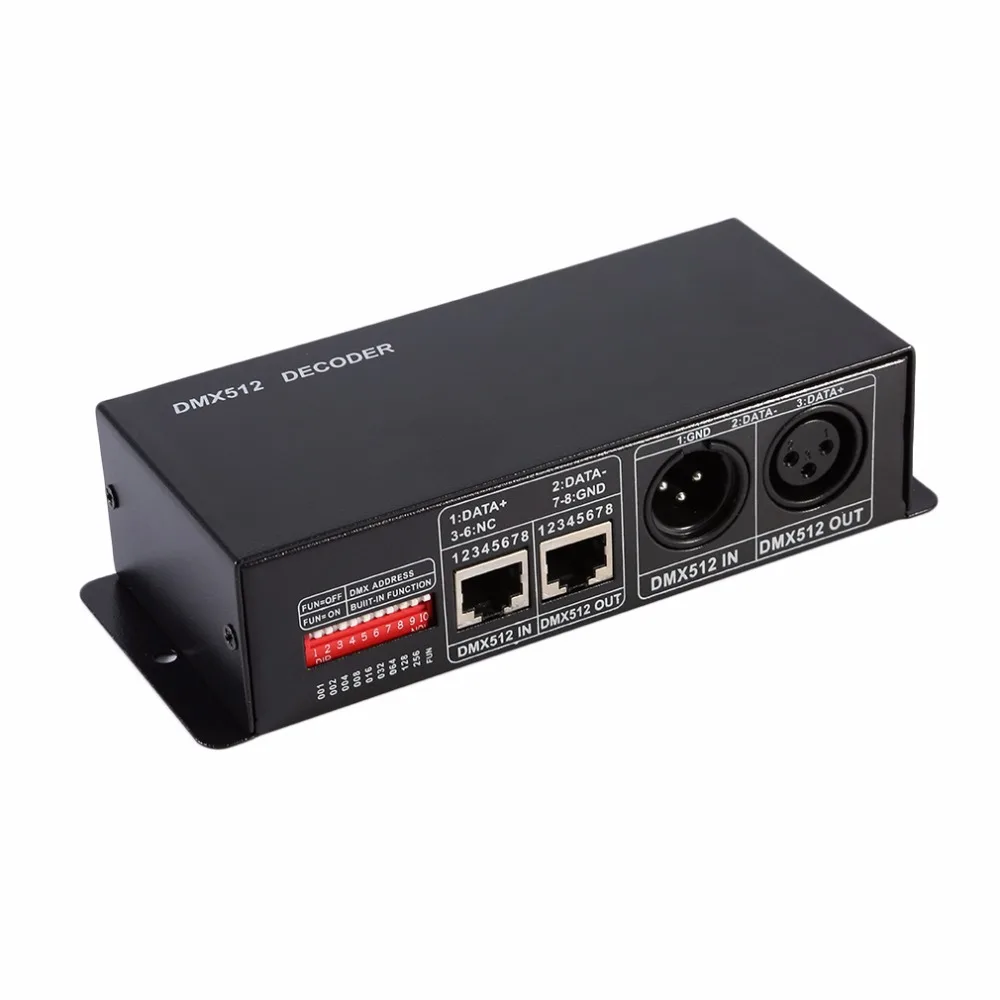

This DMX decoder adopts advanced computer control IC chip, can receive the international DMX - 512 standard digital control signals and converted into PWM controller signal to control the LED. It can be controlled by the DMX Console, and can connected with numbers of DMX Decoder to expand the outputs to realize all kinds of changing shows. Besides, this DMX decoder can be used as the synchronous controller to controlled the LED in synchronous. This decoder got dip switch to calculate the address.

● Working temperature: -20-60 ℃
● Supply voltage: DC12~24V
● Output:3 channels
● External dimension: L166×W67×H41mm
● Packing size: L170×W95×H50(mm)
● Net weight: 360g
● Gross weight: 410g
● Static power consumption: <1W
● Output current: 4A/CH
● Output power(RGBW): 4A -12V:<144W, 24V:<144W
●DMX512standard:DMX512/1990

Addressing
1.\t DMX Control addressing
a.\tEach Decoder need 3 address numbers.
b.\tSerial number with Address number:

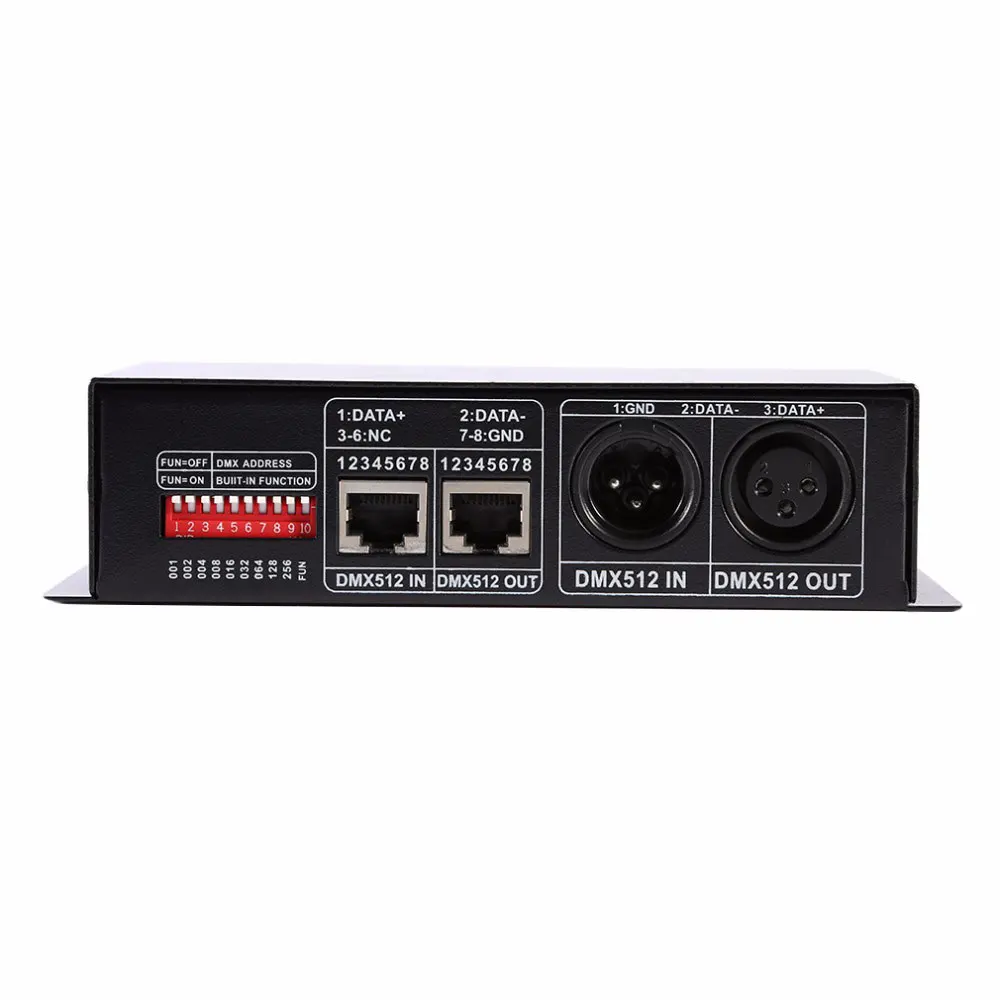

To choose the channel from the Dial in-line Package(DIP) Switch:

2.\tIf all the decoder's address are the same , then these decoders will changing the same.

3. Test function

a.\tThe DIP switch's 10th bit is "FUN", for built-in modes. When "FUN"="OFF", is for DMX console control with dmx signal. When "FUN"="ON", the test function as below:

b.\tSpeed choice of jumpy changing and gradual changing effect:
In test function, when switch 8=ON, is for seven-color jumpy changing effect. When switch 9=ON, is for seven-color gradual changing effect. 8 grades of speeds are available for each effect:

Tips:
when the green indicator on the decoder blinks slowly, it means the test function.
When the green indicator on the decoder blinks fast, means it is under DMX signal control.
