Y20S высокое качество 20X SDI HD MI LAN USB вещание PTZ система камер для видеоконференций оборудование для прямой трансляции
- Category: Conference System >>>
- Supplier: Beijing Sheng Hua Shi Tong Technology Co. Ltd.
Share on (1600434894230):
Product Overview
Description
Product Feature

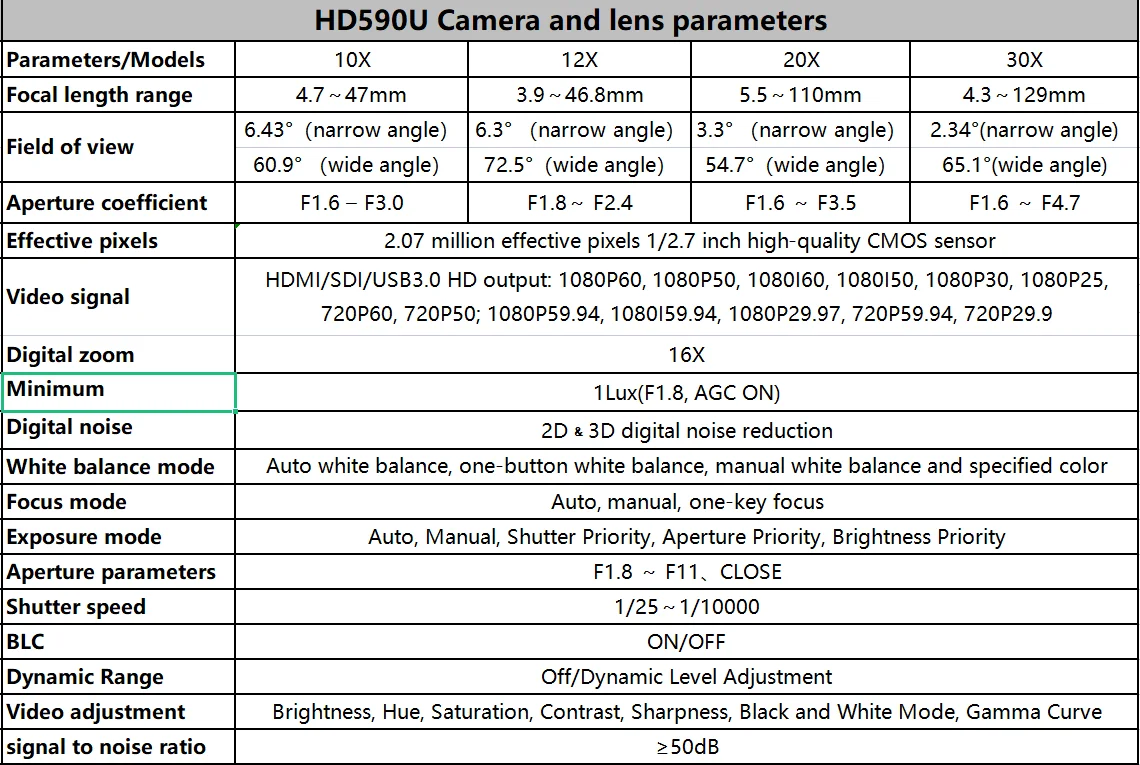

Products Specification
1080P Features:
\\uD83C\\uDF52Full HD image: Using a 1/2.7-inch 2.07 million pixel high-quality CMOS image sensor, the maximum resolution can reach 1920 ×
1080, the output frame rate is up to 60 frames per second, presenting clear and realistic high-definition video, vividly showing
the expressions of the characters and action.
\\uD83C\\uDF52Various optical zoom lenses: 10, 12, 20, 30 times and other optical zoom lens options, 16x digital zoom; 12x lens with 72.5°
small distortion and wide viewing angle.
\\uD83C\\uDF52Auto-focusing technology: The advanced auto-focusing algorithm enables the lens to complete auto-focusing quickly, accurately
and stably.
\\uD83C\\uDF52Low noise and high signal-to-noise ratio: Low-noise CMOS effectively guarantees the ultra-high signal-to-noise ratio of camera
video. Adopt advanced 2D and 3D noise reduction technology to further reduce noise while ensuring image clarity.

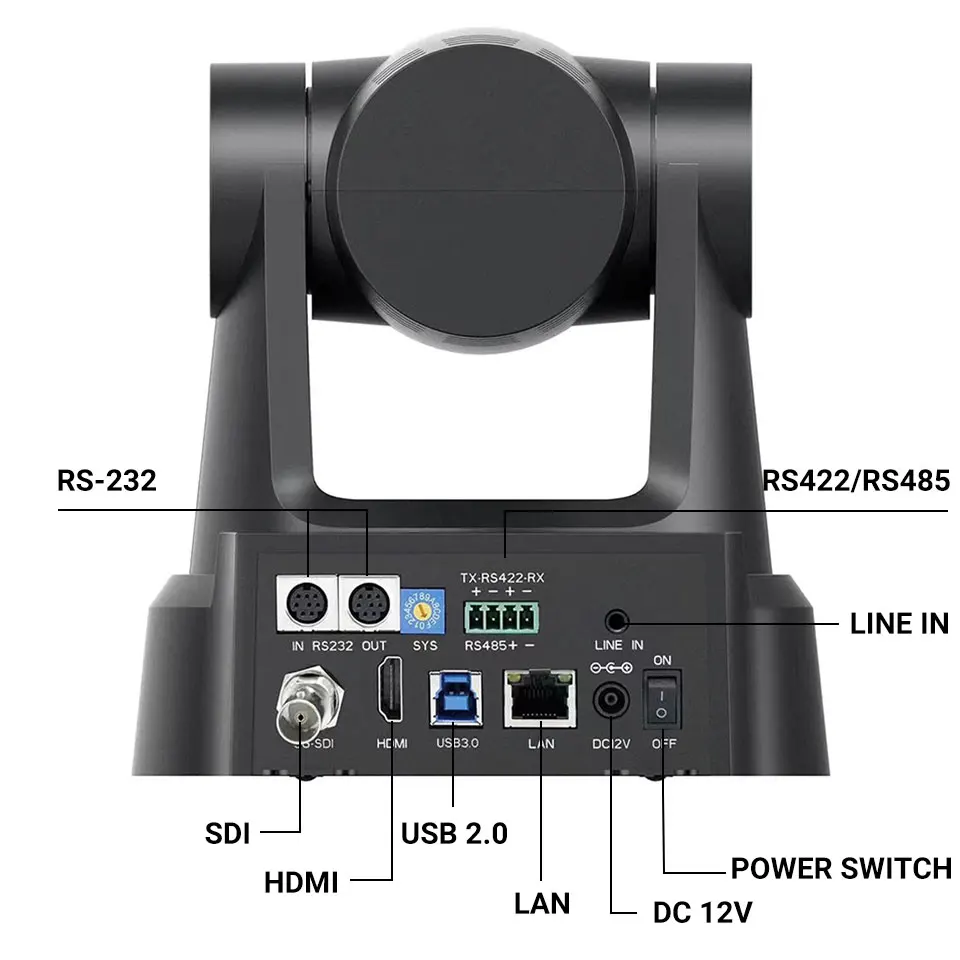

\\uD83C\\uDF52Multiple video output interfaces: support HDMI, SDI, LAN interface, WiFi optional; HDMI, SDI, LAN interface support simultaneous
audio and video output; SDI supports transmission 100 meters in 1080P60 format. / Support HDMI, SDI, LAN interface, WiFi optional;
HDMI, SDI, LAN interface support simultaneous audio and video output; SDI supports transmission of 100 meters in 1080P60 format.
\\uD83C\\uDF52Multiple audio and video compression standards: LAN interface supports H.265, H.264 video compression; A-IN interface supports
8000, 16000, 32000, 44100, 48000 sampling frequencies, and supports AAC, MP3, G.711A audio compression.
\\uD83C\\uDF52Audio and video storage: USB2.0 interface supports U disk storage function to realize local recording storage.
\\uD83C\\uDF52Built-in gravity sensor: The built-in gravity sensor supports the automatic turning function of the gimbal, which is convenient
for engineering installation.
\\uD83C\\uDF52Multiple network protocols: support ONVIF, GB/T28181, RTSP, RTMP, VISCA OVER IP, IP VISCA, RTMPS, SRT, NDI protocols; support
RTMP push mode, easily link streaming media servers (Wowza, FMS); support RTP group Broadcast mode, support network full command
VISCA control protocol.
\\uD83C\\uDF52Multiple control interfaces: RS422 is compatible with RS485, RS232-IN, RS232-OUT; RS232 supports cascade connection, which is
convenient for engineering installation and use.
\\uD83C\\uDF52Multiple control protocols: support VISCA, PELCO-D, PELCO-P protocol, support automatic identification protocol.
\\uD83C\\uDF52Super silent pan/tilt: Adopt high-precision stepper motor and precision motor drive controller to ensure the pan/tilt runs
smoothly and without noise.
\\uD83C\\uDF52Multiple presets: Supports up to 255 presets (10 for remote control settings).
\\uD83C\\uDF52Multiple remote controls: Users can choose infrared remote control or wireless remote control according to the environmental
conditions used. 2.4G wireless remote control is not affected by angle, distance and infrared interference. Support remote control
signal transparent transmission function, which is convenient for back-end devices to use.
\\uD83C\\uDF52Multiple applications: conferences, education, medical care, government affairs, cloud video, collaborative office, multimedia
integration, emergency command, broadcasting, judicial, public security, military and other system applications.
\\uD83C\\uDF52Full HD image: Using a 1/2.7-inch 2.07 million pixel high-quality CMOS image sensor, the maximum resolution can reach 1920 ×
1080, the output frame rate is up to 60 frames per second, presenting clear and realistic high-definition video, vividly showing
the expressions of the characters and action.
\\uD83C\\uDF52Various optical zoom lenses: 10, 12, 20, 30 times and other optical zoom lens options, 16x digital zoom; 12x lens with 72.5°
small distortion and wide viewing angle.
\\uD83C\\uDF52Auto-focusing technology: The advanced auto-focusing algorithm enables the lens to complete auto-focusing quickly, accurately
and stably.
\\uD83C\\uDF52Low noise and high signal-to-noise ratio: Low-noise CMOS effectively guarantees the ultra-high signal-to-noise ratio of camera
video. Adopt advanced 2D and 3D noise reduction technology to further reduce noise while ensuring image clarity.
\\uD83C\\uDF52Multiple video output interfaces: support HDMI, SDI, LAN interface, WiFi optional; HDMI, SDI, LAN interface support simultaneous
audio and video output; SDI supports transmission 100 meters in 1080P60 format. / Support HDMI, SDI, LAN interface, WiFi optional;
HDMI, SDI, LAN interface support simultaneous audio and video output; SDI supports transmission of 100 meters in 1080P60 format.
\\uD83C\\uDF52Multiple audio and video compression standards: LAN interface supports H.265, H.264 video compression; A-IN interface supports
8000, 16000, 32000, 44100, 48000 sampling frequencies, and supports AAC, MP3, G.711A audio compression.
\\uD83C\\uDF52Audio and video storage: USB2.0 interface supports U disk storage function to realize local recording storage.
\\uD83C\\uDF52Built-in gravity sensor: The built-in gravity sensor supports the automatic turning function of the gimbal, which is convenient
for engineering installation.
\\uD83C\\uDF52Multiple network protocols: support ONVIF, GB/T28181, RTSP, RTMP, VISCA OVER IP, IP VISCA, RTMPS, SRT, NDI protocols; support
RTMP push mode, easily link streaming media servers (Wowza, FMS); support RTP group Broadcast mode, support network full command
VISCA control protocol.
\\uD83C\\uDF52Multiple control interfaces: RS422 is compatible with RS485, RS232-IN, RS232-OUT; RS232 supports cascade connection, which is
convenient for engineering installation and use.
\\uD83C\\uDF52Multiple control protocols: support VISCA, PELCO-D, PELCO-P protocol, support automatic identification protocol.
\\uD83C\\uDF52Super silent pan/tilt: Adopt high-precision stepper motor and precision motor drive controller to ensure the pan/tilt runs
smoothly and without noise.
\\uD83C\\uDF52Multiple presets: Supports up to 255 presets (10 for remote control settings).
\\uD83C\\uDF52Multiple remote controls: Users can choose infrared remote control or wireless remote control according to the environmental
conditions used. 2.4G wireless remote control is not affected by angle, distance and infrared interference. Support remote control
signal transparent transmission function, which is convenient for back-end devices to use.
\\uD83C\\uDF52Multiple applications: conferences, education, medical care, government affairs, cloud video, collaborative office, multimedia
integration, emergency command, broadcasting, judicial, public security, military and other system applications.
Company Profile
Shenghua Vision Technology Co., Ltd. is an enterprise focusing on R&D, design, manufacturing, sales and maintenance, and comprehensive services of video conferencing cameras, omnidirectional microphones, video capture and other technologies. We are committed to creating one-stop international video conferencing system products, and has an efficient application chain system. At present, Shenghua Vision HD conference cameras, omnidirectional microphones and other products have been widely used in government, transportation, schools, communities, environmental protection, etc. Various industries, export to North America,Europe and other countries.
