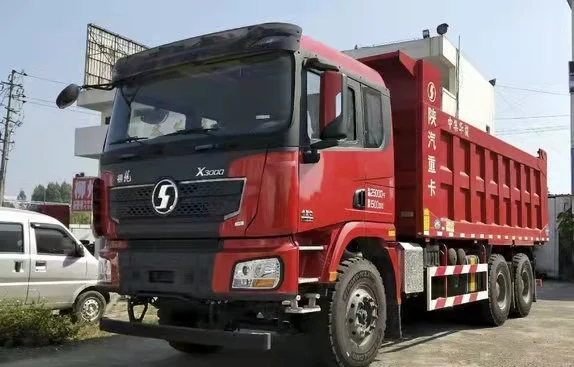

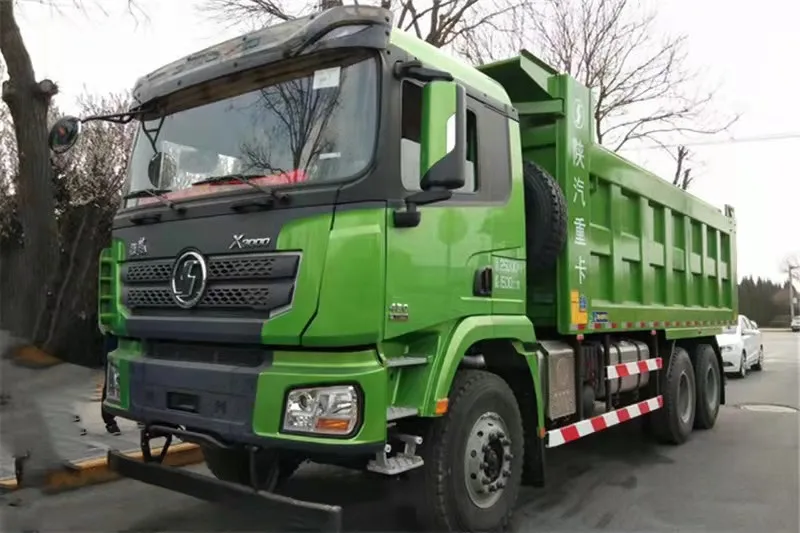

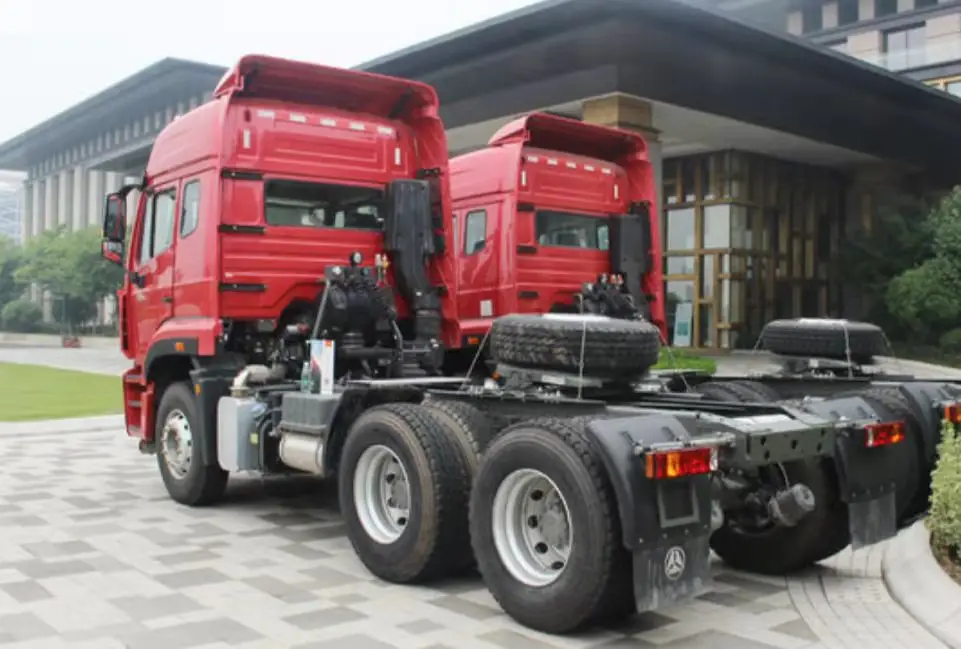

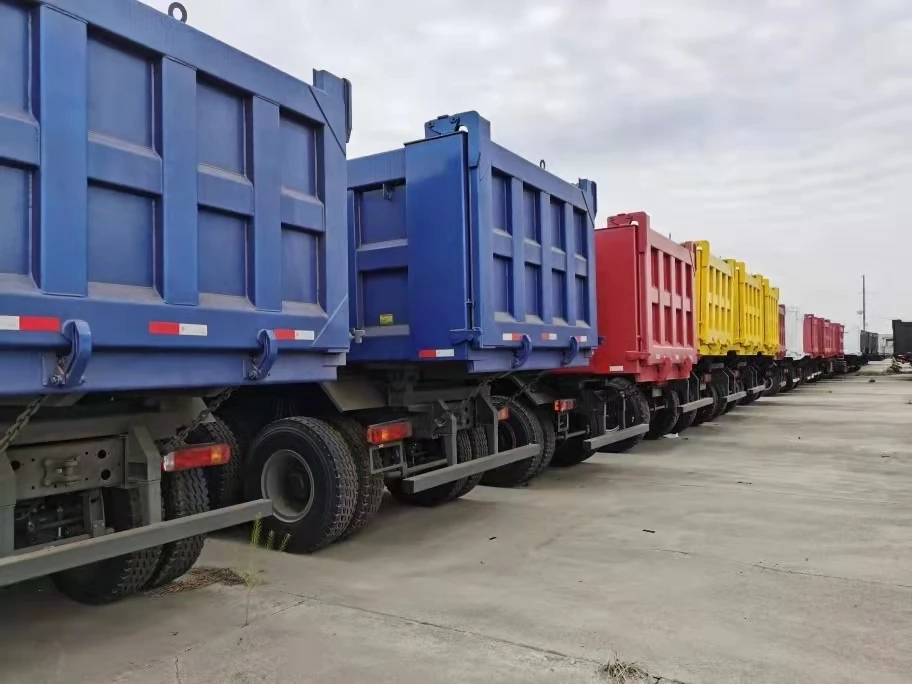

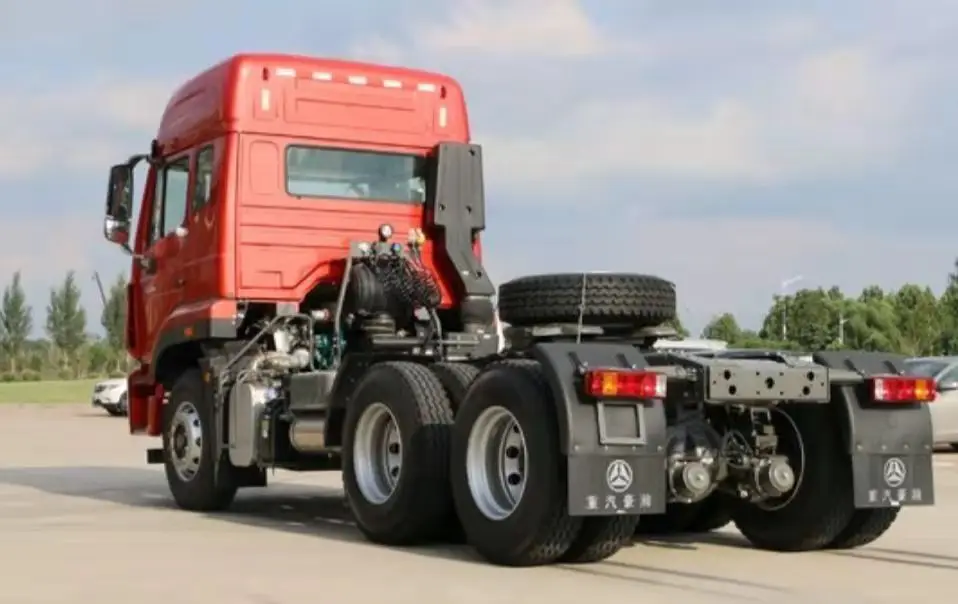

Shackman 2018 2019 years stock Tractor dump truck 6X4 8X4 10 tires 12 tires factory discount Euro IV sold to Philippines

GVW25000kg     Driving Type 6x4

Model

ZZ3257M3247W

ZZ3257M3647W

ZZ3257N3647A

ZZ3257M3847W

ZZ3257N3847A

ZZ3257M4147W

ZZ3257N4147W

ZZ3257M4347W

ZZ3257N4347A

Product code

325760032

325760036

325760936

325760038

325760938

325760041

325760941

325760043

325760943

Engine(Hp)

266/290

266/290

336/371

266/290

336/371

266/290

336/371

266/290

336/371

Power(Kw)

196/213

196/213

247/273

196/213

247/273

196/213

247/273

196/213

247/273

Carriage Internal

Dimensions(mm)

4800x2300x1200

5400x2300x1400

5600x2300x1500

5800x2300x1500

6000x2300x1500

6300x2300x1500

Cubage (m3)

13.3

17.4

19.4/20

20.7

21.8

Steel thickness

Of Carriage(mm)

Floor:8/Side:6mm

Floor:8/Side:6mm

Floor:8/Side:6mm

Floor:8/Side:6mm

Floor:8/Side:6mm

Hydraulic Lift

of Carriage

Middle Lift

Middle Lift

Middle/Front Lift

Front Lift

Front Lift

Dimensions

(mm)

7545×2496×

3170,3386

8145×2496×

3170,3386

8545×2496×

3170,3386

8845×2496×

3170,3386

9245×2496×

3170,3386

Kerb weight(Kg)

12020

12250

12270

12480

12490

Cab

HW76

Transmission

HW15710/HW19710

Front Axle

HF9

Steering

ZF8098

Rear Axles

HC16

Wheels & Tyres

8.5/12.00R20

Engine

Model

WD615.62

WD615.87

WD615.69

WD615.47

Horsepower

266

290

336

371

Maximum output

Kw/r/min

196/2200

213/2200

247/2200

273/2200

Maximum torque

N.m/r/min

1100/1100-1600

1160/1100-1600

1350/1300-1600

1460/1300-1600

Type

6-cylinder in line, 4-stroke, water-cooled,

turbo-charged & inter-cooled, direct injection

Bore x Stroke

126x130mm

Valve

2

Displacement

9.726L

Make SINOTRUCK (CNHTC), Euro II emission standard, Thermostat with 80℃

opening begin, Rigid fan

Option:Thermostat with 71℃ opening begin; silicone oil fan; Cold-start with

electric-inlet-air heating System (180Ah battery)

Cab

SINOTRUK HW76 Lengthen cab,single bunk,new type seat,adjustable steering

wheel,EURO new type heating & ventilating system, German VDO instruments,

safety belts, exterior sun visor,stereo radio/cassette recorder,left driving,air

Conditioner. Option: right driving; color

Clutch

SINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with

air assistance

Transmission

SINOTRUK HW15710 or HW19710 transmission ,10 forward and 2 reverse

Ratio:14.28  10.62  7.87  5.88  4.38  3.27  2.43  1.80  1.34  1.00

13.91(R1)  3.18(R2)

Front Axle

SINOTRUK HF9 Front Axle,new 9-ton front axles of equipped with drum brakes

Option: disc brake

Steering

German ZF8098 Steering Gear Box ,hydraulic steering with power assistance,

Ratio:22.2-26.2

Rear Axles

HC16 Heavy reduction drive axle,STR hub-reduction with differential locks

between wheels and axles, enforced STR axle,ratio:5.73;The basic

configuration of HOWO series construction vehicle can be used in such

bad environment as bad road condition, heavy impact and overloading,

which is the best choice for heavy construction vehicle customers.

Brake

System

Service brake:dual circuit compressed air brake

Parking brake (emergency brake):spring energy,compressed air operating on

rear wheels

Auxiliary brake:engine exhaust valve brake

Wheels & Tyres

Rims:8.5-20,10 hole-steel ;Tyres:12.00-20 diagonal tyre with 1 Spare tire

Option:12.00R20 radial tyre

Electrics

Operating voltage:24V,negative grounded

Starter:24V,7.5 Kw

Alternator:3-phase,28V,1500 W

Batteries:2x12 V,165 Ah

Cigar-lighter,horn,headlamps,fog lights,brake lights,indicators and reverse light

Option:2x180Ah Batteries

Oil Tank

Square type-300L Aluminum alloy fuel tank

Other Optional

Vertical Muffler ;ABS ;Automatic Break Clearance Adjusting Arm ;

Traveling Data Recorder ;Metal Pipeline ;Engine Protective Board

Delivery date

Within 45 days after receipt advance

Weight

in kg

Gross vehicle weight                              25000

Front axle loading capacity                          9000

Rear axles loading capacity                         2x16000

Performance

Maximum drving speed (km/h)                        75

Fuel consumption  (1/100 km)                        38

Packing

Nude Pack.The packing of the commodity shall be in accordance with the

export standard packing of the manufacturer, be suitable for long distance

transportation of ocean and inland. The Seller shall be take measures

against moisture, shocks and rust according to the special needs of the

commodity.
