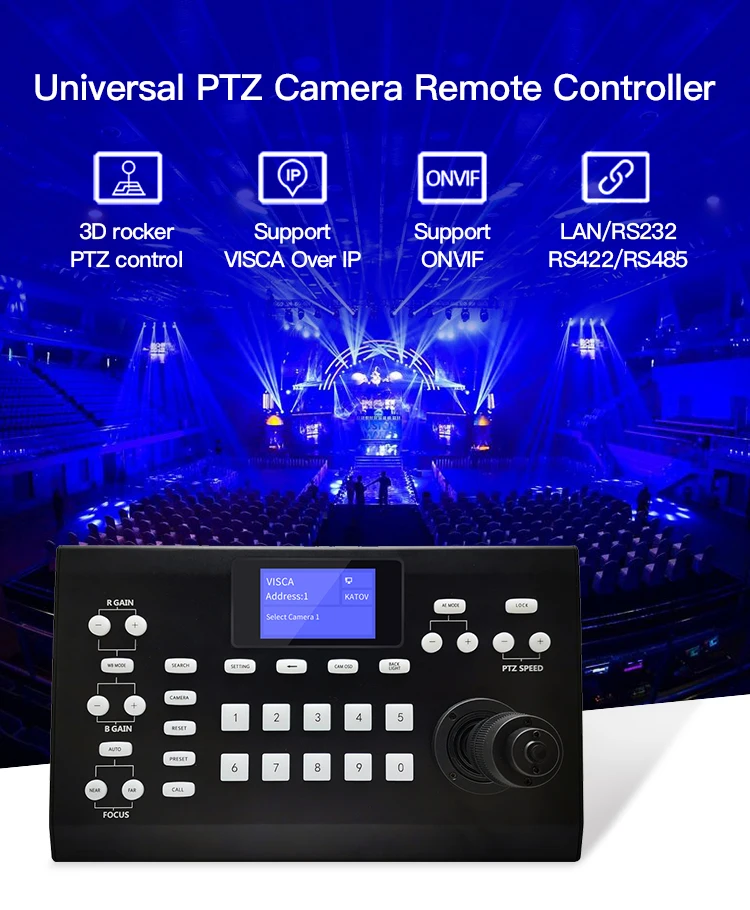

R31 vMix console Switchboard Controller RS232 RS485 Control PTZ camera live broadcast video mixer switcher
- Category: Conference System >>>
- Supplier: Beijing Sheng Hua Shi Tong Technology Co. Ltd.
Share on (1600437680285):
Product Overview
Description

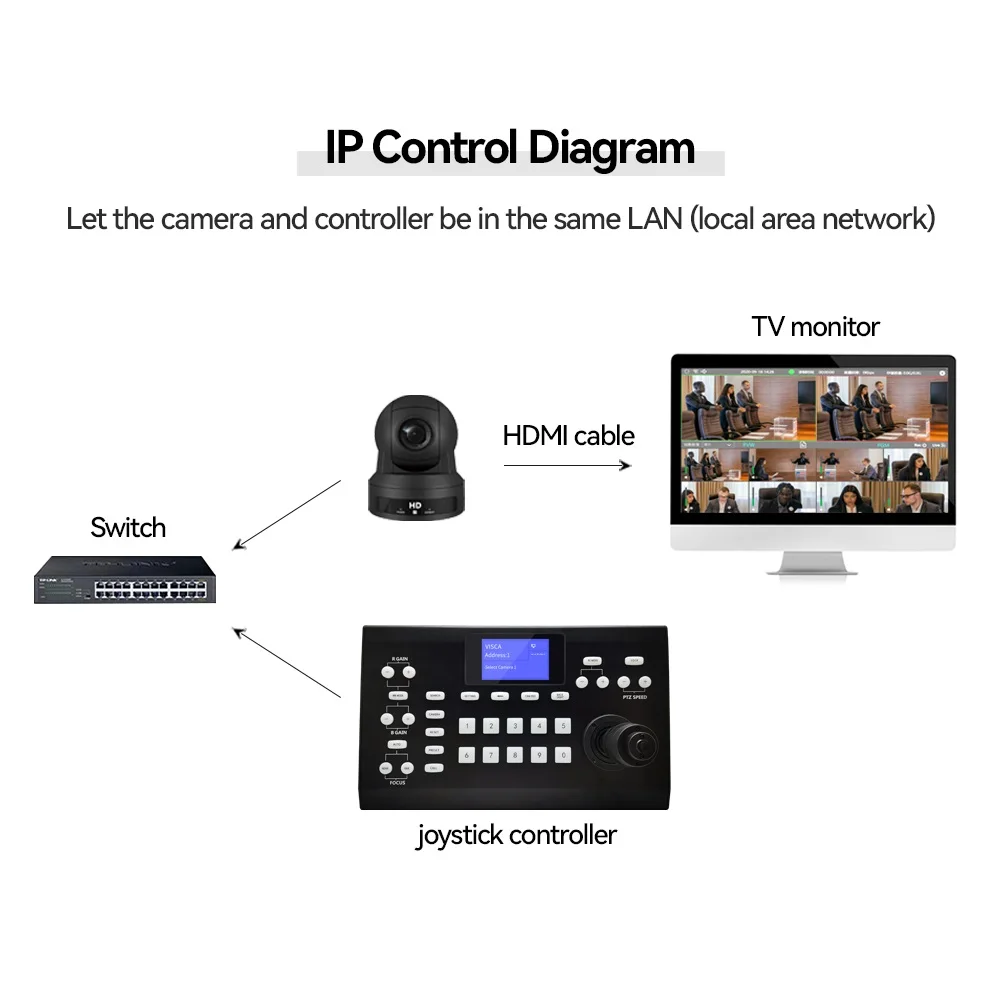

How to setup IP joystick controller and camera
Product Description
Power supply | DC 12V (10.8V~13.2V),POE（IP） |
Input And Output | RS*232: DB9 x1; RS422" 5pin x1; LAN: RJ45 x1 |
Speed Control | 2 buttons (corresponding to PTZ, zoom) |

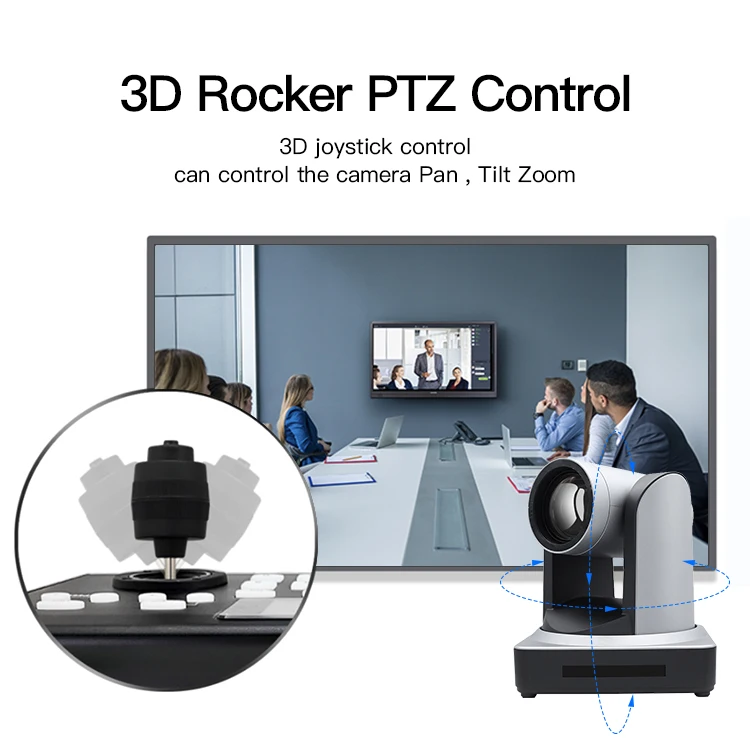

3D Joystick | Yes, support PTZ control |
Displayer | 3 inch LCD ,Support both chinese and english display |
Maximum Control Quantity | IP: 255 , VISCA: 7 , Pelco P/D : 255 |
Control Protocol | IP: Visca Over IP, Onvif, NDI (Optional)RS-232/RS-422/485: Visca, Pelco P/D |
Net Weight | 1.5kg |
Gross weight | 2.5KG |
Product size | 296mm x 180mm x 115mm |
