300L Road Concrete Joint Sealing Machine
- Category: Other Construction Machinery >>>
- Supplier: Tongling Longshun Environmental Protection Equipment Co. Ltd.
Share on (1600439843103):
Product Overview
Description
Product Description

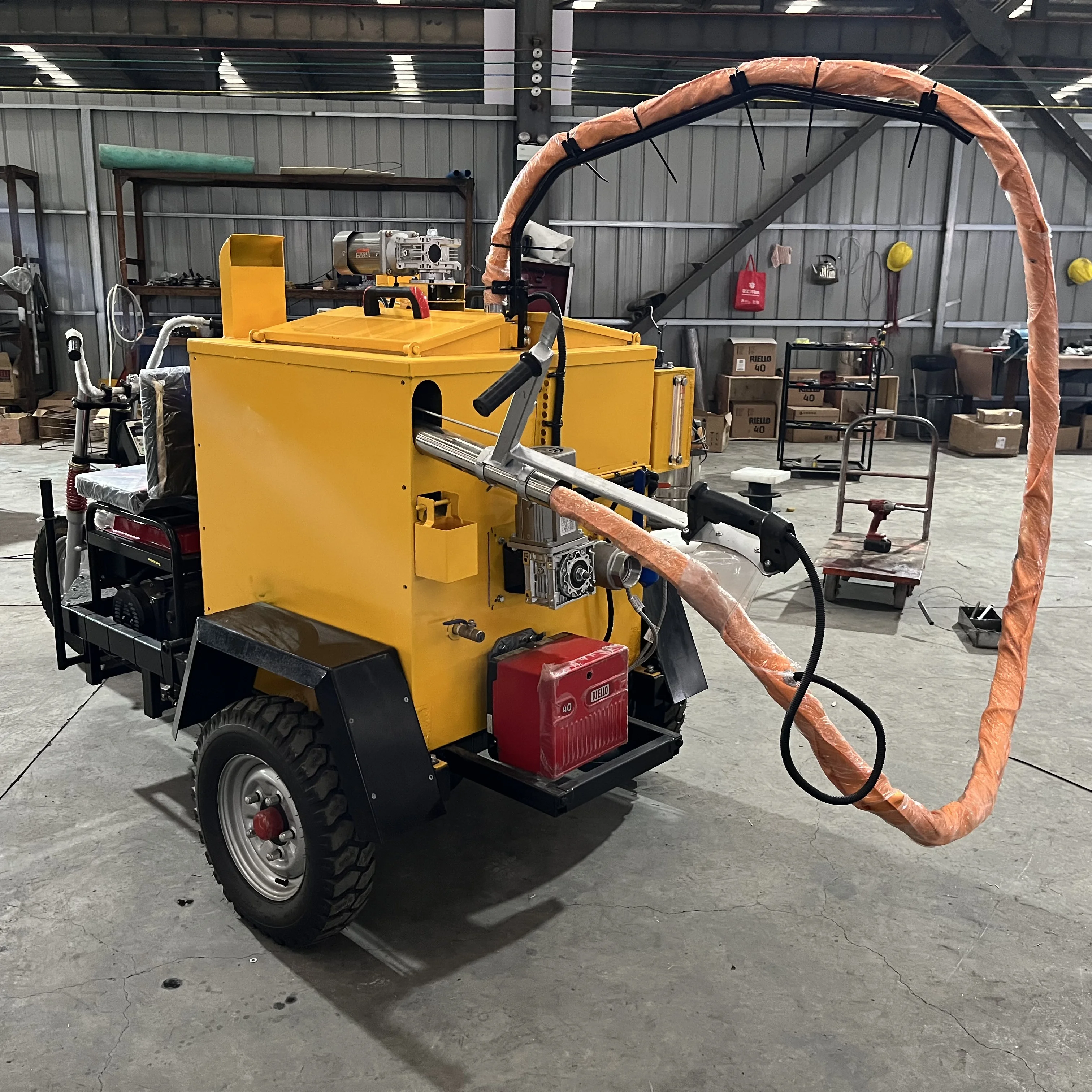

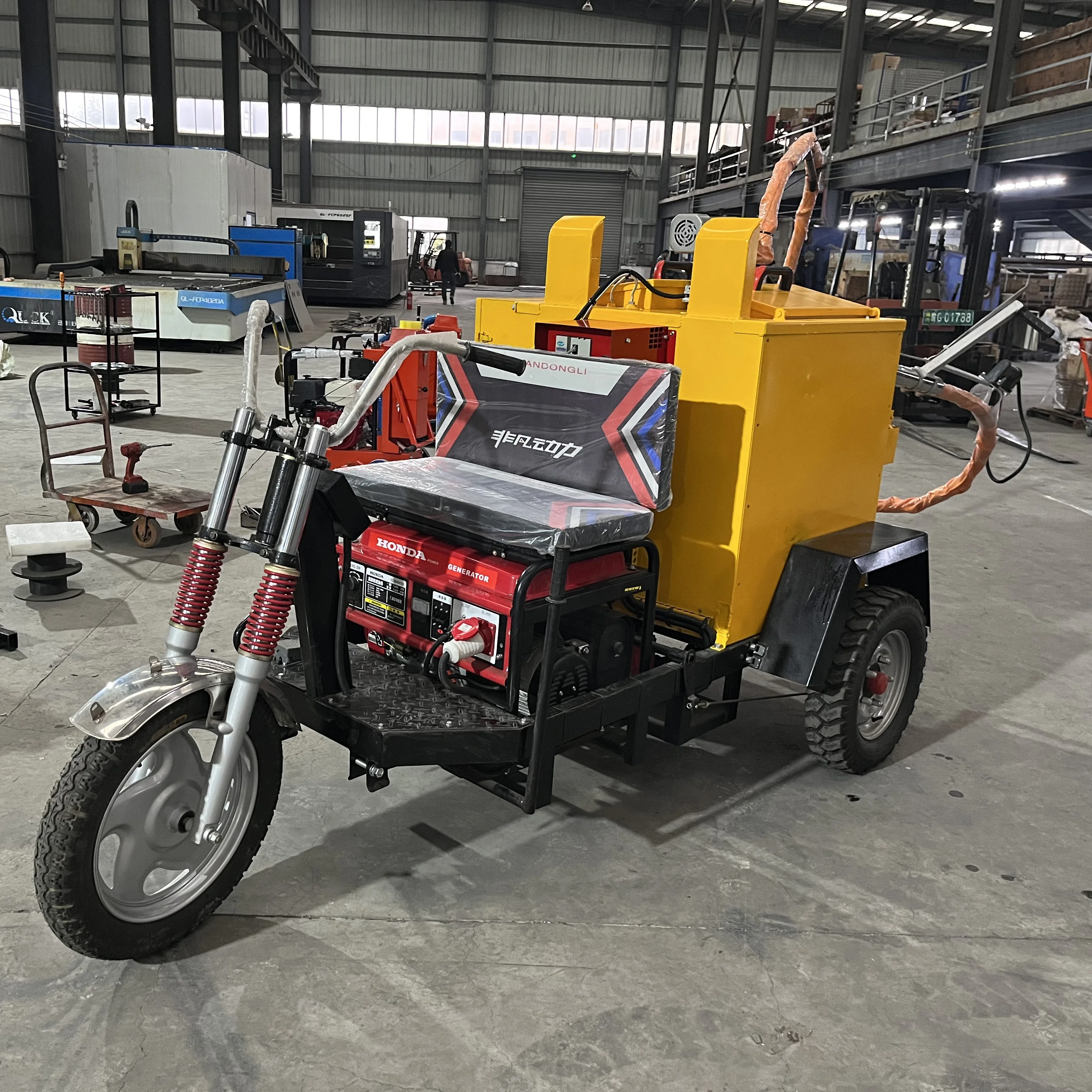

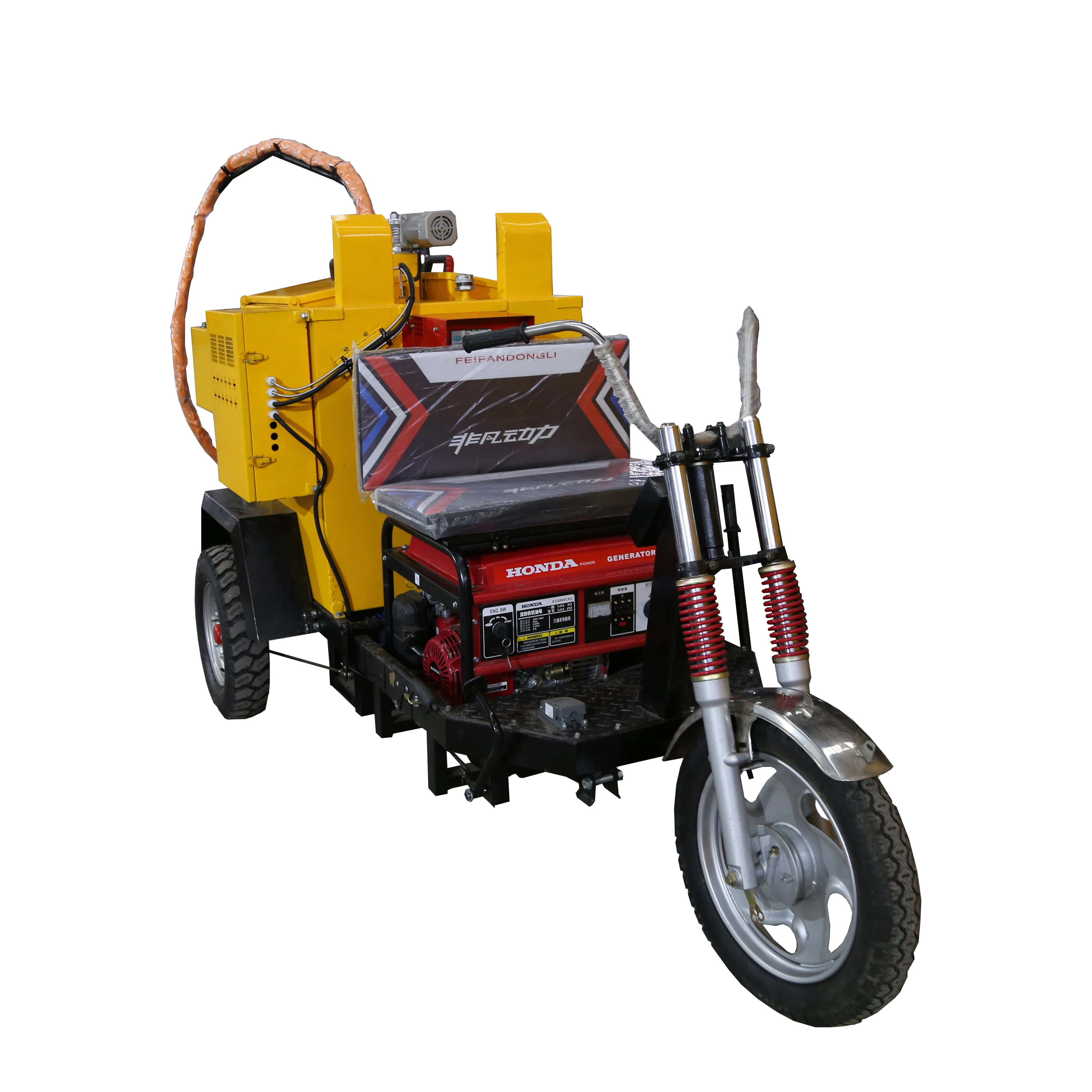

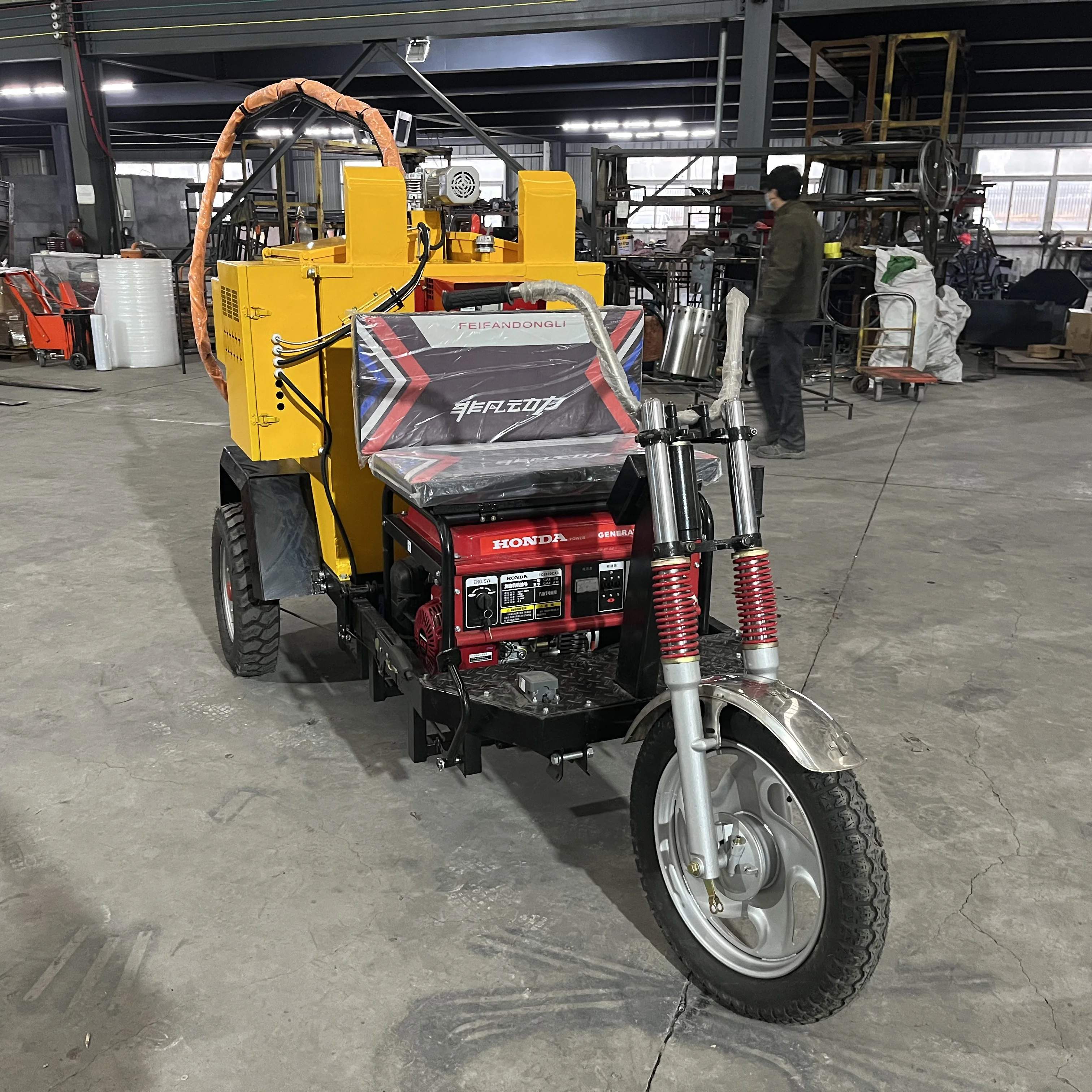

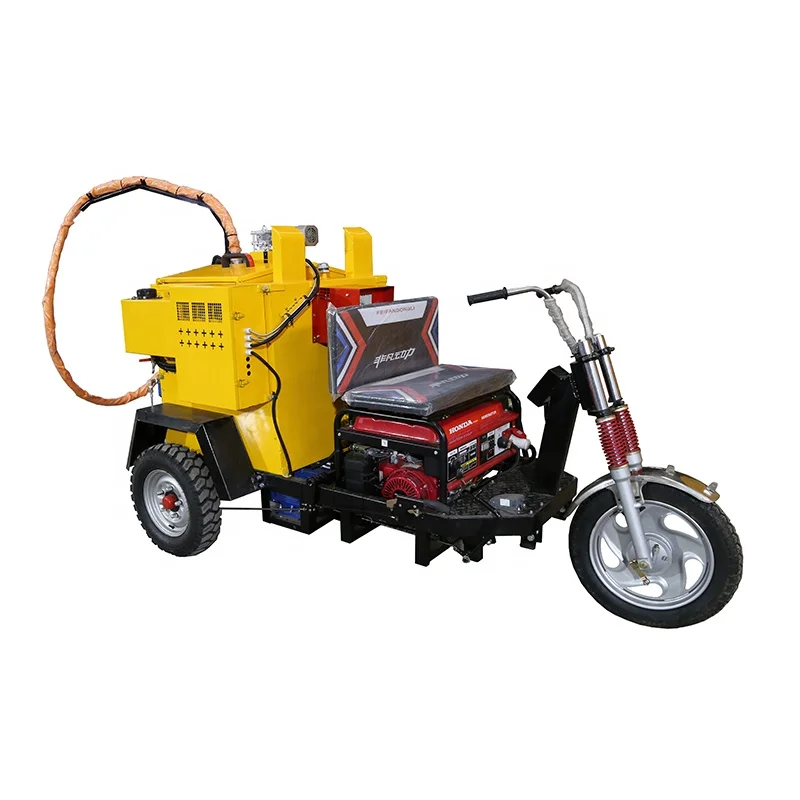

300L Road Concrete Joint Sealing Machine
Specification
Model | LS-300L |
Generator | Honda EC6800CX |
Crack sealing pressure | 6-8Mpa |
Volts | 220V |
Power | 6.5KW |
Speed | 3600r/min |
Output speed | 8-15L/min |
The length of electric heating tube | 7m |
Stirring method | Electric stirring |
Hot melt kettle volume | 300L |
Moving method | Driver/trailer |
Combustor | Ltalian Riello 445T1 combustor |
Temperature control system | Automatic control by SLA-5000 intelligent digital temperature controller |
Heating method | Conduction oil indirect heating and extemal oil pump circulating heating |
Filling material heating time | About 30 minutes |
Temperature range | 0-280℃ |
Size | 3300*1200*1750 |
Weight | 700KGS |
Features:
1.Suction and conveying: 400W, 220V stepless speed regulation motor (0-1400R/min) + RV deceleration large torque output + external internal insulation asphalt gear pump, 5M imported Teflon automatic constant temperature electric heating hose, timely pumping switch Control; copper constant pressure safety valve protection, adjustable pressure valve to ensure constant pressure conveying to ensure personal safety; built-in cleaning gun incubator + recycling hopper, no dead corner insulation throughout the process, and can be used in extremely cold conditions
1.Suction and conveying: 400W, 220V stepless speed regulation motor (0-1400R/min) + RV deceleration large torque output + external internal insulation asphalt gear pump, 5M imported Teflon automatic constant temperature electric heating hose, timely pumping switch Control; copper constant pressure safety valve protection, adjustable pressure valve to ensure constant pressure conveying to ensure personal safety; built-in cleaning gun incubator + recycling hopper, no dead corner insulation throughout the process, and can be used in extremely cold conditions
2.Hot melt kettle: capacity 360L, effective melt volume ≥300L, windproof double exhaust gas outlet. Ensure that no flashback occurs in the high-temperature kettle during high-speed traction, and ensure the safety of equipment and personnel
Details Images
Generator set:Honda
Start mode: electric start
Italian, Riello burner
5M imported Teflon automatic constant temperature electric heating hose
Sealing gun tip insulation device
Windproof double exhaust gas outlet
Side-by-side door, splash-proof feeding port
Governor
LCD intelligent constant temperature automatic control
Gear control
Foot brake

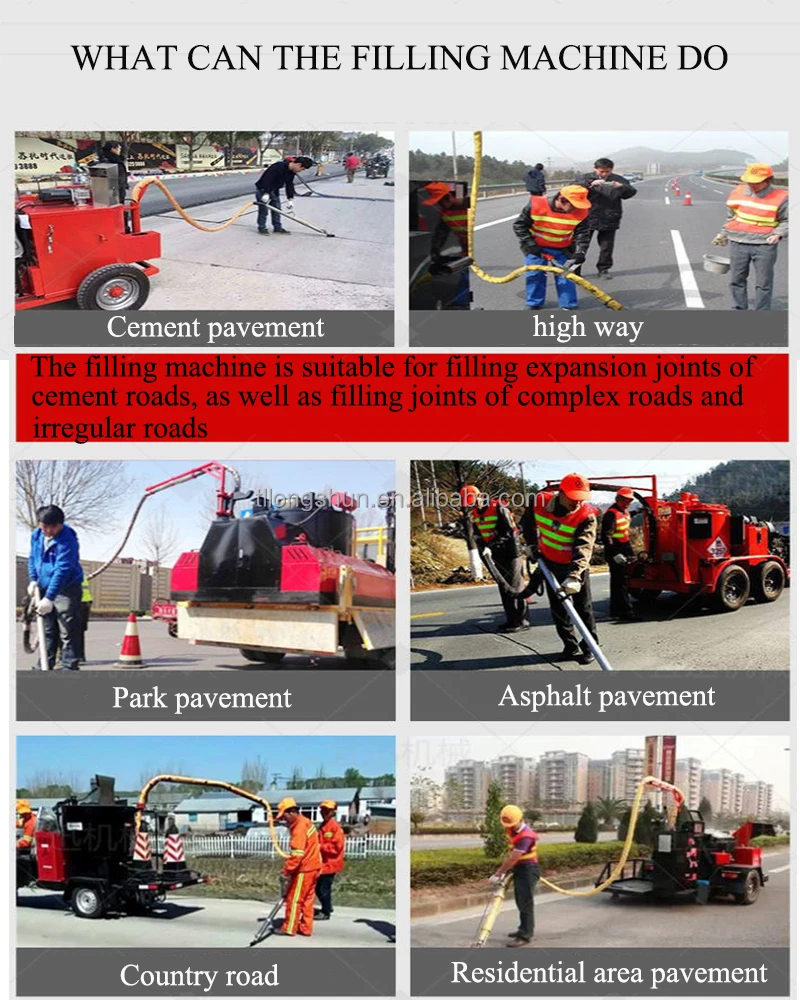

Used for
Packing & Delivery
Company Profie
Tongling Longshun Environmental Protection Equipment Co.,Ltd. was founded in 2012, our company is a professional supplier of roadway safety and traffic facilities products, we are engaging in the Pavement maintenance equipment products' production,construction and sale . Our products focus on the pavement maintenance and "Let the road more safety "is our purpose, Our products are sold to worldwide ,our product got CE approval and CNAS certification, Our market includes EU,USA, South America, Middle East, East South Asia, Africa,Russia, Australia ETC.
FAQ
1. Q: Are you trading company or manufacturer?
A: We are original equipment manufacturer.
2. Q: How long is your delivery time?
A: It is according to the model and quantity.
Generally it is 3-5 days if the machines are in stock.
It will be 15-30 days if you want to customize the machines.
3. Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer you the sample machine.
It's not free. Customers should charge the freight cost of express or delivery .
4. Q: What is your payment terms ?
A: We accept T/T, Western Union, Money Gram, Paypal, Alibaba Escrow etc.
Deposit percent can be negotiate relying on your amount .
A: We are original equipment manufacturer.
2. Q: How long is your delivery time?
A: It is according to the model and quantity.
Generally it is 3-5 days if the machines are in stock.
It will be 15-30 days if you want to customize the machines.
3. Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer you the sample machine.
It's not free. Customers should charge the freight cost of express or delivery .
4. Q: What is your payment terms ?
A: We accept T/T, Western Union, Money Gram, Paypal, Alibaba Escrow etc.
Deposit percent can be negotiate relying on your amount .
