wire butt welder steel wire butt welding machine
US $60000-$80000
Butt welding machine commonly used for welding wire and metal mesh
- Category: Butt Welders >>>
- Supplier: Hebei Kaiye Machinery Equipment Co. Ltd.
Share on (1600448068881):
Product Overview
Description
Product Introduction

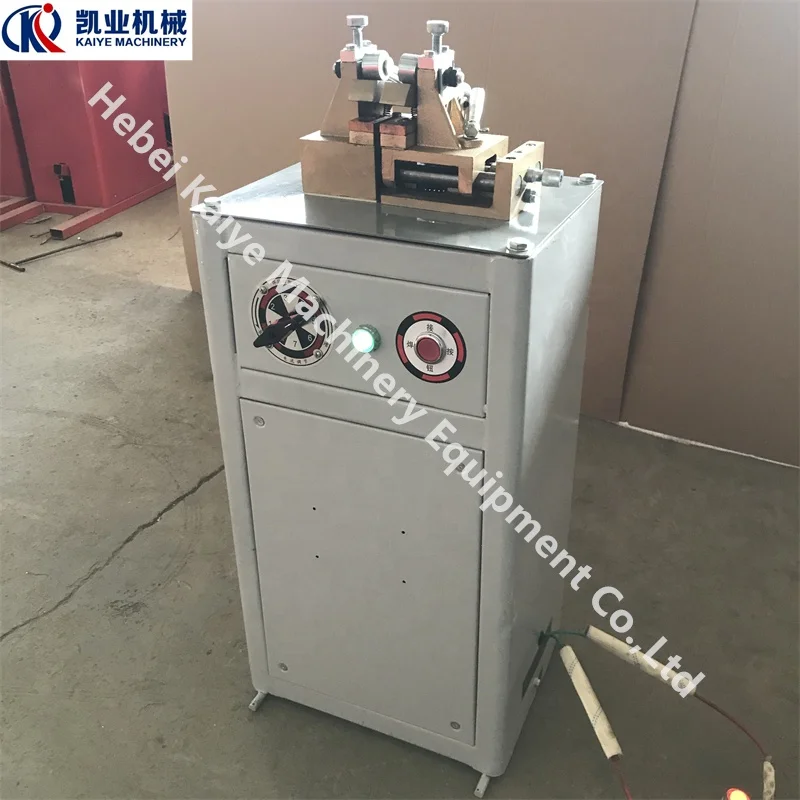

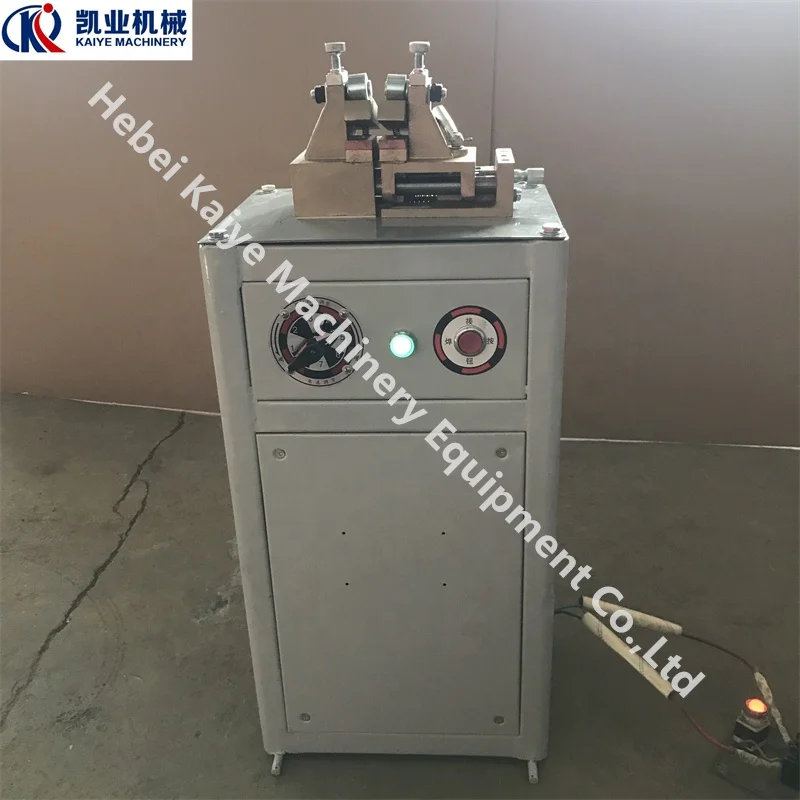

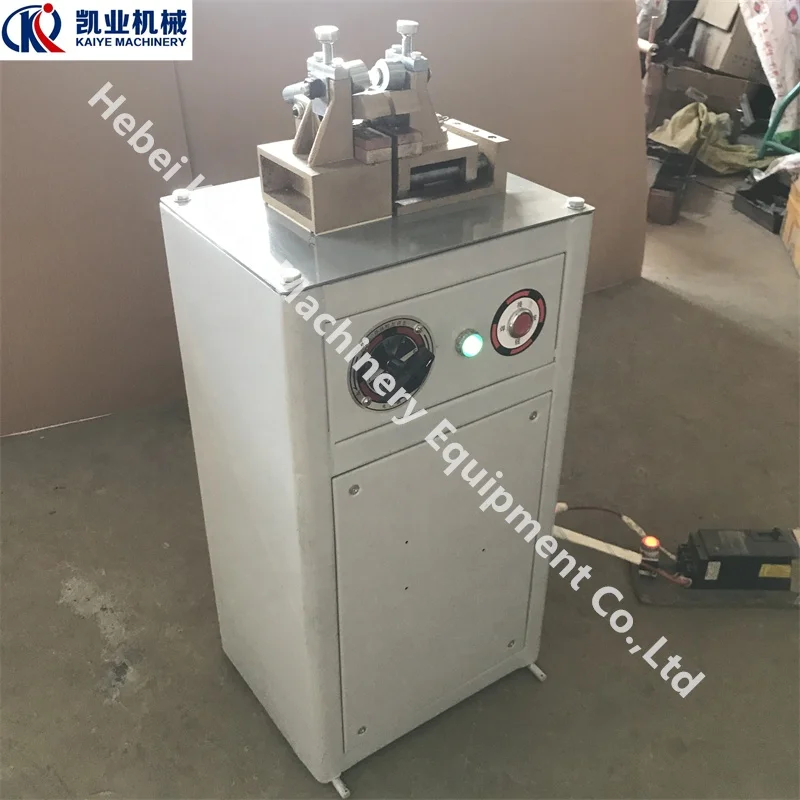

Butt welding machine (Φ2.0-Φ6.5 mm)
The structure of this series of welding machines is mainly composed of welding transformer, fixed electrode, moving electrode, feeding mechanism (pressurizing mechanism), water cooling system and control system.
The left and right electrodes are respectively connected with the conductor of the secondary coil of the welding transformer through multi-layer copper sheets, and the secondary coil of the welding transformer is cooled by circulating water. There are protective plates on both sides and below the welding joint to prevent molten metal from splashing into the transformer and switch. The welder must always clean the metal splash on the protective plate to avoid short circuit and other faults.
1. Feeding mechanism: the feeding mechanism can complete the melting and extrusion process required in welding. It mainly includes control lever, movable cross frame, adjusting screw, etc. when the control lever is moved in the two pole position, the maximum working stroke of the electrode can be obtained.
2. Switch control: press the button, then turn on the relay to make the AC contactor pull in, and then the welding transformer is connected. Resistance welding or flash welding can be carried out by moving
the control lever. When the weldment is shortened due to plastic deformation and reaches the specified upsetting allowance, the travel screw touches the travel switch to automatically cut off the power supply. The control power supply is supplied by a control transformer with a secondary voltage of 36 V to ensure the personal safety of the operator.
3. Jaw (electrode): the left and right electrode seats (8) are equipped with lower jaw (13), lever type clamping arm (10), clamping screw (9) and sleeve hook (7) with handle to clamp the clamping arm. The lower jaw is chrome zirconium copper, and the lower part is a copper block for energizing, which is composed of two wedge-shaped copper blocks to adjust the required jaw height. Both sides of the wedge-shaped copper block are covered by guard plates.
4. Electrical installations: The welding transformer is of iron shell type, with the primary voltage of 380V, the primary coil of the transformer is disc winding, and the secondary winding is made of three copper
plates with copper water pipes welded around them in parallel. During welding, the adjustment stage is selected according to the size of the weldment to obtain the required no-load voltage (attached with the adjustment stage number table).
The transformer to the electrode is connected by multi-layer thin copper sheets. The length of power on time in the welding process can be controlled by the welder through button switch and travel switch.
The switch controls the intermediate relay, and the intermediate relay makes the contactor connect or cut off the welding power supply.
Machine Specification
Model | UN-7 | UN-10 | UN-16 | U-25 |
Voltage (V) | 380 | 380 | 380 | 380 |
Rated power (KVA) | 7 | 10 | 16 | 25 |
Input current (A) | 18.4 | 26.3 | 42.1 | 65.7 |
Wire diameter (mm) | 2.0-6.5 | 2.0-10 | 5.0-10 | 6.0-12 |
Company Information
Factory History
Hebei Kaiye Machinery Equipment Co., Ltd. was established in 2002. We are mainly engaged in the R & D, design, production and sales of CNC steel wire processing equipment, providing overall solutions for CNC steel wire processing. Products are widely used in railway, highway, bridge, tunnel, real estate, animal husbandry and other large-scale infrastructure construction, steel
processing and distribution center and other fields.
processing and distribution center and other fields.
Factory R&D Team
The factory has a strong and experienced R&D team. The average working experience of each engineer is more than 8 years. Our technology is along the most advanced international route, and we can design reasonable solutions according to the requirements of customers.
Main production machinery
We have our own production base of intelligent reinforcement processing equipment and advanced testing equipment.Our main products: wire mesh welding machine, EPS 3D panel machine, reinforcement mesh welding machine, Gabion mesh machine, hexagonal wire mesh machine, wire drawing machine, expanded metal machine,chain link fence machine, CNC stirrup rebar bending machine.
Market and Customers
We have partners all over the world
Kaiye's quality has been managed by the standard of ISO9001 International Quality Management System. We have built good reputation among our customers with excellent quality products, reliable services and credit. We have been supplying the domestic market and also have exported to the Romania, Turkey, poland, Ukraine, Russia, Kazakhstan,Saudi Arabia, Vietnam, Philippines, India,
Thailand, South Africa, Algeria, Australia, Mexico, Colombia, Argentina, Bolivia and Brazil.
FAQ
Q: Are you a trading company or manufacturer?
A: Our company is a factory integrating production and sales. We can provide competitive prices and services.
Q:Where is your factory located?
A: Our factory is located in Anping county, Hebei Province of China. The nearest airport is Beijing airport or Shijiazhuang airport. We can pick you up from Shijiazhuang city.
Q: How many years are your company engaged in the wire mesh machines?
A: More than 20 years. We have our own technology develop department and testing department.
Q: Can your company send your engineers to my country for machine installation, worker training?
A: Yes, our engineers went to more than 60 countries before. They are very experienced.
Q: What's the guarantee time for your machines?
A: Our guarantee time is 2 years since the machine was installed in your factory.
Q: Can you export and supply the customs clearance documents we need?
A: We have much experience for exporting. And we can supply the CE certificate, Form E, passport, SGS report etc, your customs clearance will be no problem.
If you are interested in our machines, please contact us now！
