High quality Pcb Fabrication Service PCB Board Manufacturer PCBA

Product Overview

Description

STHL 16+ Years One-Stop PCB & PCBA Factory

PCB board and electronic component pcb assembly manufacturer



Welcome to STHL PCBA

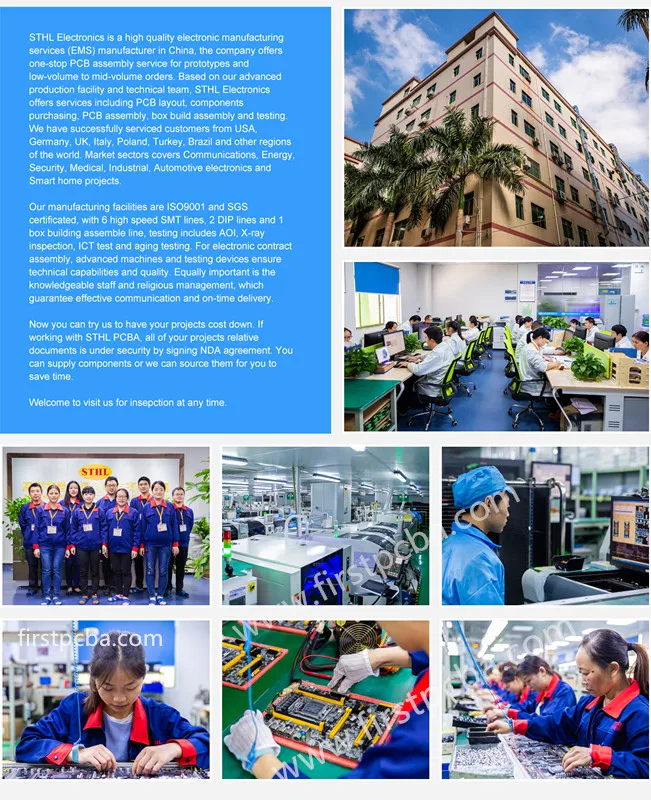

STHL Electronics is a high quality electronic manufacturing services (EMS) manufacturer in China, the company offers one -stop PCB assembly service for prototypes and low-volume to mid-volume orders. Based on our advanced production facility and technical team, STHL Electronics offers services including PCB layout, components purchasing, PCB assembly, box build assembly and testing. We have successfully serviced customers from USA, Germany, UK, Italy, Poland, Turkey, Brazil and other regions of the world. Market sectors covers Communications, Energy, Security, Medical, Industrial, Automotive electronics and Smart home projects.







The application of PCB board Assembly

PCB Assembly is mainly apply for security, communications, LED lighting, automotive electronics, medical solar power, medical devices, aerospace and so on.





PCB Assembly Description



Type of  Assembly	SMT,Thru-hole, DIP
Solder Type	Water Soluble Solder Paste, Leaded and Lead-Free
Components	Passive Down to 0201 size
	BGA and VFBGA
	Leadless Chip Carriers/CSP
	Double-sided SMT Assembly
	Fine Pitch to 0.8mils
	BGA Repair and Reball
	Part Removal and Replacement
Bare Board Size	Smallest:0.25*0.25 inches
	Largest:20*20 inches
File Formate	Bill of Materials
	Gerber files
	Pick-N-Place file
Types of Service	Turn-key, partial turn-key, or consignment
Component  packaging	Cut Tape,Tube, Reels, Loose Parts
Turn Time	Same day service to 15 days service
Testing	X-Ray Inspection AOI Test Function Test

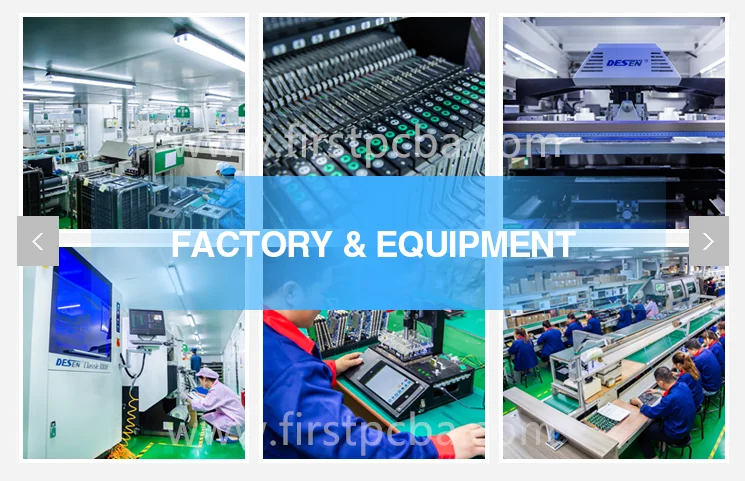

Our PCB Assembly factory

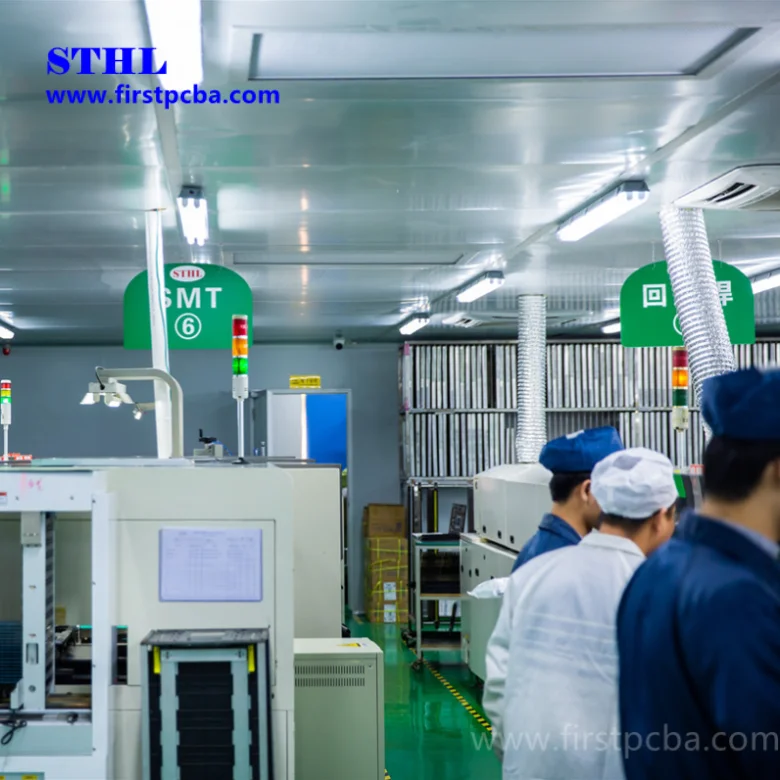

SMT Assembly production line

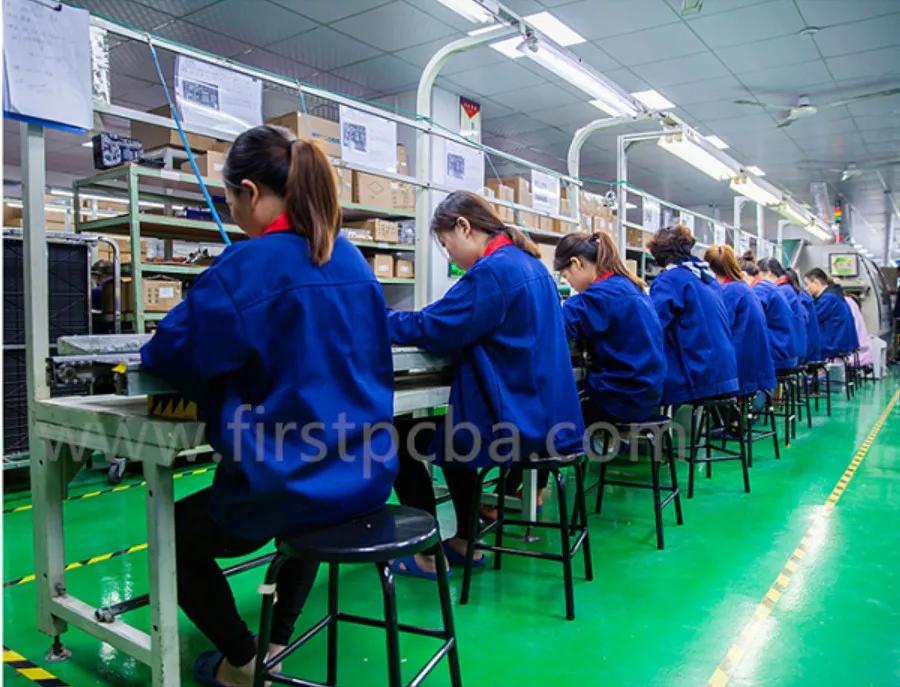

DIP Assembly production line





STHL Electronics is a professional PCBA manufacturer, we offers excellent services:





Testing

AOI Testing

Check for line width and spacing

Check for the solder paste

Check for the components down to 0201"

Check for missing components, off set, incorrect parts, polatity



X-RAY Testing

Check for the BGAS

Check for the Micro BGAS

Check for the chip scale packages

Check for the Bare board



In-Circuit Testing

Power-up Test

Function Test

Flash device programming



STHL PCBA advantages:







Packing and Delivery





WHY CHOOSE STHL PCBA ?

1. STHL PCBA is a real factory with 6 SMT lines, 2 DIP lines and a box building assemble line.

2. Management team are 10+ years experience in PCB assemble industry.

3. STHL PCBA sales representatives are very stable and mostly worked here since the company establish. They can help you remember your projects details and requested.

4. Our engineers can contact with customers directly in English if necessary, the faster and more effective communication helps lead time a lot.

5. We buy components from famous international platform like Mouser, Digikey, Farnell, Future, Avnet, Arrow or agents. Repeat orders material normally ordered from the same source, we do not change suppliers time by time if everything goes well.

6. No components are substitutes without customers' approval. We know alternatives can save cost, but we don't want to make one-time business. STHL PCBA always looking for long-term business.
