Reflective blood oxygen module wearable device PCBA anti movement PR\SPO2 module earphone helmet
- Category: PCB & PCBA >>>
- Supplier: Shenzhen Narig Bio-Medical Technology Co. Ltd.
Share on (1600455189705):
Product Overview
Description
Specification
Item | 1 Piece | ||
Place of Origin | China | ||
Brand Name | Narigemed\t | ||
Model Number | ref01 | ||
Applicable People | Adults/Children≥10kg | ||
Color | White + grey | ||

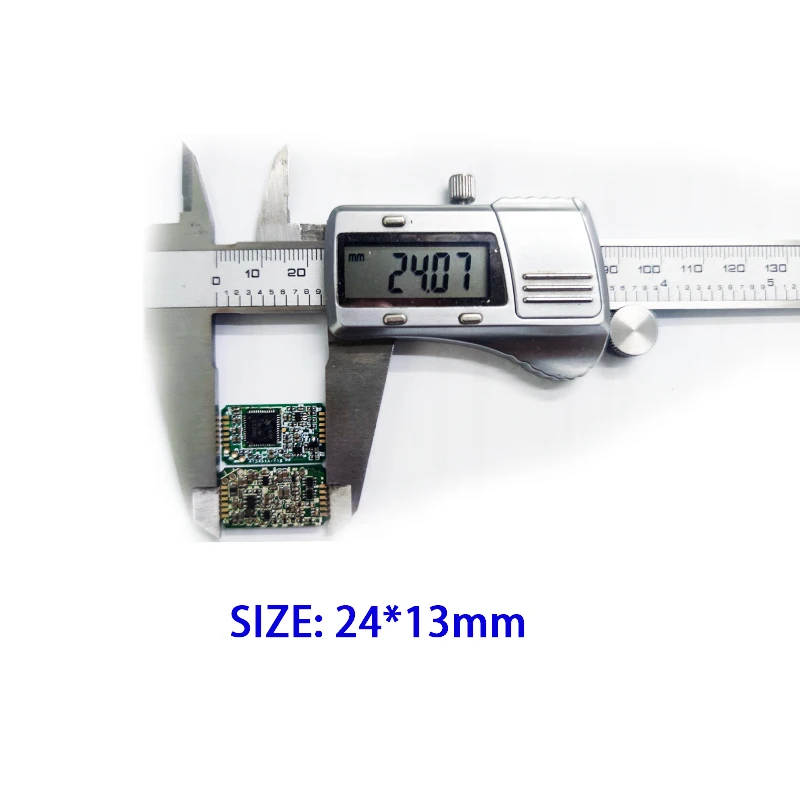

Product Size | 24mm×13mm | ||
Expiration date | 3 years | ||
Warranty | 1 Year | ||
Function | SpO2; PR; | ||
Low perfusion performance | 0.1% The accuracy of blood oxygen measurement is ±2% and pulse rate measurement is ±2bpm under low perfusion | ||
SpO2 measurement range | 35%~100% | ||
SpO2 measurement Accuracy | ±2%（70%~100%） | ||
SpO2 resolution | 1% | ||
PR measurement range | 25~250bpm | ||
PR measurement Accuracy | The greater of ±2bpm and ±2% | ||
Anti-motion interference performance | Accuracy of ±3% for SpO2 and ±4bpm for pulse rate at 0~4Hz, 0~3cm random motion or fixed frequency motion | ||
Respiratory rate | available | ||
Initial output time/Measurement time | 4s | ||
Automatic shutdown | Power off after finger out 8s | ||
Buzz sounds\\Blue tooth | Optional | ||
perfusion Index Range | 0.02%~20% | ||
plethysmogram | Yes | ||
Switch display direction | available | ||
Operating Conditions | Temperature：0~40℃， Humidity：15%~95% Atmospheric pressure：79.5kPa~107.4kPa | ||
Storage And Shipping Conditions | Temperature: 5℃ to 40℃; Humidity: 15% to 93% RH; Pressure altitude: 70Kpa - 106Kpa | ||
