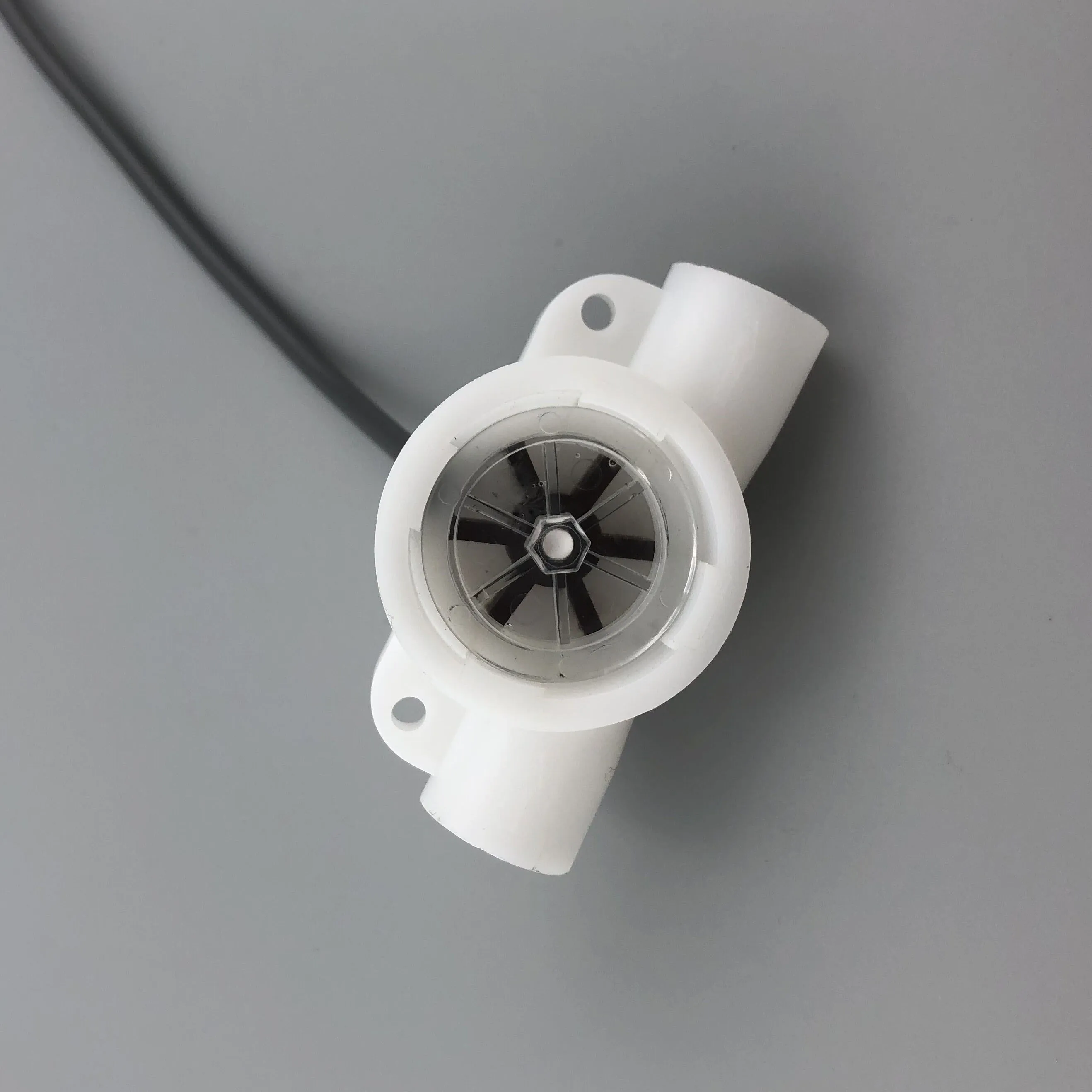

Wholesale Hall Effect Pulse Signal Magnetic Flow Meter Switch Water Flow Sensor For Water Heater Chiller
- Category: Flow Sensors >>>
- Supplier: FAST ELECTRIC LIMITED
Share on (1600455214566):
Product Overview
Description
Product Description
Product Name | water flow sensor |
Application | chillers,water heater and other circulating water system. |
Material | Nylon,Stainless Steel,Brass |
Max volum | 2-30L/min 0.3-5L/min |
Electrical Data | 4-24 VDC |
Max pressure | 1 MPa ~ 2MPa |
Cable type | UL1007-AWG24 |
Sensor | Hall sensor |
Product Show

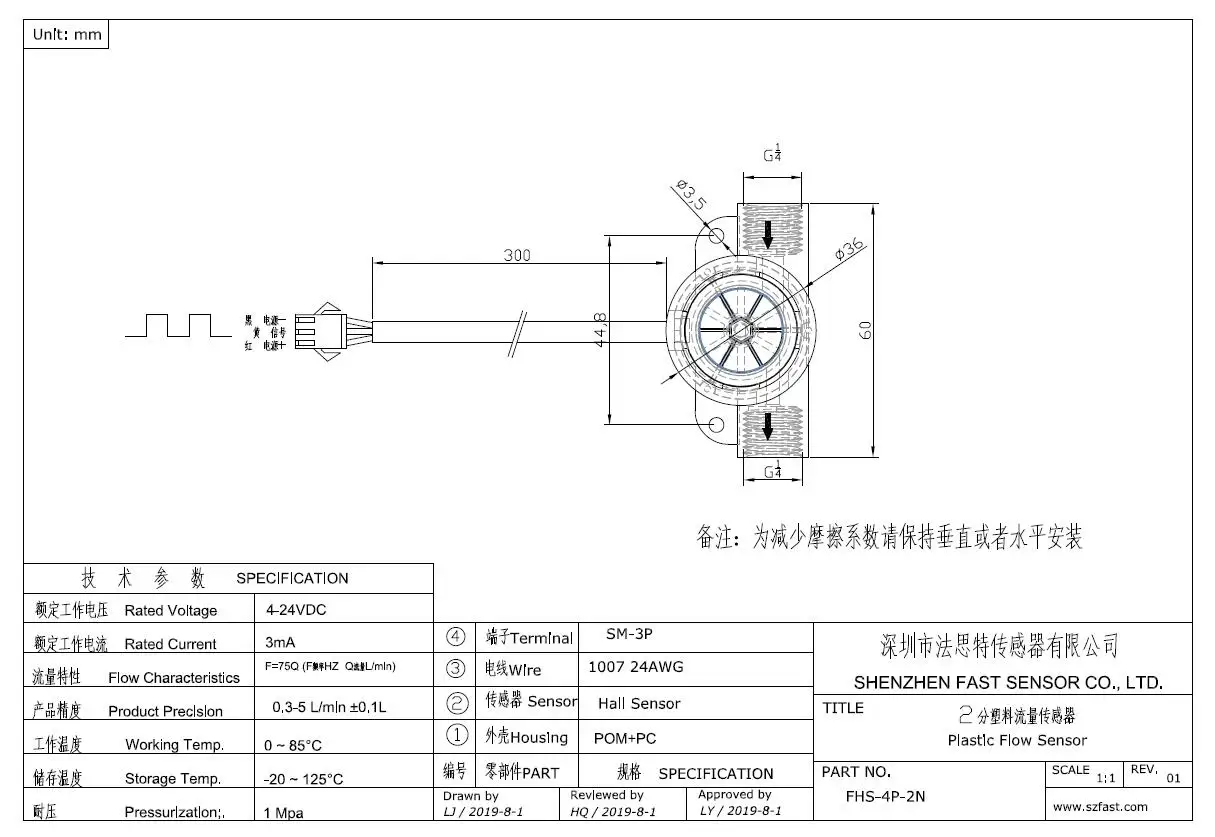

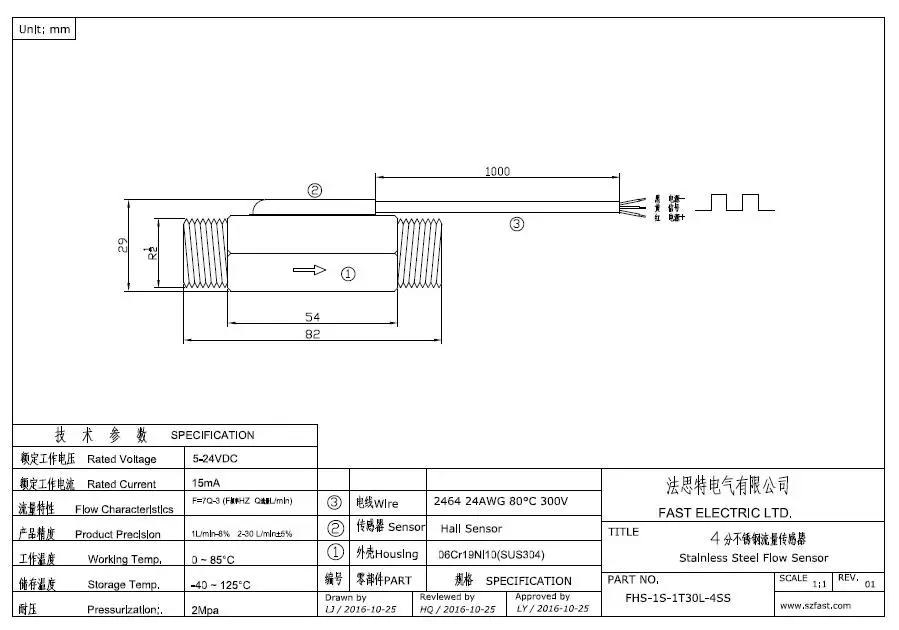

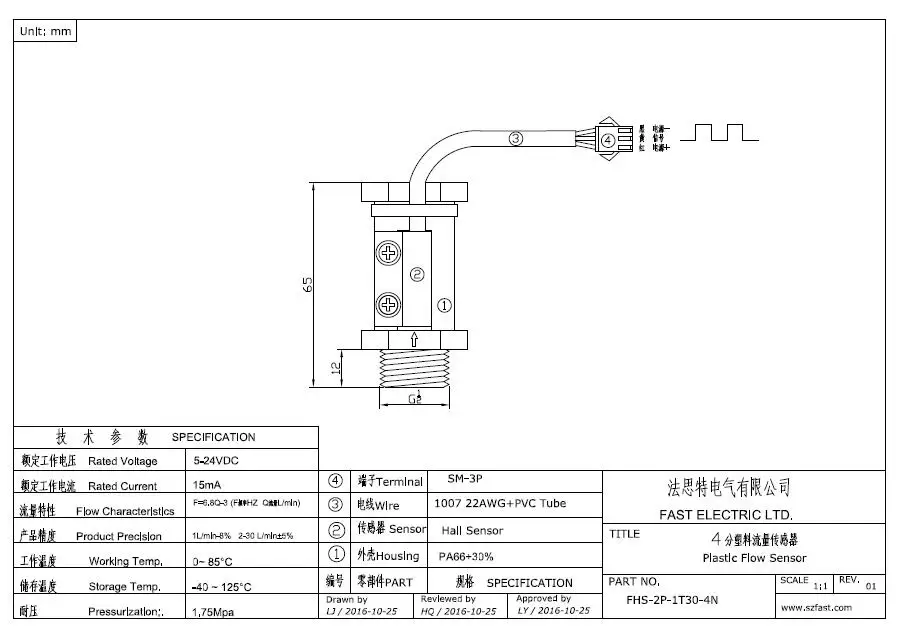

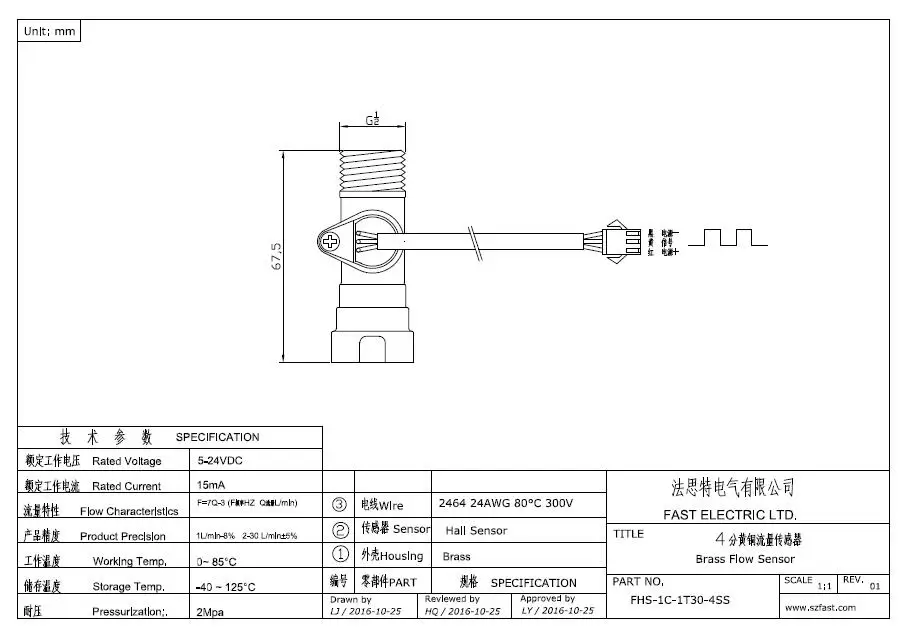

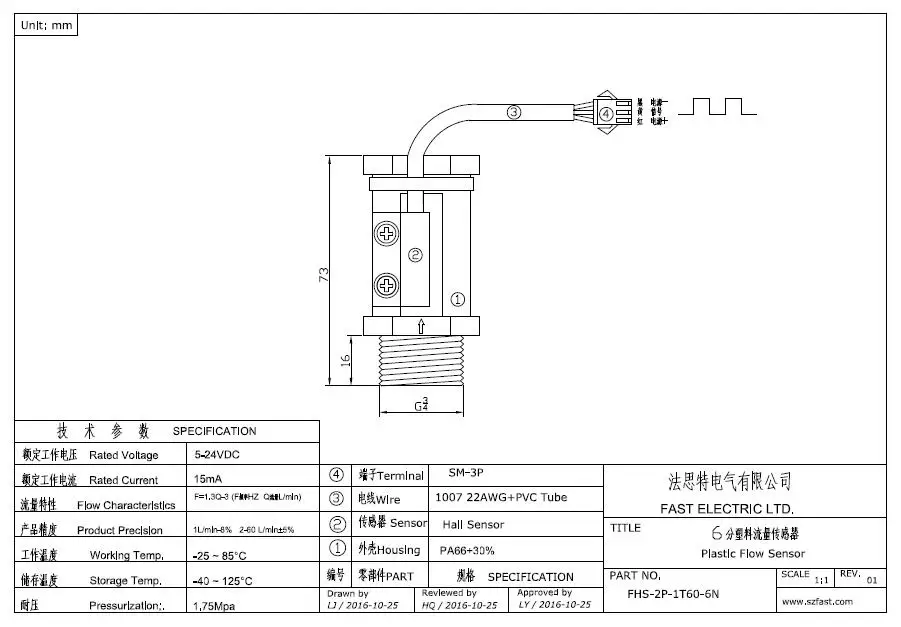

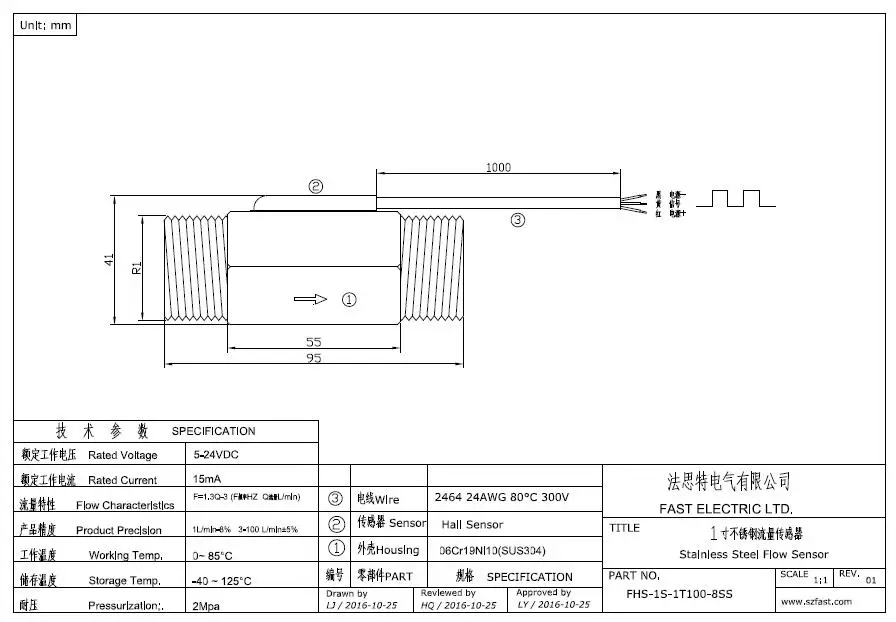

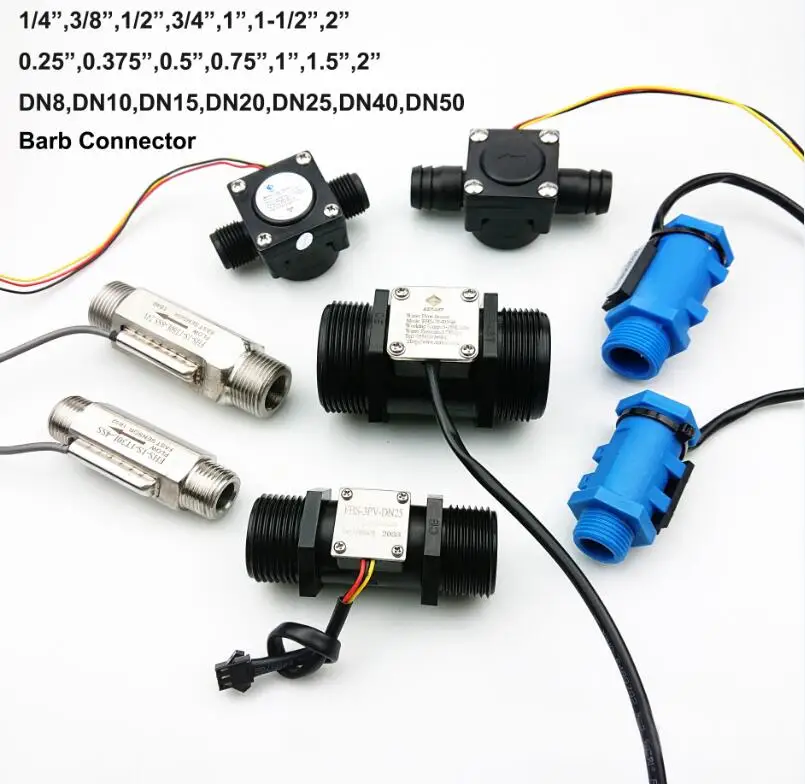

Water flow sensor

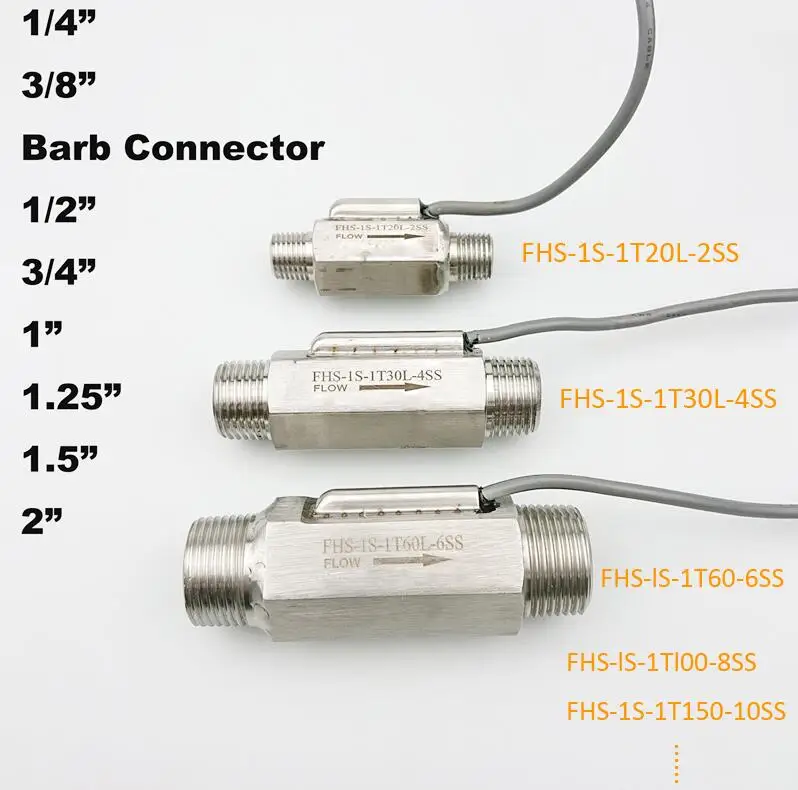

--Connection size of others: 1/4'', 1/2'', 3/4'', 1'', 1 1/4'', 1 1/2'', 2''.
--Flow range: min 0.3L/min, max 200L/min.
--Material:Plastic, brass/copper, POM,stainless steel
--Output: red wire connect to "+", black wire connect to "-", yellow wire is pulse signal output.
--Application: water heater, wall-hanging stove, water fountains, vending machines..
--Color: Black, White, Grey, Transparent,cyan
--Flow range: min 0.3L/min, max 200L/min.
--Material:Plastic, brass/copper, POM,stainless steel
--Output: red wire connect to "+", black wire connect to "-", yellow wire is pulse signal output.
--Application: water heater, wall-hanging stove, water fountains, vending machines..
--Color: Black, White, Grey, Transparent,cyan
